budgetfilereadermodule Module Reference

Data Types

type  budgetfileheadertype
type  budgetfilereadertype

Functions/Subroutines

subroutine initialize (this, iu, iout, ncrbud)
subroutine read_header (this, success, iout)
subroutine read_record (this, success, iout)
subroutine finalize (this)
character(len=:) function, allocatable get_str (this)
 Get a string representation of the budget file header.
subroutine rewind (this)

Function/Subroutine Documentation

◆ finalize()

subroutine budgetfilereadermodule::finalize ( class(budgetfilereadertype) this)
private

Definition at line 249 of file BudgetFileReader.f90.

250 class(BudgetFileReaderType) :: this
251 close (this%inunit)
252 if (allocated(this%flowja)) deallocate (this%flowja)
253 if (allocated(this%nodesrc)) deallocate (this%nodesrc)
254 if (allocated(this%nodedst)) deallocate (this%nodedst)
255 if (allocated(this%flow)) deallocate (this%flow)
256 if (allocated(this%auxvar)) deallocate (this%auxvar)
257 if (allocated(this%header)) deallocate (this%header)
258 if (allocated(this%headernext)) deallocate (this%headernext)

◆ get_str()

character(len=:) function, allocatable budgetfilereadermodule::get_str ( class(budgetfileheadertype), intent(in) this)
private

Definition at line 262 of file BudgetFileReader.f90.

263 class(BudgetFileHeaderType), intent(in) :: this
264 character(len=:), allocatable :: str
265 character(len=LENHUGELINE) :: temp
266
267 write (temp, '(*(G0))') &
268 'Budget file header (pos: ', this%pos, &
269 ', kper: ', this%kper, &
270 ', kstp: ', this%kstp, &
271 ', delt: ', this%delt, &
272 ', pertim: ', this%pertim, &
273 ', totim: ', this%totim, &
274 ', budtxt: ', trim(this%budtxt), &
275 ', nval: ', this%nval, &
276 ', idum1: ', this%idum1, &
277 ', idum2: ', this%idum2, &
278 ', imeth: ', this%imeth, &
279 ', srcmodel: ', trim(this%srcmodelname), &
280 ', srcpackage: ', trim(this%srcpackagename), &
281 ', dstmodel: ', trim(this%dstmodelname), &
282 ', dstpackage: ', trim(this%dstpackagename), &
283 ', ndat: ', this%ndat, &
284 ', naux: ', this%naux, &
285 ', nlist: ', this%nlist, &
286 ')'
287 str = trim(temp)

◆ initialize()

subroutine budgetfilereadermodule::initialize ( class(budgetfilereadertype) this,
integer(i4b), intent(in) iu,
integer(i4b), intent(in) iout,
integer(i4b), intent(out) ncrbud )

Definition at line 50 of file BudgetFileReader.f90.

51 ! -- dummy
52 class(BudgetFileReaderType) :: this
53 integer(I4B), intent(in) :: iu
54 integer(I4B), intent(in) :: iout
55 integer(I4B), intent(out) :: ncrbud
56 ! -- local
57 integer(I4B) :: ibudterm
58 integer(I4B) :: kstp_last, kper_last
59 integer(I4B) :: maxaux
60 logical :: success
61 !
62 this%inunit = iu
63 this%nbudterms = 0
64 ncrbud = 0
65 maxaux = 0
66 call this%rewind()
67 !
68 ! -- Determine number of budget terms within a time step
69 if (iout > 0) &
70 write (iout, '(a)') &
71 'Reading budget file to determine number of terms per time step.'
72 !
73 ! -- Read through the first set of data for time step 1 and stress period 1
74 do
75 call this%read_record(success)
76 if (.not. success) exit
77 this%nbudterms = this%nbudterms + 1
78 select type (h => this%header)
79 type is (budgetfileheadertype)
80 if (h%naux > maxaux) maxaux = h%naux
81 end select
82
83 if (this%endoffile) exit
84 if (this%header%kstp /= this%headernext%kstp .or. &
85 this%header%kper /= this%headernext%kper) &
86 exit
87 end do
88 kstp_last = this%header%kstp
89 kper_last = this%header%kper
90 allocate (this%budtxtarray(this%nbudterms))
91 allocate (this%imetharray(this%nbudterms))
92 allocate (this%dstpackagenamearray(this%nbudterms))
93 allocate (this%nauxarray(this%nbudterms))
94 allocate (this%auxtxtarray(maxaux, this%nbudterms))
95 this%auxtxtarray(:, :) = ''
96 call this%rewind()
97 !
98 ! -- Now read through again and store budget text names
99 do ibudterm = 1, this%nbudterms
100 call this%read_record(success, iout)
101 if (.not. success) exit
102 select type (h => this%header)
103 type is (budgetfileheadertype)
104 this%budtxtarray(ibudterm) = h%budtxt
105 this%imetharray(ibudterm) = h%imeth
106 this%dstpackagenamearray(ibudterm) = h%dstpackagename
107 this%nauxarray(ibudterm) = h%naux
108 if (h%naux > 0) then
109 this%auxtxtarray(1:h%naux, ibudterm) = h%auxtxt(:)
110 end if
111 if (h%srcmodelname == h%dstmodelname) then
112 if (allocated(this%nodesrc)) ncrbud = max(ncrbud, maxval(this%nodesrc))
113 end if
114 end select
115 end do
116 call this%rewind()
117 if (iout > 0) &
118 write (iout, '(a, i0, a)') 'Detected ', this%nbudterms, &
119 ' unique flow terms in budget file.'

◆ read_header()

subroutine budgetfilereadermodule::read_header ( class(budgetfilereadertype), intent(inout) this,
logical, intent(out) success,
integer(i4b), intent(in), optional iout )
private

Definition at line 124 of file BudgetFileReader.f90.

125 ! -- dummy
126 class(BudgetFileReaderType), intent(inout) :: this
127 logical, intent(out) :: success
128 integer(I4B), intent(in), optional :: iout
129 ! -- local
130 integer(I4B) :: iostat
131 integer(I8B) :: pos
132 character(len=LINELENGTH) :: errmsg
133 !
134 success = .true.
135 select type (h => this%header)
136 type is (budgetfileheadertype)
137 h%kstp = 0
138 h%kper = 0
139 h%budtxt = ''
140 h%nval = 0
141 h%idum1 = 0
142 h%idum2 = 0
143 h%imeth = 0
144 h%srcmodelname = ''
145 h%srcpackagename = ''
146 h%dstmodelname = ''
147 h%dstpackagename = ''
148 h%ndat = 0
149 h%naux = 0
150 h%nlist = 0
151 if (allocated(h%auxtxt)) deallocate (h%auxtxt)
152
153 inquire (unit=this%inunit, pos=h%pos)
154 read (this%inunit, iostat=iostat) h%kstp, h%kper, &
155 h%budtxt, h%nval, h%idum1, h%idum2
156 if (iostat /= 0) then
157 success = .false.
158 if (iostat < 0) this%endoffile = .true.
159 return
160 end if
161 read (this%inunit) h%imeth, h%delt, h%pertim, h%totim
162 if (h%imeth == 6) then
163 read (this%inunit) h%srcmodelname
164 read (this%inunit) h%srcpackagename
165 read (this%inunit) h%dstmodelname
166 read (this%inunit) h%dstpackagename
167 read (this%inunit) h%ndat
168 h%naux = h%ndat - 1
169 if (allocated(h%auxtxt)) deallocate (h%auxtxt)
170 allocate (h%auxtxt(h%naux))
171 read (this%inunit) h%auxtxt
172 read (this%inunit) h%nlist
173 elseif (h%imeth /= 1) then
174 write (errmsg, '(a, a)') 'ERROR READING: ', trim(h%budtxt)
175 call store_error(errmsg)
176 write (errmsg, '(a, i0)') 'INVALID METHOD CODE DETECTED: ', h%imeth
177 call store_error(errmsg)
178 call store_error_unit(this%inunit)
179 end if
180 end select
181 inquire (unit=this%inunit, pos=pos)
182 this%header%size = pos - this%header%pos

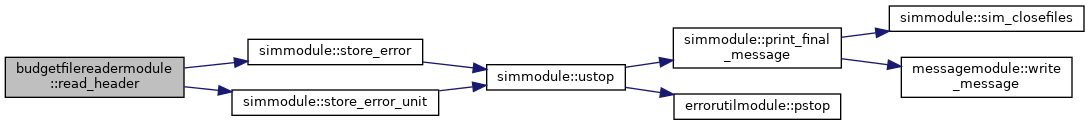

Here is the call graph for this function:

◆ read_record()

subroutine budgetfilereadermodule::read_record ( class(budgetfilereadertype), intent(inout) this,
logical, intent(out) success,
integer(i4b), intent(in), optional iout )
private

Definition at line 187 of file BudgetFileReader.f90.

188 ! -- modules
190 ! -- dummy
191 class(BudgetFileReaderType), intent(inout) :: this
192 logical, intent(out) :: success
193 integer(I4B), intent(in), optional :: iout
194 ! -- local
195 integer(I4B) :: i, n, iout_opt
196 !
197 if (present(iout)) then
198 iout_opt = iout
199 else
200 iout_opt = 0
201 end if
202 !
203 call this%read_header(success, iout_opt)
204 if (.not. success) return
205 !
206 select type (h => this%header)
207 type is (budgetfileheadertype)
208 if (h%imeth == 1) then
209 if (trim(adjustl(h%budtxt)) == 'FLOW-JA-FACE') then
210 if (allocated(this%flowja)) deallocate (this%flowja)
211 allocate (this%flowja(h%nval))
212 read (this%inunit) this%flowja
213 this%hasimeth1flowja = .true.
214 else
215 h%nval = h%nval * h%idum1 * abs(h%idum2)
216 if (allocated(this%flow)) deallocate (this%flow)
217 allocate (this%flow(h%nval))
218 if (allocated(this%nodesrc)) deallocate (this%nodesrc)
219 allocate (this%nodesrc(h%nval))
220 read (this%inunit) this%flow
221 do i = 1, h%nval
222 this%nodesrc(i) = i
223 end do
224 end if
225 elseif (h%imeth == 6) then
226 if (allocated(this%nodesrc)) deallocate (this%nodesrc)
227 allocate (this%nodesrc(h%nlist))
228 if (allocated(this%nodedst)) deallocate (this%nodedst)
229 allocate (this%nodedst(h%nlist))
230 if (allocated(this%flow)) deallocate (this%flow)
231 allocate (this%flow(h%nlist))
232 if (allocated(this%auxvar)) deallocate (this%auxvar)
233 allocate (this%auxvar(h%naux, h%nlist))
234 read (this%inunit) (this%nodesrc(n), this%nodedst(n), this%flow(n), &
235 (this%auxvar(i, n), i=1, h%naux), n=1, h%nlist)
236 end if
237
238 if (iout_opt > 0) then
239 write (iout_opt, '(1pg15.6, a, 1x, a)') h%totim, h%budtxt, &
240 h%dstpackagename
241 end if
242 end select
243 !
244 call this%peek_record()
subroutine, public fseek_stream(iu, offset, whence, status)
Move the file pointer.
Here is the call graph for this function:

◆ rewind()

subroutine budgetfilereadermodule::rewind ( class(budgetfilereadertype), intent(inout) this)
private

Definition at line 290 of file BudgetFileReader.f90.

291 class(BudgetFileReaderType), intent(inout) :: this
292
293 rewind(this%inunit)
294 this%endoffile = .false.
295 if (allocated(this%header)) deallocate (this%header)
296 if (allocated(this%headernext)) deallocate (this%headernext)
297 allocate (budgetfileheadertype :: this%header)
298 allocate (budgetfileheadertype :: this%headernext)
299 this%header%pos = 1
300 this%headernext%pos = 1
Here is the call graph for this function:
