parallelsolutionmodule Module Reference

Data Types

type  parallelsolutiontype

Functions/Subroutines

logical(lgp) function par_has_converged (this, max_dvc)
 Check global convergence. The local maximum dependent variable change is reduced over MPI with all other processes.
integer(i4b) function par_package_convergence (this, dpak, cpakout, iend)
integer(i4b) function par_sync_newtonur_flag (this, inewtonur)
logical(lgp) function par_nur_has_converged (this, dxold_max, hncg)
subroutine par_calc_ptc (this, iptc, ptcf)
 Calculate pseudo-transient continuation factor.
subroutine par_underrelax (this, kiter, bigch, neq, active, x, xtemp)
 apply under-relaxation in sync over all processes
subroutine par_backtracking_xupdate (this, bt_flag)
 synchronize backtracking flag over processes
integer(i4b) function par_get_idvscale (this)
 synchronize idvscale flag over processes
subroutine par_maxval (this, nsize, v, vmax)
 synchronize maxval over processes

Function/Subroutine Documentation

◆ par_backtracking_xupdate()

subroutine parallelsolutionmodule::par_backtracking_xupdate ( class(parallelsolutiontype), intent(inout) this,
integer(i4b), intent(inout) bt_flag )
private
Parameters
[in,out]thisParallelSolutionType instance
[in,out]bt_flagglobal backtracking flag (1) backtracking performed (0) backtracking not performed

Definition at line 220 of file ParallelSolution.f90.

221 ! -- dummy variables
222 class(ParallelSolutionType), intent(inout) :: this !< ParallelSolutionType instance
223 integer(I4B), intent(inout) :: bt_flag !< global backtracking flag (1) backtracking performed (0) backtracking not performed
224 ! -- local variables
225 integer(I4B) :: btflag_local
226 type(MpiWorldType), pointer :: mpi_world
227 integer :: ierr
228
229 call g_prof%start("Parallel Solution (backtrack)", this%tmr_backtracking)
230
231 mpi_world => get_mpi_world()
232
233 ! get local bt flag
234 btflag_local = this%NumericalSolutionType%get_backtracking_flag()
235
236 ! reduce into global decision (if any, then all)
237 call mpi_allreduce(btflag_local, bt_flag, 1, mpi_integer, &
238 mpi_max, mpi_world%comm, ierr)
239 call check_mpi(ierr)
240
241 ! perform backtracking if ...
242 if (bt_flag > 0) then
243 call this%NumericalSolutionType%apply_backtracking()
244 end if
245
246 call g_prof%stop(this%tmr_backtracking)
247
Here is the call graph for this function:

◆ par_calc_ptc()

subroutine parallelsolutionmodule::par_calc_ptc ( class(parallelsolutiontype) this,
integer(i4b) iptc,
real(dp) ptcf )
private
Parameters
thisparallel solution
iptcPTC (1) or not (0)
ptcfthe (global) PTC factor calculated

Definition at line 147 of file ParallelSolution.f90.

148 class(ParallelSolutionType) :: this !< parallel solution
149 integer(I4B) :: iptc !< PTC (1) or not (0)
150 real(DP) :: ptcf !< the (global) PTC factor calculated
151 ! local
152 integer(I4B) :: iptc_loc
153 real(DP) :: ptcf_loc, ptcf_glo_max
154 integer :: ierr
155 type(MpiWorldType), pointer :: mpi_world
156
157 call g_prof%start("Parallel Solution (PTC calc)", this%tmr_calcptc)
158
159 mpi_world => get_mpi_world()
160 call this%NumericalSolutionType%sln_calc_ptc(iptc_loc, ptcf_loc)
161 if (iptc_loc == 0) ptcf_loc = dzero
162
163 ! now reduce
164 call mpi_allreduce(ptcf_loc, ptcf_glo_max, 1, mpi_double_precision, &
165 mpi_max, mpi_world%comm, ierr)
166 call check_mpi(ierr)
167
168 iptc = 0
169 ptcf = dzero
170 if (ptcf_glo_max > dzero) then
171 iptc = 1
172 ptcf = ptcf_glo_max
173 end if
174
175 call g_prof%stop(this%tmr_calcptc)
176
Here is the call graph for this function:

◆ par_get_idvscale()

integer(i4b) function parallelsolutionmodule::par_get_idvscale ( class(parallelsolutiontype) this)
private
Parameters
thisParallelSolutionType instance
Returns
global idv_scale flag (1) dv_scaling performed (0) dv_scaling not performed (-1) error

Definition at line 252 of file ParallelSolution.f90.

253 ! -- dummy variables
254 class(ParallelSolutionType) :: this !< ParallelSolutionType instance
255 integer(I4B) :: idv_scale_global !< global idv_scale flag (1) dv_scaling performed (0) dv_scaling not performed (-1) error
256 ! -- local variables
257 integer(I4B) :: idv_scale_local
258 type(MpiWorldType), pointer :: mpi_world
259 integer :: ierr
260
261 mpi_world => get_mpi_world()
262
263 ! get local idvscale flag
264 idv_scale_local = this%NumericalSolutionType%sln_get_idvscale()
265
266 ! reduce into global decision (if any, then all)
267 call mpi_allreduce(idv_scale_local, idv_scale_global, 1, mpi_integer, &
268 mpi_min, mpi_world%comm, ierr)
269 call check_mpi(ierr)
270

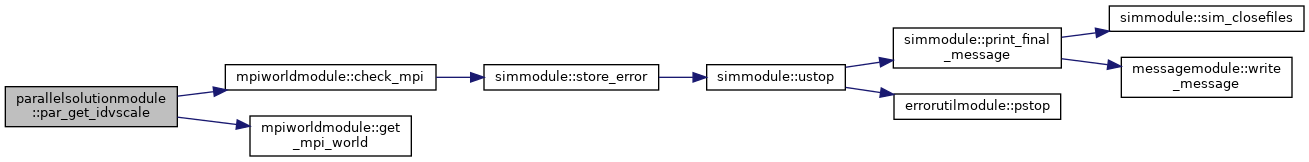

Here is the call graph for this function:

◆ par_has_converged()

logical(lgp) function parallelsolutionmodule::par_has_converged ( class(parallelsolutiontype) this,
real(dp) max_dvc )
Parameters
thisparallel solution
max_dvcthe LOCAL maximum dependent variable change
Returns
True, when GLOBALLY converged

Definition at line 40 of file ParallelSolution.f90.

41 class(ParallelSolutionType) :: this !< parallel solution
42 real(DP) :: max_dvc !< the LOCAL maximum dependent variable change
43 logical(LGP) :: has_converged !< True, when GLOBALLY converged
44 ! local
45 real(DP) :: global_max_dvc
46 real(DP) :: abs_max_dvc
47 integer :: ierr
48 type(MpiWorldType), pointer :: mpi_world
49
50 call g_prof%start("Parallel Solution (cnvg check)", this%tmr_convergence)
51
52 mpi_world => get_mpi_world()
53
54 has_converged = .false.
55 abs_max_dvc = abs(max_dvc)
56 call mpi_allreduce(abs_max_dvc, global_max_dvc, 1, mpi_double_precision, &
57 mpi_max, mpi_world%comm, ierr)
58 call check_mpi(ierr)
59 if (global_max_dvc <= this%dvclose) then
60 has_converged = .true.
61 end if
62
63 call g_prof%stop(this%tmr_convergence)
64
Here is the call graph for this function:

◆ par_maxval()

subroutine parallelsolutionmodule::par_maxval ( class(parallelsolutiontype) this,
integer(i4b), intent(in) nsize,
real(dp), dimension(nsize), intent(in) v,
real(dp), intent(inout) vmax )
private
Parameters
thisParallelSolutionType instance
[in]nsizelength of vector
[in]vinput vector
[in,out]vmaxmaximum value

Definition at line 275 of file ParallelSolution.f90.

276 ! -- dummy variables
277 class(ParallelSolutionType) :: this !< ParallelSolutionType instance
278 integer(I4B), intent(in) :: nsize !< length of vector
279 real(DP), dimension(nsize), intent(in) :: v !< input vector
280 real(DP), intent(inout) :: vmax !< maximum value
281 ! -- local variables
282 real(DP) :: vmax_local
283 real(DP) :: vmin_global
284 type(MpiWorldType), pointer :: mpi_world
285 integer :: ierr
286
287 mpi_world => get_mpi_world()
288
289 ! determine local vmax
290 call this%NumericalSolutionType%sln_maxval(nsize, v, vmax_local)
291
292 ! reduce into global decision (if any, then all)
293 call mpi_allreduce(vmax_local, vmax, 1, mpi_double_precision, &
294 mpi_max, mpi_world%comm, ierr)
295 call check_mpi(ierr)
296
297 call mpi_allreduce(vmax_local, vmin_global, 1, mpi_double_precision, &
298 mpi_min, mpi_world%comm, ierr)
299 call check_mpi(ierr)
300
301 if (abs(vmin_global) > abs(vmax)) then
302 vmax = vmin_global
303 end if
304

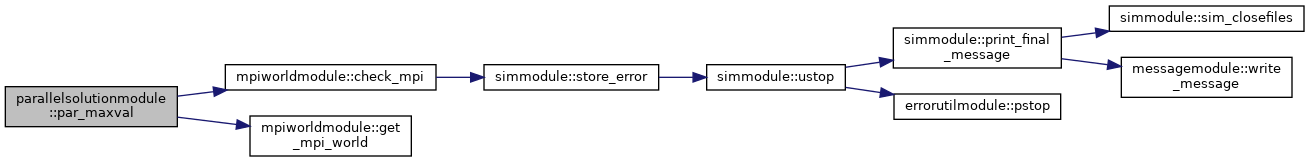

Here is the call graph for this function:

◆ par_nur_has_converged()

logical(lgp) function parallelsolutionmodule::par_nur_has_converged ( class(parallelsolutiontype) this,
real(dp), intent(in) dxold_max,
real(dp), intent(in) hncg )
private
Parameters
thisparallel solution instance
[in]dxold_maxthe maximum dependent variable change for cells not adjusted by NUR
[in]hncglargest dep. var. change at end of Picard iter.
Returns
True, when converged

Definition at line 113 of file ParallelSolution.f90.

115 class(ParallelSolutionType) :: this !< parallel solution instance
116 real(DP), intent(in) :: dxold_max !< the maximum dependent variable change for cells not adjusted by NUR
117 real(DP), intent(in) :: hncg !< largest dep. var. change at end of Picard iter.
118 logical(LGP) :: has_converged !< True, when converged
119 ! local
120 integer(I4B) :: icnvg_local
121 integer(I4B) :: icnvg_global
122 integer :: ierr
123 type(MpiWorldType), pointer :: mpi_world
124
125 call g_prof%start("Parallel Solution (NUR cnvg)", this%tmr_nur_cnvg)
126
127 mpi_world => get_mpi_world()
128
129 has_converged = .false.
130 icnvg_local = 0
131 if (this%NumericalSolutionType%sln_nur_has_converged( &
132 dxold_max, hncg)) then
133 icnvg_local = 1
134 end if
135
136 call mpi_allreduce(icnvg_local, icnvg_global, 1, mpi_integer, &
137 mpi_min, mpi_world%comm, ierr)
138 call check_mpi(ierr)
139 if (icnvg_global == 1) has_converged = .true.
140
141 call g_prof%stop(this%tmr_nur_cnvg)
142
Here is the call graph for this function:

◆ par_package_convergence()

integer(i4b) function parallelsolutionmodule::par_package_convergence ( class(parallelsolutiontype) this,
real(dp), intent(in) dpak,
character(len=lenpakloc), intent(in) cpakout,
integer(i4b), intent(in) iend )
private
Parameters
thisparallel solution instance
[in]dpakNewton Under-relaxation flag

Definition at line 67 of file ParallelSolution.f90.

69 class(ParallelSolutionType) :: this !< parallel solution instance
70 real(DP), intent(in) :: dpak !< Newton Under-relaxation flag
71 character(len=LENPAKLOC), intent(in) :: cpakout
72 integer(I4B), intent(in) :: iend
73 ! local
74 integer(I4B) :: icnvg_global
75 integer(I4B) :: icnvg_local
76 integer :: ierr
77 type(MpiWorldType), pointer :: mpi_world
78
79 call g_prof%start("Parallel Solution (package cnvg)", this%tmr_pkg_cnvg)
80
81 mpi_world => get_mpi_world()
82
83 icnvg_local = &
84 this%NumericalSolutionType%sln_package_convergence(dpak, cpakout, iend)
85
86 call mpi_allreduce(icnvg_local, icnvg_global, 1, mpi_integer, &
87 mpi_min, mpi_world%comm, ierr)
88 call check_mpi(ierr)
89
90 call g_prof%stop(this%tmr_pkg_cnvg)
91
Here is the call graph for this function:

◆ par_sync_newtonur_flag()

integer(i4b) function parallelsolutionmodule::par_sync_newtonur_flag ( class(parallelsolutiontype) this,
integer(i4b), intent(in) inewtonur )
private
Parameters
thisparallel solution instance
[in]inewtonurlocal Newton Under-relaxation flag
Returns
Maximum of all local values (1 = under-relaxation applied)

Definition at line 94 of file ParallelSolution.f90.

95 class(ParallelSolutionType) :: this !< parallel solution instance
96 integer(I4B), intent(in) :: inewtonur !< local Newton Under-relaxation flag
97 ! local
98 integer(I4B) :: ivalue !< Maximum of all local values (1 = under-relaxation applied)
99 integer :: ierr
100 type(MpiWorldType), pointer :: mpi_world
101
102 call g_prof%start("Parallel Solution (NUR)", this%tmr_sync_nur)
103
104 mpi_world => get_mpi_world()
105 call mpi_allreduce(inewtonur, ivalue, 1, mpi_integer, &
106 mpi_max, mpi_world%comm, ierr)
107 call check_mpi(ierr)
108
109 call g_prof%stop(this%tmr_sync_nur)
110
Here is the call graph for this function:

◆ par_underrelax()

subroutine parallelsolutionmodule::par_underrelax ( class(parallelsolutiontype) this,
integer(i4b), intent(in) kiter,
real(dp), intent(in) bigch,
integer(i4b), intent(in) neq,
integer(i4b), dimension(neq), intent(in) active,
real(dp), dimension(neq), intent(inout) x,
real(dp), dimension(neq), intent(in) xtemp )
private
Parameters
thisparallel instance
[in]kiterPicard iteration number
[in]bigchmaximum dependent-variable change
[in]neqnumber of equations
[in]activeactive cell flag (1)
[in,out]xcurrent dependent-variable
[in]xtempprevious dependent-variable

Definition at line 181 of file ParallelSolution.f90.

182 class(ParallelSolutionType) :: this !< parallel instance
183 integer(I4B), intent(in) :: kiter !< Picard iteration number
184 real(DP), intent(in) :: bigch !< maximum dependent-variable change
185 integer(I4B), intent(in) :: neq !< number of equations
186 integer(I4B), dimension(neq), intent(in) :: active !< active cell flag (1)
187 real(DP), dimension(neq), intent(inout) :: x !< current dependent-variable
188 real(DP), dimension(neq), intent(in) :: xtemp !< previous dependent-variable
189 ! local
190 real(DP) :: dvc_global_max, dvc_global_min
191 integer :: ierr
192 type(MpiWorldType), pointer :: mpi_world
193
194 call g_prof%start("Parallel Solution (underrelax)", this%tmr_underrelax)
195
196 mpi_world => get_mpi_world()
197
198 ! first reduce largest change over all processes
199 call mpi_allreduce(bigch, dvc_global_max, 1, mpi_double_precision, &
200 mpi_max, mpi_world%comm, ierr)
201 call check_mpi(ierr)
202 call mpi_allreduce(bigch, dvc_global_min, 1, mpi_double_precision, &
203 mpi_min, mpi_world%comm, ierr)
204 call check_mpi(ierr)
205
206 if (abs(dvc_global_min) > abs(dvc_global_max)) then
207 dvc_global_max = dvc_global_min
208 end if
209
210 ! call local underrelax routine
211 call this%NumericalSolutionType%sln_underrelax(kiter, dvc_global_max, &
212 neq, active, x, xtemp)
213
214 call g_prof%stop(this%tmr_underrelax)
215
Here is the call graph for this function:
