tvkmodule Module Reference

This module contains time-varying conductivity package methods. More...

Data Types
type	tvktype

Functions/Subroutines
subroutine, public	tvk_cr (tvk, name_model, mempath, inunit, iout)
	Create a new TvkType object. More...
subroutine	tvk_ar_set_pointers (this)
	Announce package and set pointers to variables. More...
subroutine	tvk_apply_row_changes (this, nodeu, node)
	Apply this node's K/K22/K33 input values to node. More...
subroutine	tvk_set_changed_at (this, kper, kstp)
	Mark property changes as having occurred at (kper, kstp) More...
subroutine	tvk_reset_change_flags (this)
	Clear all per-node change flags. More...
subroutine	tvk_validate_change (this, n, varName)
	Check that a given property value is valid. More...
subroutine	tvk_da (this)
	Deallocate package memory. More...

Detailed Description

This module contains the methods used to allow hydraulic conductivity parameters in the NPF package (K11, K22, K33) to be varied throughout a simulation.

Function/Subroutine Documentation

tvk_apply_row_changes()

subroutine tvkmodule::tvk_apply_row_changes ( class(tvktype)  this, integer(i4b), intent(in)  nodeu, integer(i4b), intent(in)  node  )

private

Called for every tracked node; the DNODATA check on each field makes this a no-op except where a value is set. node may be invalid even when a field has a value at nodeu, so each field validates node itself before using it.

Definition at line 107 of file gwf-tvk.f90.

    ! -- dummy
    class(TvkType) :: this
    integer(I4B), intent(in) :: nodeu
    integer(I4B), intent(in) :: node
    ! -- local
    character(len=LINELENGTH) :: cellstr
    ! -- formats
    character(len=*), parameter :: fmtvalchg = &
      "(a, ' package: Setting ', a, ' value for cell ', a, ' at start of &
      &stress period ', i0, ' = ', g12.5)"
    !
    ! -- K is processed before K22/K33 so that validate_change can use
    ! -- the already-updated k11 value when ik22overk/ik33overk are set.
    if (this%k11_src(nodeu) /= dnodata) then
      if (node < 1 .or. node > this%dis%nodes) then
        call this%dis%noder_to_string(node, cellstr)
        write (errmsg, '(a,2(1x,a))') &
          'CELLID', trim(cellstr), 'is not in the active model domain.'
        call store_error(errmsg)
      else
        this%k11(node) = this%k11_src(nodeu)
        call this%validate_change(node, 'K')
        if (this%iprpak /= 0) then
          call this%dis%noder_to_string(node, cellstr)
          write (this%iout, fmtvalchg) &
            trim(adjustl(this%packName)), 'K', trim(cellstr), kper, &
            this%k11(node)
        end if
      end if
    end if
    !
    if (this%k22_src(nodeu) /= dnodata) then
      if (node < 1 .or. node > this%dis%nodes) then
        call this%dis%noder_to_string(node, cellstr)
        write (errmsg, '(a,2(1x,a))') &
          'CELLID', trim(cellstr), 'is not in the active model domain.'
        call store_error(errmsg)
      else
        this%k22(node) = this%k22_src(nodeu)
        call this%validate_change(node, 'K22')
        if (this%iprpak /= 0) then
          call this%dis%noder_to_string(node, cellstr)
          write (this%iout, fmtvalchg) &
            trim(adjustl(this%packName)), 'K22', trim(cellstr), kper, &
            this%k22(node)
        end if
      end if
    end if
    !
    if (this%k33_src(nodeu) /= dnodata) then
      if (node < 1 .or. node > this%dis%nodes) then
        call this%dis%noder_to_string(node, cellstr)
        write (errmsg, '(a,2(1x,a))') &
          'CELLID', trim(cellstr), 'is not in the active model domain.'
        call store_error(errmsg)
      else
        this%k33(node) = this%k33_src(nodeu)
        call this%validate_change(node, 'K33')
        if (this%iprpak /= 0) then
          call this%dis%noder_to_string(node, cellstr)
          write (this%iout, fmtvalchg) &
            trim(adjustl(this%packName)), 'K33', trim(cellstr), kper, &
            this%k33(node)
        end if
      end if
    end if

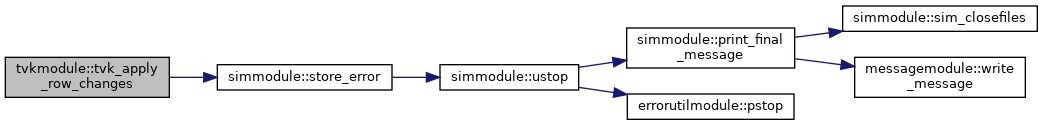

Here is the call graph for this function:

tvk_ar_set_pointers()

subroutine tvkmodule::tvk_ar_set_pointers ( class(tvktype)  this )

private

Announce package version and set array and variable pointers from the NPF package for access by TVK.

Definition at line 72 of file gwf-tvk.f90.

    ! -- dummy
    class(TvkType) :: this
    ! -- local
    character(len=LENMEMPATH) :: npfMemoryPath
    ! -- formats
    character(len=*), parameter :: fmttvk = &
      "(1x,/1x,'TVK -- TIME-VARYING K PACKAGE, VERSION 1, 08/18/2021', &
      &' INPUT READ FROM MEMPATH ', A, //)"
    !
    write (this%iout, fmttvk) this%input_mempath
    !
    npfmemorypath = create_mem_path(this%name_model, 'NPF')
    call mem_setptr(this%ik22overk, 'IK22OVERK', npfmemorypath)
    call mem_setptr(this%ik33overk, 'IK33OVERK', npfmemorypath)
    call mem_setptr(this%k11, 'K11', npfmemorypath)
    call mem_setptr(this%k22, 'K22', npfmemorypath)
    call mem_setptr(this%k33, 'K33', npfmemorypath)
    call mem_setptr(this%kchangeper, 'KCHANGEPER', npfmemorypath)
    call mem_setptr(this%kchangestp, 'KCHANGESTP', npfmemorypath)
    call mem_setptr(this%nodekchange, 'NODEKCHANGE', npfmemorypath)
    !
    ! -- set input mempath pointers
    call mem_setptr(this%k11_src, 'K', this%input_mempath)
    call mem_setptr(this%k22_src, 'K22', this%input_mempath)
    call mem_setptr(this%k33_src, 'K33', this%input_mempath)

Here is the call graph for this function:

tvk_cr()

subroutine, public tvkmodule::tvk_cr	(	type(tvktype), intent(out), pointer	tvk,
		character(len=*), intent(in)	name_model,
		character(len=*), intent(in)	mempath,
		integer(i4b), intent(in)	inunit,
		integer(i4b), intent(in)	iout
	)

Create a new time-varying conductivity (TvkType) object.

Definition at line 55 of file gwf-tvk.f90.

    ! -- dummy
    type(TvkType), pointer, intent(out) :: tvk
    character(len=*), intent(in) :: name_model
    character(len=*), intent(in) :: mempath
    integer(I4B), intent(in) :: inunit
    integer(I4B), intent(in) :: iout
    !
    allocate (tvk)
    call tvk%init(name_model, 'TVK', 'TVK', mempath, inunit, iout)

Here is the caller graph for this function:

tvk_da()

subroutine tvkmodule::tvk_da ( class(tvktype)  this )

private

Deallocate TVK package scalars and arrays.

Definition at line 265 of file gwf-tvk.f90.

    ! -- dummy
    class(TvkType) :: this
    !
    nullify (this%ik22overk)
    nullify (this%ik33overk)
    nullify (this%k11)
    nullify (this%k22)
    nullify (this%k33)
    nullify (this%kchangeper)
    nullify (this%kchangestp)
    nullify (this%nodekchange)
    nullify (this%k11_src)
    nullify (this%k22_src)
    nullify (this%k33_src)
    call tvbase_da(this)

Here is the call graph for this function:

tvk_reset_change_flags()

subroutine tvkmodule::tvk_reset_change_flags ( class(tvktype)  this )

private

Deferred procedure implementation called by the TvBaseType code when a new time step commences, indicating that any previously set per-node property value change flags should be reset.

Definition at line 197 of file gwf-tvk.f90.

    ! -- dummy variables
    class(TvkType) :: this
    ! -- local variables
    integer(I4B) :: i
    !
    do i = 1, this%dis%nodes
      this%nodekchange(i) = 0
    end do

tvk_set_changed_at()

subroutine tvkmodule::tvk_set_changed_at ( class(tvktype)  this, integer(i4b), intent(in)  kper, integer(i4b), intent(in)  kstp  )

private

Deferred procedure implementation called by the TvBaseType code when a property value change occurs at (kper, kstp).

Definition at line 181 of file gwf-tvk.f90.

    ! -- dummy
    class(TvkType) :: this
    integer(I4B), intent(in) :: kper
    integer(I4B), intent(in) :: kstp
    !
    this%kchangeper = kper
    this%kchangestp = kstp

tvk_validate_change()

subroutine tvkmodule::tvk_validate_change ( class(tvktype)  this, integer(i4b), intent(in)  n, character(len=*), intent(in)  varName  )

private

Deferred procedure implementation called by the TvBaseType code after a property value change occurs. Check if the property value of the given variable at the given node is invalid, and log an error if so. Update K22 and K33 values appropriately when specified as anisotropy.

Definition at line 215 of file gwf-tvk.f90.

    ! -- dummy
    class(TvkType) :: this
    integer(I4B), intent(in) :: n
    character(len=*), intent(in) :: varName
    ! -- local
    character(len=LINELENGTH) :: cellstr
    ! -- formats
    character(len=*), parameter :: fmtkerr = &
      "(1x, a, ' changed hydraulic property ', a, ' is <= 0 for cell ', a, &
      &' ', 1pg15.6)"
    !
    ! -- Mark the node as being changed this time step
    this%nodekchange(n) = 1
    !
    ! -- Check the changed value is ok
    if (varname == 'K') then
      if (this%k11(n) <= dzero) then
        call this%dis%noder_to_string(n, cellstr)
        write (errmsg, fmtkerr) &
          trim(adjustl(this%packName)), 'K', trim(cellstr), this%k11(n)
        call store_error(errmsg)
      end if
    elseif (varname == 'K22') then
      if (this%ik22overk == 1) then
        this%k22(n) = this%k22(n) * this%k11(n)
      end if
      if (this%k22(n) <= dzero) then
        call this%dis%noder_to_string(n, cellstr)
        write (errmsg, fmtkerr) &
          trim(adjustl(this%packName)), 'K22', trim(cellstr), this%k22(n)
        call store_error(errmsg)
      end if
    elseif (varname == 'K33') then
      if (this%ik33overk == 1) then
        this%k33(n) = this%k33(n) * this%k11(n)
      end if
      if (this%k33(n) <= dzero) then
        call this%dis%noder_to_string(n, cellstr)
        write (errmsg, fmtkerr) &
          trim(adjustl(this%packName)), 'K33', trim(cellstr), this%k33(n)
        call store_error(errmsg)
      end if
    end if

Here is the call graph for this function:
