welmodule Module Reference

This module contains the WEL package methods. More...

Data Types
type	weltype

Functions/Subroutines
subroutine, public	wel_create (packobj, id, ibcnum, inunit, iout, namemodel, pakname, mempath)
	@ brief Create a new package object More...
subroutine	wel_da (this)
	@ brief Deallocate package memory More...
subroutine	wel_allocate_scalars (this)
	@ brief Allocate scalars More...
subroutine	wel_allocate_arrays (this, nodelist, auxvar)
	@ brief Allocate arrays More...
subroutine	wel_options (this)
	@ brief Source additional options for package More...
subroutine	log_wel_options (this, found)
	@ brief Log WEL specific package options More...
subroutine	wel_ck (this)
	@ brief Check WEL period data. More...
subroutine	wel_cf (this)
	@ brief Formulate the package hcof and rhs terms. More...
subroutine	reduction_factor (this, i, node, f, dfdh)
	Factor by which a withdrawal is reduced, and its derivative. More...
subroutine	wel_fc (this, rhs, ia, idxglo, matrix_sln)
	@ brief Copy hcof and rhs terms into solution. More...
subroutine	wel_fn (this, rhs, ia, idxglo, matrix_sln)
	@ brief Add Newton-Raphson terms for package into solution. More...
subroutine	wel_afr_csv_init (this, fname)
	Initialize the auto flow reduce csv output file. More...
subroutine	wel_afr_csv_write (this)
	Write out auto flow reductions only when & where they occur. More...
subroutine	define_listlabel (this)
	@ brief Define the list label for the package More...
logical function	wel_obs_supported (this)
	Determine if observations are supported. More...
subroutine	wel_df_obs (this)
	Define the observation types available in the package. More...
subroutine	wel_bd_obs (this)
	Save observations for the package. More...
real(dp) function	q_mult (this, row)
real(dp) function	wel_bound_value (this, col, row)
	@ brief Return a bound value More...

Variables
character(len=lenftype)	ftype = 'WEL'
	package ftype More...
character(len=16)	text = ' WEL'
	package flow text string More...

Detailed Description

This module contains the overridden methods for the standard WEL package. Several methods need to be overridden because of the AUTO_FLOW_REDUCE option. Overridden methods include:

• bnd_cf (AUTO_FLOW_REDUCE)
• bnd_fc (AUTO_FLOW_REDUCE)
• bnd_fn (AUTO_FLOW_REDUCE Newton-Raphson terms)
• bnd_ot_package_flows (write AUTO_FLOW_REDUCE terms to csv file)
• bnd_da (deallocate AUTO_FLOW_REDUCE variables)
• bnd_bd_obs (wel-reduction observation added)

Function/Subroutine Documentation

define_listlabel()

subroutine welmodule::define_listlabel

(

class(weltype), intent(inout)

this

)

Method defined the list label for the WEL package. The list label is the heading that is written to iout when PRINT_INPUT option is used.

Parameters

[in,out]

this

WelType object

Definition at line 660 of file gwf-wel.f90.

    ! -- dummy variables
    class(WelType), intent(inout) :: this !< WelType object
    !
    ! -- create the header list label
    this%listlabel = trim(this%filtyp)//' NO.'
    if (this%dis%ndim == 3) then
      write (this%listlabel, '(a, a7)') trim(this%listlabel), 'LAYER'
      write (this%listlabel, '(a, a7)') trim(this%listlabel), 'ROW'
      write (this%listlabel, '(a, a7)') trim(this%listlabel), 'COL'
    elseif (this%dis%ndim == 2) then
      write (this%listlabel, '(a, a7)') trim(this%listlabel), 'LAYER'
      write (this%listlabel, '(a, a7)') trim(this%listlabel), 'CELL2D'
    else
      write (this%listlabel, '(a, a7)') trim(this%listlabel), 'NODE'
    end if
    write (this%listlabel, '(a, a16)') trim(this%listlabel), 'STRESS RATE'
    if (this%inamedbound == 1) then
      write (this%listlabel, '(a, a16)') trim(this%listlabel), 'BOUNDARY NAME'
    end if

log_wel_options()

subroutine welmodule::log_wel_options	(	class(weltype), intent(inout)	this,
		type(gwfwelparamfoundtype), intent(in)	found
	)

Definition at line 315 of file gwf-wel.f90.

    ! -- modules
    use gwfwelinputmodule, only: gwfwelparamfoundtype
    ! -- dummy variables
    class(WelType), intent(inout) :: this
    type(GwfWelParamFoundType), intent(in) :: found
    ! -- local variables
    ! -- format
    character(len=*), parameter :: fmtflowred = &
      &"(4x, 'AUTOMATIC FLOW REDUCTION OF WELLS IMPLEMENTED.')"
    character(len=*), parameter :: fmtflowredv = &
      &"(4x, 'AUTOMATIC FLOW REDUCTION FRACTION (',g15.7,').')"
    character(len=*), parameter :: fmtflowredl = &
      &"(4x, 'AUTOMATIC FLOW REDUCTION LENGTH (',g15.7,').')"
    !
    ! -- log found options
    write (this%iout, '(/1x,a)') 'PROCESSING '//trim(adjustl(this%text)) &
      //' OPTIONS'

    if (found%iflowredlen) then
      write (this%iout, fmtflowred)
      write (this%iout, '(4x,A)') &
        'AUTOMATIC FLOW REDUCTION FRACTION INTERPRETED AS A LENGTH'
    end if

    if (found%flowred) then
      if (this%iflowredlen == 0) then
        write (this%iout, fmtflowredv) this%flowred
      else
        write (this%iout, fmtflowredl) this%flowred
      end if
    end if
    !
    if (found%afrcsvfile) then
      ! -- currently no-op
    end if

    if (found%mover) then
      write (this%iout, '(4x,A)') 'MOVER OPTION ENABLED'
    end if

    if (found%afrauxname) then
      write (this%iout, '(4x,A)') &
        'AUTO_FLOW_REDUCE_AUXNAME OPTION ENABLED FOR PER-WELL FLOW REDUCTION'
    end if
    !
    ! -- close logging block
    write (this%iout, '(1x,a)') &
      'END OF '//trim(adjustl(this%text))//' OPTIONS'

q_mult()

real(dp) function welmodule::q_mult ( class(weltype), intent(inout)  this, integer(i4b), intent(in)  row  )

private

Definition at line 782 of file gwf-wel.f90.

    ! -- modules
    use constantsmodule, only: dzero
    ! -- dummy variables
    class(WelType), intent(inout) :: this
    integer(I4B), intent(in) :: row
    ! -- result
    real(DP) :: q
    !
    if (this%iauxmultcol > 0) then
      q = this%q(row) * this%auxvar(this%iauxmultcol, row)
    else
      q = this%q(row)
    end if

reduction_factor()

subroutine welmodule::reduction_factor ( class(weltype), intent(inout)  this, integer(i4b), intent(in)  i, integer(i4b), intent(in)  node, real(dp), intent(out)  f, real(dp), intent(out)  dfdh  )

private

The taper length is what the user asked for: the per-well auxiliary value or the package value, a length as given or a fraction of the cell thickness. Without a provider the factor tapers up from the cell bottom over that length and applies to convertible cells only, as it always has. A provider decides for itself how much of the fluid being withdrawn the cell holds and returns the factor directly, so with one a cell can be reduced whatever its cell type.

Parameters

[in,out]	this	this WEL instance
[in]	i	well number
[in]	node	reduced node number
[out]	f	factor to apply to the requested rate
[out]	dfdh	derivative of the factor with respect to head

Definition at line 482 of file gwf-wel.f90.

    class(WelType), intent(inout) :: this !< this WEL instance
    integer(I4B), intent(in) :: i !< well number
    integer(I4B), intent(in) :: node !< reduced node number
    real(DP), intent(out) :: f !< factor to apply to the requested rate
    real(DP), intent(out) :: dfdh !< derivative of the factor with respect to head
    ! -- local variables
    real(DP) :: taper, bt, tp

    f = done
    dfdh = dzero

    ! -- the length to taper over
    if (this%iafrauxcol > 0) then
      taper = this%auxvar(this%iafrauxcol, i)
    else
      taper = this%flowred
    end if
    if (this%iflowredlen == 0) then
      taper = taper * (this%dis%top(node) - this%dis%bot(node))
    end if

    ! -- a formulation that knows what the cell holds answers for it
    if (associated(this%flowred_provider)) then
      call this%flowred_provider%reduce(node, this%xnew(node), taper, f, dfdh)
      return
    end if

    ! -- otherwise the cell itself: taper up from the bottom, convertible only
    if (this%icelltype(node) == 0) return
    bt = this%dis%bot(node)
    tp = bt + taper
    if (tp <= bt) return
    f = sqsaturation(tp, bt, this%xnew(node))
    dfdh = sqsaturationderivative(tp, bt, this%xnew(node))


Here is the call graph for this function:

wel_afr_csv_init()

subroutine welmodule::wel_afr_csv_init ( class(weltype), intent(inout)  this, character(len=*), intent(in)  fname  )

private

Parameters

[in,out]

this

WelType object

Definition at line 607 of file gwf-wel.f90.

    ! -- dummy variables
    class(WelType), intent(inout) :: this !< WelType object
    character(len=*), intent(in) :: fname
    ! -- format
    character(len=*), parameter :: fmtafrcsv = &
      "(4x, 'AUTO FLOW REDUCE INFORMATION WILL BE SAVED TO FILE: ', a, /4x, &
      &'OPENED ON UNIT: ', I0)"

    this%ioutafrcsv = getunit()
    call openfile(this%ioutafrcsv, this%iout, fname, 'CSV', &
                  filstat_opt='REPLACE')
    write (this%iout, fmtafrcsv) trim(adjustl(fname)), &
      this%ioutafrcsv
    write (this%ioutafrcsv, '(a)') &
      'time,period,step,boundnumber,cellnumber,rate-requested,&
      &rate-actual,wel-reduction'

Here is the call graph for this function:

wel_afr_csv_write()

subroutine welmodule::wel_afr_csv_write ( class(weltype), intent(inout)  this )

private

Parameters

[in,out]

this

WelType object

Definition at line 627 of file gwf-wel.f90.

    ! -- modules
    use tdismodule, only: totim, kstp, kper
    ! -- dummy variables
    class(WelType), intent(inout) :: this !< WelType object
    ! -- local
    integer(I4B) :: i
    integer(I4B) :: nodereduced
    integer(I4B) :: nodeuser
    real(DP) :: v
    ! -- format
    do i = 1, this%nbound
      nodereduced = this%nodelist(i)
      !
      ! -- test if node is constant or inactive
      if (this%ibound(nodereduced) <= 0) then
        cycle
      end if
      v = this%q_mult(i) + this%rhs(i)
      if (v < dzero) then
        nodeuser = this%dis%get_nodeuser(nodereduced)
        write (this%ioutafrcsv, '(*(G0,:,","))') &
          totim, kper, kstp, i, nodeuser, this%q_mult(i), this%simvals(i), v
      end if
    end do

wel_allocate_arrays()

subroutine welmodule::wel_allocate_arrays	(	class(weltype)	this,
		integer(i4b), dimension(:), optional, pointer, contiguous	nodelist,
		real(dp), dimension(:, :), optional, pointer, contiguous	auxvar
	)

Allocate and initialize arrays for the WEL package

Definition at line 176 of file gwf-wel.f90.

    ! -- modules
    use memorymanagermodule, only: mem_allocate, mem_setptr, mem_checkin
    ! -- dummy
    class(WelType) :: this
    integer(I4B), dimension(:), pointer, contiguous, optional :: nodelist
    real(DP), dimension(:, :), pointer, contiguous, optional :: auxvar
    ! -- local
    !
    ! -- call BndExtType allocate scalars
    call this%BndExtType%allocate_arrays(nodelist, auxvar)
    !
    ! -- set constant head array input context pointer
    call mem_setptr(this%q, 'Q', this%input_mempath)
    !
    ! -- checkin constant head array input context pointer
    call mem_checkin(this%q, 'Q', this%memoryPath, &
                     'Q', this%input_mempath)

wel_allocate_scalars()

subroutine welmodule::wel_allocate_scalars

(

class(weltype)

this

)

Allocate and initialize scalars for the WEL package. The base model allocate scalars method is also called.

Parameters

this	WelType object

Definition at line 147 of file gwf-wel.f90.

    ! -- modules
    use memorymanagermodule, only: mem_allocate
    ! -- dummy variables
    class(WelType) :: this !< WelType object
    !
    ! -- call base type allocate scalars
    call this%BndExtType%allocate_scalars()
    !
    ! -- allocate the object and assign values to object variables
    call mem_allocate(this%iflowred, 'IFLOWRED', this%memoryPath)
    call mem_allocate(this%flowred, 'FLOWRED', this%memoryPath)
    call mem_allocate(this%ioutafrcsv, 'IOUTAFRCSV', this%memoryPath)
    call mem_allocate(this%iflowredlen, 'IFLOWREDLEN', this%memoryPath)
    call mem_allocate(this%iafrauxcol, 'IAFRAUXCOL', this%memoryPath)
    !
    ! -- Set values
    this%iflowred = 0
    this%ioutafrcsv = 0
    this%flowred = dzero
    this%iflowredlen = 0
    this%iafrauxcol = 0

wel_bd_obs()

subroutine welmodule::wel_bd_obs ( class(weltype)  this )

private

Method to save simulated values for the WEL package.

Parameters

this	WelType object

Definition at line 731 of file gwf-wel.f90.

    ! -- dummy variables
    class(WelType) :: this !< WelType object
    ! -- local variables
    integer(I4B) :: i
    integer(I4B) :: n
    integer(I4B) :: jj
    real(DP) :: v
    type(ObserveType), pointer :: obsrv => null()
    !
    ! -- clear the observations
    call this%obs%obs_bd_clear()
    !
    ! -- Save simulated values for all of package's observations.
    do i = 1, this%obs%npakobs
      obsrv => this%obs%pakobs(i)%obsrv
      if (obsrv%BndFound) then
        do n = 1, obsrv%indxbnds_count
          v = dnodata
          jj = obsrv%indxbnds(n)
          select case (obsrv%ObsTypeId)
          case ('TO-MVR')
            if (this%imover == 1) then
              v = this%pakmvrobj%get_qtomvr(jj)
              if (v > dzero) then
                v = -v
              end if
            end if
          case ('WEL')
            v = this%simvals(jj)
          case ('WEL-REDUCTION')
            if (this%iflowred > 0) then
              v = this%q_mult(jj) + this%rhs(jj)
            end if
          case default
            errmsg = 'Unrecognized observation type: '//trim(obsrv%ObsTypeId)
            call store_error(errmsg)
          end select
          call this%obs%SaveOneSimval(obsrv, v)
        end do
      else
        call this%obs%SaveOneSimval(obsrv, dnodata)
      end if
    end do
    !
    ! -- Write the auto flow reduce csv file entries for this step
    if (this%ioutafrcsv > 0) then
      call this%wel_afr_csv_write()
    end if

Here is the call graph for this function:

wel_bound_value()

real(dp) function welmodule::wel_bound_value	(	class(weltype), intent(inout)	this,
		integer(i4b), intent(in)	col,
		integer(i4b), intent(in)	row
	)

Return a bound value associated with an ncolbnd index and row.

Definition at line 804 of file gwf-wel.f90.

    ! -- modules
    use constantsmodule, only: dzero
    ! -- dummy variables
    class(WelType), intent(inout) :: this
    integer(I4B), intent(in) :: col
    integer(I4B), intent(in) :: row
    ! -- result
    real(DP) :: bndval
    !
    select case (col)
    case (1)
      bndval = this%q_mult(row)
    case default
      errmsg = 'Programming error. WEL bound value requested column '&
               &'outside range of ncolbnd (1).'
      call store_error(errmsg)
      call store_error_filename(this%input_fname)
    end select

Here is the call graph for this function:

wel_cf()

subroutine welmodule::wel_cf

(

class(weltype)

this

)

Formulate the hcof and rhs terms for the WEL package that will be added to the coefficient matrix and right-hand side vector.

Parameters

this	WelType object

Definition at line 443 of file gwf-wel.f90.

    ! -- dummy variables
    class(WelType) :: this !< WelType object
    ! -- local variables
    integer(I4B) :: i, node
    real(DP) :: f
    real(DP) :: dfdh
    real(DP) :: q
    !
    ! -- Return if no wells
    if (this%nbound == 0) return
    !
    ! -- Calculate hcof and rhs for each well entry
    do i = 1, this%nbound
      node = this%nodelist(i)
      this%hcof(i) = dzero
      if (this%ibound(node) <= 0) then
        this%rhs(i) = dzero
        cycle
      end if
      q = this%q_mult(i)
      if (this%iflowred /= 0 .and. q < dzero) then
        call this%reduction_factor(i, node, f, dfdh)
        q = q * f
      end if
      this%rhs(i) = -q
    end do

wel_ck()

subroutine welmodule::wel_ck

(

class(weltype), intent(inout)

this

)

Verify that the per-well AUTO_FLOW_REDUCE_AUXNAME auxiliary values are within valid bounds. When FLOW_REDUCTION_LENGTH is not specified the value is interpreted as a fraction of the cell thickness and must be between 0 and 1. When FLOW_REDUCTION_LENGTH is specified the value is interpreted as a length above the cell bottom and must be between 0 and the cell thickness. The check runs each stress period because the auxiliary values may change between periods.

Parameters

[in,out]

this

WelType object

Definition at line 377 of file gwf-wel.f90.

    ! -- modules
    use simmodule, only: count_errors, store_error_unit
    ! -- dummy variables
    class(WelType), intent(inout) :: this !< WelType object
    ! -- local variables
    character(len=LINELENGTH) :: errmsg
    integer(I4B) :: i
    integer(I4B) :: node
    real(DP) :: afraux
    real(DP) :: thick
    ! -- formats
    character(len=*), parameter :: fmtfracerr = &
      "('WELL (',i0,') AUTO_FLOW_REDUCE_AUXNAME value (',g0,') must be greater &
      &than 0 and less than or equal to 1 when FLOW_REDUCTION_LENGTH is not &
      &specified (it is interpreted as a fraction of the cell thickness).')"
    character(len=*), parameter :: fmtlenerr = &
      "('WELL (',i0,') AUTO_FLOW_REDUCE_AUXNAME value (',g0,') must be greater &
      &than 0 and less than or equal to the cell thickness (',g0,') when &
      &FLOW_REDUCTION_LENGTH is specified.')"
    !
    ! -- nothing to check unless AUTO_FLOW_REDUCE_AUXNAME is active
    if (this%iflowred == 0 .or. this%iafrauxcol == 0) return
    !
    ! -- check the per-well auxiliary flow reduction values. The value must be
    !    strictly greater than zero: a value of zero places the turnoff
    !    threshold at the cell bottom, giving a zero-width smoothing interval
    !    (a divide-by-zero in sQSaturation), consistent with the global
    !    AUTO_FLOW_REDUCE length-mode check.
    do i = 1, this%nbound
      node = this%nodelist(i)
      if (node == 0) cycle
      ! -- without a provider the reduction applies only to convertible
      !    cells; with one, any cell can be reduced, so the per-well value
      !    must be valid there too
      if (this%icelltype(node) == 0 .and. &
          .not. associated(this%flowred_provider)) cycle
      afraux = this%auxvar(this%iafrauxcol, i)
      if (this%iflowredlen == 0) then
        ! -- value is a fraction of the cell thickness: valid range (0, 1]
        if (afraux <= dzero .or. afraux > done) then
          write (errmsg, fmt=fmtfracerr) i, afraux
          call store_error(errmsg)
        end if
      else
        ! -- value is a length above the cell bottom: valid range (0, thick]
        thick = this%dis%top(node) - this%dis%bot(node)
        if (afraux <= dzero .or. afraux > thick) then
          write (errmsg, fmt=fmtlenerr) i, afraux, thick
          call store_error(errmsg)
        end if
      end if
    end do
    !
    ! -- terminate if any errors were detected
    if (count_errors() > 0) then
      call store_error_unit(this%inunit)
    end if

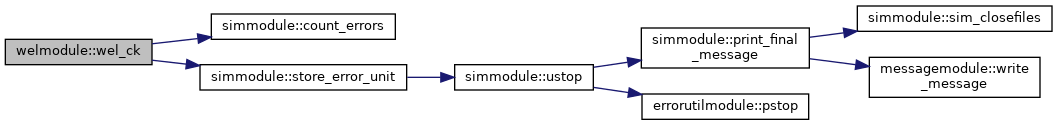

Here is the call graph for this function:

wel_create()

subroutine, public welmodule::wel_create	(	class(bndtype), pointer	packobj,
		integer(i4b), intent(in)	id,
		integer(i4b), intent(in)	ibcnum,
		integer(i4b), intent(in)	inunit,
		integer(i4b), intent(in)	iout,
		character(len=*), intent(in)	namemodel,
		character(len=*), intent(in)	pakname,
		character(len=*), intent(in)	mempath
	)

Create a new WEL Package object

Parameters

	packobj	pointer to default package type
[in]	id	package id
[in]	ibcnum	boundary condition number
[in]	inunit	unit number of WEL package input file
[in]	iout	unit number of model listing file
[in]	namemodel	model name
[in]	pakname	package name
[in]	mempath	input mempath

Definition at line 81 of file gwf-wel.f90.

    ! -- dummy variables
    class(BndType), pointer :: packobj !< pointer to default package type
    integer(I4B), intent(in) :: id !< package id
    integer(I4B), intent(in) :: ibcnum !< boundary condition number
    integer(I4B), intent(in) :: inunit !< unit number of WEL package input file
    integer(I4B), intent(in) :: iout !< unit number of model listing file
    character(len=*), intent(in) :: namemodel !< model name
    character(len=*), intent(in) :: pakname !< package name
    character(len=*), intent(in) :: mempath !< input mempath
    ! -- local variables
    type(WelType), pointer :: welobj
    !
    ! -- allocate the object and assign values to object variables
    allocate (welobj)
    packobj => welobj
    !
    ! -- create name and memory path
    call packobj%set_names(ibcnum, namemodel, pakname, ftype, mempath)
    packobj%text = text
    !
    ! -- allocate scalars
    call welobj%allocate_scalars()
    !
    ! -- initialize package
    call packobj%pack_initialize()

    packobj%inunit = inunit
    packobj%iout = iout
    packobj%id = id
    packobj%ibcnum = ibcnum
    packobj%ncolbnd = 1
    packobj%ictMemPath = create_mem_path(namemodel, 'NPF')

Here is the call graph for this function:

Here is the caller graph for this function:

wel_da()

subroutine welmodule::wel_da ( class(weltype)  this )

private

Deallocate WEL package scalars and arrays.

Parameters

this	WelType object

Definition at line 122 of file gwf-wel.f90.

    ! -- modules
    use memorymanagermodule, only: mem_deallocate
    ! -- dummy variables
    class(WelType) :: this !< WelType object
    !
    ! -- Deallocate parent package
    call this%BndExtType%bnd_da()
    !
    ! -- scalars
    call mem_deallocate(this%iflowred)
    call mem_deallocate(this%flowred)
    call mem_deallocate(this%ioutafrcsv)
    call mem_deallocate(this%iflowredlen)
    call mem_deallocate(this%iafrauxcol)
    call mem_deallocate(this%q, 'Q', this%memoryPath)
    nullify (this%flowred_provider)

wel_df_obs()

subroutine welmodule::wel_df_obs ( class(weltype)  this )

private

Method to define the observation types available in the WEL package.

Parameters

this	WelType object

Definition at line 705 of file gwf-wel.f90.

    ! -- dummy variables
    class(WelType) :: this !< WelType object
    ! -- local variables
    integer(I4B) :: indx
    !
    ! -- initialize observations
    call this%obs%StoreObsType('wel', .true., indx)
    this%obs%obsData(indx)%ProcessIdPtr => defaultobsidprocessor
    !
    ! -- Store obs type and assign procedure pointer
    !    for to-mvr observation type.
    call this%obs%StoreObsType('to-mvr', .true., indx)
    this%obs%obsData(indx)%ProcessIdPtr => defaultobsidprocessor
    !
    ! -- Store obs type and assign procedure pointer
    !    for wel-reduction observation type.
    call this%obs%StoreObsType('wel-reduction', .true., indx)
    this%obs%obsData(indx)%ProcessIdPtr => defaultobsidprocessor

Here is the call graph for this function:

wel_fc()

subroutine welmodule::wel_fc ( class(weltype)  this, real(dp), dimension(:), intent(inout)  rhs, integer(i4b), dimension(:), intent(in)  ia, integer(i4b), dimension(:), intent(in)  idxglo, class(matrixbasetype), pointer  matrix_sln  )

private

Add the hcof and rhs terms for the WEL package to the coefficient matrix and right-hand side vector.

Parameters

	this	WelType object
[in,out]	rhs	right-hand side vector for model
[in]	ia	solution CRS row pointers
[in]	idxglo	mapping vector for model (local) to solution (global)
	matrix_sln	solution coefficient matrix

Definition at line 526 of file gwf-wel.f90.

    ! -- dummy variables
    class(WelType) :: this !< WelType object
    real(DP), dimension(:), intent(inout) :: rhs !< right-hand side vector for model
    integer(I4B), dimension(:), intent(in) :: ia !< solution CRS row pointers
    integer(I4B), dimension(:), intent(in) :: idxglo !< mapping vector for model (local) to solution (global)
    class(MatrixBaseType), pointer :: matrix_sln !< solution coefficient matrix
    ! -- local variables
    integer(I4B) :: i
    integer(I4B) :: n
    integer(I4B) :: ipos
    !
    ! -- pakmvrobj fc
    if (this%imover == 1) then
      call this%pakmvrobj%fc()
    end if
    !
    ! -- Copy package rhs and hcof into solution rhs and amat
    do i = 1, this%nbound
      n = this%nodelist(i)
      rhs(n) = rhs(n) + this%rhs(i)
      ipos = ia(n)
      call matrix_sln%add_value_pos(idxglo(ipos), this%hcof(i))
      !
      ! -- If mover is active and this well is discharging,
      !    store available water (as positive value).
      if (this%imover == 1 .and. this%rhs(i) > dzero) then
        call this%pakmvrobj%accumulate_qformvr(i, this%rhs(i))
      end if
    end do

wel_fn()

subroutine welmodule::wel_fn ( class(weltype)  this, real(dp), dimension(:), intent(inout)  rhs, integer(i4b), dimension(:), intent(in)  ia, integer(i4b), dimension(:), intent(in)  idxglo, class(matrixbasetype), pointer  matrix_sln  )

private

Calculate and add the Newton-Raphson terms for the WEL package to the coefficient matrix and right-hand side vector.

Parameters

	this	WelType object
[in,out]	rhs	right-hand side vector for model
[in]	ia	solution CRS row pointers
[in]	idxglo	mapping vector for model (local) to solution (global)
	matrix_sln	solution coefficient matrix

Definition at line 564 of file gwf-wel.f90.

    ! -- dummy variables
    class(WelType) :: this !< WelType object
    real(DP), dimension(:), intent(inout) :: rhs !< right-hand side vector for model
    integer(I4B), dimension(:), intent(in) :: ia !< solution CRS row pointers
    integer(I4B), dimension(:), intent(in) :: idxglo !< mapping vector for model (local) to solution (global)
    class(MatrixBaseType), pointer :: matrix_sln !< solution coefficient matrix
    ! -- local variables
    integer(I4B) :: i
    integer(I4B) :: node
    integer(I4B) :: ipos
    real(DP) :: f
    real(DP) :: dfdh
    real(DP) :: drterm
    real(DP) :: q
    !
    ! -- Copy package rhs and hcof into solution rhs and amat
    do i = 1, this%nbound
      node = this%nodelist(i)
      !
      ! -- test if node is constant or inactive
      if (this%ibound(node) <= 0) then
        cycle
      end if
      !
      ! -- well rate is possibly head dependent
      if (this%iflowred /= 0) then
        q = -this%rhs(i)
        if (q < dzero) then
          ! -- calculate derivative for well
          call this%reduction_factor(i, node, f, dfdh)
          drterm = dfdh * this%q_mult(i)
          if (drterm == dzero) cycle
          !--fill amat and rhs with newton-raphson terms
          ipos = ia(node)
          call matrix_sln%add_value_pos(idxglo(ipos), drterm)
          rhs(node) = rhs(node) + drterm * this%xnew(node)
        end if
      end if
    end do

wel_obs_supported()

logical function welmodule::wel_obs_supported ( class(weltype)  this )

private

Function to determine if observations are supported by the WEL package. Observations are supported by the WEL package.

Returns

wel_obs_supported boolean indicating if observations are supported

Parameters

this	WelType object

Definition at line 692 of file gwf-wel.f90.

    ! -- dummy variables
    class(WelType) :: this !< WelType object
    !
    ! -- set boolean
    wel_obs_supported = .true.

wel_options()

subroutine welmodule::wel_options

(

class(weltype), intent(inout)

this

)

Source additional options for WEL package.

Parameters

[in,out]

this

WelType object

Definition at line 201 of file gwf-wel.f90.

    ! -- modules
    use inputoutputmodule, only: urword
    use memorymanagerextmodule, only: mem_set_value
    use gwfwelinputmodule, only: gwfwelparamfoundtype
    ! -- dummy variables
    class(WelType), intent(inout) :: this !< WelType object
    ! -- local variables
    character(len=LINELENGTH) :: fname
    character(len=LENAUXNAME) :: afrauxname
    type(GwfWelParamFoundType) :: found
    integer(I4B) :: n
    ! -- formats
    character(len=*), parameter :: fmtflowred = &
      &"(4x, 'AUTOMATIC FLOW REDUCTION OF WELLS IMPLEMENTED.')"
    character(len=*), parameter :: fmtflowredv = &
      &"(4x, 'AUTOMATIC FLOW REDUCTION FRACTION (',g15.7,').')"
    !
    ! -- source base BndExtType options
    call this%BndExtType%source_options()
    !
    ! -- source well options from input context
    call mem_set_value(this%flowred, 'FLOWRED', this%input_mempath, found%flowred)
    call mem_set_value(fname, 'AFRCSVFILE', this%input_mempath, found%afrcsvfile)
    call mem_set_value(this%imover, 'MOVER', this%input_mempath, found%mover)
    call mem_set_value(this%iflowredlen, 'IFLOWREDLEN', this%input_mempath, &
                       found%iflowredlen)
    call mem_set_value(afrauxname, 'AFRAUXNAME', this%input_mempath, &
                       found%afrauxname)

    if (found%iflowredlen) then
      if (found%flowred .eqv. .false.) then
        write (warnmsg, '(a)') &
          'FLOW_REDUCTION_LENGTH option specified but a AUTO_FLOW_REDUCTION value &
          &is not specified. The FLOW_REDUCTION_LENGTH option will be ignored.'
        call store_warning(warnmsg)
      else
        this%iflowredlen = 1
      end if
    end if

    if (found%flowred) then
      this%iflowred = 1
      if (this%flowred <= dzero) then
        if (found%iflowredlen) then
          write (errmsg, '(a)') &
            'An AUTO_FLOW_REDUCTION value less than or equal to zero cannot be &
            &specified if the FLOW_REDUCTION_LENGTH option is specified.'
          call store_error(errmsg)
        else
          this%flowred = dem1
        end if
      else if (this%flowred > done .and. this%iflowredlen == 0) then
        this%flowred = done
      end if
    end if

    if (found%afrcsvfile) then
      call this%wel_afr_csv_init(fname)
    end if

    if (found%mover) then
      this%imover = 1
    end if

    if (found%afrauxname) then
      if (.not. found%flowred) then
        write (warnmsg, '(a)') &
          'AUTO_FLOW_REDUCE_AUXNAME is specified but AUTO_FLOW_REDUCE is not &
          &specified. The AUTO_FLOW_REDUCE_AUXNAME option will be ignored.'
        call store_warning(warnmsg)
      end if
      if (.not. found%iflowredlen) then
        write (warnmsg, '(a)') &
          'AUTO_FLOW_REDUCE_AUXNAME is specified but FLOW_REDUCTION_LENGTH is &
          &not specified. The AUTO_FLOW_REDUCE_AUXNAME value will be &
          &interpreted as a fraction of the cell thickness.'
        call store_warning(warnmsg)
      end if
      if (found%flowred) then
        if (this%naux == 0) then
          write (errmsg, '(a,2(1x,a))') &
            'AUTO_FLOW_REDUCE_AUXNAME was specified as', &
            trim(adjustl(afrauxname)), 'but no AUX variables specified.'
          call store_error(errmsg)
        end if
        this%iafrauxcol = 0
        do n = 1, this%naux
          if (afrauxname == this%auxname(n)) then
            this%iafrauxcol = n
            exit
          end if
        end do
        if (this%iafrauxcol == 0) then
          write (errmsg, '(a,2(1x,a))') &
            'AUTO_FLOW_REDUCE_AUXNAME was specified as', &
            trim(adjustl(afrauxname)), &
            'but no AUX variable found with this name.'
          call store_error(errmsg)
        end if
      end if
    end if

    ! -- log WEL specific options
    call this%log_wel_options(found)
    !
    ! -- terminate if errors were detected
    if (count_errors() > 0) then
      call store_error_filename(this%input_fname)
    end if

Here is the call graph for this function:

Variable Documentation

ftype

character(len=lenftype) welmodule::ftype = 'WEL'

private

Definition at line 40 of file gwf-wel.f90.

  character(len=LENFTYPE) :: ftype = 'WEL' !< package ftype

text

character(len=16) welmodule::text = ' WEL'

private

Definition at line 41 of file gwf-wel.f90.

  character(len=16) :: text = '             WEL' !< package flow text string
