particlereleaseschedulemodule::particlereleasescheduletype Type Reference

Particle release scheduling utility. More...

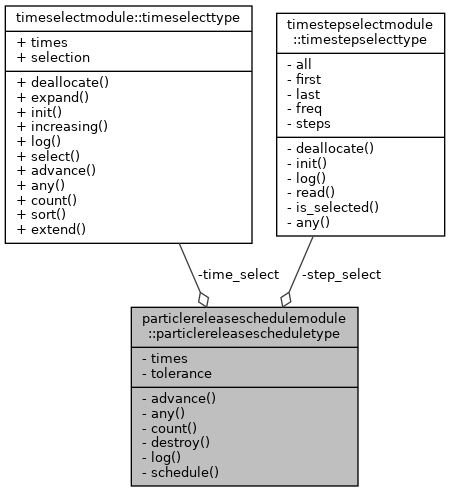

Collaboration diagram for particlereleaseschedulemodule::particlereleasescheduletype:
Collaboration graph

Public Member Functions

procedure advance (this, lines)
 Refresh the schedule for the current time step.
procedure any (this)
 Check if any releases are scheduled.
procedure count (this)
 Return the number of releases scheduled.
procedure destroy (this)
 Deallocate the release schedule.
procedure log (this, iout)
 Write the release schedule to the given output unit.
procedure schedule (this, trelease)
 Add a release time to the schedule.

Public Attributes

real(dp), dimension(:), allocatable times
 release times
real(dp) tolerance
 release time coincidence tolerance
type(timeselecttype), pointer time_select
 time selection
type(timestepselecttype), pointer step_select
 time step selection

Detailed Description

The release schedule composes a time selection object for any explicitly specified release times, and a time step selection object for release times specified in period/time step terms.

Release time coincidence is computed within a given tolerance; times closer than the tolerance are merged into a single time.

The release schedule must be refreshed each time step. This is achieved by calling advance(). After this, the times array is a debounced/consolidated schedule for the current time step.

Definition at line 29 of file ParticleReleaseSchedule.f90.

Member Function/Subroutine Documentation

◆ advance()

procedure particlereleaseschedulemodule::particlereleasescheduletype::advance ( class(particlereleasescheduletype), intent(inout) this,
character(len=linelength), dimension(:), intent(in), optional lines )

This involves several tasks: first, advance the time selection. Then, if period-block release setting lines are provided, reinitialize the time step selection for the given period. Finally, refresh the schedule array, deduplicating any times closer than the set tolerance.

Definition at line 35 of file ParticleReleaseSchedule.f90.

◆ any()

procedure particlereleaseschedulemodule::particlereleasescheduletype::any ( class(particlereleasescheduletype) this)

Note: be sure to call advance() before calling this function, or the result may still be associated with a prior time step.

Definition at line 36 of file ParticleReleaseSchedule.f90.

◆ count()

procedure particlereleaseschedulemodule::particlereleasescheduletype::count ( class(particlereleasescheduletype) this)

Note: be sure to call advance() before calling this function, or the result may still be associated with a prior time step.

Definition at line 37 of file ParticleReleaseSchedule.f90.

◆ destroy()

procedure particlereleaseschedulemodule::particlereleasescheduletype::destroy ( class(particlereleasescheduletype), intent(inout) this)
Parameters
[in,out]thisthis instance

Definition at line 38 of file ParticleReleaseSchedule.f90.

◆ log()

procedure particlereleaseschedulemodule::particlereleasescheduletype::log ( class(particlereleasescheduletype), intent(inout) this,
integer(i4b), intent(in) iout )
Parameters
[in,out]thisthis instance
[in]ioutoutput unit

Definition at line 39 of file ParticleReleaseSchedule.f90.

◆ schedule()

procedure particlereleaseschedulemodule::particlereleasescheduletype::schedule ( class(particlereleasescheduletype), intent(inout) this,
real(dp), intent(in) trelease )

To schedule multiple release times at once, expand and populate the time selection object by hand. DO NOT attempt to manipulate the times array; this is a read-only property which the schedule maintains.

Definition at line 40 of file ParticleReleaseSchedule.f90.

Member Data Documentation

◆ step_select

type(timestepselecttype), pointer particlereleaseschedulemodule::particlereleasescheduletype::step_select

Definition at line 33 of file ParticleReleaseSchedule.f90.

33 type(TimeStepSelectType), pointer :: step_select !< time step selection

◆ time_select

type(timeselecttype), pointer particlereleaseschedulemodule::particlereleasescheduletype::time_select

Definition at line 32 of file ParticleReleaseSchedule.f90.

32 type(TimeSelectType), pointer :: time_select !< time selection

◆ times

real(dp), dimension(:), allocatable particlereleaseschedulemodule::particlereleasescheduletype::times

Definition at line 30 of file ParticleReleaseSchedule.f90.

30 real(DP), allocatable :: times(:) !< release times

◆ tolerance

real(dp) particlereleaseschedulemodule::particlereleasescheduletype::tolerance

Definition at line 31 of file ParticleReleaseSchedule.f90.

31 real(DP) :: tolerance !< release time coincidence tolerance

The documentation for this type was generated from the following file:
