flowmodelinterfacemodule Module Reference

Data Types
type	flowmodelinterfacetype

Functions/Subroutines
subroutine	fmi_df (this, dis, idryinactive)
	Define the flow model interface. More...
subroutine	fmi_ar (this, ibound)
	Allocate the package. More...
subroutine	fmi_da (this)
	Deallocate variables. More...
subroutine	allocate_scalars (this)
	Allocate scalars. More...
subroutine	allocate_arrays (this, nodes)
	Allocate arrays. More...
subroutine	source_options (this)
	@ brief Source input options for package More...
subroutine	source_packagedata (this)
	@ brief Source input options for package More...
subroutine	source_packagedata_other (this, flowtype, fname)
	Source a packagedata entry with a model-specific flow type. More...
subroutine	read_grid (this)
	Read/validate flow model grid. More...
subroutine	initialize_bfr (this)
	Initialize the budget file reader. More...
subroutine	advance_bfr (this)
	Advance the budget file reader. More...
subroutine	finalize_bfr (this)
	Finalize the budget file reader. More...
subroutine	initialize_hfr (this)
	Initialize the head file reader. More...
subroutine	advance_hfr (this)
	Advance the head file reader. More...
subroutine	finalize_hfr (this)
	Finalize the head file reader. More...
subroutine	initialize_gwfterms_from_bfr (this)
	Initialize gwf terms from budget file. More...
subroutine	initialize_gwfterms_from_gwfbndlist (this)
	Initialize gwf terms from a GWF exchange. More...
subroutine	allocate_gwfpackages (this, ngwfterms)
	Allocate budget packages. More...
subroutine	deallocate_gwfpackages (this)
	Deallocate memory in the gwfpackages array. More...
subroutine	get_package_index (this, name, idx)
	Find the package index for the package with the given name. More...

Function/Subroutine Documentation

advance_bfr()

subroutine flowmodelinterfacemodule::advance_bfr ( class(flowmodelinterfacetype)  this )

private

Advance the budget file reader by reading the next chunk of information for the current time step and stress period.

Definition at line 605 of file FlowModelInterface.f90.

    ! -- modules
    use tdismodule, only: kstp, kper, endofsimulation
    ! -- dummy
    class(FlowModelInterfaceType) :: this
    ! -- local
    logical :: success
    integer(I4B) :: n
    integer(I4B) :: ipos
    integer(I4B) :: nu, nr
    integer(I4B) :: ip, i
    logical :: readnext
    ! -- format
    character(len=*), parameter :: fmtkstpkper = &
                 "(1x,/1x,'FMI READING BUDGET TERMS &
                 &FOR KSTP ', i0, ' KPER ', i0)"
    character(len=*), parameter :: fmtbudkstpkper = &
      "(1x,/1x, 'FMI SETTING BUDGET TERMS &
      &FOR KSTP ', i0, ' AND KPER ',        &
      &i0, ' TO BUDGET FILE TERMS FROM &
      &KSTP ', i0, ' AND KPER ', i0)"
    character(len=*), parameter :: fmtbadtdis = &
      "(4x, 'TIME DISCRETIZATION IN BUDGET FILE &
      &IS INCOMPATIBLE WITH TIME DISCRETIZATION IN COUPLED MODEL. &
      &IF THERE IS MORE THAN ONE TIME STEP IN THE BUDGET FILE FOR A &
      &GIVEN STRESS PERIOD, BUDGET FILE TIME STEPS MUST MATCH THE &
      &COUPLED MODEL TIME STEPS ONE-FOR-ONE IN THAT STRESS PERIOD.')"
    !
    ! -- If the latest record read from the budget file is from a stress
    ! -- period with only one time step, reuse that record (do not read a
    ! -- new record) if the running model is still in that same stress period,
    ! -- or if that record is the last one in the budget file.
    readnext = .true.
    if (kstp * kper > 1) then
      if (this%bfr%header%kstp == 1) then
        if (this%bfr%endoffile) then
          readnext = .false.
        else if (this%bfr%headernext%kper == kper + 1) then
          readnext = .false.
        end if
      else if (this%bfr%endoffile) then
        write (errmsg, '(4x,a)') 'REACHED END OF GWF BUDGET &
          &FILE BEFORE READING SUFFICIENT BUDGET INFORMATION FOR THIS &
          &GWT SIMULATION.'
        call store_error(errmsg)
        call store_error_unit(this%iubud)
      end if
    end if
    !
    ! -- Read the next record
    if (readnext) then
      !
      ! -- Write the current time step and stress period
      write (this%iout, fmtkstpkper) kstp, kper
      !
      ! -- loop through the budget terms for this stress period
      !    i is the counter for gwf flow packages
      ip = 1
      do n = 1, this%bfr%nbudterms
        call this%bfr%read_record(success, this%iout)
        if (.not. success) then
          write (errmsg, '(4x,a)') 'GWF BUDGET READ NOT SUCCESSFUL'
          call store_error(errmsg)
          call store_error_unit(this%iubud)
        end if
        !
        ! -- Ensure kper is same between model and budget file
        if (kper /= this%bfr%header%kper) then
          write (errmsg, fmtbadtdis)
          call store_error(errmsg)
          call store_error_unit(this%iubud)
        end if
        !
        ! -- if budget file kstp > 1, then kstp must match
        if (this%bfr%header%kstp > 1 .and. (kstp /= this%bfr%header%kstp)) then
          write (errmsg, fmtbadtdis)
          call store_error(errmsg)
          call store_error_unit(this%iubud)
        end if
        !
        ! -- parse based on the type of data, and compress all user node
        !    numbers into reduced node numbers
        select type (h => this%bfr%header)
        type is (budgetfileheadertype)
          select case (trim(adjustl(h%budtxt)))
          case ('FLOW-JA-FACE')
            !
            ! -- bfr%flowja contains only reduced connections so there is
            !    a one-to-one match with this%gwfflowja
            do ipos = 1, size(this%bfr%flowja)
              this%gwfflowja(ipos) = this%bfr%flowja(ipos)
            end do
          case ('DATA-SPDIS')
            do i = 1, h%nlist
              nu = this%bfr%nodesrc(i)
              nr = this%dis%get_nodenumber(nu, 0)
              if (nr <= 0) cycle
              this%gwfspdis(1, nr) = this%bfr%auxvar(1, i)
              this%gwfspdis(2, nr) = this%bfr%auxvar(2, i)
              this%gwfspdis(3, nr) = this%bfr%auxvar(3, i)
            end do
          case ('DATA-SAT')
            do i = 1, h%nlist
              nu = this%bfr%nodesrc(i)
              nr = this%dis%get_nodenumber(nu, 0)
              if (nr <= 0) cycle
              this%gwfsat(nr) = this%bfr%auxvar(1, i)
            end do
          case ('STO-SS')
            do nu = 1, this%dis%nodesuser
              nr = this%dis%get_nodenumber(nu, 0)
              if (nr <= 0) cycle
              this%gwfstrgss(nr) = this%bfr%flow(nu)
            end do
          case ('STO-SY')
            do nu = 1, this%dis%nodesuser
              nr = this%dis%get_nodenumber(nu, 0)
              if (nr <= 0) cycle
              this%gwfstrgsy(nr) = this%bfr%flow(nu)
            end do
          case default
            call this%gwfpackages(ip)%copy_values( &
              h%nlist, &
              this%bfr%nodesrc, &
              this%bfr%flow, &
              this%bfr%auxvar)
            do i = 1, this%gwfpackages(ip)%nbound
              nu = this%gwfpackages(ip)%nodelist(i)
              nr = this%dis%get_nodenumber(nu, 0)
              this%gwfpackages(ip)%nodelist(i) = nr
            end do
            ip = ip + 1
          end select
        end select
      end do

      ! If this is the final time step, make sure no records
      ! for this period are being skipped in the budget file.
      if (endofsimulation .and. .not. this%bfr%endoffile) then
        if (this%bfr%headernext%kper == kper) then
          write (errmsg, fmtbadtdis)
          call store_error(errmsg)
          call store_error_unit(this%iubud)
        end if
      end if
    else
      !
      ! -- write message to indicate that flows are being reused
      write (this%iout, fmtbudkstpkper) kstp, kper, &
        this%bfr%header%kstp, this%bfr%header%kper
      !
      ! -- set the flag to indicate that flows were not updated
      this%iflowsupdated = 0
    end if

Here is the call graph for this function:

advance_hfr()

subroutine flowmodelinterfacemodule::advance_hfr ( class(flowmodelinterfacetype)  this )

private

Definition at line 776 of file FlowModelInterface.f90.

    ! modules
    use tdismodule, only: kstp, kper
    class(FlowModelInterfaceType) :: this
    integer(I4B) :: nu, nr, i, ilay
    integer(I4B) :: ncpl
    real(DP) :: val
    logical :: readnext
    logical :: success
    character(len=*), parameter :: fmtkstpkper = &
                         "(1x,/1x,'FMI READING HEAD FOR &
                         &KSTP ', i0, ' KPER ', i0)"
    character(len=*), parameter :: fmthdskstpkper = &
      "(1x,/1x, 'FMI SETTING HEAD FOR KSTP ', i0, ' AND KPER ',        &
      &i0, ' TO BINARY FILE HEADS FROM KSTP ', i0, ' AND KPER ', i0)"
    !
    ! -- If the latest record read from the head file is from a stress
    ! -- period with only one time step, reuse that record (do not read a
    ! -- new record) if the running model is still in that same stress period,
    ! -- or if that record is the last one in the head file.
    readnext = .true.
    if (kstp * kper > 1) then
      if (this%hfr%header%kstp == 1) then
        if (this%hfr%endoffile) then
          readnext = .false.
        else if (this%hfr%headernext%kper == kper + 1) then
          readnext = .false.
        end if
      else if (this%hfr%endoffile) then
        write (errmsg, '(4x,a)') 'REACHED END OF GWF HEAD &
          &FILE BEFORE READING SUFFICIENT HEAD INFORMATION FOR THIS &
          &GWT SIMULATION.'
        call store_error(errmsg)
        call store_error_unit(this%iuhds)
      end if
    end if
    !
    ! -- Read the next record
    if (readnext) then
      !
      ! -- write to list file that heads are being read
      write (this%iout, fmtkstpkper) kstp, kper
      !
      ! -- loop through the layered heads for this time step
      do ilay = 1, this%hfr%nlay
        !
        ! -- read next head chunk
        call this%hfr%read_record(success, this%iout)
        if (.not. success) then
          write (errmsg, '(4x,a)') 'GWF HEAD READ NOT SUCCESSFUL'
          call store_error(errmsg)
          call store_error_unit(this%iuhds)
        end if
        !
        ! -- Ensure kper is same between model and head file
        if (kper /= this%hfr%header%kper) then
          write (errmsg, '(4x,a)') 'PERIOD NUMBER IN HEAD FILE &
            &DOES NOT MATCH PERIOD NUMBER IN TRANSPORT MODEL.  IF THERE &
           &IS MORE THAN ONE TIME STEP IN THE HEAD FILE FOR A GIVEN STRESS &
            &PERIOD, HEAD FILE TIME STEPS MUST MATCH GWT MODEL TIME STEPS &
            &ONE-FOR-ONE IN THAT STRESS PERIOD.'
          call store_error(errmsg)
          call store_error_unit(this%iuhds)
        end if
        !
        ! -- if head file kstp > 1, then kstp must match
        if (this%hfr%header%kstp > 1 .and. (kstp /= this%hfr%header%kstp)) then
          write (errmsg, '(4x,a)') 'TIME STEP NUMBER IN HEAD FILE &
            &DOES NOT MATCH TIME STEP NUMBER IN TRANSPORT MODEL.  IF THERE &
           &IS MORE THAN ONE TIME STEP IN THE HEAD FILE FOR A GIVEN STRESS &
            &PERIOD, HEAD FILE TIME STEPS MUST MATCH GWT MODEL TIME STEPS &
            &ONE-FOR-ONE IN THAT STRESS PERIOD.'
          call store_error(errmsg)
          call store_error_unit(this%iuhds)
        end if
        !
        ! -- fill the head array for this layer and
        !    compress into reduced form
        ncpl = size(this%hfr%head)
        do i = 1, ncpl
          nu = (ilay - 1) * ncpl + i
          nr = this%dis%get_nodenumber(nu, 0)
          val = this%hfr%head(i)
          if (nr > 0) this%gwfhead(nr) = val
        end do
      end do
    else
      write (this%iout, fmthdskstpkper) kstp, kper, &
        this%hfr%header%kstp, this%hfr%header%kper
    end if

Here is the call graph for this function:

allocate_arrays()

subroutine flowmodelinterfacemodule::allocate_arrays	(	class(flowmodelinterfacetype)	this,
		integer(i4b), intent(in)	nodes
	)

Definition at line 250 of file FlowModelInterface.f90.

    use memorymanagermodule, only: mem_allocate
    !modules
    use constantsmodule, only: dzero
    ! -- dummy
    class(FlowModelInterfaceType) :: this
    integer(I4B), intent(in) :: nodes
    ! -- local
    integer(I4B) :: n
    !
    ! -- Allocate ibdgwfsat0, which is an indicator array marking cells with
    !    saturation greater than 0.0 with a value of 1
    call mem_allocate(this%ibdgwfsat0, nodes, 'IBDGWFSAT0', this%memoryPath)
    do n = 1, nodes
      this%ibdgwfsat0(n) = 1
    end do
    !
    ! -- Allocate differently depending on whether or not flows are
    !    being read from a file.
    if (this%flows_from_file) then
      call mem_allocate(this%gwfflowja, this%dis%con%nja, &
                        'GWFFLOWJA', this%memoryPath)
      call mem_allocate(this%gwfsat, nodes, 'GWFSAT', this%memoryPath)
      call mem_allocate(this%gwfhead, nodes, 'GWFHEAD', this%memoryPath)
      call mem_allocate(this%gwfspdis, 3, nodes, 'GWFSPDIS', this%memoryPath)
      do n = 1, nodes
        this%gwfsat(n) = done
        this%gwfhead(n) = dzero
        this%gwfspdis(:, n) = dzero
      end do
      do n = 1, size(this%gwfflowja)
        this%gwfflowja(n) = dzero
      end do
      !
      ! -- allocate and initialize storage arrays
      if (this%igwfstrgss == 0) then
        call mem_allocate(this%gwfstrgss, 1, 'GWFSTRGSS', this%memoryPath)
      else
        call mem_allocate(this%gwfstrgss, nodes, 'GWFSTRGSS', this%memoryPath)
      end if
      if (this%igwfstrgsy == 0) then
        call mem_allocate(this%gwfstrgsy, 1, 'GWFSTRGSY', this%memoryPath)
      else
        call mem_allocate(this%gwfstrgsy, nodes, 'GWFSTRGSY', this%memoryPath)
      end if
      do n = 1, size(this%gwfstrgss)
        this%gwfstrgss(n) = dzero
      end do
      do n = 1, size(this%gwfstrgsy)
        this%gwfstrgsy(n) = dzero
      end do
      ! allocate and initialize cell type array. if the FMI is in a separate
      ! simulation from the GWF model, we expect cell type to have been read
      ! already if the binary grid file was provided to FMI. otherwise don't
      ! initialize the cell type array to any default; unless it is received
      ! from GWF NPF by an EXG it's undefined as indicated by igwfceltyp = 0
      if (this%igwfceltyp == 0) &
        call mem_allocate(this%gwfceltyp, nodes, 'GWFCELTYP', this%memoryPath)
      !
      ! -- If there is no fmi package, then there are no flows at all or a
      !    connected GWF model, so allocate gwfpackages to zero
      if (this%inunit == 0) call this%allocate_gwfpackages(this%nflowpack)
    end if

allocate_gwfpackages()

subroutine flowmodelinterfacemodule::allocate_gwfpackages	(	class(flowmodelinterfacetype)	this,
		integer(i4b), intent(in)	ngwfterms
	)

gwfpackages is an array of PackageBudget objects. This routine allocates gwfpackages to the proper size and initializes some member variables.

Definition at line 1040 of file FlowModelInterface.f90.

    ! -- modules
    use constantsmodule, only: lenmempath
    use memorymanagermodule, only: mem_allocate
    ! -- dummy
    class(FlowModelInterfaceType) :: this
    integer(I4B), intent(in) :: ngwfterms
    ! -- local
    integer(I4B) :: n
    character(len=LENMEMPATH) :: memPath
    !
    ! -- direct allocate
    allocate (this%gwfpackages(ngwfterms))
    allocate (this%flowpacknamearray(ngwfterms))
    !
    ! -- mem_allocate
    call mem_allocate(this%igwfmvrterm, ngwfterms, 'IGWFMVRTERM', this%memoryPath)
    !
    ! -- initialize
    this%nflowpack = ngwfterms
    do n = 1, this%nflowpack
      this%igwfmvrterm(n) = 0
      this%flowpacknamearray(n) = ''
      !
      ! -- Create a mempath for each individual flow package data set
      !    of the form, MODELNAME/FMI-FTn
      write (mempath, '(a, i0)') trim(this%memoryPath)//'-FT', n
      call this%gwfpackages(n)%initialize(mempath)
    end do

allocate_scalars()

subroutine flowmodelinterfacemodule::allocate_scalars

(

class(flowmodelinterfacetype)

this

)

Definition at line 207 of file FlowModelInterface.f90.

    ! -- modules
    use memorymanagermodule, only: mem_allocate, mem_setptr
    use memorymanagerextmodule, only: mem_set_value
    ! -- dummy
    class(FlowModelInterfaceType) :: this
    ! -- local
    !
    ! -- allocate scalars in NumericalPackageType
    call this%NumericalPackageType%allocate_scalars()
    !
    ! -- Allocate
    call mem_allocate(this%flows_from_file, 'FLOWS_FROM_FILE', this%memoryPath)
    call mem_allocate(this%iflowsupdated, 'IFLOWSUPDATED', this%memoryPath)
    call mem_allocate(this%igwfspdis, 'IGWFSPDIS', this%memoryPath)
    call mem_allocate(this%igwfstrgss, 'IGWFSTRGSS', this%memoryPath)
    call mem_allocate(this%igwfstrgsy, 'IGWFSTRGSY', this%memoryPath)
    call mem_allocate(this%igwfceltyp, 'IGWFCELTYP', this%memoryPath)
    call mem_allocate(this%iubud, 'IUBUD', this%memoryPath)
    call mem_allocate(this%iuhds, 'IUHDS', this%memoryPath)
    call mem_allocate(this%iumvr, 'IUMVR', this%memoryPath)
    call mem_allocate(this%iugrb, 'IUGRB', this%memoryPath)
    call mem_allocate(this%nflowpack, 'NFLOWPACK', this%memoryPath)
    call mem_allocate(this%idryinactive, "IDRYINACTIVE", this%memoryPath)
    !
    ! !
    ! -- Initialize
    this%flows_from_file = .true.
    this%iflowsupdated = 1
    this%igwfspdis = 0
    this%igwfstrgss = 0
    this%igwfstrgsy = 0
    this%igwfceltyp = 0
    this%iubud = 0
    this%iuhds = 0
    this%iumvr = 0
    this%iugrb = 0
    this%nflowpack = 0
    this%idryinactive = 1

deallocate_gwfpackages()

subroutine flowmodelinterfacemodule::deallocate_gwfpackages

(

class(flowmodelinterfacetype)

this

)

Definition at line 1072 of file FlowModelInterface.f90.

    class(FlowModelInterfaceType) :: this
    integer(I4B) :: n

    do n = 1, this%nflowpack
      call this%gwfpackages(n)%da()
    end do

finalize_bfr()

subroutine flowmodelinterfacemodule::finalize_bfr

(

class(flowmodelinterfacetype)

this

)

Definition at line 762 of file FlowModelInterface.f90.

    class(FlowModelInterfaceType) :: this
    call this%bfr%finalize()

finalize_hfr()

subroutine flowmodelinterfacemodule::finalize_hfr

(

class(flowmodelinterfacetype)

this

)

Definition at line 869 of file FlowModelInterface.f90.

    class(FlowModelInterfaceType) :: this
    close (this%iuhds)

fmi_ar()

subroutine flowmodelinterfacemodule::fmi_ar ( class(flowmodelinterfacetype)  this, integer(i4b), dimension(:), pointer, contiguous  ibound  )

private

Definition at line 142 of file FlowModelInterface.f90.

    ! -- modules
    ! -- dummy
    class(FlowModelInterfaceType) :: this
    integer(I4B), dimension(:), pointer, contiguous :: ibound
    !
    ! -- store pointers to arguments that were passed in
    this%ibound => ibound
    !
    ! -- Allocate arrays
    call this%allocate_arrays(this%dis%nodes)

fmi_da()

subroutine flowmodelinterfacemodule::fmi_da ( class(flowmodelinterfacetype)  this )

private

Definition at line 157 of file FlowModelInterface.f90.

    ! -- modules
    use memorymanagermodule, only: mem_deallocate
    ! -- dummy
    class(FlowModelInterfaceType) :: this
    ! -- todo: finalize hfr and bfr either here or in a finalize routine
    !
    ! -- deallocate any memory stored with gwfpackages
    call this%deallocate_gwfpackages()
    !
    ! -- deallocate fmi arrays
    if (allocated(this%gwfpackages)) then
      deallocate (this%gwfpackages)
      deallocate (this%flowpacknamearray)
      call mem_deallocate(this%igwfmvrterm)
    end if
    call mem_deallocate(this%ibdgwfsat0)
    !
    if (this%flows_from_file) then
      call mem_deallocate(this%gwfstrgss)
      call mem_deallocate(this%gwfstrgsy)
      call mem_deallocate(this%gwfceltyp)
    end if
    !
    ! -- special treatment, these could be from mem_checkin
    call mem_deallocate(this%gwfhead, 'GWFHEAD', this%memoryPath)
    call mem_deallocate(this%gwfsat, 'GWFSAT', this%memoryPath)
    call mem_deallocate(this%gwfspdis, 'GWFSPDIS', this%memoryPath)
    call mem_deallocate(this%gwfflowja, 'GWFFLOWJA', this%memoryPath)
    !
    ! -- deallocate scalars
    call mem_deallocate(this%flows_from_file)
    call mem_deallocate(this%iflowsupdated)
    call mem_deallocate(this%igwfspdis)
    call mem_deallocate(this%igwfstrgss)
    call mem_deallocate(this%igwfstrgsy)
    call mem_deallocate(this%igwfceltyp)
    call mem_deallocate(this%iubud)
    call mem_deallocate(this%iuhds)
    call mem_deallocate(this%iumvr)
    call mem_deallocate(this%iugrb)
    call mem_deallocate(this%nflowpack)
    call mem_deallocate(this%idryinactive)
    !
    ! -- deallocate parent
    call this%NumericalPackageType%da()

fmi_df()

subroutine flowmodelinterfacemodule::fmi_df ( class(flowmodelinterfacetype)  this, class(disbasetype), intent(in), pointer  dis, integer(i4b), intent(in)  idryinactive  )

private

Definition at line 86 of file FlowModelInterface.f90.

    ! -- modules
    ! -- dummy
    class(FlowModelInterfaceType) :: this
    class(DisBaseType), pointer, intent(in) :: dis
    integer(I4B), intent(in) :: idryinactive
    ! -- formats
    character(len=*), parameter :: fmtfmi = &
      "(1x,/1x,'FMI -- FLOW MODEL INTERFACE, VERSION 2, 8/17/2023',            &
      &' INPUT READ FROM MEMPATH: ', A, //)"
    character(len=*), parameter :: fmtfmi0 = &
                    "(1x,/1x,'FMI -- FLOW MODEL INTERFACE,'&
                    &' VERSION 2, 8/17/2023')"
    !
    ! --print a message identifying the FMI package.
    if (this%iout > 0) then
      if (this%inunit /= 0) then
        write (this%iout, fmtfmi) this%input_mempath
      else
        write (this%iout, fmtfmi0)
        if (this%flows_from_file) then
          write (this%iout, '(a)') '  FLOWS ARE ASSUMED TO BE ZERO.'
        else
          write (this%iout, '(a)') '  FLOWS PROVIDED BY A GWF MODEL IN THIS &
            &SIMULATION'
        end if
      end if
    end if
    !
    ! -- Store pointers
    this%dis => dis
    !
    ! -- Read fmi options
    if (this%inunit /= 0) then
      call this%source_options()
    end if
    !
    ! -- Read packagedata options
    if (this%inunit /= 0 .and. this%flows_from_file) then
      call this%source_packagedata()
      call this%initialize_gwfterms_from_bfr()
    end if
    !
    ! -- If GWF-Model exchange is active, setup flow terms
    if (.not. this%flows_from_file) then
      call this%initialize_gwfterms_from_gwfbndlist()
    end if
    !
    ! -- Set flag that stops dry flows from being deactivated in a GWE
    !    transport model since conduction will still be simulated.
    !    0: GWE (skip deactivation step); 1: GWT (default: use existing code)
    this%idryinactive = idryinactive

get_package_index()

subroutine flowmodelinterfacemodule::get_package_index ( class(flowmodelinterfacetype)  this, character(len=*), intent(in)  name, integer(i4b), intent(inout)  idx  )

private

Definition at line 1082 of file FlowModelInterface.f90.

    use bndmodule, only: bndtype, getbndfromlist
    class(FlowModelInterfaceType) :: this
    character(len=*), intent(in) :: name
    integer(I4B), intent(inout) :: idx
    ! -- local
    integer(I4B) :: ip
    !
    ! -- Look through all the packages and return the index with name
    idx = 0
    do ip = 1, size(this%flowpacknamearray)
      if (this%flowpacknamearray(ip) == name) then
        idx = ip
        exit
      end if
    end do
    if (idx == 0) then
      call store_error('Error in get_package_index.  Could not find '//name, &
                       terminate=.true.)
    end if

Here is the call graph for this function:

initialize_bfr()

subroutine flowmodelinterfacemodule::initialize_bfr

(

class(flowmodelinterfacetype)

this

)

Definition at line 592 of file FlowModelInterface.f90.

    class(FlowModelInterfaceType) :: this
    integer(I4B) :: ncrbud
    call this%bfr%initialize(this%iubud, this%iout, ncrbud)
    ! todo: need to run through the budget terms
    ! and do some checking

initialize_gwfterms_from_bfr()

subroutine flowmodelinterfacemodule::initialize_gwfterms_from_bfr ( class(flowmodelinterfacetype)  this )

private

initialize terms and figure out how many different terms and packages are contained within the file

Definition at line 879 of file FlowModelInterface.f90.

    ! -- dummy
    class(FlowModelInterfaceType) :: this
    ! -- local
    integer(I4B) :: nflowpack
    integer(I4B) :: i, ip
    integer(I4B) :: naux
    logical :: found_flowja
    logical :: found_dataspdis
    logical :: found_datasat
    logical :: found_stoss
    logical :: found_stosy
    integer(I4B), dimension(:), allocatable :: imap
    !
    ! -- Calculate the number of gwf flow packages
    allocate (imap(this%bfr%nbudterms))
    imap(:) = 0
    nflowpack = 0
    found_flowja = .false.
    found_dataspdis = .false.
    found_datasat = .false.
    found_stoss = .false.
    found_stosy = .false.
    do i = 1, this%bfr%nbudterms
      select case (trim(adjustl(this%bfr%budtxtarray(i))))
      case ('FLOW-JA-FACE')
        found_flowja = .true.
      case ('DATA-SPDIS')
        found_dataspdis = .true.
        this%igwfspdis = 1
      case ('DATA-SAT')
        found_datasat = .true.
      case ('STO-SS')
        found_stoss = .true.
        this%igwfstrgss = 1
      case ('STO-SY')
        found_stosy = .true.
        this%igwfstrgsy = 1
      case default
        nflowpack = nflowpack + 1
        imap(i) = 1
      end select
    end do
    !
    ! -- allocate gwfpackage arrays
    call this%allocate_gwfpackages(nflowpack)
    !
    ! -- Copy the package name and aux names from budget file reader
    !    to the gwfpackages derived-type variable
    ip = 1
    do i = 1, this%bfr%nbudterms
      if (imap(i) == 0) cycle
      call this%gwfpackages(ip)%set_name(this%bfr%dstpackagenamearray(i), &
                                         this%bfr%budtxtarray(i))
      naux = this%bfr%nauxarray(i)
      call this%gwfpackages(ip)%set_auxname(naux, this%bfr%auxtxtarray(1:naux, i))
      ip = ip + 1
    end do
    !
    ! -- Copy just the package names for the boundary packages into
    !    the flowpacknamearray
    ip = 1
    do i = 1, size(imap)
      if (imap(i) == 1) then
        this%flowpacknamearray(ip) = this%bfr%dstpackagenamearray(i)
        ip = ip + 1
      end if
    end do
    !
    ! -- Error if specific discharge, saturation or flowja not found
    if (.not. found_dataspdis) then
      write (errmsg, '(4x,a)') 'SPECIFIC DISCHARGE NOT FOUND IN &
                              &BUDGET FILE. SAVE_SPECIFIC_DISCHARGE AND &
                          &SAVE_FLOWS MUST BE ACTIVATED IN THE NPF PACKAGE.'
      call store_error(errmsg)
    end if
    if (.not. found_datasat) then
      write (errmsg, '(4x,a)') 'SATURATION NOT FOUND IN &
                              &BUDGET FILE. SAVE_SATURATION AND &
                          &SAVE_FLOWS MUST BE ACTIVATED IN THE NPF PACKAGE.'
      call store_error(errmsg)
    end if
    if (.not. found_flowja) then
      write (errmsg, '(4x,a)') 'FLOWJA NOT FOUND IN &
                              &BUDGET FILE. SAVE_FLOWS MUST &
                              &BE ACTIVATED IN THE NPF PACKAGE.'
      call store_error(errmsg)
    end if
    if (count_errors() > 0) then
      call store_error_filename(this%input_fname)
    end if

Here is the call graph for this function:

initialize_gwfterms_from_gwfbndlist()

subroutine flowmodelinterfacemodule::initialize_gwfterms_from_gwfbndlist ( class(flowmodelinterfacetype)  this )

private

Definition at line 973 of file FlowModelInterface.f90.

    ! -- modules
    use bndmodule, only: bndtype, getbndfromlist
    ! -- dummy
    class(FlowModelInterfaceType) :: this
    ! -- local
    integer(I4B) :: ngwfpack
    integer(I4B) :: ngwfterms
    integer(I4B) :: ip
    integer(I4B) :: imover
    integer(I4B) :: ntomvr
    integer(I4B) :: iterm
    character(len=LENPACKAGENAME) :: budtxt
    class(BndType), pointer :: packobj => null()
    !
    ! -- determine size of gwf terms
    ngwfpack = this%gwfbndlist%Count()
    !
    ! -- Count number of to-mvr terms, but do not include advanced packages
    !    as those mover terms are not losses from the cell, but rather flows
    !    within the advanced package
    ntomvr = 0
    do ip = 1, ngwfpack
      packobj => getbndfromlist(this%gwfbndlist, ip)
      imover = packobj%imover
      if (packobj%isadvpak /= 0) imover = 0
      if (imover /= 0) then
        ntomvr = ntomvr + 1
      end if
    end do
    !
    ! -- Allocate arrays in fmi of size ngwfterms, which is the number of
    !    packages plus the number of packages with mover terms.
    ngwfterms = ngwfpack + ntomvr
    call this%allocate_gwfpackages(ngwfterms)
    !
    ! -- Assign values in the fmi package
    iterm = 1
    do ip = 1, ngwfpack
      !
      ! -- set and store names
      packobj => getbndfromlist(this%gwfbndlist, ip)
      budtxt = adjustl(packobj%text)
      call this%gwfpackages(iterm)%set_name(packobj%packName, budtxt)
      this%flowpacknamearray(iterm) = packobj%packName
      iterm = iterm + 1
      !
      ! -- if this package has a mover associated with it, then add another
      !    term that corresponds to the mover flows
      imover = packobj%imover
      if (packobj%isadvpak /= 0) imover = 0
      if (imover /= 0) then
        budtxt = trim(adjustl(packobj%text))//'-TO-MVR'
        call this%gwfpackages(iterm)%set_name(packobj%packName, budtxt)
        this%flowpacknamearray(iterm) = packobj%packName
        this%igwfmvrterm(iterm) = 1
        iterm = iterm + 1
      end if
    end do

Here is the call graph for this function:

initialize_hfr()

subroutine flowmodelinterfacemodule::initialize_hfr ( class(flowmodelinterfacetype)  this )

private

Definition at line 768 of file FlowModelInterface.f90.

    class(FlowModelInterfaceType) :: this
    call this%hfr%initialize(this%iuhds, this%iout)
    ! todo: need to run through the head terms
    ! and do some checking

read_grid()

subroutine flowmodelinterfacemodule::read_grid ( class(flowmodelinterfacetype)  this )

private

Definition at line 444 of file FlowModelInterface.f90.

    ! -- modules
    use dismodule, only: distype
    use disvmodule, only: disvtype
    use disumodule, only: disutype
    use dis2dmodule, only: dis2dtype
    use disv2dmodule, only: disv2dtype
    use disv1dmodule, only: disv1dtype
    ! -- dummy
    class(FlowModelInterfaceType) :: this
    ! -- local
    integer(I4B) :: user_nodes
    integer(I4B), allocatable :: idomain1d(:), idomain2d(:, :), idomain3d(:, :, :)
    ! -- formats
    character(len=*), parameter :: fmtdiserr = &
      "('Error in ',a,': Models do not have the same discretization. &
      &GWF model has ', i0, ' user nodes, this model has ', i0, '. &
      &Ensure discretization packages, including IDOMAIN, are identical.')"
    character(len=*), parameter :: fmtidomerr = &
      "('Error in ',a,': models do not have the same discretization. &
      &Models have different IDOMAIN arrays. &
      &Ensure discretization packages, including IDOMAIN, are identical.')"

    call this%gfr%initialize(this%iugrb)

    ! load icelltype array
    if (this%gfr%has_variable("ICELLTYPE")) then
      this%igwfceltyp = 1
      call mem_allocate(this%gwfceltyp, this%dis%nodesuser, &
                        'GWFCELTYP', this%memoryPath)
      call this%gfr%read_int_1d_into("ICELLTYPE", this%gwfceltyp)
    end if

    ! check grid equivalence
    select case (this%gfr%grid_type)
    case ('DIS')
      select type (dis => this%dis)
      type is (distype)
        user_nodes = this%gfr%read_int("NCELLS")
        if (user_nodes /= this%dis%nodesuser) then
          write (errmsg, fmtdiserr) &
            trim(this%text), user_nodes, this%dis%nodesuser
          call store_error(errmsg, terminate=.true.)
        end if
        idomain1d = this%gfr%read_int_1d("IDOMAIN")
        idomain3d = reshape(idomain1d, [ &
                            this%gfr%read_int("NCOL"), &
                            this%gfr%read_int("NROW"), &
                            this%gfr%read_int("NLAY") &
                            ])
        if (.not. all(dis%idomain == idomain3d)) then
          write (errmsg, fmtidomerr) trim(this%text)
          call store_error(errmsg, terminate=.true.)
        end if
      end select
    case ('DISV')
      select type (dis => this%dis)
      type is (disvtype)
        user_nodes = this%gfr%read_int("NCELLS")
        if (user_nodes /= this%dis%nodesuser) then
          write (errmsg, fmtdiserr) &
            trim(this%text), user_nodes, this%dis%nodesuser
          call store_error(errmsg, terminate=.true.)
        end if
        idomain1d = this%gfr%read_int_1d("IDOMAIN")
        idomain2d = reshape(idomain1d, [ &
                            this%gfr%read_int("NCPL"), &
                            this%gfr%read_int("NLAY") &
                            ])
        if (.not. all(dis%idomain == idomain2d)) then
          write (errmsg, fmtidomerr) trim(this%text)
          call store_error(errmsg, terminate=.true.)
        end if
      end select
    case ('DISU')
      select type (dis => this%dis)
      type is (disutype)
        user_nodes = this%gfr%read_int("NODES")
        if (user_nodes /= this%dis%nodesuser) then
          write (errmsg, fmtdiserr) &
            trim(this%text), user_nodes, this%dis%nodesuser
          call store_error(errmsg, terminate=.true.)
        end if
        idomain1d = this%gfr%read_int_1d("IDOMAIN")
        if (.not. all(dis%idomain == idomain1d)) then
          write (errmsg, fmtidomerr) trim(this%text)
          call store_error(errmsg, terminate=.true.)
        end if
      end select
    case ('DIS2D')
      select type (dis => this%dis)
      type is (dis2dtype)
        user_nodes = this%gfr%read_int("NCELLS")
        if (user_nodes /= this%dis%nodesuser) then
          write (errmsg, fmtdiserr) &
            trim(this%text), user_nodes, this%dis%nodesuser
          call store_error(errmsg, terminate=.true.)
        end if
        idomain1d = this%gfr%read_int_1d("IDOMAIN")
        idomain2d = reshape(idomain1d, [ &
                            this%gfr%read_int("NCOL"), &
                            this%gfr%read_int("NROW") &
                            ])
        if (.not. all(dis%idomain == idomain2d)) then
          write (errmsg, fmtidomerr) trim(this%text)
          call store_error(errmsg, terminate=.true.)
        end if
      end select
    case ('DISV2D')
      select type (dis => this%dis)
      type is (disv2dtype)
        user_nodes = this%gfr%read_int("NODES")
        if (user_nodes /= this%dis%nodesuser) then
          write (errmsg, fmtdiserr) &
            trim(this%text), user_nodes, this%dis%nodesuser
          call store_error(errmsg, terminate=.true.)
        end if
        idomain1d = this%gfr%read_int_1d("IDOMAIN")
        if (.not. all(dis%idomain == idomain1d)) then
          write (errmsg, fmtidomerr) trim(this%text)
          call store_error(errmsg, terminate=.true.)
        end if
      end select
    case ('DISV1D')
      select type (dis => this%dis)
      type is (disv1dtype)
        user_nodes = this%gfr%read_int("NCELLS")
        if (user_nodes /= this%dis%nodesuser) then
          write (errmsg, fmtdiserr) &
            trim(this%text), user_nodes, this%dis%nodesuser
          call store_error(errmsg, terminate=.true.)
        end if
        idomain1d = this%gfr%read_int_1d("IDOMAIN")
        if (.not. all(dis%idomain == idomain1d)) then
          write (errmsg, fmtidomerr) trim(this%text)
          call store_error(errmsg, terminate=.true.)
        end if
      end select
    end select

    if (allocated(idomain3d)) deallocate (idomain3d)
    if (allocated(idomain2d)) deallocate (idomain2d)
    if (allocated(idomain1d)) deallocate (idomain1d)

    call this%gfr%finalize()

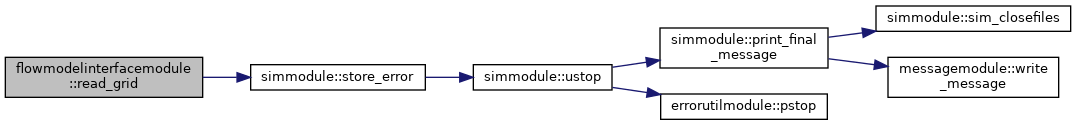

Here is the call graph for this function:

source_options()

subroutine flowmodelinterfacemodule::source_options

(

class(flowmodelinterfacetype)

this

)

Definition at line 317 of file FlowModelInterface.f90.

    ! -- modules
    use memorymanagerextmodule, only: mem_set_value
    ! -- dummy
    class(FlowModelInterfaceType) :: this
    ! -- local
    logical(LGP) :: found_ipakcb
    character(len=*), parameter :: fmtisvflow = &
      "(4x,'CELL-BY-CELL FLOW INFORMATION WILL BE SAVED TO BINARY FILE &
      &WHENEVER ICBCFL IS NOT ZERO AND FLOW IMBALANCE CORRECTION ACTIVE.')"

    ! -- source package input
    call mem_set_value(this%ipakcb, 'SAVE_FLOWS', this%input_mempath, &
                       found_ipakcb)

    write (this%iout, '(1x,a)') 'PROCESSING FMI OPTIONS'

    if (found_ipakcb) then
      this%ipakcb = -1
      write (this%iout, fmtisvflow)
    end if

    write (this%iout, '(1x,a)') 'END OF FMI OPTIONS'

source_packagedata()

subroutine flowmodelinterfacemodule::source_packagedata

(

class(flowmodelinterfacetype)

this

)

Definition at line 344 of file FlowModelInterface.f90.

    ! -- modules
    use memorymanagermodule, only: mem_setptr
    use memorymanagerextmodule, only: mem_set_value, memorystore_release
    use characterstringmodule, only: characterstringtype
    use openspecmodule, only: access, form
    use constantsmodule, only: linelength, dem6, lenpackagename
    use inputoutputmodule, only: getunit, openfile, urdaux
    ! -- dummy
    class(FlowModelInterfaceType) :: this
    ! -- local
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: flowtypes
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: fileops
    type(CharacterStringType), dimension(:), contiguous, &
      pointer :: fnames
    character(len=LINELENGTH) :: flowtype, fileop, fname
    integer(I4B) :: inunit, n
    logical(LGP) :: exist

    call mem_setptr(flowtypes, 'FLOWTYPE', this%input_mempath)
    call mem_setptr(fileops, 'FILEIN', this%input_mempath)
    call mem_setptr(fnames, 'FNAME', this%input_mempath)

    write (this%iout, '(1x,a)') 'PROCESSING FMI PACKAGEDATA'

    do n = 1, size(flowtypes)
      flowtype = flowtypes(n)
      fileop = fileops(n)
      fname = fnames(n)

      inquire (file=trim(fname), exist=exist)
      if (.not. exist) then
        call store_error('Could not find file '//trim(fname))
        cycle
      end if

      if (fileop /= 'FILEIN') then
        call store_error('Unexpected packagedata input keyword read: "' &
                         //trim(fileop)//'".')
        cycle
      end if

      select case (flowtype)
      case ('GWFBUDGET')
        inunit = getunit()
        call openfile(inunit, this%iout, fname, 'DATA(BINARY)', form, &
                      access, 'OLD')
        this%iubud = inunit
        call this%initialize_bfr()
      case ('GWFHEAD')
        inunit = getunit()
        call openfile(inunit, this%iout, fname, 'DATA(BINARY)', form, &
                      access, 'OLD')
        this%iuhds = inunit
        call this%initialize_hfr()
      case ('GWFMOVER')
        inunit = getunit()
        call openfile(inunit, this%iout, fname, 'DATA(BINARY)', form, &
                      access, 'OLD')
        this%iumvr = inunit
        call budgetobject_cr_bfr(this%mvrbudobj, 'MVT', this%iumvr, &
                                 this%iout)
        call this%mvrbudobj%fill_from_bfr(this%dis, this%iout)
      case ('GWFGRID')
        inunit = getunit()
        call openfile(inunit, this%iout, fname, 'DATA(BINARY)', &
                      form, access, 'OLD')
        this%iugrb = inunit
        call this%read_grid()
      case default
        call this%source_packagedata_other(flowtype, fname)
      end select
    end do

    write (this%iout, '(1x,a)') 'END OF FMI PACKAGEDATA'

    if (count_errors() > 0) then
      call store_error_filename(this%input_fname)
    end if

    call memorystore_release('FLOWTYPE', this%input_mempath)
    call memorystore_release('FILEIN', this%input_mempath)
    call memorystore_release('FNAME', this%input_mempath)

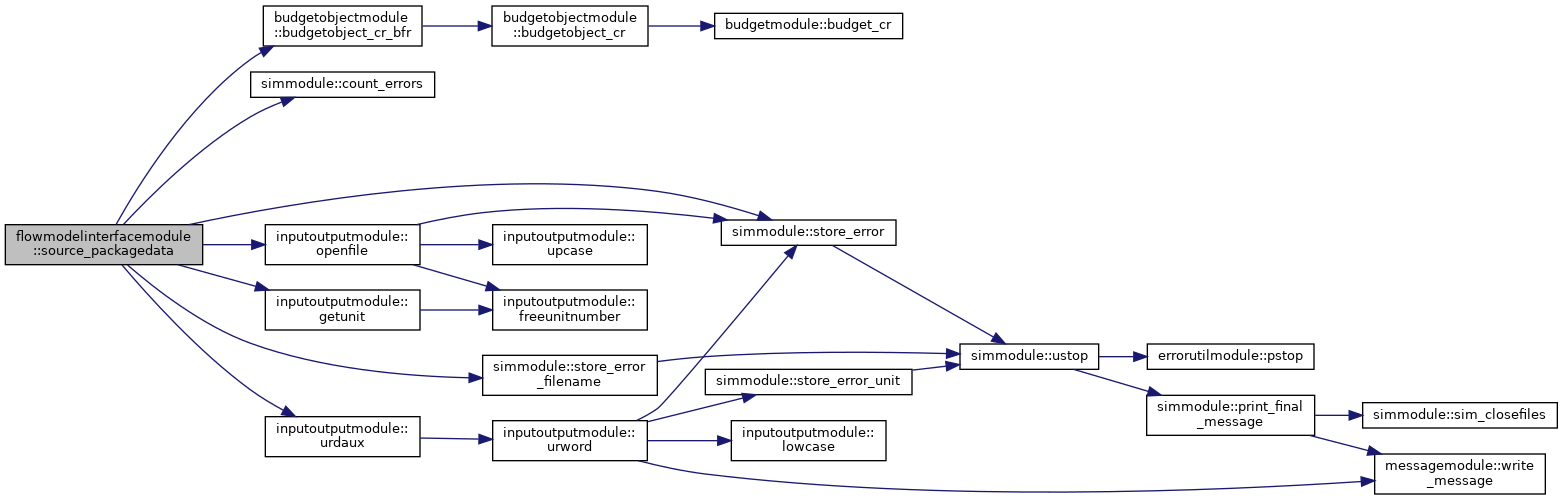

Here is the call graph for this function:

source_packagedata_other()

subroutine flowmodelinterfacemodule::source_packagedata_other	(	class(flowmodelinterfacetype)	this,
		character(len=*), intent(in)	flowtype,
		character(len=*), intent(in)	fname
	)

Parameters

[in]	flowtype	packagedata flow type
[in]	fname	packagedata file name

Definition at line 432 of file FlowModelInterface.f90.

    class(FlowModelInterfaceType) :: this
    character(len=*), intent(in) :: flowtype !< packagedata flow type
    character(len=*), intent(in) :: fname !< packagedata file name

    write (errmsg, '(a,3(1x,a))') &
      'UNKNOWN', trim(adjustl(this%text)), 'PACKAGEDATA:', trim(flowtype)
    call store_error(errmsg)

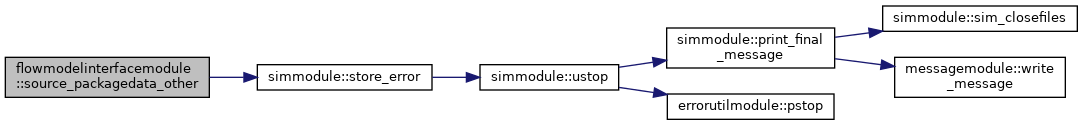

Here is the call graph for this function:
