– @ brief Energy Storage and Transfer (EST) Module More...

Data Types
type	gweesttype
	@ brief Energy storage and transfer More...

Enumerations
enum	{ decay_off = 0 , decay_zero_order = 2 , decay_water = 1 , decay_solid = 2 , decay_both = 3 }
	Enumerator that defines the decay options. More...

Functions/Subroutines
subroutine, public	est_cr (estobj, name_model, inunit, iout, fmi, eqnsclfac, gwecommon)
	@ brief Create a new EST package object More...

subroutine	est_ar (this, dis, ibound)
	@ brief Allocate and read method for package More...

subroutine	est_fc (this, nodes, cold, nja, matrix_sln, idxglo, cnew, rhs, kiter)
	@ brief Fill coefficient method for package More...

subroutine	est_fc_sto (this, nodes, cold, nja, matrix_sln, idxglo, rhs)
	@ brief Fill storage coefficient method for package More...

subroutine	est_fc_dcy_water (this, nodes, cold, cnew, nja, matrix_sln, idxglo, rhs, kiter)
	@ brief Fill decay coefficient method for package More...

subroutine	est_fc_dcy_solid (this, nodes, cold, nja, matrix_sln, idxglo, rhs, cnew, kiter)
	@ brief Fill solid decay coefficient method for package More...

subroutine	est_cq (this, nodes, cnew, cold, flowja)
	@ brief Calculate flows for package More...

subroutine	est_cq_sto (this, nodes, cnew, cold, flowja)
	@ brief Calculate storage terms for package More...

subroutine	est_cq_dcy (this, nodes, cnew, cold, flowja)
	@ brief Calculate decay terms for aqueous phase More...

subroutine	est_cq_dcy_solid (this, nodes, cnew, cold, flowja)
	@ brief Calculate decay terms for solid phase More...

subroutine	est_bd (this, isuppress_output, model_budget)
	@ brief Calculate budget terms for package More...

subroutine	est_ot_flow (this, icbcfl, icbcun)
	@ brief Output flow terms for package More...

subroutine	est_da (this)
	Deallocate memory. More...

subroutine	allocate_scalars (this)
	@ brief Allocate scalar variables for package More...

subroutine	allocate_arrays (this, nodes)
	@ brief Allocate arrays for package More...

subroutine	read_options (this)
	@ brief Read options for package More...

subroutine	read_data (this)
	@ brief Read data for package More...

Variables
integer(i4b), parameter	nbditems = 3

character(len=lenbudtxt), dimension(nbditems)	budtxt

Detailed Description

The GweEstModule contains the GweEstType, which is related to GwtEstModule; however, there are some important differences owing to the fact that a sorbed phase is not considered. Instead, a single temperature is simulated for each grid cell and is representative of both the aqueous and solid phases (i.e., instantaneous thermal equilibrium is assumed). Also, "thermal bleeding" is accommodated, where conductive processes can transport into, through, or out of dry cells that are part of the active domain.

Enumeration Type Documentation

◆ anonymous enum

anonymous enum

Enumerator
decay_off	Decay (or production) of thermal energy inactive (default)
decay_zero_order	Zeroth-order decay.
decay_water	Zeroth-order decay in water only.
decay_solid	Zeroth-order decay in solid only.
decay_both	Zeroth-order decay in water and solid.

Definition at line 36 of file gwe-est.f90.

Function/Subroutine Documentation

◆ allocate_arrays()

subroutine gweestmodule::allocate_arrays	(	class(gweesttype)	this,
		integer(i4b), intent(in)	nodes
	)

Method to allocate arrays for the package.

Parameters

	this	GweEstType object
[in]	nodes	number of nodes

Definition at line 682 of file gwe-est.f90.

     ! -- modules
     use memorymanagermodule, only: mem_allocate
     use constantsmodule, only: dzero
     ! -- dummy
     class(GweEstType) :: this !< GweEstType object
     integer(I4B), intent(in) :: nodes !< number of nodes
     ! -- local
     integer(I4B) :: n
     !
     ! -- Allocate
     ! -- sto
     call mem_allocate(this%porosity, nodes, 'POROSITY', this%memoryPath)
     call mem_allocate(this%ratesto, nodes, 'RATESTO', this%memoryPath)
     call mem_allocate(this%cps, nodes, 'CPS', this%memoryPath)
     call mem_allocate(this%rhos, nodes, 'RHOS', this%memoryPath)
     !
     ! -- dcy
     if (this%idcy == decay_off) then
       call mem_allocate(this%ratedcyw, 1, 'RATEDCYW', this%memoryPath)
       call mem_allocate(this%ratedcys, 1, 'RATEDCYS', this%memoryPath)
       call mem_allocate(this%decay_water, 1, 'DECAY_WATER', this%memoryPath)
       call mem_allocate(this%decay_solid, 1, 'DECAY_SOLID', this%memoryPath)
       call mem_allocate(this%decaylastw, 1, 'DECAYLASTW', this%memoryPath)
       call mem_allocate(this%decaylasts, 1, 'DECAYLAST', this%memoryPath)
     else
       call mem_allocate(this%ratedcyw, this%dis%nodes, 'RATEDCYW', &
                         this%memoryPath)
       call mem_allocate(this%ratedcys, this%dis%nodes, 'RATEDCYS', &
                         this%memoryPath)
       call mem_allocate(this%decay_water, nodes, 'DECAY_WATER', this%memoryPath)
       call mem_allocate(this%decay_solid, nodes, 'DECAY_SOLID', this%memoryPath)
       call mem_allocate(this%decaylastw, nodes, 'DECAYLASTW', this%memoryPath)
       call mem_allocate(this%decaylasts, nodes, 'DECAYLASTS', this%memoryPath)
     end if
     !
     ! -- Initialize
     do n = 1, nodes
       this%porosity(n) = dzero
       this%ratesto(n) = dzero
       this%cps(n) = dzero
       this%rhos(n) = dzero
     end do
     do n = 1, size(this%decay_water)
       this%decay_water(n) = dzero
       this%decay_solid(n) = dzero
       this%ratedcyw(n) = dzero
       this%ratedcys(n) = dzero
       this%decaylastw(n) = dzero
       this%decaylasts(n) = dzero
     end do

◆ allocate_scalars()

subroutine gweestmodule::allocate_scalars ( class(gweesttype) this )

Method to allocate scalar variables for the package.

Parameters

this	GweEstType object

Definition at line 654 of file gwe-est.f90.

     ! -- modules
     use memorymanagermodule, only: mem_allocate, mem_setptr
     ! -- dummy
     class(GweEstType) :: this !< GweEstType object
     !
     ! -- Allocate scalars in NumericalPackageType
     call this%NumericalPackageType%allocate_scalars()
     !
     ! -- Allocate
     call mem_allocate(this%cpw, 'CPW', this%memoryPath)
     call mem_allocate(this%rhow, 'RHOW', this%memoryPath)
     call mem_allocate(this%latheatvap, 'LATHEATVAP', this%memoryPath)
     call mem_allocate(this%idcy, 'IDCY', this%memoryPath)
     call mem_allocate(this%idcysrc, 'IDCYSRC', this%memoryPath)
     !
     ! -- Initialize
     this%cpw = dzero
     this%rhow = dzero
     this%latheatvap = dzero
     this%idcy = izero
     this%idcysrc = izero

◆ est_ar()

subroutine gweestmodule::est_ar	(	class(gweesttype), intent(inout)	this,
		class(disbasetype), intent(in), pointer	dis,
		integer(i4b), dimension(:), pointer, contiguous	ibound
	)

Method to allocate and read static data for the package.

Parameters

[in,out]	this	GweEstType object
[in]	dis	pointer to dis package
	ibound	pointer to GWE ibound array

Definition at line 136 of file gwe-est.f90.

     ! -- modules
     use gweinputdatamodule, only: set_gwe_dat_ptrs
     ! -- dummy
     class(GweEstType), intent(inout) :: this !< GweEstType object
     class(DisBaseType), pointer, intent(in) :: dis !< pointer to dis package
     integer(I4B), dimension(:), pointer, contiguous :: ibound !< pointer to GWE ibound array
     ! -- formats
     character(len=*), parameter :: fmtest = &
       "(1x,/1x,'EST -- ENERGY STORAGE AND TRANSFER PACKAGE, VERSION 1, &
       &7/29/2020 INPUT READ FROM UNIT ', i0, //)"
     !
     ! --print a message identifying the energy storage and transfer package.
     write (this%iout, fmtest) this%inunit
     !
     ! -- Read options
     call this%read_options()
     !
     ! -- store pointers to arguments that were passed in
     this%dis => dis
     this%ibound => ibound
     !
     ! -- Allocate arrays
     call this%allocate_arrays(dis%nodes)
     !
     ! -- read the gridded data
     call this%read_data()
     !
     ! -- set data required by other packages
     call this%gwecommon%set_gwe_dat_ptrs(this%rhow, this%cpw, this%latheatvap, &
                                          this%rhos, this%cps)

Here is the call graph for this function:

◆ est_bd()

subroutine gweestmodule::est_bd	(	class(gweesttype)	this,
		integer(i4b), intent(in)	isuppress_output,
		type(budgettype), intent(inout)	model_budget
	)

Method to calculate budget terms for the package.

Parameters

	this	GweEstType object
[in]	isuppress_output	flag to suppress output
[in,out]	model_budget	model budget object

Definition at line 526 of file gwe-est.f90.

     ! -- modules
     use tdismodule, only: delt
     use budgetmodule, only: budgettype, rate_accumulator
     ! -- dummy
     class(GweEstType) :: this !< GweEstType object
     integer(I4B), intent(in) :: isuppress_output !< flag to suppress output
     type(BudgetType), intent(inout) :: model_budget !< model budget object
     ! -- local
     real(DP) :: rin
     real(DP) :: rout
     !
     ! -- sto
     call rate_accumulator(this%ratesto, rin, rout)
     call model_budget%addentry(rin, rout, delt, budtxt(1), &
                                isuppress_output, rowlabel=this%packName)
     !
     ! -- dcy
     if (this%idcy == decay_zero_order) then
       if (this%idcysrc == decay_water .or. this%idcysrc == decay_both) then
         ! -- aqueous phase
         call rate_accumulator(this%ratedcyw, rin, rout)
         call model_budget%addentry(rin, rout, delt, budtxt(2), &
                                    isuppress_output, rowlabel=this%packName)
       end if
       if (this%idcysrc == decay_solid .or. this%idcysrc == decay_both) then
         ! -- solid phase
         call rate_accumulator(this%ratedcys, rin, rout)
         call model_budget%addentry(rin, rout, delt, budtxt(3), &
                                    isuppress_output, rowlabel=this%packName)
       end if
     end if

Here is the call graph for this function:

◆ est_cq()

subroutine gweestmodule::est_cq	(	class(gweesttype)	this,
		integer(i4b), intent(in)	nodes,
		real(dp), dimension(nodes), intent(in)	cnew,
		real(dp), dimension(nodes), intent(in)	cold,
		real(dp), dimension(:), intent(inout), contiguous	flowja
	)

Method to calculate flows for the package.

Parameters

	this	GweEstType object
[in]	nodes	number of nodes
[in]	cnew	temperature at end of this time step
[in]	cold	temperature at end of last time step
[in,out]	flowja	flow between two connected control volumes

Definition at line 347 of file gwe-est.f90.

     ! -- dummy
     class(GweEstType) :: this !< GweEstType object
     integer(I4B), intent(in) :: nodes !< number of nodes
     real(DP), intent(in), dimension(nodes) :: cnew !< temperature at end of this time step
     real(DP), intent(in), dimension(nodes) :: cold !< temperature at end of last time step
     real(DP), dimension(:), contiguous, intent(inout) :: flowja !< flow between two connected control volumes
     ! -- local
     !
     ! - storage
     call this%est_cq_sto(nodes, cnew, cold, flowja)
     !
     ! -- decay
     if (this%idcy == decay_zero_order) then
       if (this%idcysrc == decay_water .or. this%idcysrc == decay_both) then
         call this%est_cq_dcy(nodes, cnew, cold, flowja)
       end if
       if (this%idcysrc == decay_solid .or. this%idcysrc == decay_both) then
         call this%est_cq_dcy_solid(nodes, cnew, cold, flowja)
       end if
     end if

◆ est_cq_dcy()

subroutine gweestmodule::est_cq_dcy	(	class(gweesttype)	this,
		integer(i4b), intent(in)	nodes,
		real(dp), dimension(nodes), intent(in)	cnew,
		real(dp), dimension(nodes), intent(in)	cold,
		real(dp), dimension(:), intent(inout), contiguous	flowja
	)

Method to calculate decay terms for the aqueous phase.

Parameters

	this	GweEstType object
[in]	nodes	number of nodes
[in]	cnew	temperature at end of this time step
[in]	cold	temperature at end of last time step
[in,out]	flowja	flow between two connected control volumes

Definition at line 426 of file gwe-est.f90.

     ! -- dummy
     class(GweEstType) :: this !< GweEstType object
     integer(I4B), intent(in) :: nodes !< number of nodes
     real(DP), intent(in), dimension(nodes) :: cnew !< temperature at end of this time step
     real(DP), intent(in), dimension(nodes) :: cold !< temperature at end of last time step
     real(DP), dimension(:), contiguous, intent(inout) :: flowja !< flow between two connected control volumes
     ! -- local
     integer(I4B) :: n
     integer(I4B) :: idiag
     real(DP) :: rate
     real(DP) :: swtpdt
     real(DP) :: hhcof, rrhs
     real(DP) :: vcell
     real(DP) :: decay_rate
     !
     ! -- Calculate decay change
     do n = 1, nodes
       !
       ! -- skip if transport inactive
       this%ratedcyw(n) = dzero
       if (this%ibound(n) <= 0) cycle
       !
       ! -- calculate new and old water volumes
       vcell = this%dis%area(n) * (this%dis%top(n) - this%dis%bot(n))
       swtpdt = this%fmi%gwfsat(n)
       !
       ! -- calculate decay gains and losses
       rate = dzero
       hhcof = dzero
       rrhs = dzero
       ! -- zero order decay aqueous phase
       if (this%idcy == decay_zero_order .and. &
           (this%idcysrc == decay_water .or. this%idcysrc == decay_both)) then
         decay_rate = this%decay_water(n)
         ! -- this term does NOT get multiplied by eqnsclfac for cq purposes
         !    because it should already be a rate of energy
         rrhs = decay_rate * vcell * swtpdt * this%porosity(n)
       end if
       rate = hhcof * cnew(n) - rrhs
       this%ratedcyw(n) = rate
       idiag = this%dis%con%ia(n)
       flowja(idiag) = flowja(idiag) + rate
       !
     end do

◆ est_cq_dcy_solid()

subroutine gweestmodule::est_cq_dcy_solid	(	class(gweesttype)	this,
		integer(i4b), intent(in)	nodes,
		real(dp), dimension(nodes), intent(in)	cnew,
		real(dp), dimension(nodes), intent(in)	cold,
		real(dp), dimension(:), intent(inout), contiguous	flowja
	)

Method to calculate decay terms for the solid phase.

Parameters

	this	GweEstType object
[in]	nodes	number of nodes
[in]	cnew	temperature at end of this time step
[in]	cold	temperature at end of last time step
[in,out]	flowja	flow between two connected control volumes

Definition at line 477 of file gwe-est.f90.

     ! -- dummy
     class(GweEstType) :: this !< GweEstType object
     integer(I4B), intent(in) :: nodes !< number of nodes
     real(DP), intent(in), dimension(nodes) :: cnew !< temperature at end of this time step
     real(DP), intent(in), dimension(nodes) :: cold !< temperature at end of last time step
     real(DP), dimension(:), contiguous, intent(inout) :: flowja !< flow between two connected control volumes
     ! -- local
     integer(I4B) :: n
     integer(I4B) :: idiag
     real(DP) :: rate
     real(DP) :: hhcof, rrhs
     real(DP) :: vcell
     real(DP) :: decay_rate
     !
     ! -- Calculate decay change
     do n = 1, nodes
       !
       ! -- skip if transport inactive
       this%ratedcys(n) = dzero
       if (this%ibound(n) <= 0) cycle
       !
       ! -- calculate new and old water volumes
       vcell = this%dis%area(n) * (this%dis%top(n) - this%dis%bot(n))
       !
       ! -- calculate decay gains and losses
       rate = dzero
       hhcof = dzero
       rrhs = dzero
       ! -- first-order decay (idcy=1) is not supported for temperature modeling
       if (this%idcy == decay_zero_order .and. &
           (this%idcysrc == decay_solid .or. this%idcysrc == decay_both)) then ! zero order decay in the solid phase
         decay_rate = this%decay_solid(n)
         ! -- this term does NOT get multiplied by eqnsclfac for cq purposes
         !    because it should already be a rate of energy
         rrhs = decay_rate * vcell * (1 - this%porosity(n)) * this%rhos(n)
       end if
       rate = hhcof * cnew(n) - rrhs
       this%ratedcys(n) = rate
       idiag = this%dis%con%ia(n)
       flowja(idiag) = flowja(idiag) + rate
       !
     end do

◆ est_cq_sto()

subroutine gweestmodule::est_cq_sto	(	class(gweesttype)	this,
		integer(i4b), intent(in)	nodes,
		real(dp), dimension(nodes), intent(in)	cnew,
		real(dp), dimension(nodes), intent(in)	cold,
		real(dp), dimension(:), intent(inout), contiguous	flowja
	)

Method to calculate storage terms for the package.

Parameters

	this	GweEstType object
[in]	nodes	number of nodes
[in]	cnew	temperature at end of this time step
[in]	cold	temperature at end of last time step
[in,out]	flowja	flow between two connected control volumes

Definition at line 374 of file gwe-est.f90.

     ! -- modules
     use tdismodule, only: delt
     ! -- dummy
     class(GweEstType) :: this !< GweEstType object
     integer(I4B), intent(in) :: nodes !< number of nodes
     real(DP), intent(in), dimension(nodes) :: cnew !< temperature at end of this time step
     real(DP), intent(in), dimension(nodes) :: cold !< temperature at end of last time step
     real(DP), dimension(:), contiguous, intent(inout) :: flowja !< flow between two connected control volumes
     ! -- local
     integer(I4B) :: n
     integer(I4B) :: idiag
     real(DP) :: rate
     real(DP) :: tled
     real(DP) :: vwatnew, vwatold, vcell, vsolid, term
     real(DP) :: hhcof, rrhs
     !
     ! -- initialize
     tled = done / delt
     !
     ! -- Calculate storage change
     do n = 1, nodes
       this%ratesto(n) = dzero
       !
       ! -- skip if transport inactive
       if (this%ibound(n) <= 0) cycle
       !
       ! -- calculate new and old water volumes and solid volume
       vcell = this%dis%area(n) * (this%dis%top(n) - this%dis%bot(n))
       vwatnew = vcell * this%fmi%gwfsat(n) * this%porosity(n)
       vwatold = vwatnew
       if (this%fmi%igwfstrgss /= 0) vwatold = vwatold + this%fmi%gwfstrgss(n) &
                                               * delt
       if (this%fmi%igwfstrgsy /= 0) vwatold = vwatold + this%fmi%gwfstrgsy(n) &
                                               * delt
       vsolid = vcell * (done - this%porosity(n))
       !
       ! -- calculate rate
       term = (this%rhos(n) * this%cps(n)) * vsolid
       hhcof = -(this%eqnsclfac * vwatnew + term) * tled
       rrhs = -(this%eqnsclfac * vwatold + term) * tled * cold(n)
       rate = hhcof * cnew(n) - rrhs
       this%ratesto(n) = rate
       idiag = this%dis%con%ia(n)
       flowja(idiag) = flowja(idiag) + rate
     end do

◆ est_cr()

subroutine, public gweestmodule::est_cr	(	type(gweesttype), pointer	estobj,
		character(len=*), intent(in)	name_model,
		integer(i4b), intent(in)	inunit,
		integer(i4b), intent(in)	iout,
		type(tspfmitype), intent(in), target	fmi,
		real(dp), intent(in), pointer	eqnsclfac,
		type(gweinputdatatype), intent(in), target	gwecommon
	)

Create a new EST package

Parameters

	estobj	unallocated new est object to create
[in]	name_model	name of the model
[in]	inunit	unit number of WEL package input file
[in]	iout	unit number of model listing file
[in]	fmi	fmi package for this GWE model
[in]	eqnsclfac	governing equation scale factor
[in]	gwecommon	shared data container for use by multiple GWE packages

Definition at line 102 of file gwe-est.f90.

     ! -- dummy
     type(GweEstType), pointer :: estobj !< unallocated new est object to create
     character(len=*), intent(in) :: name_model !< name of the model
     integer(I4B), intent(in) :: inunit !< unit number of WEL package input file
     integer(I4B), intent(in) :: iout !< unit number of model listing file
     type(TspFmiType), intent(in), target :: fmi !< fmi package for this GWE model
     real(DP), intent(in), pointer :: eqnsclfac !< governing equation scale factor
     type(GweInputDataType), intent(in), target :: gwecommon !< shared data container for use by multiple GWE packages
     !
     ! -- Create the object
     allocate (estobj)
     !
     ! -- create name and memory path
     call estobj%set_names(1, name_model, 'EST', 'EST')
     !
     ! -- Allocate scalars
     call estobj%allocate_scalars()
     !
     ! -- Set variables
     estobj%inunit = inunit
     estobj%iout = iout
     estobj%fmi => fmi
     estobj%eqnsclfac => eqnsclfac
     estobj%gwecommon => gwecommon
     !
     ! -- Initialize block parser
     call estobj%parser%Initialize(estobj%inunit, estobj%iout)

Here is the caller graph for this function:

◆ est_da()

subroutine gweestmodule::est_da ( class(gweesttype) this )

Method to deallocate memory for the package.

Parameters

this	GweEstType object

Definition at line 617 of file gwe-est.f90.

     ! -- modules
     use memorymanagermodule, only: mem_deallocate
     ! -- dummy
     class(GweEstType) :: this !< GweEstType object
     !
     ! -- Deallocate arrays if package was active
     if (this%inunit > 0) then
       call mem_deallocate(this%porosity)
       call mem_deallocate(this%ratesto)
       call mem_deallocate(this%idcy)
       call mem_deallocate(this%idcysrc)
       call mem_deallocate(this%decay_water)
       call mem_deallocate(this%decay_solid)
       call mem_deallocate(this%ratedcyw)
       call mem_deallocate(this%ratedcys)
       call mem_deallocate(this%decaylastw)
       call mem_deallocate(this%decaylasts)
       call mem_deallocate(this%cpw)
       call mem_deallocate(this%cps)
       call mem_deallocate(this%rhow)
       call mem_deallocate(this%rhos)
       call mem_deallocate(this%latheatvap)
       this%ibound => null()
       this%fmi => null()
     end if
     !
     ! -- Scalars
     !
     ! -- deallocate parent
     call this%NumericalPackageType%da()

◆ est_fc()

subroutine gweestmodule::est_fc	(	class(gweesttype)	this,
		integer, intent(in)	nodes,
		real(dp), dimension(nodes), intent(in)	cold,
		integer(i4b), intent(in)	nja,
		class(matrixbasetype), pointer	matrix_sln,
		integer(i4b), dimension(nja), intent(in)	idxglo,
		real(dp), dimension(nodes), intent(in)	cnew,
		real(dp), dimension(nodes), intent(inout)	rhs,
		integer(i4b), intent(in)	kiter
	)

Method to calculate and fill coefficients for the package.

Parameters

	this	GweEstType object
[in]	nodes	number of nodes
[in]	cold	temperature at end of last time step
[in]	nja	number of GWE connections
	matrix_sln	solution matrix
[in]	idxglo	mapping vector for model (local) to solution (global)
[in,out]	rhs	right-hand side vector for model
[in]	cnew	temperature at end of this time step
[in]	kiter	solution outer iteration number

Definition at line 173 of file gwe-est.f90.

     ! -- dummy
     class(GweEstType) :: this !< GweEstType object
     integer, intent(in) :: nodes !< number of nodes
     real(DP), intent(in), dimension(nodes) :: cold !< temperature at end of last time step
     integer(I4B), intent(in) :: nja !< number of GWE connections
     class(MatrixBaseType), pointer :: matrix_sln !< solution matrix
     integer(I4B), intent(in), dimension(nja) :: idxglo !< mapping vector for model (local) to solution (global)
     real(DP), intent(inout), dimension(nodes) :: rhs !< right-hand side vector for model
     real(DP), intent(in), dimension(nodes) :: cnew !< temperature at end of this time step
     integer(I4B), intent(in) :: kiter !< solution outer iteration number
     !
     ! -- storage contribution
     call this%est_fc_sto(nodes, cold, nja, matrix_sln, idxglo, rhs)
     !
     ! -- decay contribution
     if (this%idcy == decay_zero_order) then
       call this%est_fc_dcy_water(nodes, cold, cnew, nja, matrix_sln, idxglo, &
                                  rhs, kiter)
       call this%est_fc_dcy_solid(nodes, cold, nja, matrix_sln, idxglo, rhs, &
                                  cnew, kiter)
     end if

◆ est_fc_dcy_solid()

subroutine gweestmodule::est_fc_dcy_solid	(	class(gweesttype)	this,
		integer, intent(in)	nodes,
		real(dp), dimension(nodes), intent(in)	cold,
		integer(i4b), intent(in)	nja,
		class(matrixbasetype), pointer	matrix_sln,
		integer(i4b), dimension(nja), intent(in)	idxglo,
		real(dp), dimension(nodes), intent(inout)	rhs,
		real(dp), dimension(nodes), intent(in)	cnew,
		integer(i4b), intent(in)	kiter
	)

Method to calculate and fill energy decay coefficients for the solid phase.

Parameters

	this	GwtMstType object
[in]	nodes	number of nodes
[in]	cold	temperature at end of last time step
[in]	nja	number of GWE connections
	matrix_sln	solution coefficient matrix
[in]	idxglo	mapping vector for model (local) to solution (global)
[in,out]	rhs	right-hand side vector for model
[in]	cnew	temperature at end of this time step
[in]	kiter	solution outer iteration number

Definition at line 298 of file gwe-est.f90.

     ! -- dummy
     class(GweEstType) :: this !< GwtMstType object
     integer, intent(in) :: nodes !< number of nodes
     real(DP), intent(in), dimension(nodes) :: cold !< temperature at end of last time step
     integer(I4B), intent(in) :: nja !< number of GWE connections
     class(MatrixBaseType), pointer :: matrix_sln !< solution coefficient matrix
     integer(I4B), intent(in), dimension(nja) :: idxglo !< mapping vector for model (local) to solution (global)
     real(DP), intent(inout), dimension(nodes) :: rhs !< right-hand side vector for model
     real(DP), intent(in), dimension(nodes) :: cnew !< temperature at end of this time step
     integer(I4B), intent(in) :: kiter !< solution outer iteration number
     ! -- local
     integer(I4B) :: n
     real(DP) :: rrhs
     real(DP) :: vcell
     real(DP) :: decay_rate
     !
     ! -- loop through and calculate sorption contribution to hcof and rhs
     do n = 1, this%dis%nodes
       !
       ! -- skip if transport inactive
       if (this%ibound(n) <= 0) cycle
       !
       ! -- set variables
       rrhs = dzero
       vcell = this%dis%area(n) * (this%dis%top(n) - this%dis%bot(n))
       !
       ! -- account for zero-order decay rate terms in rhs
       if (this%idcy == decay_zero_order .and. (this%idcysrc == decay_solid .or. &
                                                this%idcysrc == decay_both)) then
         !
         ! -- negative temps are currently not checked for or prevented since a
         !    user can define a temperature scale of their own choosing.  if
         !    negative temps result from the specified zero-order decay value,
         !    it is up to the user to decide if the calculated temperatures are
         !    acceptable
         decay_rate = this%decay_solid(n)
         this%decaylasts(n) = decay_rate
         rrhs = decay_rate * vcell * (1 - this%porosity(n)) * this%rhos(n)
         rhs(n) = rhs(n) + rrhs
       end if
     end do

◆ est_fc_dcy_water()

subroutine gweestmodule::est_fc_dcy_water	(	class(gweesttype)	this,
		integer, intent(in)	nodes,
		real(dp), dimension(nodes), intent(in)	cold,
		real(dp), dimension(nodes), intent(in)	cnew,
		integer(i4b), intent(in)	nja,
		class(matrixbasetype), pointer	matrix_sln,
		integer(i4b), dimension(nja), intent(in)	idxglo,
		real(dp), dimension(nodes), intent(inout)	rhs,
		integer(i4b), intent(in)	kiter
	)

Method to calculate and fill decay coefficients for the package.

Parameters

	this	GweEstType object
[in]	nodes	number of nodes
[in]	cold	temperature at end of last time step
[in]	cnew	temperature at end of this time step
[in]	nja	number of GWE connections
	matrix_sln	solution coefficient matrix
[in]	idxglo	mapping vector for model (local) to solution (global)
[in,out]	rhs	right-hand side vector for model
[in]	kiter	solution outer iteration number

Definition at line 250 of file gwe-est.f90.

     ! -- dummy
     class(GweEstType) :: this !< GweEstType object
     integer, intent(in) :: nodes !< number of nodes
     real(DP), intent(in), dimension(nodes) :: cold !< temperature at end of last time step
     real(DP), intent(in), dimension(nodes) :: cnew !< temperature at end of this time step
     integer(I4B), intent(in) :: nja !< number of GWE connections
     class(MatrixBaseType), pointer :: matrix_sln !< solution coefficient matrix
     integer(I4B), intent(in), dimension(nja) :: idxglo !< mapping vector for model (local) to solution (global)
     real(DP), intent(inout), dimension(nodes) :: rhs !< right-hand side vector for model
     integer(I4B), intent(in) :: kiter !< solution outer iteration number
     ! -- local
     integer(I4B) :: n
     real(DP) :: rrhs
     real(DP) :: swtpdt
     real(DP) :: vcell
     real(DP) :: decay_rate
     !
     ! -- loop through and calculate decay contribution to hcof and rhs
     do n = 1, this%dis%nodes
       !
       ! -- skip if transport inactive
       if (this%ibound(n) <= 0) cycle
       !
       ! -- calculate new and old water volumes
       vcell = this%dis%area(n) * (this%dis%top(n) - this%dis%bot(n))
       swtpdt = this%fmi%gwfsat(n)
       !
       ! -- add zero-order decay rate terms to accumulators
       if (this%idcy == decay_zero_order .and. (this%idcysrc == decay_water .or. &
                                                this%idcysrc == decay_both)) then
         !
         decay_rate = this%decay_water(n)
         ! -- This term does get divided by eqnsclfac for fc purposes because it
         !    should start out being a rate of energy
         this%decaylastw(n) = decay_rate
         rrhs = decay_rate * vcell * swtpdt * this%porosity(n)
         rhs(n) = rhs(n) + rrhs
       end if
       !
     end do

◆ est_fc_sto()

subroutine gweestmodule::est_fc_sto	(	class(gweesttype)	this,
		integer, intent(in)	nodes,
		real(dp), dimension(nodes), intent(in)	cold,
		integer(i4b), intent(in)	nja,
		class(matrixbasetype), pointer	matrix_sln,
		integer(i4b), dimension(nja), intent(in)	idxglo,
		real(dp), dimension(nodes), intent(inout)	rhs
	)

Method to calculate and fill storage coefficients for the package.

Parameters

	this	GweEstType object
[in]	nodes	number of nodes
[in]	cold	temperature at end of last time step
[in]	nja	number of GWE connections
	matrix_sln	solution coefficient matrix
[in]	idxglo	mapping vector for model (local) to solution (global)
[in,out]	rhs	right-hand side vector for model

Definition at line 202 of file gwe-est.f90.

     ! -- modules
     use tdismodule, only: delt
     ! -- dummy
     class(GweEstType) :: this !< GweEstType object
     integer, intent(in) :: nodes !< number of nodes
     real(DP), intent(in), dimension(nodes) :: cold !< temperature at end of last time step
     integer(I4B), intent(in) :: nja !< number of GWE connections
     class(MatrixBaseType), pointer :: matrix_sln !< solution coefficient matrix
     integer(I4B), intent(in), dimension(nja) :: idxglo !< mapping vector for model (local) to solution (global)
     real(DP), intent(inout), dimension(nodes) :: rhs !< right-hand side vector for model
     ! -- local
     integer(I4B) :: n, idiag
     real(DP) :: tled
     real(DP) :: hhcof, rrhs
     real(DP) :: vnew, vold, vcell, vsolid, term
     !
     ! -- set variables
     tled = done / delt
     !
     ! -- loop through and calculate storage contribution to hcof and rhs
     do n = 1, this%dis%nodes
       !
       ! -- skip if transport inactive
       if (this%ibound(n) <= 0) cycle
       !
       ! -- calculate new and old water volumes and solid volume
       vcell = this%dis%area(n) * (this%dis%top(n) - this%dis%bot(n))
       vnew = vcell * this%fmi%gwfsat(n) * this%porosity(n)
       vold = vnew
       if (this%fmi%igwfstrgss /= 0) vold = vold + this%fmi%gwfstrgss(n) * delt
       if (this%fmi%igwfstrgsy /= 0) vold = vold + this%fmi%gwfstrgsy(n) * delt
       vsolid = vcell * (done - this%porosity(n))
       !
       ! -- add terms to diagonal and rhs accumulators
       term = (this%rhos(n) * this%cps(n)) * vsolid
       hhcof = -(this%eqnsclfac * vnew + term) * tled
       rrhs = -(this%eqnsclfac * vold + term) * tled * cold(n)
       idiag = this%dis%con%ia(n)
       call matrix_sln%add_value_pos(idxglo(idiag), hhcof)
       rhs(n) = rhs(n) + rrhs
     end do

◆ est_ot_flow()

subroutine gweestmodule::est_ot_flow	(	class(gweesttype)	this,
		integer(i4b), intent(in)	icbcfl,
		integer(i4b), intent(in)	icbcun
	)

Method to output terms for the package.

Parameters

	this	GweEstType object
[in]	icbcfl	flag and unit number for cell-by-cell output
[in]	icbcun	flag indication if cell-by-cell data should be saved

Definition at line 564 of file gwe-est.f90.

     ! -- dummy
     class(GweEstType) :: this !< GweEstType object
     integer(I4B), intent(in) :: icbcfl !< flag and unit number for cell-by-cell output
     integer(I4B), intent(in) :: icbcun !< flag indication if cell-by-cell data should be saved
     ! -- local
     integer(I4B) :: ibinun
     integer(I4B) :: iprint, nvaluesp, nwidthp
     character(len=1) :: cdatafmp = ' ', editdesc = ' '
     real(DP) :: dinact
     !
     ! -- Set unit number for binary output
     if (this%ipakcb < 0) then
       ibinun = icbcun
     elseif (this%ipakcb == 0) then
       ibinun = 0
     else
       ibinun = this%ipakcb
     end if
     if (icbcfl == 0) ibinun = 0
     !
     ! -- Record the storage rate if requested
     if (ibinun /= 0) then
       iprint = 0
       dinact = dzero
       !
       ! -- sto
       call this%dis%record_array(this%ratesto, this%iout, iprint, -ibinun, &
                                  budtxt(1), cdatafmp, nvaluesp, &
                                  nwidthp, editdesc, dinact)
       !
       ! -- dcy
       if (this%idcy == decay_zero_order) then
         if (this%idcysrc == decay_water .or. this%idcysrc == decay_both) then
           ! -- aqueous phase
           call this%dis%record_array(this%ratedcyw, this%iout, iprint, &
                                      -ibinun, budtxt(2), cdatafmp, nvaluesp, &
                                      nwidthp, editdesc, dinact)
         end if
         if (this%idcysrc == decay_solid .or. this%idcysrc == decay_both) then
           ! -- solid phase
           call this%dis%record_array(this%ratedcys, this%iout, iprint, &
                                      -ibinun, budtxt(3), cdatafmp, nvaluesp, &
                                      nwidthp, editdesc, dinact)
         end if
       end if
     end if

◆ read_data()

subroutine gweestmodule::read_data ( class(gweesttype) this )

Method to read data for the package.

Parameters

this	GweEstType object

Definition at line 839 of file gwe-est.f90.

     ! -- modules
     use constantsmodule, only: linelength
     use memorymanagermodule, only: mem_reallocate, mem_reassignptr
     ! -- dummy
     class(GweEstType) :: this !< GweEstType object
     ! -- local
     character(len=LINELENGTH) :: keyword
     character(len=:), allocatable :: line
     integer(I4B) :: istart, istop, lloc, ierr
     logical :: isfound, endOfBlock
     logical, dimension(5) :: lname
     character(len=24), dimension(5) :: aname
     ! -- formats
     ! -- data
     data aname(1)/'  MOBILE DOMAIN POROSITY'/
     data aname(2)/'DECAY RATE AQUEOUS PHASE'/
     data aname(3)/'  DECAY RATE SOLID PHASE'/
     data aname(4)/' HEAT CAPACITY OF SOLIDS'/
     data aname(5)/'       DENSITY OF SOLIDS'/
     !
     ! -- initialize
     isfound = .false.
     lname(:) = .false.
     !
     ! -- get griddata block
     call this%parser%GetBlock('GRIDDATA', isfound, ierr)
     if (isfound) then
       write (this%iout, '(1x,a)') 'PROCESSING GRIDDATA'
       do
         call this%parser%GetNextLine(endofblock)
         if (endofblock) exit
         call this%parser%GetStringCaps(keyword)
         call this%parser%GetRemainingLine(line)
         lloc = 1
         select case (keyword)
         case ('POROSITY')
           call this%dis%read_grid_array(line, lloc, istart, istop, this%iout, &
                                         this%parser%iuactive, this%porosity, &
                                         aname(1))
           lname(1) = .true.
         case ('DECAY_WATER')
           if (this%idcy == decay_off) &
             call mem_reallocate(this%decay_water, this%dis%nodes, 'DECAY_WATER', &
                                 trim(this%memoryPath))
           call this%dis%read_grid_array(line, lloc, istart, istop, this%iout, &
                                         this%parser%iuactive, this%decay_water, &
                                         aname(2))
           lname(2) = .true.
         case ('DECAY_SOLID')
           if (this%idcy == decay_off) &
             call mem_reallocate(this%decay_solid, this%dis%nodes, 'DECAY_SOLID', &
                                 trim(this%memoryPath))
           call this%dis%read_grid_array(line, lloc, istart, istop, this%iout, &
                                         this%parser%iuactive, this%decay_solid, &
                                         aname(3))
           lname(3) = .true.
         case ('HEAT_CAPACITY_SOLID')
           call this%dis%read_grid_array(line, lloc, istart, istop, this%iout, &
                                         this%parser%iuactive, this%cps, &
                                         aname(4))
           lname(4) = .true.
         case ('DENSITY_SOLID')
           call this%dis%read_grid_array(line, lloc, istart, istop, this%iout, &
                                         this%parser%iuactive, this%rhos, &
                                         aname(5))
           lname(5) = .true.
         case default
           write (errmsg, '(a,a)') 'Unknown griddata tag: ', trim(keyword)
           call store_error(errmsg)
           call this%parser%StoreErrorUnit()
         end select
       end do
       write (this%iout, '(1x,a)') 'END PROCESSING GRIDDATA'
     else
       write (errmsg, '(a)') 'Required griddata block not found.'
       call store_error(errmsg)
       call this%parser%StoreErrorUnit()
     end if
     !
     ! -- Check for required porosity
     if (.not. lname(1)) then
       write (errmsg, '(a)') 'Porosity not specified in griddata block.'
       call store_error(errmsg)
     end if
     if (.not. lname(4)) then
       write (errmsg, '(a)') 'HEAT_CAPACITY_SOLID not specified in griddata block.'
       call store_error(errmsg)
     end if
     if (.not. lname(5)) then
       write (errmsg, '(a)') 'DENSITY_SOLID not specified in griddata block.'
       call store_error(errmsg)
     end if
     !
     ! -- Check for required decay/production rate coefficients
     if (this%idcy == decay_zero_order) then
       if (.not. lname(2) .and. .not. lname(3)) then
         write (errmsg, '(a)') 'Zero order decay in either the aqueous &
           &or solid phase is active but the corresponding zero-order &
           &rate coefficient is not specified. Either DECAY_WATER or &
           &DECAY_SOLID must be specified in the griddata block.'
         call store_error(errmsg)
       end if
     else
       if (lname(2)) then
         write (warnmsg, '(a)') 'Zero order decay in the aqueous phase has &
           &not been activated but DECAY_WATER has been specified. Zero &
           &order decay in the aqueous phase will have no affect on &
           &simulation results.'
         call store_warning(warnmsg)
         write (this%iout, '(1x,a)') 'WARNING.  '//warnmsg
       else if (lname(3)) then
         write (warnmsg, '(a)') 'Zero order decay in the solid phase has not &
           &been activated but DECAY_SOLID has been specified.  Zero order &
           &decay in the solid phase will have no affect on simulation &
           &results.'
         call store_warning(warnmsg)
         write (this%iout, '(1x,a)') 'WARNING.  '//warnmsg
       end if
     end if
     !
     ! -- terminate if errors
     if (count_errors() > 0) then
       call this%parser%StoreErrorUnit()
     end if

Here is the call graph for this function:

◆ read_options()

subroutine gweestmodule::read_options ( class(gweesttype) this )

Method to read options for the package.

Parameters

this	GweEstType object

Definition at line 739 of file gwe-est.f90.

     ! -- modules
     use constantsmodule, only: linelength
     ! -- dummy
     class(GweEstType) :: this !< GweEstType object
     ! -- local
     character(len=LINELENGTH) :: keyword
     integer(I4B) :: ierr
     logical :: isfound, endOfBlock
     ! -- formats
     character(len=*), parameter :: fmtisvflow = &
             &"(4x,'CELL-BY-CELL FLOW INFORMATION WILL BE SAVED TO BINARY "// &
             &"FILE WHENEVER ICBCFL IS NOT ZERO.')"
     character(len=*), parameter :: fmtidcy1 = &
                                    "(4x,'FIRST-ORDER DECAY IS ACTIVE. ')"
     character(len=*), parameter :: fmtidcy2 = &
                                    "(4x,'ZERO-ORDER DECAY IN THE AQUEOUS "// &
                                    &"PHASE IS ACTIVE. ')"
     character(len=*), parameter :: fmtidcy3 = &
                                    "(4x,'ZERO-ORDER DECAY IN THE SOLID "// &
                                    &"PHASE IS ACTIVE. ')"
     !
     ! -- get options block
     call this%parser%GetBlock('OPTIONS', isfound, ierr, blockrequired=.false., &
                               supportopenclose=.true.)
     !
     ! -- parse options block if detected
     if (isfound) then
       write (this%iout, '(1x,a)') 'PROCESSING ENERGY STORAGE AND TRANSFER OPTIONS'
       do
         call this%parser%GetNextLine(endofblock)
         if (endofblock) exit
         call this%parser%GetStringCaps(keyword)
         select case (keyword)
         case ('SAVE_FLOWS')
           this%ipakcb = -1
           write (this%iout, fmtisvflow)
         case ('ZERO_ORDER_DECAY_WATER')
           this%idcy = decay_zero_order
           ! -- idcysrc > 0 indicates decay in the solid phase is active
           !    in which case the idcysrc should now be upgraded to both phases
           if (this%idcysrc > izero) then
             this%idcysrc = decay_both
           else
             this%idcysrc = decay_water
           end if
           write (this%iout, fmtidcy2)
         case ('ZERO_ORDER_DECAY_SOLID')
           this%idcy = decay_zero_order
           ! -- idcysrc > 0 indicates decay in active in water in which case
           !    the idcysrc should now be upgraded to both phases
           if (this%idcysrc > izero) then
             this%idcysrc = decay_both
           else
             this%idcysrc = decay_solid
           end if
           write (this%iout, fmtidcy3)
         case ('HEAT_CAPACITY_WATER')
           this%cpw = this%parser%GetDouble()
           if (this%cpw <= 0.0) then
             write (errmsg, '(a)') 'Specified value for the heat capacity of &
               &water must be greater than 0.0.'
             call store_error(errmsg)
             call this%parser%StoreErrorUnit()
           else
             write (this%iout, '(4x,a,1pg15.6)') &
               'Heat capacity of the water has been set to: ', &
               this%cpw
           end if
         case ('DENSITY_WATER')
           this%rhow = this%parser%GetDouble()
           if (this%rhow <= 0.0) then
             write (errmsg, '(a)') 'Specified value for the density of &
               &water must be greater than 0.0.'
             call store_error(errmsg)
             call this%parser%StoreErrorUnit()
           else
             write (this%iout, '(4x,a,1pg15.6)') &
               'Density of the water has been set to: ', &
               this%rhow
           end if
         case ('LATENT_HEAT_VAPORIZATION')
           this%latheatvap = this%parser%GetDouble()
           write (this%iout, '(4x,a,1pg15.6)') &
             'Latent heat of vaporization of the water has been set to: ', &
             this%latheatvap
         case default
           write (errmsg, '(a,a)') 'Unknown EST option: ', trim(keyword)
           call store_error(errmsg)
           call this%parser%StoreErrorUnit()
         end select
       end do
       write (this%iout, '(1x,a)') 'END OF ENERGY STORAGE AND TRANSFER OPTIONS'
     end if

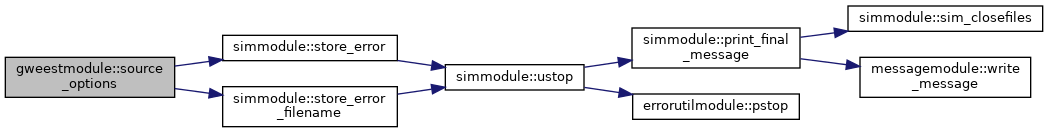

Here is the call graph for this function:

Variable Documentation

◆ budtxt

character(len=lenbudtxt), dimension(nbditems) gweestmodule::budtxt

Definition at line 31 of file gwe-est.f90.

31 character(len=LENBUDTXT), dimension(NBDITEMS) :: budtxt

◆ nbditems

integer(i4b), parameter gweestmodule::nbditems = 3

Definition at line 30 of file gwe-est.f90.

30 integer(I4B), parameter :: NBDITEMS = 3

Data Types

Enumerations

Functions/Subroutines

Variables

Detailed Description

Enumeration Type Documentation

◆ anonymous enum

Function/Subroutine Documentation

◆ allocate_arrays()

◆ allocate_scalars()

◆ est_ar()

◆ est_bd()

◆ est_cq()

◆ est_cq_dcy()

◆ est_cq_dcy_solid()

◆ est_cq_sto()

◆ est_cr()

◆ est_da()

◆ est_fc()

◆ est_fc_dcy_solid()

◆ est_fc_dcy_water()

◆ est_fc_sto()

◆ est_ot_flow()

◆ read_data()

◆ read_options()

Variable Documentation

◆ budtxt

◆ nbditems
