MODFLOW 6  version 6.8.0.dev0
USGS Modular Hydrologic Model
Data Types | Functions/Subroutines
imslinearmodule Module Reference

Data Types

type  imslineardatatype


Functions/Subroutines

subroutine imslinear_ar (this, NAME, IOUT, IPRIMS, MXITER, NEQ, matrix, RHS, X, linear_settings)
 @ brief Allocate storage and read data More...

subroutine imslinear_summary (this, mxiter)
 @ brief Write summary of settings More...

subroutine allocate_scalars (this)
 @ brief Allocate and initialize scalars More...

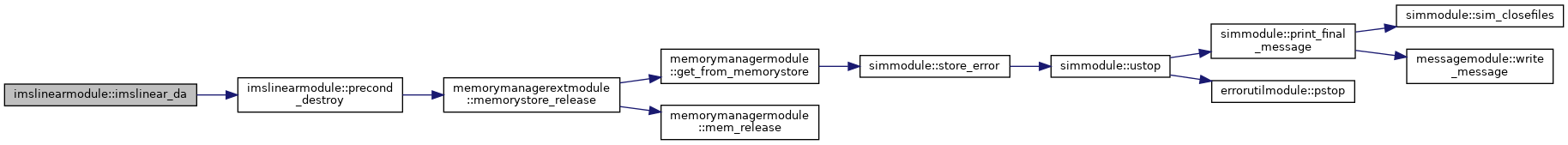

subroutine imslinear_da (this)
 @ brief Deallocate memory More...

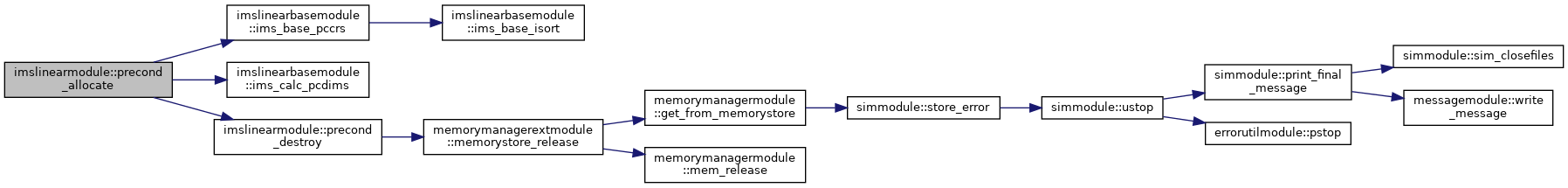

subroutine precond_allocate (this)
 Allocate and initialize the preconditioner work arrays. More...

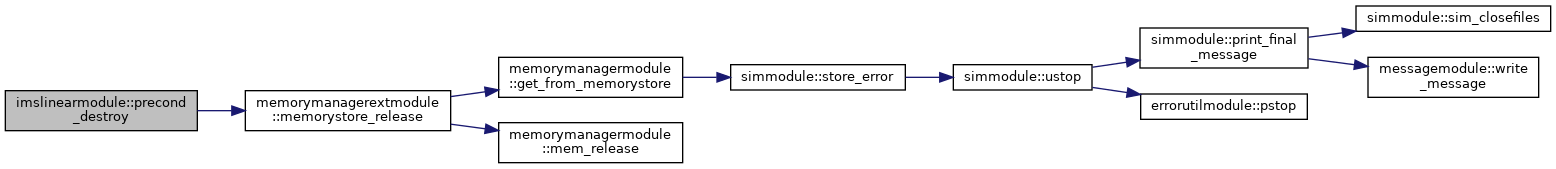

subroutine precond_destroy (this)
 Deallocate the preconditioner work arrays. More...

subroutine imslinear_set_input (this, IFDPARAM)
 @ brief Set default settings More...

subroutine imslinear_ap (this, ICNVG, KSTP, KITER, IN_ITER, NCONV, CONVNMOD, CONVMODSTART, CACCEL, summary)
 @ brief Base linear accelerator subroutine More...


Function/Subroutine Documentation

◆ allocate_scalars()

subroutine imslinearmodule::allocate_scalars ( class(imslineardatatype), intent(inout)  this)
private

Allocate and initialize linear accelerator scalars

Parameters
[in,out]thisImsLinearDataType instance

Definition at line 425 of file ImsLinear.f90.

426  ! -- modules
427  use memorymanagermodule, only: mem_allocate
428  ! -- dummy variables
429  class(ImsLinearDataType), intent(inout) :: this !< ImsLinearDataType instance
430  !
431  ! -- allocate scalars
432  call mem_allocate(this%iout, 'IOUT', this%memoryPath)
433  call mem_allocate(this%ipc, 'IPC', this%memoryPath)
434  call mem_allocate(this%iacpc, 'IACPC', this%memoryPath)
435  call mem_allocate(this%niterc, 'NITERC', this%memoryPath)
436  call mem_allocate(this%niabcgs, 'NIABCGS', this%memoryPath)
437  call mem_allocate(this%niapc, 'NIAPC', this%memoryPath)
438  call mem_allocate(this%njapc, 'NJAPC', this%memoryPath)
439  call mem_allocate(this%epfact, 'EPFACT', this%memoryPath)
440  call mem_allocate(this%l2norm0, 'L2NORM0', this%memoryPath)
441  call mem_allocate(this%njlu, 'NJLU', this%memoryPath)
442  call mem_allocate(this%njw, 'NJW', this%memoryPath)
443  call mem_allocate(this%nwlu, 'NWLU', this%memoryPath)
444  !
445  ! -- initialize scalars
446  this%iout = 0
447  this%ipc = 0
448  this%iacpc = 0
449  this%niterc = 0
450  this%niabcgs = 0
451  this%niapc = 0
452  this%njapc = 0
453  this%epfact = dzero
454  this%l2norm0 = 0
455  this%njlu = 0
456  this%njw = 0
457  this%nwlu = 0
memorymanagermodule::mem_allocate
Definition: MemoryManager.f90:55

◆ imslinear_ap()

subroutine imslinearmodule::imslinear_ap ( class(imslineardatatype), intent(inout)  this,
integer(i4b), intent(inout)  ICNVG,
integer(i4b), intent(in)  KSTP,
integer(i4b), intent(in)  KITER,
integer(i4b), intent(inout)  IN_ITER,
integer(i4b), intent(in)  NCONV,
integer(i4b), intent(in)  CONVNMOD,
integer(i4b), dimension(convnmod + 1), intent(inout)  CONVMODSTART,
character(len=31), dimension(nconv), intent(inout)  CACCEL,
type(convergencesummarytype), intent(in), pointer  summary
)
private

Base linear accelerator subroutine that scales and reorders the system of equations, if necessary, updates the preconditioner, and calls the appropriate linear accelerator.

Parameters
[in,out]thisImsLinearDataType instance
[in,out]icnvgconvergence flag (1) non-convergence (0)
[in]kstptime step number
[in]kiterouter iteration number
[in,out]in_iterinner iteration number
[in]summaryConvergence summary report

Definition at line 662 of file ImsLinear.f90.

665  ! -- modules
666  USE simmodule
667  ! -- dummy variables
668  CLASS(ImsLinearDataType), INTENT(INOUT) :: this !< ImsLinearDataType instance
669  integer(I4B), INTENT(INOUT) :: ICNVG !< convergence flag (1) non-convergence (0)
670  integer(I4B), INTENT(IN) :: KSTP !< time step number
671  integer(I4B), INTENT(IN) :: KITER !< outer iteration number
672  integer(I4B), INTENT(INOUT) :: IN_ITER !< inner iteration number
673  ! -- convergence information dummy variables
674  integer(I4B), INTENT(IN) :: NCONV !<
675  integer(I4B), INTENT(IN) :: CONVNMOD !<
676  integer(I4B), DIMENSION(CONVNMOD + 1), INTENT(INOUT) :: CONVMODSTART !<
677  character(len=31), DIMENSION(NCONV), INTENT(INOUT) :: CACCEL !<
678  type(ConvergenceSummaryType), pointer, intent(in) :: summary !< Convergence summary report
679  ! -- local variables
680  integer(I4B) :: n
681  integer(I4B) :: innerit
682  integer(I4B) :: irc
683  integer(I4B) :: itmax
684  real(DP) :: dnrm2
685  !
686  ! -- set epfact based on timestep
687  this%EPFACT = ims_base_epfact(this%ICNVGOPT, kstp)
688  !
689  ! -- SCALE PROBLEM
690  IF (this%ISCL .NE. 0) THEN
691  CALL ims_base_scale(0, this%ISCL, &
692  this%NEQ, this%NJA, this%IA, this%JA, &
693  this%AMAT, this%X, this%RHS, &
694  this%DSCALE, this%DSCALE2)
695  END IF
696  !
697  ! -- PERMUTE ROWS, COLUMNS, AND RHS
698  IF (this%IORD /= 0) THEN
699  CALL dperm(this%NEQ, this%AMAT, this%JA, this%IA, &
700  this%ARO, this%JARO, this%IARO, &
701  this%LORDER, this%ID, 1)
702  CALL dvperm(this%NEQ, this%X, this%LORDER)
703  CALL dvperm(this%NEQ, this%RHS, this%LORDER)
704  this%IA0 => this%IARO
705  this%JA0 => this%JARO
706  this%A0 => this%ARO
707  ELSE
708  this%IA0 => this%IA
709  this%JA0 => this%JA
710  this%A0 => this%AMAT
711  END IF
712  !
713  ! -- UPDATE PRECONDITIONER
714  CALL ims_base_pcu(this%iout, this%NJA, this%NEQ, this%NIAPC, this%NJAPC, &
715  this%IPC, this%RELAX, this%A0, this%IA0, this%JA0, &
716  this%APC, this%IAPC, this%JAPC, this%IW, this%W, &
717  this%LEVEL, this%DROPTOL, this%NJLU, this%NJW, &
718  this%NWLU, this%JLU, this%JW, this%WLU)
719  !
720  ! -- INITIALIZE SOLUTION VARIABLE AND ARRAYS
721  IF (kiter == 1) then
722  this%NITERC = 0
723  summary%iter_cnt = 0
724  end if
725  irc = 1
726  icnvg = 0
727  DO n = 1, this%NEQ
728  this%D(n) = dzero
729  this%P(n) = dzero
730  this%Q(n) = dzero
731  this%Z(n) = dzero
732  END DO
733  !
734  ! -- CALCULATE INITIAL RESIDUAL
735  call ims_base_residual(this%NEQ, this%NJA, this%X, this%RHS, this%D, &
736  this%A0, this%IA0, this%JA0)
737  this%L2NORM0 = dnrm2(this%NEQ, this%D, 1)
738  !
739  ! -- CHECK FOR EXACT SOLUTION
740  itmax = this%ITER1
741  IF (this%L2NORM0 == dzero) THEN
742  itmax = 0
743  icnvg = 1
744  END IF
745  !
746  ! -- SOLUTION BY THE CONJUGATE GRADIENT METHOD
747  IF (this%ILINMETH == 1) THEN
748  CALL ims_base_cg(icnvg, itmax, innerit, &
749  this%NEQ, this%NJA, this%NIAPC, this%NJAPC, &
750  this%IPC, this%ICNVGOPT, this%NORTH, &
751  this%DVCLOSE, this%RCLOSE, this%L2NORM0, &
752  this%EPFACT, this%IA0, this%JA0, this%A0, &
753  this%IAPC, this%JAPC, this%APC, &
754  this%X, this%RHS, this%D, this%P, this%Q, this%Z, &
755  this%NJLU, this%IW, this%JLU, &
756  nconv, convnmod, convmodstart, &
757  caccel, summary)
758  !
759  ! -- SOLUTION BY THE BICONJUGATE GRADIENT STABILIZED METHOD
760  ELSE IF (this%ILINMETH == 2) THEN
761  CALL ims_base_bcgs(icnvg, itmax, innerit, &
762  this%NEQ, this%NJA, this%NIAPC, this%NJAPC, &
763  this%IPC, this%ICNVGOPT, this%NORTH, &
764  this%ISCL, this%DSCALE, &
765  this%DVCLOSE, this%RCLOSE, this%L2NORM0, &
766  this%EPFACT, this%IA0, this%JA0, this%A0, &
767  this%IAPC, this%JAPC, this%APC, &
768  this%X, this%RHS, this%D, this%P, this%Q, &
769  this%T, this%V, this%DHAT, this%PHAT, this%QHAT, &
770  this%NJLU, this%IW, this%JLU, &
771  nconv, convnmod, convmodstart, &
772  caccel, summary)
773  END IF
774  !
775  ! -- BACK PERMUTE AMAT, SOLUTION, AND RHS
776  IF (this%IORD /= 0) THEN
777  CALL dperm(this%NEQ, this%A0, this%JA0, this%IA0, &
778  this%AMAT, this%JA, this%IA, &
779  this%IORDER, this%ID, 1)
780  CALL dvperm(this%NEQ, this%X, this%IORDER)
781  CALL dvperm(this%NEQ, this%RHS, this%IORDER)
782  END IF
783  !
784  ! -- UNSCALE PROBLEM
785  IF (this%ISCL .NE. 0) THEN
786  CALL ims_base_scale(1, this%ISCL, &
787  this%NEQ, this%NJA, this%IA, this%JA, &
788  this%AMAT, this%X, this%RHS, &
789  this%DSCALE, this%DSCALE2)
790  END IF
791  !
792  ! -- SET IMS INNER ITERATION NUMBER (IN_ITER) TO NUMBER OF
793  ! IMSLINEAR INNER ITERATIONS (innerit)
794  in_iter = innerit
dnrm2
real(kind=8) function dnrm2(n, x, incx)
Definition: blas1_d.f90:388
simmodule
This module contains simulation methods.
Definition: Sim.f90:10
dvperm
subroutine dvperm(n, x, perm)
Definition: sparsekit.f90:62
dperm
subroutine dperm(nrow, a, ja, ia, ao, jao, iao, perm, qperm, job)
Definition: sparsekit.f90:354
Here is the call graph for this function:

◆ imslinear_ar()

subroutine imslinearmodule::imslinear_ar ( class(imslineardatatype), intent(inout)  this,
character(len=lensolutionname), intent(in)  NAME,
integer(i4b), intent(in)  IOUT,
integer(i4b), intent(in), target  IPRIMS,
integer(i4b), intent(in)  MXITER,
integer(i4b), intent(in), target  NEQ,
class(matrixbasetype), pointer  matrix,
real(dp), dimension(neq), intent(inout), target  RHS,
real(dp), dimension(neq), intent(inout), target  X,
type(imslinearsettingstype), pointer  linear_settings
)

Allocate storage for linear accelerators and read data

Parameters
[in,out]thisImsLinearDataType instance
[in]namesolution name
[in]ioutsimulation listing file unit
[in]iprimsprint option
[in]mxitermaximum outer iterations
[in]neqnumber of equations
[in,out]rhsright-hand side
[in,out]xdependent variables
linear_settingsthe settings form the IMS file

Definition at line 112 of file ImsLinear.f90.

114  ! -- modules
115  use memorymanagermodule, only: mem_allocate
116  use memoryhelpermodule, only: create_mem_path
117  use simmodule, only: store_error, count_errors, &
118  deprecation_warning
119  ! -- dummy variables
120  CLASS(ImsLinearDataType), INTENT(INOUT) :: this !< ImsLinearDataType instance
121  CHARACTER(LEN=LENSOLUTIONNAME), INTENT(IN) :: NAME !< solution name
122  integer(I4B), INTENT(IN) :: IOUT !< simulation listing file unit
123  integer(I4B), TARGET, INTENT(IN) :: IPRIMS !< print option
124  integer(I4B), INTENT(IN) :: MXITER !< maximum outer iterations
125  integer(I4B), TARGET, INTENT(IN) :: NEQ !< number of equations
126  class(MatrixBaseType), pointer :: matrix
127  real(DP), DIMENSION(NEQ), TARGET, INTENT(INOUT) :: RHS !< right-hand side
128  real(DP), DIMENSION(NEQ), TARGET, INTENT(INOUT) :: X !< dependent variables
129  type(ImsLinearSettingsType), pointer :: linear_settings !< the settings form the IMS file
130  ! -- local variables
131  character(len=LINELENGTH) :: errmsg
132  integer(I4B) :: n
133  integer(I4B) :: i0
134  integer(I4B) :: iscllen, iolen
135
136  !
137  ! -- DEFINE NAME
138  this%memoryPath = create_mem_path(name, 'IMSLINEAR')
139  !
140  ! -- SET pointers to IMS settings
141  this%DVCLOSE => linear_settings%dvclose
142  this%RCLOSE => linear_settings%rclose
143  this%ICNVGOPT => linear_settings%icnvgopt
144  this%ITER1 => linear_settings%iter1
145  this%ILINMETH => linear_settings%ilinmeth
146  this%ISCL => linear_settings%iscl
147  this%IORD => linear_settings%iord
148  this%NORTH => linear_settings%north
149  this%RELAX => linear_settings%relax
150  this%LEVEL => linear_settings%level
151  this%DROPTOL => linear_settings%droptol
152  !
153  ! -- SET POINTERS TO SOLUTION STORAGE
154  this%IPRIMS => iprims
155  this%NEQ => neq
156  call matrix%get_aij(this%IA, this%JA, this%AMAT)
157  call mem_allocate(this%NJA, 'NJA', this%memoryPath)
158  this%NJA = size(this%AMAT)
159  this%RHS => rhs
160  this%X => x
161  !
162  ! -- ALLOCATE SCALAR VARIABLES
163  call this%allocate_scalars()
164  !
165  ! -- initialize iout
166  this%iout = iout
167  !
168  ! -- DEFAULT VALUES
169  this%IPC = ipc_unknown
170  !
171  this%IACPC = 0
172  !
173  ! -- PRINT A MESSAGE IDENTIFYING IMSLINEAR SOLVER PACKAGE
174  write (iout, 2000)
175 02000 FORMAT(1x, /1x, 'IMSLINEAR -- UNSTRUCTURED LINEAR SOLUTION', &
176  ' PACKAGE, VERSION 8, 04/28/2017')
177  !
178  ! -- DETERMINE PRECONDITIONER
179  this%IPC = resolve_ipc(this%LEVEL, this%RELAX)
180  !
181  ! -- ERROR CHECKING FOR OPTIONS
182  IF (this%ISCL < 0) this%ISCL = 0
183  IF (this%ISCL > 2) THEN
184  WRITE (errmsg, '(A)') 'IMSLINEAR7AR ISCL MUST BE <= 2'
185  call store_error(errmsg)
186  END IF
187  IF (this%IORD < 0) this%IORD = 0
188  IF (this%IORD > 2) THEN
189  WRITE (errmsg, '(A)') 'IMSLINEAR7AR IORD MUST BE <= 2'
190  call store_error(errmsg)
191  END IF
192  IF (this%NORTH < 0) THEN
193  WRITE (errmsg, '(A)') 'IMSLINEAR7AR NORTH MUST >= 0'
194  call store_error(errmsg)
195  END IF
196  IF (this%RCLOSE == dzero) THEN
197  IF (this%ICNVGOPT /= 3) THEN
198  WRITE (errmsg, '(A)') 'IMSLINEAR7AR RCLOSE MUST > 0.0'
199  call store_error(errmsg)
200  END IF
201  END IF
202  IF (this%RELAX < dzero) THEN
203  WRITE (errmsg, '(A)') 'IMSLINEAR7AR RELAX MUST BE >= 0.0'
204  call store_error(errmsg)
205  END IF
206  IF (this%RELAX > done) THEN
207  WRITE (errmsg, '(A)') 'IMSLINEAR7AR RELAX MUST BE <= 1.0'
208  call store_error(errmsg)
209  END IF
210  !
211  ! -- INITIALIZE IMSLINEAR VARIABLES
212  this%NITERC = 0
213  !
214  ! -- ALLOCATE AND INITIALIZE MEMORY FOR IMSLINEAR
215  iscllen = 1
216  IF (this%ISCL .NE. 0) iscllen = neq
217  CALL mem_allocate(this%DSCALE, iscllen, 'DSCALE', trim(this%memoryPath))
218  CALL mem_allocate(this%DSCALE2, iscllen, 'DSCALE2', trim(this%memoryPath))
219  !
220  ! -- allocate and initialize the preconditioner work arrays
221  call precond_allocate(this)
222  !
223  ! -- ALLOCATE SPACE FOR PERMUTATION VECTOR
224  i0 = 1
225  iolen = 1
226  IF (this%IORD .NE. 0) THEN
227  i0 = this%NEQ
228  iolen = this%NJA
229  END IF
230  CALL mem_allocate(this%LORDER, i0, 'LORDER', trim(this%memoryPath))
231  CALL mem_allocate(this%IORDER, i0, 'IORDER', trim(this%memoryPath))
232  CALL mem_allocate(this%IARO, i0 + 1, 'IARO', trim(this%memoryPath))
233  CALL mem_allocate(this%JARO, iolen, 'JARO', trim(this%memoryPath))
234  CALL mem_allocate(this%ARO, iolen, 'ARO', trim(this%memoryPath))
235  !
236  ! -- ALLOCATE WORKING VECTORS FOR IMSLINEAR SOLVER
237  CALL mem_allocate(this%ID, this%NEQ, 'ID', trim(this%memoryPath))
238  CALL mem_allocate(this%D, this%NEQ, 'D', trim(this%memoryPath))
239  CALL mem_allocate(this%P, this%NEQ, 'P', trim(this%memoryPath))
240  CALL mem_allocate(this%Q, this%NEQ, 'Q', trim(this%memoryPath))
241  CALL mem_allocate(this%Z, this%NEQ, 'Z', trim(this%memoryPath))
242  !
243  ! -- ALLOCATE MEMORY FOR BCGS WORKING ARRAYS
244  this%NIABCGS = 1
245  IF (this%ILINMETH == 2) THEN
246  this%NIABCGS = this%NEQ
247  END IF
248  CALL mem_allocate(this%T, this%NIABCGS, 'T', trim(this%memoryPath))
249  CALL mem_allocate(this%V, this%NIABCGS, 'V', trim(this%memoryPath))
250  CALL mem_allocate(this%DHAT, this%NIABCGS, 'DHAT', trim(this%memoryPath))
251  CALL mem_allocate(this%PHAT, this%NIABCGS, 'PHAT', trim(this%memoryPath))
252  CALL mem_allocate(this%QHAT, this%NIABCGS, 'QHAT', trim(this%memoryPath))
253  !
254  ! -- INITIALIZE IMSLINEAR VECTORS
255  DO n = 1, iscllen
256  this%DSCALE(n) = done
257  this%DSCALE2(n) = done
258  END DO
259  !
260  ! -- WORKING VECTORS
261  DO n = 1, this%NEQ
262  this%ID(n) = izero
263  this%D(n) = dzero
264  this%P(n) = dzero
265  this%Q(n) = dzero
266  this%Z(n) = dzero
267  END DO
268  DO n = 1, this%NIAPC
269  this%IW(n) = izero
270  this%W(n) = dzero
271  END DO
272  !
273  ! -- BCGS WORKING VECTORS
274  DO n = 1, this%NIABCGS
275  this%T(n) = dzero
276  this%V(n) = dzero
277  this%DHAT(n) = dzero
278  this%PHAT(n) = dzero
279  this%QHAT(n) = dzero
280  END DO
281  !
282  ! -- ILUT AND MILUT WORKING VECTORS
283  DO n = 1, this%NJLU
284  this%JLU(n) = izero
285  END DO
286  DO n = 1, this%NJW
287  this%JW(n) = izero
288  END DO
289  DO n = 1, this%NWLU
290  this%WLU(n) = dzero
291  END DO
292  !
293  ! -- REORDERING VECTORS
294  DO n = 1, i0 + 1
295  this%IARO(n) = izero
296  END DO
297  DO n = 1, iolen
298  this%JARO(n) = izero
299  this%ARO(n) = dzero
300  END DO
301  !
302  ! -- REVERSE CUTHILL MCKEE AND MINIMUM DEGREE ORDERING
303  IF (this%IORD .NE. 0) THEN
304  CALL ims_base_calc_order(this%IORD, this%NEQ, this%NJA, this%IA, &
305  this%JA, this%LORDER, this%IORDER)
306  END IF
307  !
308  ! -- ALLOCATE MEMORY FOR STORING ITERATION CONVERGENCE DATA
memoryhelpermodule::create_mem_path
character(len=lenmempath) function create_mem_path(component, subcomponent, context)
returns the path to the memory object
Definition: MemoryHelper.f90:22
simmodule::store_error
subroutine, public store_error(msg, terminate)
Store an error message.
Definition: Sim.f90:92
simmodule::count_errors
integer(i4b) function, public count_errors()
Return number of errors.
Definition: Sim.f90:59
simmodule::deprecation_warning
subroutine, public deprecation_warning(cblock, cvar, cver, endmsg, iunit)
Store deprecation warning message.
Definition: Sim.f90:256
Here is the call graph for this function:

◆ imslinear_da()

subroutine imslinearmodule::imslinear_da ( class(imslineardatatype), intent(inout)  this)

Deallocate linear accelerator memory.

Parameters
[in,out]thislinear datatype instance

Definition at line 465 of file ImsLinear.f90.

466  ! -- modules
467  use memorymanagermodule, only: mem_deallocate
468  ! -- dummy variables
469  class(ImsLinearDataType), intent(inout) :: this !< linear datatype instance
470  !
471  ! -- arrays
472  call mem_deallocate(this%dscale)
473  call mem_deallocate(this%dscale2)
474  call precond_destroy(this)
475  call mem_deallocate(this%lorder)
476  call mem_deallocate(this%iorder)
477  call mem_deallocate(this%iaro)
478  call mem_deallocate(this%jaro)
479  call mem_deallocate(this%aro)
480  call mem_deallocate(this%id)
481  call mem_deallocate(this%d)
482  call mem_deallocate(this%p)
483  call mem_deallocate(this%q)
484  call mem_deallocate(this%z)
485  call mem_deallocate(this%t)
486  call mem_deallocate(this%v)
487  call mem_deallocate(this%dhat)
488  call mem_deallocate(this%phat)
489  call mem_deallocate(this%qhat)
490  !
491  ! -- scalars
492  call mem_deallocate(this%iout)
493  call mem_deallocate(this%ipc)
494  call mem_deallocate(this%iacpc)
495  call mem_deallocate(this%niterc)
496  call mem_deallocate(this%niabcgs)
497  call mem_deallocate(this%niapc)
498  call mem_deallocate(this%njapc)
499  call mem_deallocate(this%epfact)
500  call mem_deallocate(this%l2norm0)
501  call mem_deallocate(this%njlu)
502  call mem_deallocate(this%njw)
503  call mem_deallocate(this%nwlu)
504  call mem_deallocate(this%NJA)
505  !
506  ! -- nullify pointers
507  nullify (this%iprims)
508  nullify (this%neq)
509  nullify (this%nja)
510  nullify (this%ia)
511  nullify (this%ja)
512  nullify (this%amat)
513  nullify (this%rhs)
514  nullify (this%x)
memorymanagermodule::mem_deallocate
Definition: MemoryManager.f90:129
Here is the call graph for this function:

◆ imslinear_set_input()

subroutine imslinearmodule::imslinear_set_input ( class(imslineardatatype), intent(inout)  this,
integer(i4b), intent(in)  IFDPARAM
)

Set default linear accelerator settings.

Parameters
[in,out]thisImsLinearDataType instance
[in]ifdparamcomplexity option

Definition at line 604 of file ImsLinear.f90.

605  ! -- dummy variables
606  CLASS(ImsLinearDataType), INTENT(INOUT) :: this !< ImsLinearDataType instance
607  integer(I4B), INTENT(IN) :: IFDPARAM !< complexity option
608  ! -- code
609  SELECT CASE (ifdparam)
610  !
611  ! -- Simple option
612  CASE (1)
613  this%ITER1 = 50
614  this%ILINMETH = 1
615  this%IPC = ipc_ilu0
616  this%ISCL = 0
617  this%IORD = 0
618  this%DVCLOSE = dem3
619  this%RCLOSE = dem1
620  this%RELAX = dzero
621  this%LEVEL = 0
622  this%DROPTOL = dzero
623  this%NORTH = 0
624  !
625  ! -- Moderate
626  CASE (2)
627  this%ITER1 = 100
628  this%ILINMETH = 2
629  this%IPC = ipc_milu0
630  this%ISCL = 0
631  this%IORD = 0
632  this%DVCLOSE = dem2
633  this%RCLOSE = dem1
634  this%RELAX = 0.97d0
635  this%LEVEL = 0
636  this%DROPTOL = dzero
637  this%NORTH = 0
638  !
639  ! -- Complex
640  CASE (3)
641  this%ITER1 = 500
642  this%ILINMETH = 2
643  this%IPC = ipc_ilut
644  this%ISCL = 0
645  this%IORD = 0
646  this%DVCLOSE = dem1
647  this%RCLOSE = dem1
648  this%RELAX = dzero
649  this%LEVEL = 5
650  this%DROPTOL = dem4
651  this%NORTH = 2
652  END SELECT

◆ imslinear_summary()

subroutine imslinearmodule::imslinear_summary ( class(imslineardatatype), intent(inout)  this,
integer(i4b), intent(in)  mxiter
)

Write summary of linear accelerator settings.

Parameters
[in,out]thisImsLinearDataType instance
[in]mxitermaximum number of outer iterations

Definition at line 316 of file ImsLinear.f90.

317  ! -- dummy variables
318  class(ImsLinearDataType), intent(inout) :: this !< ImsLinearDataType instance
319  integer(I4B), intent(in) :: mxiter !< maximum number of outer iterations
320  ! -- local variables
321  CHARACTER(LEN=10) :: clin(0:2)
322  CHARACTER(LEN=31) :: clintit(0:2)
323  CHARACTER(LEN=20) :: cipc(0:4)
324  CHARACTER(LEN=20) :: cscale(0:2)
325  CHARACTER(LEN=25) :: corder(0:2)
326  CHARACTER(LEN=16), DIMENSION(0:4) :: ccnvgopt
327  CHARACTER(LEN=15) :: clevel
328  CHARACTER(LEN=15) :: cdroptol
329  integer(I4B) :: i
330  integer(I4B) :: j
331  ! -- data
332  DATA clin/'UNKNOWN ', &
333  &'CG ', &
334  &'BCGS '/
335  DATA clintit/' UNKNOWN ', &
336  &' CONJUGATE-GRADIENT ', &
337  &'BICONJUGATE-GRADIENT STABILIZED'/
338  DATA cipc/'UNKNOWN ', &
339  &'INCOMPLETE LU ', &
340  &'MOD. INCOMPLETE LU ', &
341  &'INCOMPLETE LUT ', &
342  &'MOD. INCOMPLETE LUT '/
343  DATA cscale/'NO SCALING ', &
344  &'SYMMETRIC SCALING ', &
345  &'L2 NORM SCALING '/
346  DATA corder/'ORIGINAL ORDERING ', &
347  &'RCM ORDERING ', &
348  &'MINIMUM DEGREE ORDERING '/
349  DATA ccnvgopt/'INFINITY NORM ', &
350  &'INFINITY NORM S ', &
351  &'L2 NORM ', &
352  &'RELATIVE L2NORM ', &
353  &'L2 NORM W. REL. '/
354  ! -- formats
355 02010 FORMAT(1x, /, 7x, 'SOLUTION BY THE', 1x, a31, 1x, 'METHOD', &
356  /, 1x, 66('-'), /, &
357  ' MAXIMUM OF ', i0, ' CALLS OF SOLUTION ROUTINE', /, &
358  ' MAXIMUM OF ', i0, &
359  ' INTERNAL ITERATIONS PER CALL TO SOLUTION ROUTINE', /, &
360  ' LINEAR ACCELERATION METHOD =', 1x, a, /, &
361  ' MATRIX PRECONDITIONING TYPE =', 1x, a, /, &
362  ' MATRIX SCALING APPROACH =', 1x, a, /, &
363  ' MATRIX REORDERING APPROACH =', 1x, a, /, &
364  ' NUMBER OF ORTHOGONALIZATIONS =', 1x, i0, /, &
365  ' HEAD CHANGE CRITERION FOR CLOSURE =', e15.5, /, &
366  ' RESIDUAL CHANGE CRITERION FOR CLOSURE =', e15.5, /, &
367  ' RESIDUAL CONVERGENCE OPTION =', 1x, i0, /, &
368  ' RESIDUAL CONVERGENCE NORM =', 1x, a, /, &
369  ' RELAXATION FACTOR =', e15.5)
370 02015 FORMAT(' NUMBER OF LEVELS =', a15, /, &
371  ' DROP TOLERANCE =', a15, //)
372 2030 FORMAT(1x, a20, 1x, 6(i6, 1x))
373 2040 FORMAT(1x, 20('-'), 1x, 6(6('-'), 1x))
374 2050 FORMAT(1x, 62('-'),/) !
375 ! -- -----------------------------------------------------------
376  !
377  ! -- initialize clevel and cdroptol
378  clevel = ''
379  cdroptol = ''
380  !
381  ! -- write common variables to all linear accelerators
382  write (this%iout, 2010) &
383  clintit(this%ILINMETH), mxiter, this%ITER1, &
384  clin(this%ILINMETH), cipc(this%IPC), &
385  cscale(this%ISCL), corder(this%IORD), &
386  this%NORTH, this%DVCLOSE, this%RCLOSE, &
387  this%ICNVGOPT, ccnvgopt(this%ICNVGOPT), &
388  this%RELAX
389  if (this%level > 0) then
390  write (clevel, '(i15)') this%level
391  end if
392  if (this%droptol > dzero) then
393  write (cdroptol, '(e15.5)') this%droptol
394  end if
395  IF (this%level > 0 .or. this%droptol > dzero) THEN
396  write (this%iout, 2015) trim(adjustl(clevel)), &
397  trim(adjustl(cdroptol))
398  ELSE
399  write (this%iout, '(//)')
400  END IF
401
402  if (this%iord /= 0) then
403  !
404  ! -- WRITE SUMMARY OF REORDERING INFORMATION TO LIST FILE
405  if (this%iprims == 2) then
406  DO i = 1, this%neq, 6
407  write (this%iout, 2030) 'ORIGINAL NODE :', &
408  (j, j=i, min(i + 5, this%neq))
409  write (this%iout, 2040)
410  write (this%iout, 2030) 'REORDERED INDEX :', &
411  (this%lorder(j), j=i, min(i + 5, this%neq))
412  write (this%iout, 2030) 'REORDERED NODE :', &
413  (this%iorder(j), j=i, min(i + 5, this%neq))
414  write (this%iout, 2050)
415  END DO
416  END IF
417  end if

◆ precond_allocate()

subroutine imslinearmodule::precond_allocate ( class(imslineardatatype), intent(inout)  this)

Determines the preconditioner array dimensions from the current NEQ/NJA/LEVEL/IPC and allocates the ILU-family work arrays (IAPC/JAPC/APC/IW/W/JLU/JW/WLU); for ILU0/MILU0 the IAPC/JAPC sparsity is generated. Separated from imslinear_ar so the preconditioner can be (re)allocated at runtime.

Parameters
[in,out]thisImsLinearDataType instance

Definition at line 525 of file ImsLinear.f90.

526  use memorymanagermodule, only: mem_allocate
527  ! -- dummy variables
528  class(ImsLinearDataType), intent(inout) :: this !< ImsLinearDataType instance
529  ! -- local variables
530  integer(I4B) :: n
531  !
532  ! -- release any existing preconditioner arrays so this routine is
533  ! idempotent and can be called again to reallocate at runtime
534  if (associated(this%IAPC)) call precond_destroy(this)
535  !
536  ! -- determine dimensions for preconditioning arrays
537  call ims_calc_pcdims(this%NEQ, this%NJA, this%IA, this%LEVEL, this%IPC, &
538  this%NIAPC, this%NJAPC, this%NJLU, this%NJW, this%NWLU)
539  !
540  ! -- allocate base preconditioner vectors
541  call mem_allocate(this%IAPC, this%NIAPC + 1, 'IAPC', trim(this%memoryPath))
542  call mem_allocate(this%JAPC, this%NJAPC, 'JAPC', trim(this%memoryPath))
543  call mem_allocate(this%APC, this%NJAPC, 'APC', trim(this%memoryPath))
544  !
545  ! -- allocate ILU0/MILU0 non-zero row entry vectors
546  call mem_allocate(this%IW, this%NIAPC, 'IW', trim(this%memoryPath))
547  call mem_allocate(this%W, this%NIAPC, 'W', trim(this%memoryPath))
548  !
549  ! -- allocate ILUT vectors
550  call mem_allocate(this%JLU, this%NJLU, 'JLU', trim(this%memoryPath))
551  call mem_allocate(this%JW, this%NJW, 'JW', trim(this%memoryPath))
552  call mem_allocate(this%WLU, this%NWLU, 'WLU', trim(this%memoryPath))
553  !
554  ! -- generate IAPC and JAPC for ILU0 and MILU0
555  if (this%IPC == ipc_ilu0 .or. this%IPC == ipc_milu0) then
556  call ims_base_pccrs(this%NEQ, this%NJA, this%IA, this%JA, &
557  this%IAPC, this%JAPC)
558  end if
559  !
560  ! -- initialize preconditioner values
561  do n = 1, this%NJAPC
562  this%APC(n) = dzero
563  end do
Here is the call graph for this function:
Here is the caller graph for this function:

◆ precond_destroy()

subroutine imslinearmodule::precond_destroy ( class(imslineardatatype), intent(inout)  this)

Preconditioner-only teardown, separated from imslinear_da so the preconditioner can be destroyed and reallocated at runtime without disturbing the solver work arrays.

Parameters
[in,out]thisImsLinearDataType instance

Definition at line 572 of file ImsLinear.f90.

573  use memorymanagerextmodule, only: memorystore_release
574  ! -- dummy variables
575  class(ImsLinearDataType), intent(inout) :: this !< ImsLinearDataType instance
576  !
577  ! -- mem_deallocate is a no-op in the memory manager, so releasing the named
578  ! store entries (and nullifying the aliases below) is what actually frees
579  ! these arrays and lets the preconditioner be reallocated at runtime
580  call memorystore_release('IAPC', trim(this%memoryPath))
581  call memorystore_release('JAPC', trim(this%memoryPath))
582  call memorystore_release('APC', trim(this%memoryPath))
583  call memorystore_release('IW', trim(this%memoryPath))
584  call memorystore_release('W', trim(this%memoryPath))
585  call memorystore_release('JLU', trim(this%memoryPath))
586  call memorystore_release('JW', trim(this%memoryPath))
587  call memorystore_release('WLU', trim(this%memoryPath))
588  !
589  nullify (this%IAPC)
590  nullify (this%JAPC)
591  nullify (this%APC)
592  nullify (this%IW)
593  nullify (this%W)
594  nullify (this%JLU)
595  nullify (this%JW)
596  nullify (this%WLU)
memorymanagerextmodule::memorystore_release
subroutine, public memorystore_release(varname, memory_path)
Release a single variable from the memory store.
Definition: MemoryManagerExt.f90:68
Here is the call graph for this function:
Here is the caller graph for this function:
