methoddismodule Module Reference

Data Types
type	methoddistype

Functions/Subroutines
subroutine, public	create_method_dis (method)
	Create a new structured grid (DIS) tracking method. More...
subroutine	deallocate (this)
	Destructor the tracking method. More...
subroutine	load_cell (this, ic, cell)
subroutine	load_dis (this, particle, next_level, submethod)
	Load the cell geometry and tracking method. More...
subroutine	load_particle (this, cell, particle)
	Load cell properties into the particle, including. More...
subroutine	update_flowja (this, cell, particle)
	Update cell-cell flows of particle mass. Every particle is currently assigned unit mass. More...
subroutine	pass_dis (this, particle)
	Pass a particle to the next cell, if there is one. More...
subroutine	apply_dis (this, particle, tmax)
	Apply the structured tracking method to a particle. More...
double precision function	get_top (this, iatop)
	Returns a top elevation based on index iatop. More...
subroutine	load_celldefn (this, ic, defn)
	Loads cell definition from the grid. More...
subroutine	load_properties (this, ic, defn)
subroutine	load_neighbors (this, defn)
	Loads face neighbors to cell definition from the grid. Assumes cell index and number of vertices are already loaded. More...
subroutine	load_flows (this, defn)
	Load flows into the cell definition. These include face, boundary and net distributed flows. Assumes cell index and number of vertices are already loaded. More...
subroutine	load_face_flows_to_defn (this, defn)
subroutine	load_boundary_flows_to_defn (this, defn)
	Add boundary flows to the cell definition faceflow array. Assumes cell index and number of vertices are already loaded. More...

Function/Subroutine Documentation

apply_dis()

subroutine methoddismodule::apply_dis	(	class(methoddistype), intent(inout)	this,
		type(particletype), intent(inout), pointer	particle,
		real(dp), intent(in)	tmax
	)

Definition at line 316 of file MethodDis.f90.

    class(MethodDisType), intent(inout) :: this
    type(ParticleType), pointer, intent(inout) :: particle
    real(DP), intent(in) :: tmax

    call this%track(particle, 1, tmax)

create_method_dis()

subroutine, public methoddismodule::create_method_dis

(

type(methoddistype), pointer

method

)

Definition at line 43 of file MethodDis.f90.

    ! dummy
    type(MethodDisType), pointer :: method
    ! local
    type(CellRectType), pointer :: cell

    allocate (method)
    allocate (method%name)
    call create_cell_rect(cell)
    method%cell => cell
    method%name = "dis"
    method%delegates = .true.

Here is the call graph for this function:

Here is the caller graph for this function:

deallocate()

subroutine methoddismodule::deallocate ( class(methoddistype), intent(inout)  this )

private

Definition at line 58 of file MethodDis.f90.

    class(MethodDisType), intent(inout) :: this
    deallocate (this%name)

get_top()

double precision function methoddismodule::get_top ( class(methoddistype), intent(inout)  this, integer, intent(in)  iatop  )

private

Definition at line 325 of file MethodDis.f90.

    class(MethodDisType), intent(inout) :: this
    integer, intent(in) :: iatop
    double precision :: top

    if (iatop .lt. 0) then
      top = this%fmi%dis%top(-iatop)
    else
      top = this%fmi%dis%bot(iatop)
    end if

load_boundary_flows_to_defn()

subroutine methoddismodule::load_boundary_flows_to_defn ( class(methoddistype), intent(inout)  this, type(celldefntype), intent(inout)  defn  )

private

Definition at line 509 of file MethodDis.f90.

    ! dummy
    class(MethodDisType), intent(inout) :: this
    type(CellDefnType), intent(inout) :: defn
    ! local
    integer(I4B) :: ioffset

    ioffset = (defn%icell - 1) * max_poly_cells
    defn%faceflow(1) = defn%faceflow(1) + &
                       this%fmi%BoundaryFlows(ioffset + 1)
    defn%faceflow(2) = defn%faceflow(2) + &
                       this%fmi%BoundaryFlows(ioffset + 2)
    defn%faceflow(3) = defn%faceflow(3) + &
                       this%fmi%BoundaryFlows(ioffset + 3)
    defn%faceflow(4) = defn%faceflow(4) + &
                       this%fmi%BoundaryFlows(ioffset + 4)
    defn%faceflow(5) = defn%faceflow(1)
    defn%faceflow(6) = defn%faceflow(6) + &
                       this%fmi%BoundaryFlows(ioffset + 9)
    defn%faceflow(7) = defn%faceflow(7) + &
                       this%fmi%BoundaryFlows(ioffset + 10)

load_cell()

subroutine methoddismodule::load_cell ( class(methoddistype), intent(inout)  this, integer(i4b), intent(in)  ic, type(cellrecttype), intent(inout)  cell  )

private

Definition at line 63 of file MethodDis.f90.

    ! dummy
    class(MethodDisType), intent(inout) :: this
    integer(I4B), intent(in) :: ic
    type(CellRectType), intent(inout) :: cell
    ! local
    integer(I4B) :: icu
    integer(I4B) :: irow
    integer(I4B) :: jcol
    integer(I4B) :: klay
    real(DP) :: areax
    real(DP) :: areay
    real(DP) :: areaz
    real(DP) :: dx
    real(DP) :: dy
    real(DP) :: dz
    real(DP) :: factor
    real(DP) :: term

    select type (dis => this%fmi%dis)
    type is (distype)
      icu = dis%get_nodeuser(ic)

      call get_ijk(icu, dis%nrow, dis%ncol, dis%nlay, &
                   irow, jcol, klay)

      dx = dis%delr(jcol)
      dy = dis%delc(irow)
      dz = cell%defn%top - cell%defn%bot

      cell%dx = dx
      cell%dy = dy
      cell%dz = dz
      cell%sinrot = dzero
      cell%cosrot = done
      cell%xOrigin = cell%defn%polyvert(1, 1)
      cell%yOrigin = cell%defn%polyvert(2, 1)
      cell%zOrigin = cell%defn%bot
      cell%ipvOrigin = 1

      factor = done / cell%defn%retfactor
      factor = factor / cell%defn%porosity

      areaz = dx * dy
      term = factor / areaz

      cell%vz1 = cell%defn%faceflow(6) * term
      cell%vz2 = -cell%defn%faceflow(7) * term

      if (this%fmi%ibdgwfsat0(ic) == 0) then
        cell%vx1 = dzero
        cell%vx2 = dzero
        cell%vy1 = dzero
        cell%vy2 = dzero
        cell%vz1 = dzero
        cell%vz2 = dzero
        return
      end if

      areax = dy * dz
      term = factor / areax
      cell%vx1 = cell%defn%faceflow(1) * term
      cell%vx2 = -cell%defn%faceflow(3) * term

      areay = dx * dz
      term = factor / areay
      cell%vy1 = cell%defn%faceflow(4) * term
      cell%vy2 = -cell%defn%faceflow(2) * term

    end select

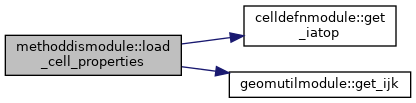

Here is the call graph for this function:

load_celldefn()

subroutine methoddismodule::load_celldefn ( class(methoddistype), intent(inout)  this, integer(i4b), intent(in)  ic, type(celldefntype), intent(inout), pointer  defn  )

private

Definition at line 338 of file MethodDis.f90.

    ! dummy
    class(MethodDisType), intent(inout) :: this
    integer(I4B), intent(in) :: ic
    type(CellDefnType), pointer, intent(inout) :: defn

    ! Load basic cell properties
    call this%load_properties(ic, defn)

    ! Load cell polygon vertices
    call this%fmi%dis%get_polyverts( &
      defn%icell, &
      defn%polyvert, &
      closed=.true.)
    call this%load_neighbors(defn)

    ! Load 180 degree face indicators
    defn%ispv180(1:defn%npolyverts + 1) = .false.

    call this%load_flows(defn)


load_dis()

subroutine methoddismodule::load_dis ( class(methoddistype), intent(inout)  this, type(particletype), intent(inout), pointer  particle, integer(i4b), intent(in)  next_level, class(methodtype), intent(inout), pointer  submethod  )

private

Definition at line 136 of file MethodDis.f90.

    ! dummy
    class(MethodDisType), intent(inout) :: this
    type(ParticleType), pointer, intent(inout) :: particle
    integer(I4B), intent(in) :: next_level
    class(MethodType), pointer, intent(inout) :: submethod
    ! local
    integer(I4B) :: ic

    select type (cell => this%cell)
    type is (cellrecttype)
      ic = particle%idomain(next_level)
      call this%load_celldefn(ic, cell%defn)
      call this%load_cell(ic, cell)
      if (this%fmi%ibdgwfsat0(ic) == 0) then
        call method_cell_ptb%init( &
          fmi=this%fmi, &
          cell=this%cell, &
          trackctl=this%trackctl, &
          tracktimes=this%tracktimes)
        submethod => method_cell_ptb
      else
        call method_cell_plck%init( &
          fmi=this%fmi, &
          cell=this%cell, &
          trackctl=this%trackctl, &
          tracktimes=this%tracktimes)
        submethod => method_cell_plck
      end if
    end select

load_face_flows_to_defn()

subroutine methoddismodule::load_face_flows_to_defn ( class(methoddistype), intent(inout)  this, type(celldefntype), intent(inout)  defn  )

private

Definition at line 488 of file MethodDis.f90.

    ! dummy
    class(MethodDisType), intent(inout) :: this
    type(CellDefnType), intent(inout) :: defn
    ! local
    integer(I4B) :: m, n, nfaces
    real(DP) :: q

    nfaces = defn%npolyverts + 3
    do m = 1, nfaces
      n = defn%facenbr(m)
      if (n > 0) then
        q = this%fmi%gwfflowja(this%fmi%dis%con%ia(defn%icell) + n)
        defn%faceflow(m) = defn%faceflow(m) + q
      end if
      if (defn%faceflow(m) < dzero) defn%inoexitface = 0
    end do

load_flows()

subroutine methoddismodule::load_flows ( class(methoddistype), intent(inout)  this, type(celldefntype), intent(inout)  defn  )

private

Definition at line 462 of file MethodDis.f90.

    class(MethodDisType), intent(inout) :: this
    type(CellDefnType), intent(inout) :: defn

    ! Load face flows, including boundary flows. As with cell verts,
    ! the face flow array wraps around. Top and bottom flows make up
    ! the last two elements, respectively, for size npolyverts + 3.
    ! If there is no flow through any face, set a no-exit-face flag.
    defn%faceflow = dzero
    defn%inoexitface = 1
    call this%load_boundary_flows_to_defn(defn)
    call this%load_face_flows_to_defn(defn)

    ! Add up net distributed flow
    defn%distflow = this%fmi%SourceFlows(defn%icell) + &
                    this%fmi%SinkFlows(defn%icell) + &
                    this%fmi%StorageFlows(defn%icell)

    ! Set weak sink flag
    if (this%fmi%SinkFlows(defn%icell) .ne. dzero) then
      defn%iweaksink = 1
    else
      defn%iweaksink = 0
    end if

load_neighbors()

subroutine methoddismodule::load_neighbors ( class(methoddistype), intent(inout)  this, type(celldefntype), intent(inout), pointer  defn  )

private

Definition at line 393 of file MethodDis.f90.

    ! dummy
    class(MethodDisType), intent(inout) :: this
    type(CellDefnType), pointer, intent(inout) :: defn
    ! local
    integer(I4B) :: ic1
    integer(I4B) :: ic2
    integer(I4B) :: icu1
    integer(I4B) :: icu2
    integer(I4B) :: j1
    integer(I4B) :: iloc
    integer(I4B) :: ipos
    integer(I4B) :: irow1
    integer(I4B) :: irow2
    integer(I4B) :: jcol1
    integer(I4B) :: jcol2
    integer(I4B) :: klay1
    integer(I4B) :: klay2
    integer(I4B) :: iedgeface

    select type (dis => this%fmi%dis)
    type is (distype)
      ! Load face neighbors
      defn%facenbr = 0
      ic1 = defn%icell
      icu1 = dis%get_nodeuser(ic1)
      call get_ijk(icu1, dis%nrow, dis%ncol, dis%nlay, &
                   irow1, jcol1, klay1)
      call get_jk(icu1, dis%get_ncpl(), dis%nlay, j1, klay1)
      do iloc = 1, dis%con%ia(ic1 + 1) - dis%con%ia(ic1) - 1
        ipos = dis%con%ia(ic1) + iloc
        ! mask could become relevant if PRT uses interface model
        if (dis%con%mask(ipos) == 0) cycle
        ic2 = dis%con%ja(ipos)
        icu2 = dis%get_nodeuser(ic2)
        call get_ijk(icu2, dis%nrow, dis%ncol, dis%nlay, &
                     irow2, jcol2, klay2)
        if (klay2 == klay1) then
          ! Edge (polygon) face neighbor
          if (irow2 > irow1) then
            ! Neighbor to the S
            iedgeface = 4
          else if (jcol2 > jcol1) then
            ! Neighbor to the E
            iedgeface = 3
          else if (irow2 < irow1) then
            ! Neighbor to the N
            iedgeface = 2
          else
            ! Neighbor to the W
            iedgeface = 1
          end if
          defn%facenbr(iedgeface) = int(iloc, 1)
        else if (klay2 > klay1) then
          ! Bottom face neighbor
          defn%facenbr(defn%npolyverts + 2) = int(iloc, 1)
        else
          ! Top face neighbor
          defn%facenbr(defn%npolyverts + 3) = int(iloc, 1)
        end if
      end do
    end select
    ! List of edge (polygon) faces wraps around
    defn%facenbr(defn%npolyverts + 1) = defn%facenbr(1)

Here is the call graph for this function:

load_particle()

subroutine methoddismodule::load_particle ( class(methoddistype), intent(inout)  this, type(cellrecttype), intent(inout), pointer  cell, type(particletype), intent(inout), pointer  particle  )

private

Definition at line 170 of file MethodDis.f90.

    use particlemodule, only: term_boundary
    ! dummy
    class(MethodDisType), intent(inout) :: this
    type(CellRectType), pointer, intent(inout) :: cell
    type(ParticleType), pointer, intent(inout) :: particle
    ! local
    integer(I4B) :: ic
    integer(I4B) :: icu
    integer(I4B) :: ilay
    integer(I4B) :: irow
    integer(I4B) :: icol
    integer(I4B) :: inface
    integer(I4B) :: idiag
    integer(I4B) :: inbr
    integer(I4B) :: ipos
    real(DP) :: z
    real(DP) :: zrel
    real(DP) :: topfrom
    real(DP) :: botfrom
    real(DP) :: top
    real(DP) :: bot
    real(DP) :: sat

    select type (dis => this%fmi%dis)
    type is (distype)
      ! compute reduced/user node numbers and layer
      inface = particle%iboundary(2)
      inbr = cell%defn%facenbr(inface)
      idiag = this%fmi%dis%con%ia(cell%defn%icell)
      ipos = idiag + inbr
      ic = dis%con%ja(ipos)
      icu = dis%get_nodeuser(ic)
      call get_ijk(icu, dis%nrow, dis%ncol, dis%nlay, &
                   irow, icol, ilay)

      ! if returning to a cell through the bottom
      ! face after previously leaving it through
      ! that same face, we've entered a cycle
      ! as can occur e.g. in wells. terminate
      ! in the previous cell.
      if (ic == particle%icp .and. inface == 7 .and. ilay < particle%ilay) then
        particle%advancing = .false.
        particle%idomain(2) = particle%icp
        particle%istatus = term_boundary
        particle%izone = particle%izp
        call this%save(particle, reason=3)
        return
      else
        particle%icp = particle%idomain(2)
        particle%izp = particle%izone
      end if

      ! update node numbers and layer
      particle%idomain(2) = ic
      particle%icu = icu
      particle%ilay = ilay

      ! map/set particle entry face
      if (inface .eq. 1) then
        inface = 3
      else if (inface .eq. 2) then
        inface = 4
      else if (inface .eq. 3) then
        inface = 1
      else if (inface .eq. 4) then
        inface = 2
      else if (inface .eq. 6) then
        inface = 7
      else if (inface .eq. 7) then
        inface = 6
      end if
      particle%iboundary(2) = inface

      ! map z between cells
      z = particle%z
      if (inface < 5) then
        topfrom = cell%defn%top
        botfrom = cell%defn%bot
        zrel = (z - botfrom) / (topfrom - botfrom)
        top = dis%top(ic)
        bot = dis%bot(ic)
        sat = this%fmi%gwfsat(ic)
        z = bot + zrel * sat * (top - bot)
      end if
      particle%z = z
    end select

Here is the call graph for this function:

load_properties()

subroutine methoddismodule::load_properties ( class(methoddistype), intent(inout)  this, integer(i4b), intent(in)  ic, type(celldefntype), intent(inout), pointer  defn  )

private

Definition at line 361 of file MethodDis.f90.

    ! dummy
    class(MethodDisType), intent(inout) :: this
    integer(I4B), intent(in) :: ic
    type(CellDefnType), pointer, intent(inout) :: defn
    ! local
    integer(I4B) :: irow, icol, ilay, icu

    defn%icell = ic
    defn%npolyverts = 4 ! rectangular cell always has 4 vertices
    defn%iatop = get_iatop(this%fmi%dis%get_ncpl(), &
                           this%fmi%dis%get_nodeuser(ic))
    defn%top = this%fmi%dis%bot(ic) + &
               this%fmi%gwfsat(ic) * &
               (this%fmi%dis%top(ic) - this%fmi%dis%bot(ic))
    defn%bot = this%fmi%dis%bot(ic)
    defn%sat = this%fmi%gwfsat(ic)
    defn%porosity = this%porosity(ic)
    defn%retfactor = this%retfactor(ic)
    select type (dis => this%fmi%dis)
    type is (distype)
      icu = dis%get_nodeuser(ic)
      call get_ijk(icu, dis%nrow, dis%ncol, dis%nlay, irow, icol, ilay)
      defn%ilay = ilay
    end select
    defn%izone = this%izone(ic)
    defn%can_be_rect = .true.
    defn%can_be_quad = .false.

Here is the call graph for this function:

pass_dis()

subroutine methoddismodule::pass_dis ( class(methoddistype), intent(inout)  this, type(particletype), intent(inout), pointer  particle  )

private

Definition at line 286 of file MethodDis.f90.

    use particlemodule, only: term_boundary
    ! dummy
    class(MethodDisType), intent(inout) :: this
    type(ParticleType), pointer, intent(inout) :: particle
    ! local
    type(CellRectType), pointer :: cell

    select type (c => this%cell)
    type is (cellrecttype)
      cell => c
      ! If the entry face has no neighbors it's a
      ! boundary face, so terminate the particle.
      ! todo AMP: reconsider when multiple models supported
      if (cell%defn%facenbr(particle%iboundary(2)) .eq. 0) then
        particle%istatus = term_boundary
        particle%advancing = .false.
        call this%save(particle, reason=3)
      else
        ! Update old to new cell properties
        call this%load_particle(cell, particle)
        if (.not. particle%advancing) return

        ! Update intercell mass flows
        call this%update_flowja(cell, particle)
      end if
    end select

update_flowja()

subroutine methoddismodule::update_flowja	(	class(methoddistype), intent(inout)	this,
		type(cellrecttype), intent(inout), pointer	cell,
		type(particletype), intent(inout), pointer	particle
	)

Definition at line 261 of file MethodDis.f90.

    ! dummy
    class(MethodDisType), intent(inout) :: this
    type(CellRectType), pointer, intent(inout) :: cell
    type(ParticleType), pointer, intent(inout) :: particle
    ! local
    integer(I4B) :: idiag
    integer(I4B) :: inbr
    integer(I4B) :: inface
    integer(I4B) :: ipos

    inface = particle%iboundary(2)
    inbr = cell%defn%facenbr(inface)
    idiag = this%fmi%dis%con%ia(cell%defn%icell)
    ipos = idiag + inbr

    ! leaving old cell
    this%flowja(ipos) = this%flowja(ipos) - done

    ! entering new cell
    this%flowja(this%fmi%dis%con%isym(ipos)) &
      = this%flowja(this%fmi%dis%con%isym(ipos)) + done
