MODFLOW 6  version 6.7.0.dev3
USGS Modular Hydrologic Model
Data Types | Functions/Subroutines
ncarrayreadermodule Module Reference

This module contains the NCArrayReaderModule. More...

Data Types

interface  netcdf_array_load


Functions/Subroutines

logical(lgp) function is_layered (grid)
 does the grid support per layer variables More...

subroutine nc_array_load_int1d (int1d, mshape, idt, mf6_input, nc_vars, input_fname, iout, kper)
 Load NetCDF integer 1D array. More...

subroutine nc_array_load_int2d (int2d, mshape, idt, mf6_input, nc_vars, input_fname, iout)
 Load NetCDF integer 2D array. More...

subroutine nc_array_load_int3d (int3d, mshape, idt, mf6_input, nc_vars, input_fname, iout)
 Load NetCDF integer 3D array. More...

subroutine nc_array_load_dbl1d (dbl1d, mshape, idt, mf6_input, nc_vars, input_fname, iout, kper, iaux)
 Load NetCDF double 1D array. More...

subroutine nc_array_load_dbl2d (dbl2d, mshape, idt, mf6_input, nc_vars, input_fname, iout)
 Load NetCDF double 2D array. More...

subroutine nc_array_load_dbl3d (dbl3d, mshape, idt, mf6_input, nc_vars, input_fname, iout)
 Load NetCDF double 3D array. More...

subroutine load_integer1d_type (int1d, mf6_input, mshape, idt, nc_vars, varid, input_fname)
 load type 1d integer More...

subroutine load_integer1d_spd (int1d, mf6_input, mshape, idt, nc_vars, iper, input_fname)
 load type 1d double More...

subroutine load_integer1d_layered (int1d, mf6_input, mshape, idt, nc_vars, input_fname)
 load type 1d integer layered More...

subroutine load_integer1d_layered_spd (int1d, mf6_input, mshape, idt, nc_vars, iper, input_fname)
 load type 1d integer layered More...

subroutine load_integer2d_type (int2d, mf6_input, mshape, idt, nc_vars, varid, input_fname)
 load type 2d integer More...

subroutine load_integer2d_layered (int2d, mf6_input, mshape, idt, nc_vars, input_fname)
 load type 2d integer layered More...

subroutine load_integer3d_type (int3d, mf6_input, mshape, idt, nc_vars, varid, input_fname)
 load type 3d integer More...

subroutine load_integer3d_layered (int3d, mf6_input, mshape, idt, nc_vars, input_fname)
 load type 3d integer layered More...

subroutine load_double1d_type (dbl1d, mf6_input, mshape, idt, nc_vars, varid, input_fname)
 load type 1d double More...

subroutine load_double1d_spd (dbl1d, mf6_input, mshape, idt, nc_vars, iper, input_fname, iaux)
 load type 1d double More...

subroutine load_double1d_layered (dbl1d, mf6_input, mshape, idt, nc_vars, input_fname)
 load type 1d double layered More...

subroutine load_double1d_layered_spd (dbl1d, mf6_input, mshape, idt, nc_vars, iper, input_fname, iaux)
 load type 1d double layered More...

subroutine load_double2d_type (dbl2d, mf6_input, mshape, idt, nc_vars, varid, input_fname)
 load type 2d double More...

subroutine load_double2d_layered (dbl2d, mf6_input, mshape, idt, nc_vars, input_fname)
 load type 2d double layered More...

subroutine load_double3d_type (dbl3d, mf6_input, mshape, idt, nc_vars, varid, input_fname)
 load type 3d double More...

subroutine load_double3d_layered (dbl3d, mf6_input, mshape, idt, nc_vars, input_fname)
 load type 3d double layered More...


Detailed Description

This module defines the netcdf_array_load interface which can read layered (UGRID) and non-layered (STRUCTURED) netcdf arrays stored in modflow6 designated input variables.

Function/Subroutine Documentation

◆ is_layered()

logical(lgp) function ncarrayreadermodule::is_layered ( character(len=*), intent(in)  grid)
private

Definition at line 35 of file NCArrayReader.f90.

36  character(len=*), intent(in) :: grid
37  logical(LGP) :: layered
38  select case (grid)
39  case ('LAYERED MESH')
40  layered = .true.
41  case ('STRUCTURED')
42  layered = .false.
43  case default
44  layered = .false.
45  end select
Here is the caller graph for this function:

◆ load_double1d_layered()

subroutine ncarrayreadermodule::load_double1d_layered ( real(dp), dimension(:), intent(in), pointer, contiguous  dbl1d,
type(modflowinputtype), intent(in)  mf6_input,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
character(len=*), intent(in)  input_fname
)

Definition at line 610 of file NCArrayReader.f90.

612  real(DP), dimension(:), contiguous, pointer, intent(in) :: dbl1d
613  type(ModflowInputType), intent(in) :: mf6_input
614  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape
615  type(InputParamDefinitionType), intent(in) :: idt
616  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
617  character(len=*), intent(in) :: input_fname
618  integer(I4B), dimension(:), allocatable :: layer_shape
619  integer(I4B) :: nlay, varid
620  integer(I4B) :: k, ncpl
621  integer(I4B) :: index_start, index_stop
622  real(DP), dimension(:), contiguous, pointer :: dbl1d_ptr
623
624  nullify (dbl1d_ptr)
625  index_start = 1
626  call get_layered_shape(mshape, nlay, layer_shape)
627  ncpl = product(layer_shape)
628
629  do k = 1, nlay
630  varid = nc_vars%varid(idt%tagname, layer=k)
631  index_stop = index_start + ncpl - 1
632  dbl1d_ptr(1:ncpl) => dbl1d(index_start:index_stop)
633  call nf_verify(nf90_get_var(nc_vars%ncid, varid, dbl1d_ptr), &
634  nc_vars%nc_fname)
635  index_start = index_stop + 1
636  end do
Here is the call graph for this function:
Here is the caller graph for this function:

◆ load_double1d_layered_spd()

subroutine ncarrayreadermodule::load_double1d_layered_spd ( real(dp), dimension(:), intent(in), pointer, contiguous  dbl1d,
type(modflowinputtype), intent(in)  mf6_input,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
integer(i4b), intent(in)  iper,
character(len=*), intent(in)  input_fname,
integer(i4b), intent(in), optional  iaux
)
private

Definition at line 641 of file NCArrayReader.f90.

643  use constantsmodule, only: dnodata
644  use netcdfcommonmodule, only: ixstp
645  real(DP), dimension(:), contiguous, pointer, intent(in) :: dbl1d
646  type(ModflowInputType), intent(in) :: mf6_input
647  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape
648  type(InputParamDefinitionType), intent(in) :: idt
649  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
650  integer(I4B), intent(in) :: iper
651  character(len=*), intent(in) :: input_fname
652  integer(I4B), optional, intent(in) :: iaux
653  integer(I4B), dimension(:), allocatable :: layer_shape
654  integer(I4B) :: nlay, varid
655  integer(I4B) :: k, n, ncpl, idx, istp
656  real(DP), dimension(:), contiguous, pointer :: dbl1d_ptr
657
658  istp = ixstp()
659
660  call get_layered_shape(mshape, nlay, layer_shape)
661  ncpl = product(layer_shape)
662  allocate (dbl1d_ptr(ncpl))
663
664  do k = 1, nlay
665  if (present(iaux)) then
666  varid = nc_vars%varid(idt%tagname, layer=k, iaux=iaux)
667  else
668  varid = nc_vars%varid(idt%tagname, layer=k)
669  end if
670  call nf_verify(nf90_get_var(nc_vars%ncid, varid, dbl1d_ptr, &
671  start=(/1, istp/), count=(/ncpl, 1/)), &
672  nc_vars%nc_fname)
673  if (idt%shape == 'NODES' .or. idt%shape == 'NAUX NODES') then
674  do n = 1, ncpl
675  idx = (k - 1) * ncpl + n
676  dbl1d(idx) = dbl1d_ptr(n)
677  end do
678  else if (idt%shape == 'NCPL' .or. idt%shape == 'NAUX NCPL') then
679  do n = 1, ncpl
680  dbl1d(n) = dbl1d_ptr(n)
681  end do
682  end if
683  end do
684
685  ! cleanup
686  deallocate (dbl1d_ptr)
constantsmodule
This module contains simulation constants.
Definition: Constants.f90:9
constantsmodule::dnodata
real(dp), parameter dnodata
real no data constant
Definition: Constants.f90:95
netcdfcommonmodule
This module contains the NetCDFCommonModule.
Definition: NetCDFCommon.f90:6
netcdfcommonmodule::ixstp
integer(i4b) function, public ixstp()
step index for timeseries data
Definition: NetCDFCommon.f90:114
Here is the call graph for this function:
Here is the caller graph for this function:

◆ load_double1d_spd()

subroutine ncarrayreadermodule::load_double1d_spd ( real(dp), dimension(:), intent(in), pointer, contiguous  dbl1d,
type(modflowinputtype), intent(in)  mf6_input,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
integer(i4b), intent(in)  iper,
character(len=*), intent(in)  input_fname,
integer(i4b), intent(in), optional  iaux
)
private

Definition at line 548 of file NCArrayReader.f90.

550  use constantsmodule, only: dnodata
551  use netcdfcommonmodule, only: ixstp
552  real(DP), dimension(:), contiguous, pointer, intent(in) :: dbl1d
553  type(ModflowInputType), intent(in) :: mf6_input
554  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape
555  type(InputParamDefinitionType), intent(in) :: idt
556  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
557  integer(I4B), intent(in) :: iper
558  character(len=*), intent(in) :: input_fname
559  integer(I4B), optional, intent(in) :: iaux
560  integer(I4B), dimension(:), allocatable :: layer_shape
561  real(DP), dimension(:, :, :), contiguous, pointer :: dbl3d
562  integer(I4B) :: varid, nlay, ncpl, nvals
563  integer(I4B) :: n, istp
564
565  ! initialize
566  n = 0
567  istp = ixstp()
568
569  ! set varid
570  if (present(iaux)) then
571  varid = nc_vars%varid(idt%tagname, iaux=iaux)
572  else
573  varid = nc_vars%varid(idt%tagname)
574  end if
575
576  call get_layered_shape(mshape, nlay, layer_shape)
577  ncpl = product(layer_shape)
578  nvals = product(mshape)
579
580  select case (idt%shape)
581  case ('NCPL', 'NAUX NCPL')
582  if (nc_vars%grid == 'STRUCTURED') then
583  call nf_verify(nf90_get_var(nc_vars%ncid, varid, dbl1d, &
584  start=(/1, 1, istp/), &
585  count=(/mshape(3), mshape(2), 1/)), &
586  nc_vars%nc_fname)
587  else if (nc_vars%grid == 'LAYERED MESH') then
588  call nf_verify(nf90_get_var(nc_vars%ncid, varid, dbl1d, &
589  start=(/1, istp/), count=(/ncpl, 1/)), &
590  nc_vars%nc_fname)
591  end if
592  case ('NODES', 'NAUX NODES')
593  if (nc_vars%grid == 'STRUCTURED') then
594  dbl3d(1:mshape(3), 1:mshape(2), 1:mshape(1)) => dbl1d(1:nvals)
595  call nf_verify(nf90_get_var(nc_vars%ncid, varid, dbl3d, &
596  start=(/1, 1, 1, istp/), &
597  count=(/mshape(3), mshape(2), mshape(1), &
598  1/)), nc_vars%nc_fname)
599  else if (nc_vars%grid == 'LAYERED MESH') then
600  call nf_verify(nf90_get_var(nc_vars%ncid, varid, dbl1d, &
601  start=(/1, istp/), count=(/nvals, 1/)), &
602  nc_vars%nc_fname)
603  end if
604  case default
605  end select
Here is the call graph for this function:
Here is the caller graph for this function:

◆ load_double1d_type()

subroutine ncarrayreadermodule::load_double1d_type ( real(dp), dimension(:), intent(in), pointer, contiguous  dbl1d,
type(modflowinputtype), intent(in)  mf6_input,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
integer(i4b), intent(in)  varid,
character(len=*), intent(in)  input_fname
)
private

Definition at line 505 of file NCArrayReader.f90.

507  real(DP), dimension(:), contiguous, pointer, intent(in) :: dbl1d
508  type(ModflowInputType), intent(in) :: mf6_input
509  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape
510  type(InputParamDefinitionType), intent(in) :: idt
511  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
512  integer(I4B), intent(in) :: varid
513  character(len=*), intent(in) :: input_fname
514  integer(I4B), dimension(:), allocatable :: array_shape
515  real(DP), dimension(:, :, :), contiguous, pointer :: dbl3d_ptr
516  real(DP), dimension(:, :), contiguous, pointer :: dbl2d_ptr
517  integer(I4B) :: nvals
518
519  ! initialize
520  nvals = 0
521
522  if (idt%shape == 'NODES') then
523  ! set number of values
524  nvals = product(mshape)
525  if (size(mshape) == 3) then
526  dbl3d_ptr(1:mshape(3), 1:mshape(2), 1:mshape(1)) => dbl1d(1:nvals)
527  call nf_verify(nf90_get_var(nc_vars%ncid, varid, dbl3d_ptr), &
528  nc_vars%nc_fname)
529  else if (size(mshape) == 2) then
530  dbl2d_ptr(1:mshape(2), 1:mshape(1)) => dbl1d(1:nvals)
531  call nf_verify(nf90_get_var(nc_vars%ncid, varid, dbl2d_ptr), &
532  nc_vars%nc_fname)
533  else if (size(mshape) == 1) then
534  call nf_verify(nf90_get_var(nc_vars%ncid, varid, dbl1d), nc_vars%nc_fname)
535  end if
536  else
537  ! interpret shape
538  call get_shape_from_string(idt%shape, array_shape, mf6_input%mempath)
539  ! set nvals
540  nvals = array_shape(1)
541  ! read and set data
542  call nf_verify(nf90_get_var(nc_vars%ncid, varid, dbl1d), nc_vars%nc_fname)
543  end if
Here is the call graph for this function:
Here is the caller graph for this function:

◆ load_double2d_layered()

subroutine ncarrayreadermodule::load_double2d_layered ( real(dp), dimension(:, :), intent(in), pointer, contiguous  dbl2d,
type(modflowinputtype), intent(in)  mf6_input,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
character(len=*), intent(in)  input_fname
)
private

Definition at line 719 of file NCArrayReader.f90.

721  real(DP), dimension(:, :), contiguous, pointer, intent(in) :: dbl2d
722  type(ModflowInputType), intent(in) :: mf6_input
723  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape
724  type(InputParamDefinitionType), intent(in) :: idt
725  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
726  character(len=*), intent(in) :: input_fname
727  integer(I4B), dimension(:), allocatable :: layer_shape
728  integer(I4B) :: k
729  integer(I4B) :: ncpl, nlay, varid
730  real(DP), dimension(:), contiguous, pointer :: dbl1d_ptr
731
732  nullify (dbl1d_ptr)
733
734  if (size(mshape) == 3) then
735  write (errmsg, '(a,a,a)') &
736  'Layered netcdf read not supported for DIS dbl2d type ('// &
737  trim(idt%tagname)//').'
738  call store_error(errmsg)
739  call store_error_filename(input_fname)
740  else if (size(mshape) == 2) then
741  call get_layered_shape(mshape, nlay, layer_shape)
742  ncpl = layer_shape(1)
743  do k = 1, nlay
744  varid = nc_vars%varid(idt%tagname, layer=k)
745  dbl1d_ptr(1:ncpl) => dbl2d(1:ncpl, k)
746  call nf_verify(nf90_get_var(nc_vars%ncid, varid, dbl1d_ptr), &
747  nc_vars%nc_fname)
748  end do
749  end if
Here is the call graph for this function:
Here is the caller graph for this function:

◆ load_double2d_type()

subroutine ncarrayreadermodule::load_double2d_type ( real(dp), dimension(:, :), intent(in), pointer, contiguous  dbl2d,
type(modflowinputtype), intent(in)  mf6_input,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
integer(i4b), intent(in)  varid,
character(len=*), intent(in)  input_fname
)

Definition at line 691 of file NCArrayReader.f90.

693  real(DP), dimension(:, :), contiguous, pointer, intent(in) :: dbl2d
694  type(ModflowInputType), intent(in) :: mf6_input
695  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape
696  type(InputParamDefinitionType), intent(in) :: idt
697  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
698  integer(I4B), intent(in) :: varid
699  character(len=*), intent(in) :: input_fname
700  real(DP), dimension(:), contiguous, pointer :: dbl1d_ptr
701  integer(I4B), dimension(:), allocatable :: array_shape
702  integer(I4B) :: ncpl, nlay
703
704  nullify (dbl1d_ptr)
705
706  if (nc_vars%grid == 'STRUCTURED') then
707  call nf_verify(nf90_get_var(nc_vars%ncid, varid, dbl2d), nc_vars%nc_fname)
708  else if (nc_vars%grid == 'LAYERED MESH') then
709  call get_layered_shape(mshape, nlay, array_shape)
710  ncpl = product(array_shape)
711  dbl1d_ptr(1:ncpl) => dbl2d(:, :)
712  call nf_verify(nf90_get_var(nc_vars%ncid, varid, dbl1d_ptr), &
713  nc_vars%nc_fname)
714  end if
Here is the call graph for this function:
Here is the caller graph for this function:

◆ load_double3d_layered()

subroutine ncarrayreadermodule::load_double3d_layered ( real(dp), dimension(:, :, :), intent(in), pointer, contiguous  dbl3d,
type(modflowinputtype), intent(in)  mf6_input,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
character(len=*), intent(in)  input_fname
)
private

Definition at line 769 of file NCArrayReader.f90.

771  real(DP), dimension(:, :, :), contiguous, pointer, intent(in) :: dbl3d
772  type(ModflowInputType), intent(in) :: mf6_input
773  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape
774  type(InputParamDefinitionType), intent(in) :: idt
775  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
776  character(len=*), intent(in) :: input_fname
777  integer(I4B), dimension(:), allocatable :: layer_shape
778  integer(I4B) :: k !, i, j
779  integer(I4B) :: ncpl, nlay, varid
780  integer(I4B) :: index_start, index_stop
781  real(DP), dimension(:), contiguous, pointer :: dbl1d_ptr
782
783  nullify (dbl1d_ptr)
784
785  call get_layered_shape(mshape, nlay, layer_shape)
786
787  ncpl = product(layer_shape)
788  index_start = 1
789  do k = 1, nlay
790  varid = nc_vars%varid(idt%tagname, layer=k)
791  index_stop = index_start + ncpl - 1
792  dbl1d_ptr(1:ncpl) => dbl3d(:, :, k:k)
793  call nf_verify(nf90_get_var(nc_vars%ncid, varid, dbl1d_ptr), &
794  nc_vars%nc_fname)
795  index_start = index_stop + 1
796  end do
Here is the call graph for this function:
Here is the caller graph for this function:

◆ load_double3d_type()

subroutine ncarrayreadermodule::load_double3d_type ( real(dp), dimension(:, :, :), intent(in), pointer, contiguous  dbl3d,
type(modflowinputtype), intent(in)  mf6_input,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
integer(i4b), intent(in)  varid,
character(len=*), intent(in)  input_fname
)
private

Definition at line 754 of file NCArrayReader.f90.

756  real(DP), dimension(:, :, :), contiguous, pointer, intent(in) :: dbl3d
757  type(ModflowInputType), intent(in) :: mf6_input
758  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape
759  type(InputParamDefinitionType), intent(in) :: idt
760  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
761  integer(I4B), intent(in) :: varid
762  character(len=*), intent(in) :: input_fname
763  !
764  call nf_verify(nf90_get_var(nc_vars%ncid, varid, dbl3d), nc_vars%nc_fname)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ load_integer1d_layered()

subroutine ncarrayreadermodule::load_integer1d_layered ( integer(i4b), dimension(:), intent(in), pointer, contiguous  int1d,
type(modflowinputtype), intent(in)  mf6_input,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
character(len=*), intent(in)  input_fname
)

Definition at line 328 of file NCArrayReader.f90.

330  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: int1d
331  type(ModflowInputType), intent(in) :: mf6_input
332  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape
333  type(InputParamDefinitionType), intent(in) :: idt
334  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
335  character(len=*), intent(in) :: input_fname
336  integer(I4B), dimension(:), allocatable :: layer_shape
337  integer(I4B) :: nlay, varid
338  integer(I4B) :: k, ncpl
339  integer(I4B) :: index_start, index_stop
340  integer(I4B), dimension(:), contiguous, pointer :: int1d_ptr
341
342  nullify (int1d_ptr)
343
344  call get_layered_shape(mshape, nlay, layer_shape)
345
346  ncpl = product(layer_shape)
347  index_start = 1
348  do k = 1, nlay
349  varid = nc_vars%varid(idt%tagname, layer=k)
350  index_stop = index_start + ncpl - 1
351  int1d_ptr(1:ncpl) => int1d(index_start:index_stop)
352  call nf_verify(nf90_get_var(nc_vars%ncid, varid, int1d_ptr), &
353  nc_vars%nc_fname)
354  index_start = index_stop + 1
355  end do
Here is the call graph for this function:
Here is the caller graph for this function:

◆ load_integer1d_layered_spd()

subroutine ncarrayreadermodule::load_integer1d_layered_spd ( integer(i4b), dimension(:), intent(in), pointer, contiguous  int1d,
type(modflowinputtype), intent(in)  mf6_input,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
integer(i4b), intent(in)  iper,
character(len=*), intent(in)  input_fname
)
private

Definition at line 360 of file NCArrayReader.f90.

362  use constantsmodule, only: dnodata
363  use netcdfcommonmodule, only: ixstp
364  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: int1d
365  type(ModflowInputType), intent(in) :: mf6_input
366  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape
367  type(InputParamDefinitionType), intent(in) :: idt
368  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
369  integer(I4B), intent(in) :: iper
370  character(len=*), intent(in) :: input_fname
371  integer(I4B), dimension(:), allocatable :: layer_shape
372  integer(I4B) :: nlay, varid
373  integer(I4B) :: ncpl, nvals, istp
374
375  istp = ixstp()
376
377  call get_layered_shape(mshape, nlay, layer_shape)
378  nvals = product(mshape)
379  ncpl = product(layer_shape)
380
381  varid = nc_vars%varid(idt%tagname)
382  select case (idt%shape)
383  case ('NCPL', 'NAUX NCPL')
384  call nf_verify(nf90_get_var(nc_vars%ncid, varid, int1d, &
385  start=(/1, istp/), count=(/ncpl, 1/)), &
386  nc_vars%nc_fname)
387  case ('NODES', 'NAUX NODES')
388  call nf_verify(nf90_get_var(nc_vars%ncid, varid, int1d, &
389  start=(/1, istp/), count=(/nvals, 1/)), &
390  nc_vars%nc_fname)
391  case default
392  end select

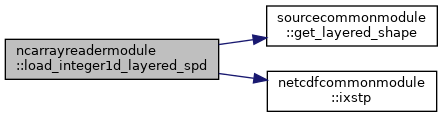

Here is the call graph for this function:
Here is the caller graph for this function:

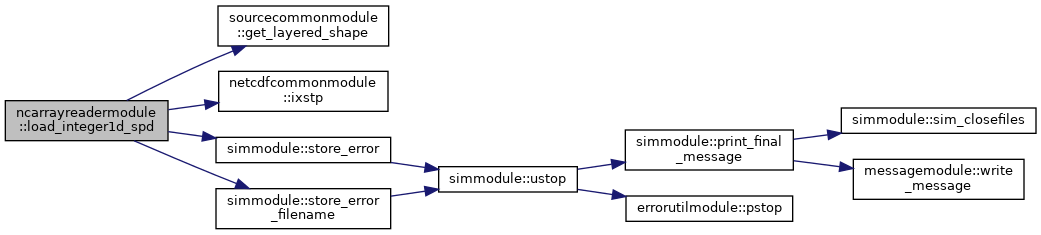

◆ load_integer1d_spd()

subroutine ncarrayreadermodule::load_integer1d_spd ( integer(i4b), dimension(:), intent(in), pointer, contiguous  int1d,
type(modflowinputtype), intent(in)  mf6_input,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
integer(i4b), intent(in)  iper,
character(len=*), intent(in)  input_fname
)
private

Definition at line 282 of file NCArrayReader.f90.

284  use constantsmodule, only: dnodata
285  use netcdfcommonmodule, only: ixstp
286  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: int1d
287  type(ModflowInputType), intent(in) :: mf6_input
288  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape
289  type(InputParamDefinitionType), intent(in) :: idt
290  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
291  integer(I4B), intent(in) :: iper
292  character(len=*), intent(in) :: input_fname
293  integer(I4B), dimension(:), allocatable :: layer_shape
294  integer(I4B) :: varid, nlay, ncpl, istp
295
296  istp = ixstp()
297
298  ! set varid
299  varid = nc_vars%varid(idt%tagname)
300
301  call get_layered_shape(mshape, nlay, layer_shape)
302  ncpl = product(layer_shape)
303
304  select case (idt%shape)
305  case ('NCPL', 'NAUX NCPL')
306  if (nc_vars%grid == 'STRUCTURED') then
307  call nf_verify(nf90_get_var(nc_vars%ncid, varid, int1d, &
308  start=(/1, 1, istp/), &
309  count=(/mshape(3), mshape(2), 1/)), &
310  nc_vars%nc_fname)
311  else if (nc_vars%grid == 'LAYERED MESH') then
312  call nf_verify(nf90_get_var(nc_vars%ncid, varid, int1d, &
313  start=(/1, istp/), count=(/ncpl, 1/)), &
314  nc_vars%nc_fname)
315  end if
316  case ('NODES', 'NAUX NODES')
317  write (errmsg, '(a,a,a)') &
318  'Timeseries netcdf input read not supported for full grid int1d &
319  &type ('//trim(idt%tagname)//').'
320  call store_error(errmsg)
321  call store_error_filename(input_fname)
322  case default
323  end select
Here is the call graph for this function:
Here is the caller graph for this function:

◆ load_integer1d_type()

subroutine ncarrayreadermodule::load_integer1d_type ( integer(i4b), dimension(:), intent(in), pointer, contiguous  int1d,
type(modflowinputtype), intent(in)  mf6_input,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
integer(i4b), intent(in)  varid,
character(len=*), intent(in)  input_fname
)
private

Definition at line 239 of file NCArrayReader.f90.

241  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: int1d
242  type(ModflowInputType), intent(in) :: mf6_input
243  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape
244  type(InputParamDefinitionType), intent(in) :: idt
245  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
246  integer(I4B), intent(in) :: varid
247  character(len=*), intent(in) :: input_fname
248  integer(I4B), dimension(:), allocatable :: array_shape
249  integer(I4B), dimension(:, :, :), contiguous, pointer :: int3d_ptr
250  integer(I4B), dimension(:, :), contiguous, pointer :: int2d_ptr
251  integer(I4B) :: nvals
252
253  ! initialize
254  nvals = 0
255
256  if (idt%shape == 'NODES') then
257  ! set number of values
258  nvals = product(mshape)
259  if (size(mshape) == 3) then
260  int3d_ptr(1:mshape(3), 1:mshape(2), 1:mshape(1)) => int1d(1:nvals)
261  call nf_verify(nf90_get_var(nc_vars%ncid, varid, int3d_ptr), &
262  nc_vars%nc_fname)
263  else if (size(mshape) == 2) then
264  int2d_ptr(1:mshape(2), 1:mshape(1)) => int1d(1:nvals)
265  call nf_verify(nf90_get_var(nc_vars%ncid, varid, int2d_ptr), &
266  nc_vars%nc_fname)
267  else if (size(mshape) == 1) then
268  call nf_verify(nf90_get_var(nc_vars%ncid, varid, int1d), nc_vars%nc_fname)
269  end if
270  else
271  ! interpret shape
272  call get_shape_from_string(idt%shape, array_shape, mf6_input%mempath)
273  ! set nvals
274  nvals = array_shape(1)
275  ! read and set data
276  call nf_verify(nf90_get_var(nc_vars%ncid, varid, int1d), nc_vars%nc_fname)
277  end if
Here is the call graph for this function:
Here is the caller graph for this function:

◆ load_integer2d_layered()

subroutine ncarrayreadermodule::load_integer2d_layered ( integer(i4b), dimension(:, :), intent(in), pointer, contiguous  int2d,
type(modflowinputtype), intent(in)  mf6_input,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
character(len=*), intent(in)  input_fname
)
private

Definition at line 425 of file NCArrayReader.f90.

427  integer(I4B), dimension(:, :), contiguous, pointer, intent(in) :: int2d
428  type(ModflowInputType), intent(in) :: mf6_input
429  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape
430  type(InputParamDefinitionType), intent(in) :: idt
431  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
432  character(len=*), intent(in) :: input_fname
433  integer(I4B), dimension(:), allocatable :: layer_shape
434  integer(I4B) :: k
435  integer(I4B) :: ncpl, nlay, varid
436  integer(I4B), dimension(:), contiguous, pointer :: int1d_ptr
437
438  nullify (int1d_ptr)
439
440  if (size(mshape) == 3) then
441  write (errmsg, '(a,a,a)') &
442  'Layered netcdf read not supported for DIS int2d type ('// &
443  trim(idt%tagname)//').'
444  call store_error(errmsg)
445  call store_error_filename(input_fname)
446  else if (size(mshape) == 2) then
447  call get_layered_shape(mshape, nlay, layer_shape)
448  ncpl = layer_shape(1)
449  do k = 1, nlay
450  varid = nc_vars%varid(idt%tagname, layer=k)
451  int1d_ptr(1:ncpl) => int2d(1:ncpl, k)
452  call nf_verify(nf90_get_var(nc_vars%ncid, varid, int1d_ptr), &
453  nc_vars%nc_fname)
454  end do
455  end if
Here is the call graph for this function:
Here is the caller graph for this function:

◆ load_integer2d_type()

subroutine ncarrayreadermodule::load_integer2d_type ( integer(i4b), dimension(:, :), intent(in), pointer, contiguous  int2d,
type(modflowinputtype), intent(in)  mf6_input,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
integer(i4b), intent(in)  varid,
character(len=*), intent(in)  input_fname
)

Definition at line 397 of file NCArrayReader.f90.

399  integer(I4B), dimension(:, :), contiguous, pointer, intent(in) :: int2d
400  type(ModflowInputType), intent(in) :: mf6_input
401  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape
402  type(InputParamDefinitionType), intent(in) :: idt
403  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
404  integer(I4B), intent(in) :: varid
405  character(len=*), intent(in) :: input_fname
406  integer(I4B), dimension(:), contiguous, pointer :: int1d_ptr
407  integer(I4B), dimension(:), allocatable :: array_shape
408  integer(I4B) :: ncpl, nlay
409
410  nullify (int1d_ptr)
411
412  if (nc_vars%grid == 'STRUCTURED') then
413  call nf_verify(nf90_get_var(nc_vars%ncid, varid, int2d), nc_vars%nc_fname)
414  else if (nc_vars%grid == 'LAYERED MESH') then
415  call get_layered_shape(mshape, nlay, array_shape)
416  ncpl = product(array_shape)
417  int1d_ptr(1:ncpl) => int2d(:, :)
418  call nf_verify(nf90_get_var(nc_vars%ncid, varid, int1d_ptr), &
419  nc_vars%nc_fname)
420  end if
Here is the call graph for this function:
Here is the caller graph for this function:

◆ load_integer3d_layered()

subroutine ncarrayreadermodule::load_integer3d_layered ( integer(i4b), dimension(:, :, :), intent(in), pointer, contiguous  int3d,
type(modflowinputtype), intent(in)  mf6_input,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
character(len=*), intent(in)  input_fname
)
private

Definition at line 474 of file NCArrayReader.f90.

476  integer(I4B), dimension(:, :, :), contiguous, pointer, intent(in) :: int3d
477  type(ModflowInputType), intent(in) :: mf6_input
478  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape
479  type(InputParamDefinitionType), intent(in) :: idt
480  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
481  character(len=*), intent(in) :: input_fname
482  integer(I4B), dimension(:), allocatable :: layer_shape
483  integer(I4B) :: k !, i, j
484  integer(I4B) :: ncpl, nlay, varid
485  integer(I4B) :: index_start, index_stop
486  integer(I4B), dimension(:), contiguous, pointer :: int1d_ptr
487
488  nullify (int1d_ptr)
489  index_start = 1
490  call get_layered_shape(mshape, nlay, layer_shape)
491  ncpl = product(layer_shape)
492
493  do k = 1, nlay
494  varid = nc_vars%varid(idt%tagname, layer=k)
495  index_stop = index_start + ncpl - 1
496  int1d_ptr(1:ncpl) => int3d(:, :, k:k)
497  call nf_verify(nf90_get_var(nc_vars%ncid, varid, int1d_ptr), &
498  nc_vars%nc_fname)
499  index_start = index_stop + 1
500  end do
Here is the call graph for this function:
Here is the caller graph for this function:

◆ load_integer3d_type()

subroutine ncarrayreadermodule::load_integer3d_type ( integer(i4b), dimension(:, :, :), intent(in), pointer, contiguous  int3d,
type(modflowinputtype), intent(in)  mf6_input,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
integer(i4b), intent(in)  varid,
character(len=*), intent(in)  input_fname
)
private

Definition at line 460 of file NCArrayReader.f90.

462  integer(I4B), dimension(:, :, :), contiguous, pointer, intent(in) :: int3d
463  type(ModflowInputType), intent(in) :: mf6_input
464  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape
465  type(InputParamDefinitionType), intent(in) :: idt
466  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
467  integer(I4B), intent(in) :: varid
468  character(len=*), intent(in) :: input_fname
469  call nf_verify(nf90_get_var(nc_vars%ncid, varid, int3d), nc_vars%nc_fname)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ nc_array_load_dbl1d()

subroutine ncarrayreadermodule::nc_array_load_dbl1d ( real(dp), dimension(:), intent(in), pointer, contiguous  dbl1d,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(modflowinputtype), intent(in)  mf6_input,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
character(len=*), intent(in)  input_fname,
integer(i4b), intent(in)  iout,
integer(i4b), intent(in), optional  kper,
integer(i4b), intent(in), optional  iaux
)
private
Parameters
[in]mshapemodel shape
[in]idtinput data type object describing this record
[in]kperflag if set > 0 indicates ts

Definition at line 144 of file NCArrayReader.f90.

146  real(DP), dimension(:), pointer, contiguous, intent(in) :: dbl1d
147  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape !< model shape
148  type(InputParamDefinitionType), intent(in) :: idt !< input data type object describing this record
149  type(ModflowInputType), intent(in) :: mf6_input
150  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
151  character(len=*), intent(in) :: input_fname
152  integer(I4B), intent(in) :: iout
153  integer(I4B), optional, intent(in) :: kper !< flag if set > 0 indicates ts
154  integer(I4B), optional, intent(in) :: iaux
155  integer(I4B) :: varid, iper
156  logical(LGP) :: layered
157
158  iper = 0
159  layered = (idt%layered .and. is_layered(nc_vars%grid))
160
161  if (present(kper)) then
162  iper = kper
163  end if
164
165  if (layered) then
166  if (iper > 0) then
167  call load_double1d_layered_spd(dbl1d, mf6_input, mshape, idt, nc_vars, &
168  iper, input_fname, iaux)
169  else
170  call load_double1d_layered(dbl1d, mf6_input, mshape, idt, nc_vars, &
171  input_fname)
172  end if
173  else
174  if (iper > 0) then
175  call load_double1d_spd(dbl1d, mf6_input, mshape, idt, nc_vars, &
176  iper, input_fname, iaux)
177  else
178  varid = nc_vars%varid(idt%tagname)
179  call load_double1d_type(dbl1d, mf6_input, mshape, idt, nc_vars, &
180  varid, input_fname)
181  end if
182  end if

◆ nc_array_load_dbl2d()

subroutine ncarrayreadermodule::nc_array_load_dbl2d ( real(dp), dimension(:, :), intent(in), pointer, contiguous  dbl2d,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(modflowinputtype), intent(in)  mf6_input,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
character(len=*), intent(in)  input_fname,
integer(i4b), intent(in)  iout
)
private
Parameters
[in]mshapemodel shape
[in]idtinput data type object describing this record

Definition at line 187 of file NCArrayReader.f90.

189  real(DP), dimension(:, :), pointer, contiguous, intent(in) :: dbl2d
190  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape !< model shape
191  type(InputParamDefinitionType), intent(in) :: idt !< input data type object describing this record
192  type(ModflowInputType), intent(in) :: mf6_input
193  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
194  character(len=*), intent(in) :: input_fname
195  integer(I4B), intent(in) :: iout
196  integer(I4B) :: varid
197  logical(LGP) :: layered
198
199  layered = (idt%layered .and. is_layered(nc_vars%grid))
200
201  if (layered) then
202  call load_double2d_layered(dbl2d, mf6_input, mshape, idt, nc_vars, &
203  input_fname)
204  else
205  varid = nc_vars%varid(idt%tagname)
206  call load_double2d_type(dbl2d, mf6_input, mshape, idt, nc_vars, &
207  varid, input_fname)
208  end if

◆ nc_array_load_dbl3d()

subroutine ncarrayreadermodule::nc_array_load_dbl3d ( real(dp), dimension(:, :, :), intent(in), pointer, contiguous  dbl3d,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(modflowinputtype), intent(in)  mf6_input,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
character(len=*), intent(in)  input_fname,
integer(i4b), intent(in)  iout
)
private
Parameters
[in]mshapemodel shape
[in]idtinput data type object describing this record

Definition at line 213 of file NCArrayReader.f90.

215  real(DP), dimension(:, :, :), pointer, contiguous, intent(in) :: dbl3d
216  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape !< model shape
217  type(InputParamDefinitionType), intent(in) :: idt !< input data type object describing this record
218  type(ModflowInputType), intent(in) :: mf6_input
219  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
220  character(len=*), intent(in) :: input_fname
221  integer(I4B), intent(in) :: iout
222  integer(I4B) :: varid
223  logical(LGP) :: layered
224
225  layered = (idt%layered .and. is_layered(nc_vars%grid))
226
227  if (layered) then
228  call load_double3d_layered(dbl3d, mf6_input, mshape, idt, nc_vars, &
229  input_fname)
230  else
231  varid = nc_vars%varid(idt%tagname)
232  call load_double3d_type(dbl3d, mf6_input, mshape, idt, nc_vars, &
233  varid, input_fname)
234  end if

◆ nc_array_load_int1d()

subroutine ncarrayreadermodule::nc_array_load_int1d ( integer(i4b), dimension(:), intent(in), pointer, contiguous  int1d,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(modflowinputtype), intent(in)  mf6_input,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
character(len=*), intent(in)  input_fname,
integer(i4b), intent(in)  iout,
integer(i4b), intent(in), optional  kper
)
private
Parameters
[in]mshapemodel shape
[in]idtinput data type object describing this record
[in]kperflag if set > 0 indicates ts

Definition at line 50 of file NCArrayReader.f90.

52  integer(I4B), dimension(:), pointer, contiguous, intent(in) :: int1d
53  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape !< model shape
54  type(InputParamDefinitionType), intent(in) :: idt !< input data type object describing this record
55  type(ModflowInputType), intent(in) :: mf6_input
56  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
57  character(len=*), intent(in) :: input_fname
58  integer(I4B), intent(in) :: iout
59  integer(I4B), optional, intent(in) :: kper !< flag if set > 0 indicates ts
60  integer(I4B) :: varid, iper
61  logical(LGP) :: layered
62
63  iper = 0
64  layered = (idt%layered .and. is_layered(nc_vars%grid))
65
66  if (present(kper)) then
67  iper = kper
68  end if
69
70  if (layered) then
71  if (iper > 0) then
72  call load_integer1d_layered_spd(int1d, mf6_input, mshape, idt, nc_vars, &
73  iper, input_fname)
74  else
75  call load_integer1d_layered(int1d, mf6_input, mshape, idt, nc_vars, &
76  input_fname)
77  end if
78  else
79  if (iper > 0) then
80  call load_integer1d_spd(int1d, mf6_input, mshape, idt, nc_vars, &
81  iper, input_fname)
82  else
83  varid = nc_vars%varid(idt%tagname)
84  call load_integer1d_type(int1d, mf6_input, mshape, idt, nc_vars, &
85  varid, input_fname)
86  end if
87  end if

◆ nc_array_load_int2d()

subroutine ncarrayreadermodule::nc_array_load_int2d ( integer(i4b), dimension(:, :), intent(in), pointer, contiguous  int2d,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(modflowinputtype), intent(in)  mf6_input,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
character(len=*), intent(in)  input_fname,
integer(i4b), intent(in)  iout
)
private
Parameters
[in]mshapemodel shape
[in]idtinput data type object describing this record

Definition at line 92 of file NCArrayReader.f90.

94  integer(I4B), dimension(:, :), pointer, contiguous, intent(in) :: int2d
95  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape !< model shape
96  type(InputParamDefinitionType), intent(in) :: idt !< input data type object describing this record
97  type(ModflowInputType), intent(in) :: mf6_input
98  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
99  character(len=*), intent(in) :: input_fname
100  integer(I4B), intent(in) :: iout
101  integer(I4B) :: varid
102  logical(LGP) :: layered
103
104  layered = (idt%layered .and. is_layered(nc_vars%grid))
105
106  if (layered) then
107  call load_integer2d_layered(int2d, mf6_input, mshape, idt, nc_vars, &
108  input_fname)
109  else
110  varid = nc_vars%varid(idt%tagname)
111  call load_integer2d_type(int2d, mf6_input, mshape, idt, nc_vars, &
112  varid, input_fname)
113  end if

◆ nc_array_load_int3d()

subroutine ncarrayreadermodule::nc_array_load_int3d ( integer(i4b), dimension(:, :, :), intent(in), pointer, contiguous  int3d,
integer(i4b), dimension(:), intent(in), pointer, contiguous  mshape,
type(inputparamdefinitiontype), intent(in)  idt,
type(modflowinputtype), intent(in)  mf6_input,
type(ncpackagevarstype), intent(in), pointer  nc_vars,
character(len=*), intent(in)  input_fname,
integer(i4b), intent(in)  iout
)
private
Parameters
[in]mshapemodel shape
[in]idtinput data type object describing this record

Definition at line 118 of file NCArrayReader.f90.

120  integer(I4B), dimension(:, :, :), pointer, contiguous, intent(in) :: int3d
121  integer(I4B), dimension(:), contiguous, pointer, intent(in) :: mshape !< model shape
122  type(InputParamDefinitionType), intent(in) :: idt !< input data type object describing this record
123  type(ModflowInputType), intent(in) :: mf6_input
124  type(NCPackageVarsType), pointer, intent(in) :: nc_vars
125  character(len=*), intent(in) :: input_fname
126  integer(I4B), intent(in) :: iout
127  integer(I4B) :: varid
128  logical(LGP) :: layered
129
130  layered = (idt%layered .and. is_layered(nc_vars%grid))
131
132  if (layered) then
133  call load_integer3d_layered(int3d, mf6_input, mshape, idt, nc_vars, &
134  input_fname)
135  else
136  varid = nc_vars%varid(idt%tagname)
137  call load_integer3d_type(int3d, mf6_input, mshape, idt, nc_vars, &
138  varid, input_fname)
139  end if
