outputcontroldatamodule Module Reference

Output control data module.

Data Types

type  outputcontroldatatype
 Output control data type. More...

Functions/Subroutines

subroutine, public ocd_cr (ocdobj)
 Create a new output control data type.
subroutine ocd_rp_check (this, input_fname)
 Check the output control data type for consistency.
subroutine ocd_ot (this, ipflg, kstp, endofperiod, iout, iprint_opt, isav_opt)
 Write to list file and/or save to binary file, depending on settings.
subroutine ocd_da (this)
 Deallocate the output control data type.
subroutine init_dbl (this, cname, dblvec, dis, cdefpsm, cdeffmp, iout, dnodata)
 Initialize the output control data type for double precision data.
subroutine init_int (this, cname, intvec, dis, cdefpsm, cdeffmp, iout, inodata)
 Initialize the output control data type for integer data.
subroutine allocate (this)
 Allocate scalar variables.
subroutine set_prnfmt (this, prnfmt, inunit)
 Set PRINT_FORMAT based on an input string.
subroutine set_ocfile (this, ocfile, iout)

Function/Subroutine Documentation

◆ allocate()

subroutine outputcontroldatamodule::allocate ( class(outputcontroldatatype) this)
private
Parameters
thisOutputControlDataType object

Definition at line 195 of file OutputControlData.f90.

196 ! modules
197 use constantsmodule, only: dzero
198 ! dummy
199 class(OutputControlDataType) :: this !< OutputControlDataType object
200
201 allocate (this%cname)
202 allocate (this%cdatafmp)
203 allocate (this%idataun)
204 allocate (this%editdesc)
205 allocate (this%nvaluesp)
206 allocate (this%nwidthp)
207 allocate (this%dnodata)
208 allocate (this%inodata)
209
210 this%cname = ''
211 this%cdatafmp = ''
212 this%idataun = 0
213 this%editdesc = ''
214 this%nvaluesp = 0
215 this%nwidthp = 0
216 this%dnodata = dzero
217 this%inodata = 0
218 this%psm => create_psm()
This module contains simulation constants.
Definition Constants.f90:9
real(dp), parameter dzero
real constant zero
Definition Constants.f90:65
Here is the call graph for this function:

◆ init_dbl()

subroutine outputcontroldatamodule::init_dbl ( class(outputcontroldatatype) this,
character(len=*), intent(in) cname,
real(dp), dimension(:), intent(in), pointer, contiguous dblvec,
class(disbasetype), intent(in), pointer dis,
character(len=*), intent(in) cdefpsm,
character(len=*), intent(in) cdeffmp,
integer(i4b), intent(in) iout,
real(dp), intent(in) dnodata )
private
Parameters
thisOutputControlDataType object
[in]cnameName of variable
[in]dblvecData array that will be managed by this object
[in]disDiscretization package
[in]cdefpsmString for defining the print/save manager
[in]cdeffmpString for print format
[in]ioutUnit number for output
[in]dnodataNo data value

Definition at line 152 of file OutputControlData.f90.

154 class(OutputControlDataType) :: this !< OutputControlDataType object
155 character(len=*), intent(in) :: cname !< Name of variable
156 real(DP), dimension(:), pointer, contiguous, intent(in) :: dblvec !< Data array that will be managed by this object
157 class(DisBaseType), pointer, intent(in) :: dis !< Discretization package
158 character(len=*), intent(in) :: cdefpsm !< String for defining the print/save manager
159 character(len=*), intent(in) :: cdeffmp !< String for print format
160 integer(I4B), intent(in) :: iout !< Unit number for output
161 real(DP), intent(in) :: dnodata !< No data value
162
163 this%cname = cname
164 this%dbldata => dblvec
165 this%dis => dis
166 this%dnodata = dnodata
167 if (cdefpsm /= '') call this%psm%read(cdefpsm, iout)
168 call print_format(cdeffmp, this%cdatafmp, &
169 this%editdesc, this%nvaluesp, this%nwidthp, 0)
Here is the call graph for this function:

◆ init_int()

subroutine outputcontroldatamodule::init_int ( class(outputcontroldatatype) this,
character(len=*), intent(in) cname,
integer(i4b), dimension(:), intent(in), pointer, contiguous intvec,
class(disbasetype), intent(in), pointer dis,
character(len=*), intent(in) cdefpsm,
character(len=*), intent(in) cdeffmp,
integer(i4b), intent(in) iout,
integer(i4b), intent(in) inodata )
private
Parameters
thisOutputControlDataType object
[in]cnameName of variable
[in]intvecData array that will be managed by this object
[in]disDiscretization package
[in]cdefpsmString for defining the print/save manager
[in]cdeffmpString for print format
[in]ioutUnit number for output
[in]inodataNo data value

Definition at line 173 of file OutputControlData.f90.

175 class(OutputControlDataType) :: this !< OutputControlDataType object
176 character(len=*), intent(in) :: cname !< Name of variable
177 integer(I4B), dimension(:), pointer, contiguous, intent(in) :: intvec !< Data array that will be managed by this object
178 class(DisBaseType), pointer, intent(in) :: dis !< Discretization package
179 character(len=*), intent(in) :: cdefpsm !< String for defining the print/save manager
180 character(len=*), intent(in) :: cdeffmp !< String for print format
181 integer(I4B), intent(in) :: iout !< Unit number for output
182 integer(I4B), intent(in) :: inodata !< No data value
183
184 this%cname = cname
185 this%intdata => intvec
186 this%dis => dis
187 this%inodata = inodata
188 this%editdesc = 'I'
189 if (cdefpsm /= '') call this%psm%read(cdefpsm, iout)
190 call print_format(cdeffmp, this%cdatafmp, this%editdesc, this%nvaluesp, &
191 this%nwidthp, 0)
Here is the call graph for this function:

◆ ocd_cr()

subroutine, public outputcontroldatamodule::ocd_cr ( type(outputcontroldatatype), pointer ocdobj)
Parameters
ocdobjthis instance

Definition at line 46 of file OutputControlData.f90.

47 type(OutputControlDataType), pointer :: ocdobj !< this instance
48 allocate (ocdobj)
49 call ocdobj%allocate_scalars()
Here is the caller graph for this function:

◆ ocd_da()

subroutine outputcontroldatamodule::ocd_da ( class(outputcontroldatatype) this)
private

Definition at line 138 of file OutputControlData.f90.

139 class(OutputControlDataType) :: this
140
141 deallocate (this%cname)
142 deallocate (this%cdatafmp)
143 deallocate (this%idataun)
144 deallocate (this%editdesc)
145 deallocate (this%nvaluesp)
146 deallocate (this%nwidthp)
147 deallocate (this%dnodata)
148 deallocate (this%inodata)

◆ ocd_ot()

subroutine outputcontroldatamodule::ocd_ot ( class(outputcontroldatatype) this,
integer(i4b), intent(inout) ipflg,
integer(i4b), intent(in) kstp,
logical(lgp), intent(in) endofperiod,
integer(i4b), intent(in) iout,
integer(i4b), intent(in), optional iprint_opt,
integer(i4b), intent(in), optional isav_opt )
private
Parameters
thisOutputControlDataType object
[in,out]ipflgFlag indicating if something was printed
[in]kstpCurrent time step
[in]endofperiodEnd of period logical flag
[in]ioutUnit number for output
[in]iprint_optOptional print flag override
[in]isav_optOptional save flag override

Definition at line 83 of file OutputControlData.f90.

84 ! dummy
85 class(OutputControlDataType) :: this !< OutputControlDataType object
86 integer(I4B), intent(inout) :: ipflg !< Flag indicating if something was printed
87 integer(I4B), intent(in) :: kstp !< Current time step
88 logical(LGP), intent(in) :: endofperiod !< End of period logical flag
89 integer(I4B), intent(in) :: iout !< Unit number for output
90 integer(I4B), optional, intent(in) :: iprint_opt !< Optional print flag override
91 integer(I4B), optional, intent(in) :: isav_opt !< Optional save flag override
92 ! local
93 integer(I4B) :: iprint
94 integer(I4B) :: idataun
95
96 ! Initialize
97 iprint = 0
98 ipflg = 0
99 idataun = 0
100
101 ! Determine whether or not to print the array. The present
102 ! check allows a caller to override the print/save manager
103 if (present(iprint_opt)) then
104 if (iprint_opt /= 0) then
105 iprint = 1
106 ipflg = 1
107 end if
108 else
109 if (this%psm%should_print(kstp, endofperiod)) then
110 iprint = 1
111 ipflg = 1
112 end if
113 end if
114
115 ! Determine whether to save the array to a file
116 if (present(isav_opt)) then
117 if (isav_opt /= 0) then
118 idataun = this%idataun
119 end if
120 else
121 if (this%psm%should_save(kstp, endofperiod)) idataun = this%idataun
122 end if
123
124 ! Record double precision array
125 if (associated(this%dbldata)) &
126 call this%dis%record_array(this%dbldata, iout, iprint, idataun, &
127 this%cname, this%cdatafmp, this%nvaluesp, &
128 this%nwidthp, this%editdesc, this%dnodata)
129
130 ! Record integer array (not supported yet)
131 !if(associated(this%intvec)) &
132 !call this%dis%record_array(this%intvec, iout, iprint, idataun, &
133 ! this%cname, this%cdatafmp, this%nvaluesp, &
134 ! this%nwidthp, this%editdesc, this%inodata)

◆ ocd_rp_check()

subroutine outputcontroldatamodule::ocd_rp_check ( class(outputcontroldatatype) this,
character(len=*) input_fname )
private
Parameters
thisthis instance

Definition at line 53 of file OutputControlData.f90.

54 ! modules
57 ! dummy
58 class(OutputControlDataType) :: this !< this instance
59 character(len=*) :: input_fname
60 ! locals
61 character(len=LINELENGTH) :: errmsg
62 ! formats
63 character(len=*), parameter :: fmtocsaveerr = &
64 "(1X,'REQUESTING TO SAVE ',A,' BUT ',A,' SAVE FILE NOT SPECIFIED. ', &
65 &A,' SAVE FILE MUST BE SPECIFIED IN OUTPUT CONTROL OPTIONS.')"
66
67 ! If saving is enabled, make sure an output file was specified
68 if (this%psm%save_steps%any()) then
69 if (this%idataun == 0) then
70 write (errmsg, fmtocsaveerr) trim(adjustl(this%cname)), &
71 trim(adjustl(this%cname)), &
72 trim(adjustl(this%cname))
73 call store_error(errmsg)
74 end if
75 end if
76
77 if (count_errors() > 0) then
78 call store_error_filename(input_fname)
79 end if
integer(i4b), parameter linelength
maximum length of a standard line
Definition Constants.f90:45
This module contains simulation methods.
Definition Sim.f90:10
subroutine, public store_error(msg, terminate)
Store an error message.
Definition Sim.f90:94
integer(i4b) function, public count_errors()
Return number of errors.
Definition Sim.f90:60
subroutine, public store_error_filename(filename, terminate)
Store the erroring file name.
Definition Sim.f90:208

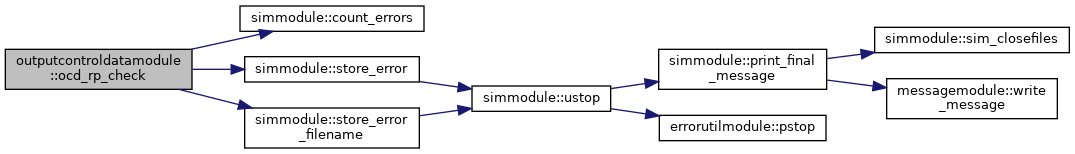

Here is the call graph for this function:

◆ set_ocfile()

subroutine outputcontroldatamodule::set_ocfile ( class(outputcontroldatatype) this,
character(len=*), intent(in) ocfile,
integer(i4b), intent(in) iout )
private
Parameters
thisOutputControlDataType object
[in]ocfileOC output filename
[in]ioutUnit number for output

Definition at line 234 of file OutputControlData.f90.

235 use constantsmodule, only: mnormal
236 use openspecmodule, only: access, form
238 ! dummy
239 class(OutputControlDataType) :: this !< OutputControlDataType object
240 character(len=*), intent(in) :: ocfile !< OC output filename
241 integer(I4B), intent(in) :: iout !< Unit number for output
242 ! format
243 character(len=*), parameter :: fmtocsave = &
244 "(4X,A,' INFORMATION WILL BE WRITTEN TO:', &
245 &/,6X,'UNIT NUMBER: ', I0,/,6X, 'FILE NAME: ', A)"
246 this%idataun = getunit()
247 write (iout, fmtocsave) trim(adjustl(this%cname)), this%idataun, &
248 trim(ocfile)
249 call openfile(this%idataun, iout, ocfile, 'DATA(BINARY)', &
250 form, access, 'REPLACE', mnormal)
@ mnormal
normal output mode
integer(i4b) function, public getunit()
Get a free unit number.
subroutine, public openfile(iu, iout, fname, ftype, fmtarg_opt, accarg_opt, filstat_opt, mode_opt)
Open a file.
subroutine, public urword(line, icol, istart, istop, ncode, n, r, iout, in)
Extract a word from a string.
character(len=20) access
Definition OpenSpec.f90:7
character(len=20) form
Definition OpenSpec.f90:7
Here is the call graph for this function:

◆ set_prnfmt()

subroutine outputcontroldatamodule::set_prnfmt ( class(outputcontroldatatype) this,
character(len=*), intent(in) prnfmt,
integer(i4b), intent(in) inunit )
private
Parameters
thisOutputControlDataType object
[in]inunitUnit number for input

Definition at line 222 of file OutputControlData.f90.

223 ! modules
225 ! dummy
226 class(OutputControlDataType) :: this !< OutputControlDataType object
227 character(len=*), intent(in) :: prnfmt
228 integer(I4B), intent(in) :: inunit !< Unit number for input
229 ! local
230 call print_format(prnfmt, this%cdatafmp, this%editdesc, &
231 this%nvaluesp, this%nwidthp, inunit)
subroutine, public print_format(linein, cdatafmp, editdesc, nvaluesp, nwidthp, inunit)
Define the print or save format.
Here is the call graph for this function:
