gwfnpfmodule::defaultflowformulationtype Type Referenceabstract

Default conductance flow formulation. More...

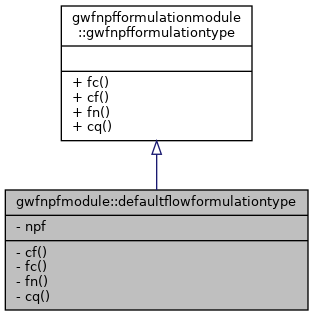

Inheritance diagram for gwfnpfmodule::defaultflowformulationtype:
Inheritance graph
Collaboration diagram for gwfnpfmodule::defaultflowformulationtype:
Collaboration graph

Public Member Functions

procedure cf (this, kiter)
 Calculate coefficients for the default conductance formulation.
procedure fc (this, kiter, matrix_sln, idxglo, rhs, hnew)
 Fill coefficients for the default conductance formulation.
procedure fn (this, kiter, matrix_sln, idxglo, rhs, hnew)
 Fill newton terms for the default conductance formulation.
procedure cq (this, hnew, flowja)
 Calculate flows for the default conductance formulation.
procedure(fc_if), deferred fc (this, kiter, matrix_sln, idxglo, rhs, hnew)
procedure cf (this, kiter)
 No-op coefficient calculation; formulation loops cells itself.
procedure fn (this, kiter, matrix_sln, idxglo, rhs, hnew)
 No-op newton terms; formulation loops connections itself.
procedure cq (this, hnew, flowja)
 No-op flow calculation; formulation loops connections itself.

Public Attributes

class(gwfnpftype), pointer npf => null()
 owning NPF package

Detailed Description

Wraps the standard NPF conductance fill so it participates in the additive list of flow formulations. Faces claimed by an exclusive formulation are skipped.

Definition at line 174 of file gwf-npf.f90.

Member Function/Subroutine Documentation

◆ cf() [1/2]

procedure gwfnpfformulationmodule::gwfnpfformulationtype::cf ( class(gwfnpfformulationtype), intent(inout) this,
integer(i4b), intent(in) kiter )
inherited

Definition at line 21 of file GwfNpfExt.f90.

◆ cf() [2/2]

procedure gwfnpfmodule::defaultflowformulationtype::cf ( class(defaultflowformulationtype), intent(inout) this,
integer(i4b), intent(in) kiter )

Runs over all cells and computes the saturated fraction for convertible cells, skipping cells claimed by an exclusive formulation.

Parameters
[in,out]thisdefault formulation
[in]kiterouter iteration number

Definition at line 177 of file gwf-npf.f90.

◆ cq() [1/2]

procedure gwfnpfformulationmodule::gwfnpfformulationtype::cq ( class(gwfnpfformulationtype), intent(inout) this,
real(dp), dimension(:), intent(inout) hnew,
real(dp), dimension(:), intent(inout) flowja )
inherited

Definition at line 23 of file GwfNpfExt.f90.

◆ cq() [2/2]

procedure gwfnpfmodule::defaultflowformulationtype::cq ( class(defaultflowformulationtype), intent(inout) this,
real(dp), dimension(:), intent(inout) hnew,
real(dp), dimension(:), intent(inout) flowja )

Runs over all connections and stores the standard NPF face flows, skipping faces claimed by an exclusive formulation.

Parameters
[in,out]thisdefault formulation
[in,out]hnewnew head values
[in,out]flowjaflow between cells

Definition at line 180 of file gwf-npf.f90.

◆ fc() [1/2]

procedure(fc_if), deferred gwfnpfformulationmodule::gwfnpfformulationtype::fc ( class(gwfnpfformulationtype), intent(inout) this,
integer(i4b), intent(in) kiter,
class(matrixbasetype), intent(inout), pointer matrix_sln,
integer(i4b), dimension(:), intent(in) idxglo,
real(dp), dimension(:), intent(inout) rhs,
real(dp), dimension(:), intent(inout) hnew )
pure virtualinherited

Definition at line 20 of file GwfNpfExt.f90.

◆ fc() [2/2]

procedure gwfnpfmodule::defaultflowformulationtype::fc ( class(defaultflowformulationtype), intent(inout) this,
integer(i4b), intent(in) kiter,
class(matrixbasetype), intent(inout), pointer matrix_sln,
integer(i4b), dimension(:), intent(in) idxglo,
real(dp), dimension(:), intent(inout) rhs,
real(dp), dimension(:), intent(inout) hnew )

Runs over all connections and fills the standard NPF conductance terms, skipping faces claimed by an exclusive formulation.

Parameters
[in,out]thisdefault formulation
[in]kiterouter iteration number
[in,out]matrix_slnsystem matrix
[in]idxglolocal to global connection map
[in,out]rhsright-hand side vector
[in,out]hnewnew head values

Definition at line 178 of file gwf-npf.f90.

◆ fn() [1/2]

procedure gwfnpfformulationmodule::gwfnpfformulationtype::fn ( class(gwfnpfformulationtype), intent(inout) this,
integer(i4b), intent(in) kiter,
class(matrixbasetype), intent(inout), pointer matrix_sln,
integer(i4b), dimension(:), intent(in) idxglo,
real(dp), dimension(:), intent(inout) rhs,
real(dp), dimension(:), intent(inout) hnew )
inherited

Definition at line 22 of file GwfNpfExt.f90.

◆ fn() [2/2]

procedure gwfnpfmodule::defaultflowformulationtype::fn ( class(defaultflowformulationtype), intent(inout) this,
integer(i4b), intent(in) kiter,
class(matrixbasetype), intent(inout), pointer matrix_sln,
integer(i4b), dimension(:), intent(in) idxglo,
real(dp), dimension(:), intent(inout) rhs,
real(dp), dimension(:), intent(inout) hnew )

Runs over all connections and fills the standard NPF newton terms, skipping faces claimed by an exclusive formulation.

Parameters
[in,out]thisdefault formulation
[in]kiterouter iteration number
[in,out]matrix_slnsystem matrix
[in]idxglolocal to global connection map
[in,out]rhsright-hand side vector
[in,out]hnewnew head values

Definition at line 179 of file gwf-npf.f90.

Member Data Documentation

◆ npf

class(gwfnpftype), pointer gwfnpfmodule::defaultflowformulationtype::npf => null()

Definition at line 175 of file gwf-npf.f90.


The documentation for this type was generated from the following file:
  • /home/runner/work/modflow6/modflow6/src/Model/GroundWaterFlow/gwf-npf.f90
