gwfnpfmodule Module Reference

Data Types
type	gwfnpftype
type	defaultflowformulationtype
	Default conductance flow formulation. More...

Functions/Subroutines
subroutine, public	npf_cr (npfobj, name_model, input_mempath, inunit, iout)
	Create a new NPF object. Pass a inunit value of 0 if npf data will initialized from memory. More...
subroutine	npf_df (this, dis, xt3d, ingnc, invsc, npf_options)
	Define the NPF package instance. More...
subroutine	npf_ac (this, moffset, sparse)
	Add connections for extended neighbors to the sparse matrix. More...
subroutine	npf_mc (this, moffset, matrix_sln)
	Map connections and construct iax, jax, and idxglox. More...

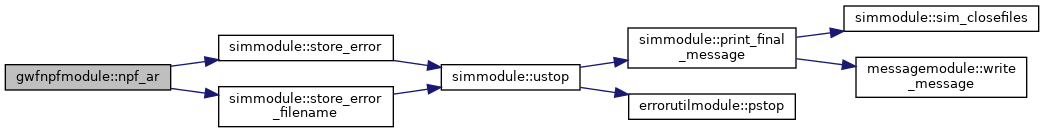

subroutine	npf_ar (this, ic, vsc, ibound, hnew)
	Allocate and read this NPF instance. More...
subroutine	npf_rp (this)
	Read and prepare method for package. More...
subroutine	npf_ad (this, nodes, hold, hnew, irestore)
	Advance. More...
subroutine	npf_cf (this, kiter, nodes, hnew)
	Calculate coefficients. More...
subroutine	default_flow_cf (this, kiter)
	Calculate coefficients for the default conductance formulation. More...
subroutine	cf_default_flow (this, kiter, n)
	Calculate coefficients using the. More...
subroutine	npf_fc (this, kiter, matrix_sln, idxglo, rhs, hnew)
	Formulate coefficients. More...

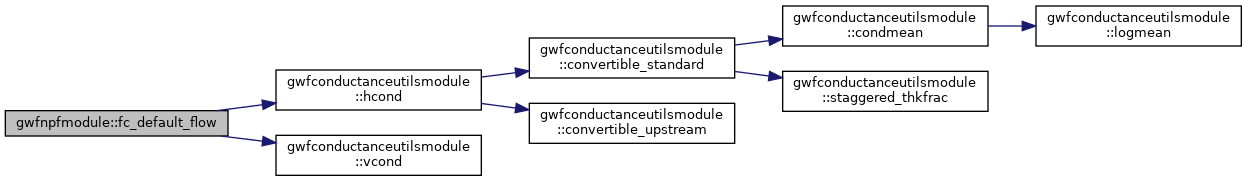

subroutine	fc_default_flow (this, n, m, ipos, matrix_sln, rhs, idxglo, hnew)
	Calculate and add coefficients using the. More...
subroutine	default_flow_fc (this, kiter, matrix_sln, idxglo, rhs, hnew)
	Fill coefficients for the default conductance formulation. More...
subroutine	highest_cell_saturation (this, n, m, hn, hm, satn, satm)
	Calculate dry cell saturation. More...
subroutine	npf_fn (this, kiter, matrix_sln, idxglo, rhs, hnew)
	Fill newton terms. More...
subroutine	default_flow_fn (this, kiter, matrix_sln, idxglo, rhs, hnew)
	Fill newton terms for the default conductance formulation. More...
subroutine	fn_default_flow (this, n, m, ipos, matrix_sln, rhs, idxglo, hnew)
subroutine	npf_nur (this, neqmod, x, xtemp, dx, inewtonur, dxmax, locmax)
	Under-relaxation. More...
subroutine	npf_cq (this, hnew, flowja)
	Calculate flowja. More...
subroutine	default_flow_cq (this, hnew, flowja)
	Calculate flows for the default conductance formulation. More...
subroutine	cq_default_flow (this, n, m, ipos, flowja, hnew)
subroutine	sgwf_npf_thksat (this, n, hn, thksat)
	Fractional cell saturation. More...
subroutine	sgwf_npf_qcalc (this, n, m, hn, hm, icon, qnm)
	Flow between two cells. More...
subroutine	npf_save_model_flows (this, flowja, icbcfl, icbcun)
	Record flowja and calculate specific discharge if requested. More...
subroutine	npf_print_model_flows (this, ibudfl, flowja)
	Print budget. More...
subroutine	npf_da (this)
	Deallocate variables. More...
subroutine	allocate_scalars (this)
	@ brief Allocate scalars More...
subroutine	store_original_k_arrays (this, ncells, njas)
	@ brief Store backup copy of hydraulic conductivity when the VSC package is activate More...
subroutine	allocate_arrays (this, ncells, njas)
	Allocate npf arrays. More...
subroutine	log_options (this, found)
	Log npf options sourced from the input mempath. More...
subroutine	source_options (this)
	Update simulation options from input mempath. More...
subroutine	set_options (this, options)
	Set options in the NPF object. More...
subroutine	check_options (this)
	Check for conflicting NPF options. More...
subroutine	log_griddata (this, found)
	Write dimensions to list file. More...
subroutine	source_griddata (this)
	Update simulation griddata from input mempath. More...
subroutine	prepcheck (this)
	Initialize and check NPF data. More...
subroutine	preprocess_input (this)
	preprocess the NPF input data More...
subroutine	calc_condsat (this, node, upperOnly)
	Calculate CONDSAT array entries for the given node. More...
real(dp) function	calc_initial_sat (this, n)
	Calculate initial saturation for the given node. More...
subroutine	sgwf_npf_wetdry (this, kiter, hnew)
	Perform wetting and drying. More...
subroutine	rewet_check (this, kiter, node, hm, ibdm, ihc, hnew, irewet)
	Determine if a cell should rewet. More...
subroutine	sgwf_npf_wdmsg (this, icode, ncnvrt, nodcnvrt, acnvrt, ihdcnv, kiter, n)
	Print wet/dry message. More...
real(dp) function	hy_eff (this, n, m, ihc, ipos, vg)
	Calculate the effective hydraulic conductivity for the n-m connection. More...
subroutine	calc_spdis (this, flowja)
	Calculate the 3 components of specific discharge at the cell center. More...
subroutine	sav_spdis (this, ibinun)
	Save specific discharge in binary format to ibinun. More...
subroutine	sav_sat (this, ibinun)
	Save saturation in binary format to ibinun. More...
subroutine	increase_edge_count (this, nedges)
	Reserve space for nedges cells that have an edge on them. More...
integer(i4b) function	calc_max_conns (this)
	Calculate the maximum number of connections for any cell. More...
subroutine	set_edge_properties (this, nodedge, ihcedge, q, area, nx, ny, distance)
	Provide the npf package with edge properties. More...
subroutine	prepare_edge_lookup (this)
real(dp) function	calcsatthickness (this, n, m, ihc)
	Calculate saturated thickness between cell n and m. More...
subroutine	add_flow_formulation (this, npf_form, form_id)

Function/Subroutine Documentation

add_flow_formulation()

subroutine gwfnpfmodule::add_flow_formulation ( class(gwfnpftype), intent(inout)  this, class(gwfnpfformulationtype), pointer  npf_form, integer(i4b)  form_id  )

private

Parameters

[in,out]	this	this NPF instance
	npf_form	the extended flow calculator
	form_id	the id for the flow formulation

Definition at line 3133 of file gwf-npf.f90.

    class(GwfNpfType), intent(inout) :: this !< this NPF instance
    class(GwfNpfFormulationType), pointer :: npf_form !< the extended flow calculator
    integer(I4B) :: form_id !< the id for the flow formulation

    this%flow_formulations(form_id)%form => npf_form


allocate_arrays()

subroutine gwfnpfmodule::allocate_arrays	(	class(gwfnpftype), target	this,
		integer(i4b), intent(in)	ncells,
		integer(i4b), intent(in)	njas
	)

Definition at line 1437 of file gwf-npf.f90.

    ! -- dummy
    class(GwfNpftype), target :: this
    integer(I4B), intent(in) :: ncells
    integer(I4B), intent(in) :: njas
    ! -- local
    integer(I4B) :: n
    !
    call mem_allocate(this%ithickstartflag, ncells, 'ITHICKSTARTFLAG', &
                      this%memoryPath)
    call mem_allocate(this%icelltype, ncells, 'ICELLTYPE', this%memoryPath)
    call mem_allocate(this%k11, ncells, 'K11', this%memoryPath)
    call mem_allocate(this%krel, ncells, 'KREL', this%memoryPath)
    call mem_allocate(this%sat, ncells, 'SAT', this%memoryPath)
    call mem_allocate(this%condsat, njas, 'CONDSAT', this%memoryPath)
    !
    ! -- Optional arrays dimensioned to full size initially
    call mem_allocate(this%k22, ncells, 'K22', this%memoryPath)
    call mem_allocate(this%k33, ncells, 'K33', this%memoryPath)
    call mem_allocate(this%wetdry, ncells, 'WETDRY', this%memoryPath)
    call mem_allocate(this%angle1, ncells, 'ANGLE1', this%memoryPath)
    call mem_allocate(this%angle2, ncells, 'ANGLE2', this%memoryPath)
    call mem_allocate(this%angle3, ncells, 'ANGLE3', this%memoryPath)
    !
    ! -- Optional arrays
    call mem_allocate(this%ibotnode, 0, 'IBOTNODE', this%memoryPath)
    call mem_allocate(this%nodedge, 0, 'NODEDGE', this%memoryPath)
    call mem_allocate(this%ihcedge, 0, 'IHCEDGE', this%memoryPath)
    call mem_allocate(this%propsedge, 0, 0, 'PROPSEDGE', this%memoryPath)
    call mem_allocate(this%iedge_ptr, 0, 'NREDGESNODE', this%memoryPath)
    call mem_allocate(this%edge_idxs, 0, 'EDGEIDXS', this%memoryPath)
    !
    ! -- Optional arrays only needed when vsc package is active
    call mem_allocate(this%k11input, 0, 'K11INPUT', this%memoryPath)
    call mem_allocate(this%k22input, 0, 'K22INPUT', this%memoryPath)
    call mem_allocate(this%k33input, 0, 'K33INPUT', this%memoryPath)
    !
    ! -- Specific discharge is (re-)allocated when nedges is known
    call mem_allocate(this%spdis, 3, 0, 'SPDIS', this%memoryPath)
    !
    ! -- Time-varying property flag arrays
    call mem_allocate(this%nodekchange, ncells, 'NODEKCHANGE', this%memoryPath)
    !
    call mem_allocate(this%iformulation, this%dis%con%nja, 'IFORM', &
                      this%memoryPath)
    !
    ! -- set to standard NPF flow
    do n = 1, size(this%iformulation)
      this%iformulation(n) = default_flow
    end do
    !
    ! -- create the default conductance formulation and point it at this package
    allocate (defaultflowformulationtype :: this%default_form)
    select type (form => this%default_form)
    type is (defaultflowformulationtype)
      form%npf => this
    end select
    !
    ! -- initialize iangle1, iangle2, iangle3, and wetdry
    do n = 1, ncells
      this%angle1(n) = dzero
      this%angle2(n) = dzero
      this%angle3(n) = dzero
      this%wetdry(n) = dzero
      this%nodekchange(n) = dzero
      this%krel(n) = done
    end do
    !
    ! -- allocate variable names
    allocate (this%aname(this%iname))
    this%aname = ['               ICELLTYPE', '                       K', &
                  '                     K33', '                     K22', &
                  '                  WETDRY', '                  ANGLE1', &
                  '                  ANGLE2', '                  ANGLE3']

allocate_scalars()

subroutine gwfnpfmodule::allocate_scalars

(

class(gwfnpftype)

this

)

Allocate and initialize scalars for the VSC package. The base model allocate scalars method is also called.

Definition at line 1318 of file gwf-npf.f90.

    ! -- modules
    use memoryhelpermodule, only: create_mem_path
    ! -- dummy
    class(GwfNpftype) :: this
    !
    ! -- allocate scalars in NumericalPackageType
    call this%NumericalPackageType%allocate_scalars()
    !
    ! -- Allocate scalars
    call mem_allocate(this%iname, 'INAME', this%memoryPath)
    call mem_allocate(this%ixt3d, 'IXT3D', this%memoryPath)
    call mem_allocate(this%ixt3drhs, 'IXT3DRHS', this%memoryPath)
    call mem_allocate(this%satomega, 'SATOMEGA', this%memoryPath)
    call mem_allocate(this%hnoflo, 'HNOFLO', this%memoryPath)
    call mem_allocate(this%hdry, 'HDRY', this%memoryPath)
    call mem_allocate(this%icellavg, 'ICELLAVG', this%memoryPath)
    call mem_allocate(this%iavgkeff, 'IAVGKEFF', this%memoryPath)
    call mem_allocate(this%ik22, 'IK22', this%memoryPath)
    call mem_allocate(this%ik33, 'IK33', this%memoryPath)
    call mem_allocate(this%ik22overk, 'IK22OVERK', this%memoryPath)
    call mem_allocate(this%ik33overk, 'IK33OVERK', this%memoryPath)
    call mem_allocate(this%iperched, 'IPERCHED', this%memoryPath)
    call mem_allocate(this%ivarcv, 'IVARCV', this%memoryPath)
    call mem_allocate(this%idewatcv, 'IDEWATCV', this%memoryPath)
    call mem_allocate(this%ithickstrt, 'ITHICKSTRT', this%memoryPath)
    call mem_allocate(this%ihighcellsat, 'IHIGHCELLSAT', this%memoryPath)
    call mem_allocate(this%icalcspdis, 'ICALCSPDIS', this%memoryPath)
    call mem_allocate(this%isavspdis, 'ISAVSPDIS', this%memoryPath)
    call mem_allocate(this%isavsat, 'ISAVSAT', this%memoryPath)
    call mem_allocate(this%irewet, 'IREWET', this%memoryPath)
    call mem_allocate(this%wetfct, 'WETFCT', this%memoryPath)
    call mem_allocate(this%iwetit, 'IWETIT', this%memoryPath)
    call mem_allocate(this%ihdwet, 'IHDWET', this%memoryPath)
    call mem_allocate(this%iangle1, 'IANGLE1', this%memoryPath)
    call mem_allocate(this%iangle2, 'IANGLE2', this%memoryPath)
    call mem_allocate(this%iangle3, 'IANGLE3', this%memoryPath)
    call mem_allocate(this%iwetdry, 'IWETDRY', this%memoryPath)
    call mem_allocate(this%nedges, 'NEDGES', this%memoryPath)
    call mem_allocate(this%lastedge, 'LASTEDGE', this%memoryPath)
    call mem_allocate(this%intvk, 'INTVK', this%memoryPath)
    call mem_allocate(this%invsc, 'INVSC', this%memoryPath)
    call mem_allocate(this%kchangeper, 'KCHANGEPER', this%memoryPath)
    call mem_allocate(this%kchangestp, 'KCHANGESTP', this%memoryPath)
    !
    ! -- set pointer to inewtonur
    call mem_setptr(this%igwfnewtonur, 'INEWTONUR', &
                    create_mem_path(this%name_model))
    !
    ! -- Initialize value
    this%iname = 8
    this%ixt3d = 0
    this%ixt3drhs = 0
    this%satomega = dzero
    this%hnoflo = dhnoflo !1.d30
    this%hdry = dhdry !-1.d30
    this%icellavg = ccond_hmean
    this%iavgkeff = 0
    this%ik22 = 0
    this%ik33 = 0
    this%ik22overk = 0
    this%ik33overk = 0
    this%iperched = 0
    this%ivarcv = 0
    this%idewatcv = 0
    this%ithickstrt = 0
    this%ihighcellsat = 0
    this%icalcspdis = 0
    this%isavspdis = 0
    this%isavsat = 0
    this%irewet = 0
    this%wetfct = done
    this%iwetit = 1
    this%ihdwet = 0
    this%iangle1 = 0
    this%iangle2 = 0
    this%iangle3 = 0
    this%iwetdry = 0
    this%nedges = 0
    this%lastedge = 0
    this%intvk = 0
    this%invsc = 0
    this%kchangeper = 0
    this%kchangestp = 0
    !
    ! -- If newton is on, then NPF creates asymmetric matrix
    this%iasym = this%inewton

Here is the call graph for this function:

calc_condsat()

subroutine gwfnpfmodule::calc_condsat	(	class(gwfnpftype)	this,
		integer(i4b), intent(in)	node,
		logical, intent(in)	upperOnly
	)

Calculate saturated conductances for all connections of the given node, or optionally for the upper portion of the matrix only.

Definition at line 2277 of file gwf-npf.f90.

    ! -- dummy variables
    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: node
    logical, intent(in) :: upperOnly
    ! -- local variables
    integer(I4B) :: ii, m, n, ihc, jj
    real(DP) :: topm, topn, topnode, botm, botn, botnode, satm, satn, satnode
    real(DP) :: hyn, hym, hn, hm, fawidth, csat
    !
    satnode = this%calc_initial_sat(node)
    !
    topnode = this%dis%top(node)
    botnode = this%dis%bot(node)
    !
    ! -- Go through the connecting cells
    do ii = this%dis%con%ia(node) + 1, this%dis%con%ia(node + 1) - 1
      !
      ! -- Set the m cell number and cycle if lower triangle connection and
      ! -- we're not updating both upper and lower matrix parts for this node
      m = this%dis%con%ja(ii)
      jj = this%dis%con%jas(ii)
      if (m < node) then
        if (upperonly) cycle
        ! m => node, n => neighbour
        n = m
        m = node
        topm = topnode
        botm = botnode
        satm = satnode
        topn = this%dis%top(n)
        botn = this%dis%bot(n)
        satn = this%calc_initial_sat(n)
      else
        ! n => node, m => neighbour
        n = node
        topn = topnode
        botn = botnode
        satn = satnode
        topm = this%dis%top(m)
        botm = this%dis%bot(m)
        satm = this%calc_initial_sat(m)
      end if
      !
      ihc = this%dis%con%ihc(jj)
      hyn = this%hy_eff(n, m, ihc, ipos=ii)
      hym = this%hy_eff(m, n, ihc, ipos=ii)
      if (this%ithickstartflag(n) == 0) then
        hn = topn
      else
        hn = this%ic%strt(n)
      end if
      if (this%ithickstartflag(m) == 0) then
        hm = topm
      else
        hm = this%ic%strt(m)
      end if
      !
      ! -- Calculate conductance depending on whether connection is
      !    vertical (0), horizontal (1), or staggered horizontal (2)
      if (ihc == c3d_vertical) then
        !
        ! -- Vertical conductance for fully saturated conditions
        csat = vcond(1, 1, 1, 1, 0, 1, 1, done, &
                     botn, botm, &
                     hyn, hym, &
                     satn, satm, &
                     topn, topm, &
                     botn, botm, &
                     this%dis%con%hwva(jj))
      else
        !
        ! -- Horizontal conductance for fully saturated conditions
        fawidth = this%dis%con%hwva(jj)
        csat = hcond(1, 1, 1, 1, 0, &
                     ihc, &
                     this%icellavg, &
                     done, &
                     hn, hm, satn, satm, hyn, hym, &
                     topn, topm, &
                     botn, botm, &
                     this%dis%con%cl1(jj), &
                     this%dis%con%cl2(jj), &
                     fawidth)
      end if
      this%condsat(jj) = csat
    end do

Here is the call graph for this function:

calc_initial_sat()

real(dp) function gwfnpfmodule::calc_initial_sat ( class(gwfnpftype)  this, integer(i4b), intent(in)  n  )

private

Calculate saturation as a fraction of thickness for the given node, used for saturated conductance calculations: full thickness by default (1.0) or saturation based on initial conditions if the THICKSTRT option is used.

Definition at line 2373 of file gwf-npf.f90.

    ! -- dummy variables
    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: n
    ! -- Return
    real(DP) :: satn
    !
    satn = done
    if (this%ibound(n) /= 0 .and. this%ithickstartflag(n) /= 0) then
      call this%thksat(n, this%ic%strt(n), satn)
    end if

calc_max_conns()

integer(i4b) function gwfnpfmodule::calc_max_conns ( class(gwfnpftype)  this )

private

Definition at line 3007 of file gwf-npf.f90.

    class(GwfNpfType) :: this
    integer(I4B) :: max_conns
    ! local
    integer(I4B) :: n, m, ic

    max_conns = 0
    do n = 1, this%dis%nodes

      ! Count internal model connections
      ic = this%dis%con%ia(n + 1) - this%dis%con%ia(n) - 1

      ! Add edge connections
      do m = 1, this%nedges
        if (this%nodedge(m) == n) then
          ic = ic + 1
        end if
      end do

      ! Set max number of connections for any cell
      if (ic > max_conns) max_conns = ic
    end do


calc_spdis()

subroutine gwfnpfmodule::calc_spdis ( class(gwfnpftype)  this, real(dp), dimension(:), intent(in)  flowja  )

private

Definition at line 2686 of file gwf-npf.f90.

    ! -- modules
    use simmodule, only: store_error
    ! -- dummy
    class(GwfNpfType) :: this
    real(DP), intent(in), dimension(:) :: flowja
    ! -- local
    integer(I4B) :: n
    integer(I4B) :: m
    integer(I4B) :: ipos
    integer(I4B) :: iedge
    integer(I4B) :: isympos
    integer(I4B) :: ihc
    integer(I4B) :: ic
    integer(I4B) :: iz
    integer(I4B) :: nc
    integer(I4B) :: ncz
    real(DP) :: qz
    real(DP) :: vx
    real(DP) :: vy
    real(DP) :: vz
    real(DP) :: xn
    real(DP) :: yn
    real(DP) :: zn
    real(DP) :: xc
    real(DP) :: yc
    real(DP) :: zc
    real(DP) :: cl1
    real(DP) :: cl2
    real(DP) :: dltot
    real(DP) :: ooclsum
    real(DP) :: dsumx
    real(DP) :: dsumy
    real(DP) :: dsumz
    real(DP) :: denom
    real(DP) :: area
    real(DP) :: dz
    real(DP) :: axy
    real(DP) :: ayx
    logical :: nozee = .true.
    type(SpdisWorkArrayType), pointer :: swa => null() !< pointer to spdis work arrays structure
    !
    ! -- Ensure dis has necessary information
    if (this%icalcspdis /= 0 .and. this%dis%con%ianglex == 0) then
      call store_error('Error.  ANGLDEGX not provided in '// &
                       'discretization file.  ANGLDEGX required for '// &
                       'calculation of specific discharge.', terminate=.true.)
    end if

    swa => this%spdis_wa
    if (.not. swa%is_created()) then
      ! prepare work arrays
      call this%spdis_wa%create(this%calc_max_conns())

      ! prepare lookup table
      if (this%nedges > 0) call this%prepare_edge_lookup()
    end if
    !
    ! -- Go through each cell and calculate specific discharge
    do n = 1, this%dis%nodes
      !
      ! -- first calculate geometric properties for x and y directions and
      !    the specific discharge at a face (vi)
      ic = 0
      iz = 0

      ! reset work arrays
      call swa%reset()

      do ipos = this%dis%con%ia(n) + 1, this%dis%con%ia(n + 1) - 1
        m = this%dis%con%ja(ipos)
        isympos = this%dis%con%jas(ipos)
        ihc = this%dis%con%ihc(isympos)
        area = this%dis%con%hwva(isympos)
        if (ihc == c3d_vertical) then
          !
          ! -- vertical connection
          iz = iz + 1
          !call this%dis%connection_normal(n, m, ihc, xn, yn, zn, ipos)
          call this%dis%connection_vector(n, m, nozee, this%sat(n), this%sat(m), &
                                          ihc, xc, yc, zc, dltot)
          cl1 = this%dis%con%cl1(isympos)
          cl2 = this%dis%con%cl2(isympos)
          if (m < n) then
            cl1 = this%dis%con%cl2(isympos)
            cl2 = this%dis%con%cl1(isympos)
          end if
          ooclsum = done / (cl1 + cl2)
          swa%diz(iz) = dltot * cl1 * ooclsum
          qz = flowja(ipos)
          if (n > m) qz = -qz
          swa%viz(iz) = qz / area
        else
          !
          ! -- horizontal connection
          ic = ic + 1
          dz = thksatnm(this%ibound(n), this%ibound(m), &
                        this%icelltype(n), this%icelltype(m), &
                        this%inewton, ihc, &
                        this%hnew(n), this%hnew(m), this%sat(n), this%sat(m), &
                        this%dis%top(n), this%dis%top(m), this%dis%bot(n), &
                        this%dis%bot(m))
          area = area * dz
          call this%dis%connection_normal(n, m, ihc, xn, yn, zn, ipos)
          call this%dis%connection_vector(n, m, nozee, this%sat(n), this%sat(m), &
                                          ihc, xc, yc, zc, dltot)
          cl1 = this%dis%con%cl1(isympos)
          cl2 = this%dis%con%cl2(isympos)
          if (m < n) then
            cl1 = this%dis%con%cl2(isympos)
            cl2 = this%dis%con%cl1(isympos)
          end if
          ooclsum = done / (cl1 + cl2)
          swa%nix(ic) = -xn
          swa%niy(ic) = -yn
          swa%di(ic) = dltot * cl1 * ooclsum
          if (area > dzero) then
            swa%vi(ic) = flowja(ipos) / area
          else
            swa%vi(ic) = dzero
          end if
        end if
      end do

      ! add contribution from edge flows (i.e. from exchanges)
      if (this%nedges > 0) then
        do ipos = this%iedge_ptr(n), this%iedge_ptr(n + 1) - 1
          iedge = this%edge_idxs(ipos)

          ! propsedge: (Q, area, nx, ny, distance)
          ihc = this%ihcedge(iedge)
          area = this%propsedge(2, iedge)
          if (ihc == c3d_vertical) then
            iz = iz + 1
            swa%viz(iz) = this%propsedge(1, iedge) / area
            swa%diz(iz) = this%propsedge(5, iedge)
          else
            ic = ic + 1
            swa%nix(ic) = -this%propsedge(3, iedge)
            swa%niy(ic) = -this%propsedge(4, iedge)
            swa%di(ic) = this%propsedge(5, iedge)
            if (area > dzero) then
              swa%vi(ic) = this%propsedge(1, iedge) / area
            else
              swa%vi(ic) = dzero
            end if
          end if
        end do
      end if
      !
      ! -- Assign number of vertical and horizontal connections
      ncz = iz
      nc = ic
      !
      ! -- calculate z weight (wiz) and z velocity
      if (ncz == 1) then
        swa%wiz(1) = done
      else
        dsumz = dzero
        do iz = 1, ncz
          dsumz = dsumz + swa%diz(iz)
        end do
        denom = (ncz - done)
        if (denom < dzero) denom = dzero
        dsumz = dsumz + dem10 * dsumz
        do iz = 1, ncz
          if (dsumz > dzero) swa%wiz(iz) = done - swa%diz(iz) / dsumz
          if (denom > 0) then
            swa%wiz(iz) = swa%wiz(iz) / denom
          else
            swa%wiz(iz) = dzero
          end if
        end do
      end if
      vz = dzero
      do iz = 1, ncz
        vz = vz + swa%wiz(iz) * swa%viz(iz)
      end do
      !
      ! -- distance-based weighting
      nc = ic
      dsumx = dzero
      dsumy = dzero
      dsumz = dzero
      do ic = 1, nc
        swa%wix(ic) = swa%di(ic) * abs(swa%nix(ic))
        swa%wiy(ic) = swa%di(ic) * abs(swa%niy(ic))
        dsumx = dsumx + swa%wix(ic)
        dsumy = dsumy + swa%wiy(ic)
      end do
      !
      ! -- Finish computing omega weights.  Add a tiny bit
      !    to dsum so that the normalized omega weight later
      !    evaluates to (essentially) 1 in the case of a single
      !    relevant connection, avoiding 0/0.
      dsumx = dsumx + dem10 * dsumx
      dsumy = dsumy + dem10 * dsumy
      do ic = 1, nc
        swa%wix(ic) = (dsumx - swa%wix(ic)) * abs(swa%nix(ic))
        swa%wiy(ic) = (dsumy - swa%wiy(ic)) * abs(swa%niy(ic))
      end do
      !
      ! -- compute B weights
      dsumx = dzero
      dsumy = dzero
      do ic = 1, nc
        swa%bix(ic) = swa%wix(ic) * sign(done, swa%nix(ic))
        swa%biy(ic) = swa%wiy(ic) * sign(done, swa%niy(ic))
        dsumx = dsumx + swa%wix(ic) * abs(swa%nix(ic))
        dsumy = dsumy + swa%wiy(ic) * abs(swa%niy(ic))
      end do
      if (dsumx > dzero) dsumx = done / dsumx
      if (dsumy > dzero) dsumy = done / dsumy
      axy = dzero
      ayx = dzero
      do ic = 1, nc
        swa%bix(ic) = swa%bix(ic) * dsumx
        swa%biy(ic) = swa%biy(ic) * dsumy
        axy = axy + swa%bix(ic) * swa%niy(ic)
        ayx = ayx + swa%biy(ic) * swa%nix(ic)
      end do
      !
      ! -- Calculate specific discharge.  The divide by zero checking below
      !    is problematic for cells with only one flow, such as can happen
      !    with triangular cells in corners.  In this case, the resulting
      !    cell velocity will be calculated as zero.  The method should be
      !    improved so that edge flows of zero are included in these
      !    calculations.  But this needs to be done with consideration for LGR
      !    cases in which flows are submitted from an exchange.
      vx = dzero
      vy = dzero
      do ic = 1, nc
        vx = vx + (swa%bix(ic) - axy * swa%biy(ic)) * swa%vi(ic)
        vy = vy + (swa%biy(ic) - ayx * swa%bix(ic)) * swa%vi(ic)
      end do
      denom = done - axy * ayx
      if (denom /= dzero) then
        vx = vx / denom
        vy = vy / denom
      end if
      !
      this%spdis(1, n) = vx
      this%spdis(2, n) = vy
      this%spdis(3, n) = vz
      !
    end do


Here is the call graph for this function:

calcsatthickness()

real(dp) function gwfnpfmodule::calcsatthickness ( class(gwfnpftype)  this, integer(i4b)  n, integer(i4b)  m, integer(i4b)  ihc  )

private

Parameters

this	this NPF instance
n	node n
m	node m
ihc	1 = horizontal connection, 0 for vertical

Returns

saturated thickness

Definition at line 3108 of file gwf-npf.f90.

    ! -- dummy
    class(GwfNpfType) :: this !< this NPF instance
    integer(I4B) :: n !< node n
    integer(I4B) :: m !< node m
    integer(I4B) :: ihc !< 1 = horizontal connection, 0 for vertical
    ! -- return
    real(DP) :: satThickness !< saturated thickness
    !
    satthickness = thksatnm(this%ibound(n), &
                            this%ibound(m), &
                            this%icelltype(n), &
                            this%icelltype(m), &
                            this%inewton, &
                            ihc, &
                            this%hnew(n), &
                            this%hnew(m), &
                            this%sat(n), &
                            this%sat(m), &
                            this%dis%top(n), &
                            this%dis%top(m), &
                            this%dis%bot(n), &
                            this%dis%bot(m))

cf_default_flow()

subroutine gwfnpfmodule::cf_default_flow ( class(gwfnpftype)  this, integer(i4b)  kiter, integer(i4b)  n  )

private

Definition at line 540 of file gwf-npf.f90.

    class(GwfNpfType) :: this
    integer(I4B) :: kiter
    integer(I4B) :: n
    ! local
    real(DP) :: satn

    ! Calculate saturated fraction for convertible cells
    if (this%icelltype(n) /= 0) then
      if (this%ibound(n) == 0) then
        satn = dzero
      else
        call this%thksat(n, this%hnew(n), satn)
      end if
      this%sat(n) = satn
    end if


check_options()

subroutine gwfnpfmodule::check_options ( class(gwfnpftype)  this )

private

Definition at line 1698 of file gwf-npf.f90.

    ! -- modules
    use simmodule, only: store_error, store_warning, &
                         count_errors, store_error_filename
    use constantsmodule, only: linelength
    ! -- dummy
    class(GwfNpftype) :: this
    !
    ! -- set omega value used for saturation calculations
    if (this%inewton > 0) then
      this%satomega = dem6
    end if
    !
    if (this%inewton > 0) then
      if (this%iperched > 0) then
        write (errmsg, '(a)') 'ERROR IN NPF OPTIONS. NEWTON OPTION CANNOT '// &
          'BE USED WITH PERCHED OPTION.'
        call store_error(errmsg)
      end if
      if (this%ivarcv > 0) then
        write (errmsg, '(a)') 'ERROR IN NPF OPTIONS. NEWTON OPTION CANNOT '// &
          'BE USED WITH VARIABLECV OPTION.'
        call store_error(errmsg)
      end if
      if (this%irewet > 0) then
        write (errmsg, '(a)') 'ERROR IN NPF OPTIONS. NEWTON OPTION CANNOT '// &
          'BE USED WITH REWET OPTION.'
        call store_error(errmsg)
      end if
    else
      if (this%ihighcellsat /= 0) then
        write (warnmsg, '(a)') 'HIGHEST_CELL_SATURATION '// &
          'option cannot be used when NEWTON option in not specified. '// &
          'Resetting HIGHEST_CELL_SATURATION option to off.'
        this%ihighcellsat = 0
        call store_warning(warnmsg)
      end if
    end if
    !
    if (this%ixt3d /= 0) then
      if (this%icellavg > 0) then
        write (errmsg, '(a)') 'ERROR IN NPF OPTIONS. '// &
          'ALTERNATIVE_CELL_AVERAGING OPTION '// &
          'CANNOT BE USED WITH XT3D OPTION.'
        call store_error(errmsg)
      end if
      if (this%ithickstrt > 0) then
        write (errmsg, '(a)') 'ERROR IN NPF OPTIONS. THICKSTRT OPTION '// &
          'CANNOT BE USED WITH XT3D OPTION.'
        call store_error(errmsg)
      end if
      if (this%iperched > 0) then
        write (errmsg, '(a)') 'ERROR IN NPF OPTIONS. PERCHED OPTION '// &
          'CANNOT BE USED WITH XT3D OPTION.'
        call store_error(errmsg)
      end if
      if (this%ivarcv > 0) then
        write (errmsg, '(a)') 'ERROR IN NPF OPTIONS. VARIABLECV OPTION '// &
          'CANNOT BE USED WITH XT3D OPTION.'
        call store_error(errmsg)
      end if
    end if
    !
    ! -- Terminate if errors
    if (count_errors() > 0) then
      call store_error_filename(this%input_fname)
    end if

Here is the call graph for this function:

cq_default_flow()

subroutine gwfnpfmodule::cq_default_flow ( class(gwfnpftype)  this, integer(i4b), intent(in)  n, integer(i4b), intent(in)  m, integer(i4b), intent(in)  ipos, real(dp), dimension(:), intent(inout)  flowja, real(dp), dimension(:), intent(in)  hnew  )

private

Definition at line 1015 of file gwf-npf.f90.

    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: n
    integer(I4B), intent(in) :: m
    integer(I4B), intent(in) :: ipos
    real(DP), dimension(:), intent(inout) :: flowja
    real(DP), dimension(:), intent(in) :: hnew
    ! local
    real(DP) :: qnm

    call this%qcalc(n, m, hnew(n), hnew(m), ipos, qnm)
    flowja(ipos) = qnm
    flowja(this%dis%con%isym(ipos)) = -qnm


default_flow_cf()

subroutine gwfnpfmodule::default_flow_cf ( class(defaultflowformulationtype), intent(inout)  this, integer(i4b), intent(in)  kiter  )

private

Runs over all cells and computes the saturated fraction for convertible cells, skipping cells claimed by an exclusive formulation.

Parameters

[in,out]	this	default formulation
[in]	kiter	outer iteration number

Definition at line 523 of file gwf-npf.f90.

    class(DefaultFlowFormulationType), intent(inout) :: this !< default formulation
    integer(I4B), intent(in) :: kiter !< outer iteration number
    ! local
    integer(I4B) :: n, idiag

    do n = 1, this%npf%dis%nodes
      ! skip cells claimed by an exclusive formulation
      idiag = this%npf%dis%con%ia(n)
      if (this%npf%iformulation(idiag) /= default_flow) cycle
      call this%npf%cf_default_flow(kiter, n)
    end do


default_flow_cq()

subroutine gwfnpfmodule::default_flow_cq ( class(defaultflowformulationtype), intent(inout)  this, real(dp), dimension(:), intent(inout)  hnew, real(dp), dimension(:), intent(inout)  flowja  )

private

Runs over all connections and stores the standard NPF face flows, skipping faces claimed by an exclusive formulation.

Parameters

[in,out]	this	default formulation
[in,out]	hnew	new head values
[in,out]	flowja	flow between cells

Definition at line 993 of file gwf-npf.f90.

    class(DefaultFlowFormulationType), intent(inout) :: this !< default formulation
    real(DP), dimension(:), intent(inout) :: hnew !< new head values
    real(DP), dimension(:), intent(inout) :: flowja !< flow between cells
    ! local
    integer(I4B) :: n, m, ipos

    do n = 1, this%npf%dis%nodes
      do ipos = this%npf%dis%con%ia(n) + 1, this%npf%dis%con%ia(n + 1) - 1
        m = this%npf%dis%con%ja(ipos)
        if (m < n) cycle
        !TODO_MJR: why don't we exclude masked connections here?

        ! skip faces claimed by an exclusive formulation
        if (this%npf%iformulation(ipos) /= default_flow) cycle

        call this%npf%cq_default_flow(n, m, ipos, flowja, hnew)
      end do
    end do


default_flow_fc()

subroutine gwfnpfmodule::default_flow_fc ( class(defaultflowformulationtype), intent(inout)  this, integer(i4b), intent(in)  kiter, class(matrixbasetype), intent(inout), pointer  matrix_sln, integer(i4b), dimension(:), intent(in)  idxglo, real(dp), dimension(:), intent(inout)  rhs, real(dp), dimension(:), intent(inout)  hnew  )

private

Runs over all connections and fills the standard NPF conductance terms, skipping faces claimed by an exclusive formulation.

Parameters

[in,out]	this	default formulation
[in]	kiter	outer iteration number
[in,out]	matrix_sln	system matrix
[in]	idxglo	local to global connection map
[in,out]	rhs	right-hand side vector
[in,out]	hnew	new head values

Definition at line 683 of file gwf-npf.f90.

    class(DefaultFlowFormulationType), intent(inout) :: this !< default formulation
    integer(I4B), intent(in) :: kiter !< outer iteration number
    class(MatrixBaseType), pointer, intent(inout) :: matrix_sln !< system matrix
    integer(I4B), dimension(:), intent(in) :: idxglo !< local to global connection map
    real(DP), dimension(:), intent(inout) :: rhs !< right-hand side vector
    real(DP), dimension(:), intent(inout) :: hnew !< new head values
    ! local
    integer(I4B) :: n, m, ipos

    do n = 1, this%npf%dis%nodes
      do ipos = this%npf%dis%con%ia(n) + 1, this%npf%dis%con%ia(n + 1) - 1
        if (this%npf%dis%con%mask(ipos) == 0) cycle

        m = this%npf%dis%con%ja(ipos)

        ! Calculate upper triangle only, but insert into
        ! upper and lower parts of matrix
        if (m < n) cycle

        ! skip faces claimed by an exclusive formulation
        if (this%npf%iformulation(ipos) /= default_flow) cycle

        call this%npf%fc_default_flow(n, m, ipos, matrix_sln, &
                                      rhs, idxglo, hnew)
      end do
    end do


default_flow_fn()

subroutine gwfnpfmodule::default_flow_fn ( class(defaultflowformulationtype), intent(inout)  this, integer(i4b), intent(in)  kiter, class(matrixbasetype), intent(inout), pointer  matrix_sln, integer(i4b), dimension(:), intent(in)  idxglo, real(dp), dimension(:), intent(inout)  rhs, real(dp), dimension(:), intent(inout)  hnew  )

private

Runs over all connections and fills the standard NPF newton terms, skipping faces claimed by an exclusive formulation.

Parameters

[in,out]	this	default formulation
[in]	kiter	outer iteration number
[in,out]	matrix_sln	system matrix
[in]	idxglo	local to global connection map
[in,out]	rhs	right-hand side vector
[in,out]	hnew	new head values

Definition at line 782 of file gwf-npf.f90.

    class(DefaultFlowFormulationType), intent(inout) :: this !< default formulation
    integer(I4B), intent(in) :: kiter !< outer iteration number
    class(MatrixBaseType), pointer, intent(inout) :: matrix_sln !< system matrix
    integer(I4B), dimension(:), intent(in) :: idxglo !< local to global connection map
    real(DP), dimension(:), intent(inout) :: rhs !< right-hand side vector
    real(DP), dimension(:), intent(inout) :: hnew !< new head values
    ! local
    integer(I4B) :: n, m, ipos

    do n = 1, this%npf%dis%nodes
      do ipos = this%npf%dis%con%ia(n) + 1, this%npf%dis%con%ia(n + 1) - 1
        if (this%npf%dis%con%mask(ipos) == 0) cycle

        m = this%npf%dis%con%ja(ipos)

        ! work on upper triangle
        if (m < n) cycle

        ! skip faces claimed by an exclusive formulation
        if (this%npf%iformulation(ipos) /= default_flow) cycle

        call this%npf%fn_default_flow(n, m, ipos, matrix_sln, &
                                      rhs, idxglo, hnew)
      end do
    end do


fc_default_flow()

subroutine gwfnpfmodule::fc_default_flow ( class(gwfnpftype)  this, integer(i4b)  n, integer(i4b)  m, integer(i4b)  ipos, class(matrixbasetype), pointer  matrix_sln, real(dp), dimension(:), intent(inout)  rhs, integer(i4b), dimension(:), intent(in)  idxglo, real(dp), dimension(:), intent(inout)  hnew  )

private

Parameters

	this	this instance
	n	node number n
	m	node number m
	ipos	connection number
	matrix_sln	system matrix
[in,out]	rhs	rhs vector
[in]	idxglo	lookup table from local ipos to global system
[in,out]	hnew	new head values

Definition at line 589 of file gwf-npf.f90.

    class(GwfNpfType) :: this !< this instance
    integer(I4B) :: n !< node number n
    integer(I4B) :: m !< node number m
    integer(I4B) :: ipos !< connection number
    class(MatrixBaseType), pointer :: matrix_sln !< system matrix
    real(DP), intent(inout), dimension(:) :: rhs !< rhs vector
    integer(I4B), intent(in), dimension(:) :: idxglo !< lookup table from local ipos to global system
    real(DP), intent(inout), dimension(:) :: hnew !< new head values
    ! local
    integer(I4B) :: idiag, ihc
    integer(I4B) :: isymcon, idiagm
    real(DP) :: hyn, hym
    real(DP) :: cond
    real(DP) :: satn
    real(DP) :: satm

    ihc = this%dis%con%ihc(this%dis%con%jas(ipos))
    hyn = this%hy_eff(n, m, ihc, ipos=ipos)
    hym = this%hy_eff(m, n, ihc, ipos=ipos)

    if (ihc == c3d_vertical) then
      ! Horizontal conductance
      cond = vcond(this%ibound(n), this%ibound(m), &
                   this%icelltype(n), this%icelltype(m), this%inewton, &
                   this%ivarcv, this%idewatcv, &
                   this%condsat(this%dis%con%jas(ipos)), hnew(n), hnew(m), &
                   hyn, hym, &
                   this%sat(n), this%sat(m), &
                   this%dis%top(n), this%dis%top(m), &
                   this%dis%bot(n), this%dis%bot(m), &
                   this%dis%con%hwva(this%dis%con%jas(ipos)))

      ! Vertical flow for perched conditions
      if (this%iperched /= 0) then
        if (this%icelltype(m) /= 0) then
          if (hnew(m) < this%dis%top(m)) then

            ! Fill diagonal for n, and add to RHS
            idiag = this%dis%con%ia(n)
            rhs(n) = rhs(n) - cond * this%dis%bot(n)
            call matrix_sln%add_value_pos(idxglo(idiag), -cond)

            ! Fill diagonal for m, and add to RHS
            isymcon = this%dis%con%isym(ipos)
            call matrix_sln%add_value_pos(idxglo(isymcon), cond)
            rhs(m) = rhs(m) + cond * this%dis%bot(n)

            ! go to next connection
            return
          end if
        end if
      end if
    else
      satn = this%sat(n)
      satm = this%sat(m)
      if (this%ihighcellsat /= 0) then
        call this%highest_cell_saturation(n, m, &
                                          hnew(n), hnew(m), &
                                          satn, satm)
      end if
      ! Horizontal conductance
      cond = hcond(this%ibound(n), this%ibound(m), &
                   this%icelltype(n), this%icelltype(m), &
                   this%inewton, &
                   this%dis%con%ihc(this%dis%con%jas(ipos)), &
                   this%icellavg, &
                   this%condsat(this%dis%con%jas(ipos)), &
                   hnew(n), hnew(m), satn, satm, hyn, hym, &
                   this%dis%top(n), this%dis%top(m), &
                   this%dis%bot(n), this%dis%bot(m), &
                   this%dis%con%cl1(this%dis%con%jas(ipos)), &
                   this%dis%con%cl2(this%dis%con%jas(ipos)), &
                   this%dis%con%hwva(this%dis%con%jas(ipos)))
    end if

    ! Fill row n
    idiag = this%dis%con%ia(n)
    call matrix_sln%add_value_pos(idxglo(ipos), cond)
    call matrix_sln%add_value_pos(idxglo(idiag), -cond)

    ! Fill row m
    isymcon = this%dis%con%isym(ipos)
    idiagm = this%dis%con%ia(m)
    call matrix_sln%add_value_pos(idxglo(isymcon), cond)
    call matrix_sln%add_value_pos(idxglo(idiagm), -cond)


Here is the call graph for this function:

fn_default_flow()

subroutine gwfnpfmodule::fn_default_flow ( class(gwfnpftype)  this, integer(i4b)  n, integer(i4b)  m, integer(i4b)  ipos, class(matrixbasetype), pointer  matrix_sln, real(dp), dimension(:), intent(inout)  rhs, integer(i4b), dimension(:), intent(in)  idxglo, real(dp), dimension(:), intent(inout)  hnew  )

private

Definition at line 811 of file gwf-npf.f90.

    class(GwfNpfType) :: this
    integer(I4B) :: n
    integer(I4B) :: m
    integer(I4B) :: ipos
    class(MatrixBaseType), pointer :: matrix_sln
    real(DP), intent(inout), dimension(:) :: rhs
    integer(I4B), intent(in), dimension(:) :: idxglo
    real(DP), intent(inout), dimension(:) :: hnew
    ! local
    integer(I4B) :: isymcon
    integer(I4B) :: idiag, idiagm
    integer(I4B) :: iups
    integer(I4B) :: idn
    real(DP) :: cond
    real(DP) :: consterm
    real(DP) :: filledterm
    real(DP) :: derv
    real(DP) :: hds
    real(DP) :: term
    real(DP) :: topup
    real(DP) :: botup

    idiag = this%dis%con%ia(n)
    isymcon = this%dis%con%isym(ipos)

    if (this%dis%con%ihc(this%dis%con%jas(ipos)) == 0 .and. &
        this%ivarcv == 0) then
      return
    end if

    ! determine upstream node
    iups = m
    if (hnew(m) < hnew(n)) iups = n
    idn = n
    if (iups == n) idn = m
    !
    ! -- no newton terms if upstream cell is confined
    if (this%icelltype(iups) == 0) return
    !
    ! -- Set the upstream top and bot, and then recalculate for a
    !    vertically staggered horizontal connection
    topup = this%dis%top(iups)
    botup = this%dis%bot(iups)
    if (this%dis%con%ihc(this%dis%con%jas(ipos)) == 2) then
      topup = min(this%dis%top(n), this%dis%top(m))
      botup = max(this%dis%bot(n), this%dis%bot(m))
    end if
    !
    ! get saturated conductivity for derivative
    cond = this%condsat(this%dis%con%jas(ipos))
    !
    ! compute additional term
    consterm = -cond * (hnew(iups) - hnew(idn)) !needs to use hwadi instead of hnew(idn)
    !filledterm = cond
    filledterm = matrix_sln%get_value_pos(idxglo(ipos))
    derv = squadraticsaturationderivative(topup, botup, hnew(iups), &
                                          this%satomega)
    idiagm = this%dis%con%ia(m)
    ! fill jacobian for n being the upstream node
    if (iups == n) then
      hds = hnew(m)
      !isymcon =  this%dis%con%isym(ii)
      term = consterm * derv
      rhs(n) = rhs(n) + term * hnew(n) !+ amat(idxglo(isymcon)) * (dwadi * hds - hds) !need to add dwadi
      rhs(m) = rhs(m) - term * hnew(n) !- amat(idxglo(isymcon)) * (dwadi * hds - hds) !need to add dwadi
      ! fill in row of n
      call matrix_sln%add_value_pos(idxglo(idiag), term)
      ! fill newton term in off diagonal if active cell
      if (this%ibound(n) > 0) then
        filledterm = matrix_sln%get_value_pos(idxglo(ipos))
        call matrix_sln%set_value_pos(idxglo(ipos), filledterm) !* dwadi !need to add dwadi
      end if
      !fill row of m
      filledterm = matrix_sln%get_value_pos(idxglo(idiagm))
      call matrix_sln%set_value_pos(idxglo(idiagm), filledterm) !- filledterm * (dwadi - DONE) !need to add dwadi
      ! fill newton term in off diagonal if active cell
      if (this%ibound(m) > 0) then
        call matrix_sln%add_value_pos(idxglo(isymcon), -term)
      end if
      ! fill jacobian for m being the upstream node
    else
      hds = hnew(n)
      term = -consterm * derv
      rhs(n) = rhs(n) + term * hnew(m) !+ amat(idxglo(ii)) * (dwadi * hds - hds) !need to add dwadi
      rhs(m) = rhs(m) - term * hnew(m) !- amat(idxglo(ii)) * (dwadi * hds - hds) !need to add dwadi
      ! fill in row of n
      filledterm = matrix_sln%get_value_pos(idxglo(idiag))
      call matrix_sln%set_value_pos(idxglo(idiag), filledterm) !- filledterm * (dwadi - DONE) !need to add dwadi
      ! fill newton term in off diagonal if active cell
      if (this%ibound(n) > 0) then
        call matrix_sln%add_value_pos(idxglo(ipos), term)
      end if
      !fill row of m
      call matrix_sln%add_value_pos(idxglo(idiagm), -term)
      ! fill newton term in off diagonal if active cell
      if (this%ibound(m) > 0) then
        filledterm = matrix_sln%get_value_pos(idxglo(isymcon))
        call matrix_sln%set_value_pos(idxglo(isymcon), filledterm) !* dwadi  !need to add dwadi
      end if
    end if


Here is the call graph for this function:

highest_cell_saturation()

subroutine gwfnpfmodule::highest_cell_saturation ( class(gwfnpftype)  this, integer(i4b), intent(in)  n, integer(i4b), intent(in)  m, real(dp), intent(in)  hn, real(dp), intent(in)  hm, real(dp), intent(inout)  satn, real(dp), intent(inout)  satm  )

private

Calculate the saturation based on the maximum cell bottom for two connected cells

Definition at line 718 of file gwf-npf.f90.

    ! dummy
    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: n, m
    real(DP), intent(in) :: hn, hm
    real(DP), intent(inout) :: satn, satm
    ! local
    integer(I4B) :: ihdbot
    real(DP) :: botn, botm
    real(DP) :: top, bot

    botn = this%dis%bot(n)
    botm = this%dis%bot(m)

    ihdbot = n
    if (botm > botn) ihdbot = m

    ! recalculate saturation if the difference in elevation between
    ! two cells exceed a threshold value
    if (abs(botm - botn) >= dem2) then
      top = this%dis%top(ihdbot)
      bot = this%dis%bot(ihdbot)
      satn = squadraticsaturation(top, bot, hn, this%satomega)
      satm = squadraticsaturation(top, bot, hm, this%satomega)
    end if

Here is the call graph for this function:

hy_eff()

real(dp) function gwfnpfmodule::hy_eff	(	class(gwfnpftype)	this,
		integer(i4b), intent(in)	n,
		integer(i4b), intent(in)	m,
		integer(i4b), intent(in)	ihc,
		integer(i4b), intent(in), optional	ipos,
		real(dp), dimension(3), intent(in), optional	vg
	)

n is primary node node number m is connected node (not used if vg is provided) ihc is horizontal indicator (0 vertical, 1 horizontal, 2 vertically staggered) ipos_opt is position of connection in ja array vg is the global unit vector that expresses the direction from which to calculate an effective hydraulic conductivity.

Definition at line 2607 of file gwf-npf.f90.

    ! -- return
    real(DP) :: hy
    ! -- dummy
    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: n
    integer(I4B), intent(in) :: m
    integer(I4B), intent(in) :: ihc
    integer(I4B), intent(in), optional :: ipos
    real(DP), dimension(3), intent(in), optional :: vg
    ! -- local
    integer(I4B) :: iipos
    real(DP) :: hy11, hy22, hy33
    real(DP) :: ang1, ang2, ang3
    real(DP) :: vg1, vg2, vg3
    !
    ! -- Initialize
    iipos = 0
    if (present(ipos)) iipos = ipos
    hy11 = this%k11(n)
    hy22 = this%k11(n)
    hy33 = this%k11(n)
    hy22 = this%k22(n)
    hy33 = this%k33(n)
    !
    ! -- Calculate effective K based on whether connection is vertical
    !    or horizontal
    if (ihc == c3d_vertical) then
      !
      ! -- Handle rotated anisotropy case that would affect the effective
      !    vertical hydraulic conductivity
      hy = hy33
      if (this%iangle2 > 0) then
        if (present(vg)) then
          vg1 = vg(1)
          vg2 = vg(2)
          vg3 = vg(3)
        else
          call this%dis%connection_normal(n, m, ihc, vg1, vg2, vg3, iipos)
        end if
        ang1 = this%angle1(n)
        ang2 = this%angle2(n)
        ang3 = dzero
        if (this%iangle3 > 0) ang3 = this%angle3(n)
        hy = hyeff(hy11, hy22, hy33, ang1, ang2, ang3, vg1, vg2, vg3, &
                   this%iavgkeff)
      end if
      !
    else
      !
      ! -- Handle horizontal case
      hy = hy11
      if (this%ik22 > 0) then
        if (present(vg)) then
          vg1 = vg(1)
          vg2 = vg(2)
          vg3 = vg(3)
        else
          call this%dis%connection_normal(n, m, ihc, vg1, vg2, vg3, iipos)
        end if
        ang1 = dzero
        ang2 = dzero
        ang3 = dzero
        if (this%iangle1 > 0) then
          ang1 = this%angle1(n)
          if (this%iangle2 > 0) then
            ang2 = this%angle2(n)
            if (this%iangle3 > 0) ang3 = this%angle3(n)
          end if
        end if
        hy = hyeff(hy11, hy22, hy33, ang1, ang2, ang3, vg1, vg2, vg3, &
                   this%iavgkeff)
      end if
      !
    end if

Here is the call graph for this function:

increase_edge_count()

subroutine gwfnpfmodule::increase_edge_count ( class(gwfnpftype)  this, integer(i4b), intent(in)  nedges  )

private

This must be called before the npfallocate_arrays routine, which is called from npfar.

Definition at line 2997 of file gwf-npf.f90.

    ! -- dummy
    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: nedges
    !
    this%nedges = this%nedges + nedges

log_griddata()

subroutine gwfnpfmodule::log_griddata	(	class(gwfnpftype)	this,
		type(gwfnpfparamfoundtype), intent(in)	found
	)

Definition at line 1769 of file gwf-npf.f90.

    ! -- modules
    use gwfnpfinputmodule, only: gwfnpfparamfoundtype
    ! -- dummy
    class(GwfNpfType) :: this
    type(GwfNpfParamFoundType), intent(in) :: found
    !
    write (this%iout, '(1x,a)') 'Setting NPF Griddata'
    !
    if (found%icelltype) then
      write (this%iout, '(4x,a)') 'ICELLTYPE set from input file'
    end if
    !
    if (found%k) then
      write (this%iout, '(4x,a)') 'K set from input file'
    end if
    !
    if (found%k33) then
      write (this%iout, '(4x,a)') 'K33 set from input file'
    else
      write (this%iout, '(4x,a)') 'K33 not provided.  Setting K33 = K.'
    end if
    !
    if (found%k22) then
      write (this%iout, '(4x,a)') 'K22 set from input file'
    else
      write (this%iout, '(4x,a)') 'K22 not provided.  Setting K22 = K.'
    end if
    !
    if (found%wetdry) then
      write (this%iout, '(4x,a)') 'WETDRY set from input file'
    end if
    !
    if (found%angle1) then
      write (this%iout, '(4x,a)') 'ANGLE1 set from input file'
    end if
    !
    if (found%angle2) then
      write (this%iout, '(4x,a)') 'ANGLE2 set from input file'
    end if
    !
    if (found%angle3) then
      write (this%iout, '(4x,a)') 'ANGLE3 set from input file'
    end if
    !
    write (this%iout, '(1x,a,/)') 'End Setting NPF Griddata'

log_options()

subroutine gwfnpfmodule::log_options ( class(gwfnpftype)  this, type(gwfnpfparamfoundtype), intent(in)  found  )

private

Definition at line 1515 of file gwf-npf.f90.

    ! -- modules
    use kindmodule, only: lgp
    use gwfnpfinputmodule, only: gwfnpfparamfoundtype
    ! -- dummy
    class(GwfNpftype) :: this
    ! -- locals
    type(GwfNpfParamFoundType), intent(in) :: found
    !
    write (this%iout, '(1x,a)') 'Setting NPF Options'
    if (found%iprflow) &
      write (this%iout, '(4x,a)') 'Cell-by-cell flow information will be printed &
                                  &to listing file whenever ICBCFL is not zero.'
    if (found%ipakcb) &
      write (this%iout, '(4x,a)') 'Cell-by-cell flow information will be saved &
                                  &to binary file whenever ICBCFL is not zero.'
    if (found%cellavg) &
      write (this%iout, '(4x,a,i0)') 'Alternative cell averaging [1=logarithmic, &
                                     &2=AMT-LMK, 3=AMT-HMK] set to: ', &
                                     this%icellavg
    if (found%ithickstrt) &
      write (this%iout, '(4x,a)') 'THICKSTRT option has been activated.'
    if (found%ihighcellsat) &
      write (this%iout, '(4x,a)') 'HIGHEST_CELL_SATURATION option &
                                  &has been activated.'
    if (found%iperched) &
      write (this%iout, '(4x,a)') 'Vertical flow will be adjusted for perched &
                                  &conditions.'
    if (found%ivarcv) &
      write (this%iout, '(4x,a)') 'Vertical conductance varies with water table.'
    if (found%idewatcv) &
      write (this%iout, '(4x,a)') 'Vertical conductance is calculated using &
                                  &only the saturated thickness and properties &
                                  &of the overlying cell if the head in the &
                                  &underlying cell is below its top.'
    if (found%ixt3d) write (this%iout, '(4x,a)') 'XT3D formulation is selected.'
    if (found%ixt3drhs) &
      write (this%iout, '(4x,a)') 'XT3D RHS formulation is selected.'
    if (found%isavspdis) &
      write (this%iout, '(4x,a)') 'Specific discharge will be calculated at cell &
                                  &centers and written to DATA-SPDIS in budget &
                                  &file when requested.'
    if (found%isavsat) &
      write (this%iout, '(4x,a)') 'Saturation will be written to DATA-SAT in &
                                  &budget file when requested.'
    if (found%ik22overk) &
      write (this%iout, '(4x,a)') 'Values specified for K22 are anisotropy &
                                  &ratios and will be multiplied by K before &
                                  &being used in calculations.'
    if (found%ik33overk) &
      write (this%iout, '(4x,a)') 'Values specified for K33 are anisotropy &
                                  &ratios and will be multiplied by K before &
                                  &being used in calculations.'
    if (found%inewton) &
      write (this%iout, '(4x,a)') 'NEWTON-RAPHSON method disabled for unconfined &
                                  &cells'
    if (found%satomega) &
      write (this%iout, '(4x,a,1pg15.6)') 'Saturation omega: ', this%satomega
    if (found%irewet) &
      write (this%iout, '(4x,a)') 'Rewetting is active.'
    if (found%wetfct) &
      write (this%iout, '(4x,a,1pg15.6)') &
      'Wetting factor (WETFCT) has been set to: ', this%wetfct
    if (found%iwetit) &
      write (this%iout, '(4x,a,i5)') &
      'Wetting iteration interval (IWETIT) has been set to: ', this%iwetit
    if (found%ihdwet) &
      write (this%iout, '(4x,a,i5)') &
      'Head rewet equation (IHDWET) has been set to: ', this%ihdwet
    write (this%iout, '(1x,a,/)') 'End Setting NPF Options'

npf_ac()

subroutine gwfnpfmodule::npf_ac	(	class(gwfnpftype)	this,
		integer(i4b), intent(in)	moffset,
		type(sparsematrix), intent(inout)	sparse
	)

Definition at line 288 of file gwf-npf.f90.

    ! -- modules
    use sparsemodule, only: sparsematrix
    ! -- dummy
    class(GwfNpftype) :: this
    integer(I4B), intent(in) :: moffset
    type(sparsematrix), intent(inout) :: sparse
    !
    ! -- Add extended neighbors (neighbors of neighbors)
    if (this%ixt3d /= 0) call this%xt3d%xt3d_ac(moffset, sparse)

npf_ad()

subroutine gwfnpfmodule::npf_ad ( class(gwfnpftype)  this, integer(i4b), intent(in)  nodes, real(dp), dimension(nodes), intent(inout)  hold, real(dp), dimension(nodes), intent(inout)  hnew, integer(i4b), intent(in)  irestore  )

private

Sets hold (head old) to bot whenever a wettable cell is dry

Definition at line 430 of file gwf-npf.f90.

    ! -- modules
    use tdismodule, only: kper, kstp
    !
    implicit none
    ! -- dummy
    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: nodes
    real(DP), dimension(nodes), intent(inout) :: hold
    real(DP), dimension(nodes), intent(inout) :: hnew
    integer(I4B), intent(in) :: irestore
    ! -- local
    integer(I4B) :: n
    !
    ! -- loop through all cells and set hold=bot if wettable cell is dry
    if (this%irewet > 0) then
      do n = 1, this%dis%nodes
        if (this%wetdry(n) == dzero) cycle
        if (this%ibound(n) /= 0) cycle
        hold(n) = this%dis%bot(n)
      end do
      !
      ! -- if restore state, then set hnew to DRY if it is a dry wettable cell
      do n = 1, this%dis%nodes
        if (this%wetdry(n) == dzero) cycle
        if (this%ibound(n) /= 0) cycle
        hnew(n) = dhdry
      end do
    end if
    !
    ! -- TVK
    if (this%intvk /= 0) then
      call this%tvk%ad()
    end if
    !
    ! -- VSC
    ! -- Hit the TVK-updated K's with VSC correction before calling/updating condsat
    if (this%invsc /= 0) then
      call this%vsc%update_k_with_vsc()
    end if
    !
    ! -- If any K values have changed, we need to update CONDSAT or XT3D arrays
    if (this%kchangeper == kper .and. this%kchangestp == kstp) then
      if (this%ixt3d == 0) then
        !
        ! -- Update the saturated conductance for all connections
        ! -- of the affected nodes
        do n = 1, this%dis%nodes
          if (this%nodekchange(n) == 1) then
            call this%calc_condsat(n, .false.)
          end if
        end do
      else
        !
        ! -- Recompute XT3D coefficients for permanently confined connections
        if (this%xt3d%lamatsaved .and. .not. this%xt3d%ldispersion) then
          call this%xt3d%xt3d_fcpc(this%dis%nodes, .true.)
        end if
      end if
    end if

npf_ar()

subroutine gwfnpfmodule::npf_ar ( class(gwfnpftype)  this, type(gwfictype), intent(in), pointer  ic, type(gwfvsctype), intent(in), pointer  vsc, integer(i4b), dimension(:), intent(inout), pointer, contiguous  ibound, real(dp), dimension(:), intent(inout), pointer, contiguous  hnew  )

private

Allocate remaining package arrays, preprocess the input data and call *_ar on xt3d, when active.

Parameters

	this	instance of the NPF package
[in]	ic	initial conditions
[in]	vsc	viscosity package
[in,out]	ibound	model ibound array
[in,out]	hnew	pointer to model head array

Definition at line 316 of file gwf-npf.f90.

    ! -- modules
    use simmodule, only: store_error, store_error_filename
    use memorymanagermodule, only: mem_reallocate
    ! -- dummy
    class(GwfNpftype) :: this !< instance of the NPF package
    type(GwfIcType), pointer, intent(in) :: ic !< initial conditions
    type(GwfVscType), pointer, intent(in) :: vsc !< viscosity package
    integer(I4B), dimension(:), pointer, contiguous, intent(inout) :: ibound !< model ibound array
    real(DP), dimension(:), pointer, contiguous, intent(inout) :: hnew !< pointer to model head array
    ! -- local
    integer(I4B) :: n
    !
    ! -- Store pointers to arguments that were passed in
    this%ic => ic
    this%ibound => ibound
    this%hnew => hnew
    !
    if (this%icalcspdis == 1) then
      call mem_reallocate(this%spdis, 3, this%dis%nodes, 'SPDIS', this%memoryPath)
      call mem_reallocate(this%nodedge, this%nedges, 'NODEDGE', this%memoryPath)
      call mem_reallocate(this%ihcedge, this%nedges, 'IHCEDGE', this%memoryPath)
      call mem_reallocate(this%propsedge, 5, this%nedges, 'PROPSEDGE', &
                          this%memoryPath)
      call mem_reallocate(this%iedge_ptr, this%dis%nodes + 1, &
                          'NREDGESNODE', this%memoryPath)
      call mem_reallocate(this%edge_idxs, this%nedges, &
                          'EDGEIDXS', this%memoryPath)

      do n = 1, this%nedges
        this%edge_idxs(n) = 0
      end do
      do n = 1, this%dis%nodes
        this%iedge_ptr(n) = 0
        this%spdis(:, n) = dzero
      end do
    end if
    !
    ! -- Store pointer to VSC if active
    if (this%invsc /= 0) then
      this%vsc => vsc
    end if
    !
    ! -- allocate arrays to store original user input in case TVK/VSC modify them
    if (this%invsc > 0) then
      !
      ! -- Reallocate arrays that store user-input values.
      call mem_reallocate(this%k11input, this%dis%nodes, 'K11INPUT', &
                          this%memoryPath)
      call mem_reallocate(this%k22input, this%dis%nodes, 'K22INPUT', &
                          this%memoryPath)
      call mem_reallocate(this%k33input, this%dis%nodes, 'K33INPUT', &
                          this%memoryPath)
      ! Allocate arrays that will store the original K values.  When VSC active,
      ! the current Kxx arrays carry the viscosity-adjusted K values.
      ! This approach leverages existing functionality that makes use of K.
      call this%store_original_k_arrays(this%dis%nodes, this%dis%njas)
    end if
    !
    ! -- preprocess data
    call this%preprocess_input()
    !
    ! -- xt3d
    ! -- Terminate if the DISU ANGLDEGX values are inconsistent and this
    !    package requires ANGLDEGX (it has no effect otherwise)
    if (this%ixt3d /= 0 .or. this%ik22 /= 0 .or. this%icalcspdis /= 0) then
      select type (dis => this%dis)
      type is (disutype)
        if (dis%nangldegxerr > 0) then
          write (errmsg, '(a,1x,i0,1x,a)') &
            'ANGLDEGX values in the DISU Package are inconsistent for', &
            dis%nangldegxerr, 'cell faces (see the warnings written after &
            &the DISU Package input in the model listing file). ANGLDEGX &
            &must be correct because it is required input for the NPF &
            &Package when XT3D, K22, or SAVE_SPECIFIC_DISCHARGE is specified.'
          call store_error(errmsg)
          call store_error_filename(dis%input_fname)
        end if
      end select
    end if
    !
    if (this%ixt3d /= 0) then
      call this%xt3d%xt3d_ar(ibound, this%k11, this%ik33, this%k33, &
                             this%sat, this%ik22, this%k22, &
                             this%iangle1, this%iangle2, this%iangle3, &
                             this%angle1, this%angle2, this%angle3, &
                             this%inewton, this%icelltype)
    end if
    !
    ! -- TVK
    if (this%intvk /= 0) then
      call this%tvk%ar(this%dis)
    end if

Here is the call graph for this function:

npf_cf()

subroutine gwfnpfmodule::npf_cf	(	class(gwfnpftype)	this,
		integer(i4b)	kiter,
		integer(i4b), intent(in)	nodes,
		real(dp), dimension(nodes), intent(inout)	hnew
	)

Definition at line 494 of file gwf-npf.f90.

    class(GwfNpfType) :: this
    integer(I4B) :: kiter
    integer(I4B), intent(in) :: nodes
    real(DP), intent(inout), dimension(nodes) :: hnew
    ! local
    integer(I4B) :: iform

    ! Perform wetting and drying
    if (this%inewton /= 1) then
      call this%wd(kiter, hnew)
    end if

    ! Each active formulation runs over all cells and adds its
    ! terms; the default conductance formulation is always active.
    call this%default_form%cf(kiter)
    do iform = 1, max_ext_flow_forms
      if (associated(this%flow_formulations(iform)%form)) then
        call this%flow_formulations(iform)%form%cf(kiter)
      end if
    end do


npf_cq()

subroutine gwfnpfmodule::npf_cq ( class(gwfnpftype)  this, real(dp), dimension(:), intent(inout)  hnew, real(dp), dimension(:), intent(inout)  flowja  )

private

Definition at line 964 of file gwf-npf.f90.

    ! -- dummy
    class(GwfNpfType) :: this
    real(DP), intent(inout), dimension(:) :: hnew
    real(DP), intent(inout), dimension(:) :: flowja
    ! -- local
    integer(I4B) :: iform
    !
    ! -- Calculate the flow across each cell face and store in flowja
    !
    if (this%ixt3d /= 0) then
      call this%xt3d%xt3d_flowja(hnew, flowja)
    else
      ! Each active formulation runs over all connections and adds its
      ! flows; the default conductance formulation is always active.
      call this%default_form%cq(hnew, flowja)
      do iform = 1, max_ext_flow_forms
        if (associated(this%flow_formulations(iform)%form)) then
          call this%flow_formulations(iform)%form%cq(hnew, flowja)
        end if
      end do
    end if

npf_cr()

subroutine, public gwfnpfmodule::npf_cr	(	type(gwfnpftype), pointer	npfobj,
		character(len=*), intent(in)	name_model,
		character(len=*), intent(in)	input_mempath,
		integer(i4b), intent(in)	inunit,
		integer(i4b), intent(in)	iout
	)

Definition at line 188 of file gwf-npf.f90.

    ! -- modules
    use kindmodule, only: lgp
    use memorymanagerextmodule, only: mem_set_value
    ! -- dummy
    type(GwfNpfType), pointer :: npfobj
    character(len=*), intent(in) :: name_model
    character(len=*), intent(in) :: input_mempath
    integer(I4B), intent(in) :: inunit
    integer(I4B), intent(in) :: iout
    ! -- formats
    character(len=*), parameter :: fmtheader = &
      "(1x, /1x, 'NPF -- NODE PROPERTY FLOW PACKAGE, VERSION 1, 3/30/2015', &
       &' INPUT READ FROM MEMPATH: ', A, /)"
    !
    ! -- Create the object
    allocate (npfobj)
    !
    ! -- create name and memory path
    call npfobj%set_names(1, name_model, 'NPF', 'NPF', input_mempath)
    !
    ! -- Allocate scalars
    call npfobj%allocate_scalars()
    !
    ! -- Set variables
    npfobj%inunit = inunit
    npfobj%iout = iout
    !
    ! -- check if npf is enabled
    if (inunit > 0) then
      !
      ! -- Print a message identifying the node property flow package.
      write (iout, fmtheader) input_mempath
    end if

    ! allocate spdis structure
    allocate (npfobj%spdis_wa)


Here is the caller graph for this function:

npf_da()

subroutine gwfnpfmodule::npf_da

(

class(gwfnpftype)

this

)

Definition at line 1210 of file gwf-npf.f90.

    ! -- modules
    use memorymanagerextmodule, only: memorystore_remove
    use simvariablesmodule, only: idm_context
    ! -- dummy
    class(GwfNpftype) :: this

    ! free spdis work structure
    if (this%icalcspdis == 1 .and. this%spdis_wa%is_created()) &
      call this%spdis_wa%destroy()
    deallocate (this%spdis_wa)
    !
    ! -- Deallocate input memory
    call memorystore_remove(this%name_model, 'NPF', idm_context)
    !
    ! -- TVK
    if (this%intvk /= 0) then
      call this%tvk%da()
      deallocate (this%tvk)
    end if
    !
    ! -- VSC
    if (this%invsc /= 0) then
      nullify (this%vsc)
    end if
    !
    ! -- Scalars
    call mem_deallocate(this%iname)
    call mem_deallocate(this%ixt3d)
    call mem_deallocate(this%ixt3drhs)
    call mem_deallocate(this%satomega)
    call mem_deallocate(this%hnoflo)
    call mem_deallocate(this%hdry)
    call mem_deallocate(this%icellavg)
    call mem_deallocate(this%iavgkeff)
    call mem_deallocate(this%ik22)
    call mem_deallocate(this%ik33)
    call mem_deallocate(this%iperched)
    call mem_deallocate(this%ivarcv)
    call mem_deallocate(this%idewatcv)
    call mem_deallocate(this%ithickstrt)
    call mem_deallocate(this%ihighcellsat)
    call mem_deallocate(this%isavspdis)
    call mem_deallocate(this%isavsat)
    call mem_deallocate(this%icalcspdis)
    call mem_deallocate(this%irewet)
    call mem_deallocate(this%wetfct)
    call mem_deallocate(this%iwetit)
    call mem_deallocate(this%ihdwet)
    call mem_deallocate(this%ibotnode)
    call mem_deallocate(this%iwetdry)
    call mem_deallocate(this%iangle1)
    call mem_deallocate(this%iangle2)
    call mem_deallocate(this%iangle3)
    call mem_deallocate(this%nedges)
    call mem_deallocate(this%lastedge)
    call mem_deallocate(this%ik22overk)
    call mem_deallocate(this%ik33overk)
    call mem_deallocate(this%intvk)
    call mem_deallocate(this%invsc)
    call mem_deallocate(this%kchangeper)
    call mem_deallocate(this%kchangestp)
    !
    ! -- Deallocate arrays
    deallocate (this%aname)
    call mem_deallocate(this%ithickstartflag)
    call mem_deallocate(this%icelltype)
    call mem_deallocate(this%k11)
    call mem_deallocate(this%k22)
    call mem_deallocate(this%k33)
    call mem_deallocate(this%krel)
    call mem_deallocate(this%k11input)
    call mem_deallocate(this%k22input)
    call mem_deallocate(this%k33input)
    call mem_deallocate(this%sat, 'SAT', this%memoryPath)
    call mem_deallocate(this%condsat)
    call mem_deallocate(this%wetdry)
    call mem_deallocate(this%angle1)
    call mem_deallocate(this%angle2)
    call mem_deallocate(this%angle3)
    call mem_deallocate(this%nodedge)
    call mem_deallocate(this%ihcedge)
    call mem_deallocate(this%propsedge)
    call mem_deallocate(this%iedge_ptr)
    call mem_deallocate(this%edge_idxs)
    call mem_deallocate(this%spdis, 'SPDIS', this%memoryPath)
    call mem_deallocate(this%nodekchange)
    call mem_deallocate(this%iformulation)
    !
    ! -- deallocate the default conductance formulation
    if (associated(this%default_form)) then
      deallocate (this%default_form)
      this%default_form => null()
    end if
    !
    ! -- deallocate parent
    call this%NumericalPackageType%da()

    ! pointers
    this%hnew => null()


Here is the call graph for this function:

npf_df()

subroutine gwfnpfmodule::npf_df	(	class(gwfnpftype)	this,
		class(disbasetype), intent(inout), pointer	dis,
		type(xt3dtype), pointer	xt3d,
		integer(i4b), intent(in)	ingnc,
		integer(i4b), intent(in)	invsc,
		type(gwfnpfoptionstype), intent(in), optional	npf_options
	)

This is a hybrid routine: it either reads the options for this package from the input file, or the optional argument

Parameters

	npf_options	should be passed. A consistency check is performed, and finally xt3d_df is called, when enabled.
	this	instance of the NPF package
[in,out]	dis	the pointer to the discretization
	xt3d	the pointer to the XT3D 'package'
[in]	ingnc	ghostnodes enabled? (>0 means yes)
[in]	invsc	viscosity enabled? (>0 means yes)
[in]	npf_options	the optional options, for when not constructing from file

Definition at line 235 of file gwf-npf.f90.

    ! -- modules
    use simmodule, only: store_error
    use xt3dmodule, only: xt3d_cr
    ! -- dummy
    class(GwfNpftype) :: this !< instance of the NPF package
    class(DisBaseType), pointer, intent(inout) :: dis !< the pointer to the discretization
    type(Xt3dType), pointer :: xt3d !< the pointer to the XT3D 'package'
    integer(I4B), intent(in) :: ingnc !< ghostnodes enabled? (>0 means yes)
    integer(I4B), intent(in) :: invsc !< viscosity enabled? (>0 means yes)
    type(GwfNpfOptionsType), optional, intent(in) :: npf_options !< the optional options, for when not constructing from file
    !
    ! -- Set a pointer to dis
    this%dis => dis
    !
    ! -- Set flag signifying whether vsc is active
    if (invsc > 0) this%invsc = invsc
    !
    if (.not. present(npf_options)) then
      !
      ! -- source options
      call this%source_options()
      !
      ! -- allocate arrays
      call this%allocate_arrays(this%dis%nodes, this%dis%njas)
      !
      ! -- source griddata, set, and convert/check the input
      call this%source_griddata()
      call this%prepcheck()
    else
      call this%set_options(npf_options)
      !
      ! -- allocate arrays
      call this%allocate_arrays(this%dis%nodes, this%dis%njas)
    end if
    !
    call this%check_options()
    !
    ! -- Save pointer to xt3d object
    this%xt3d => xt3d
    if (this%ixt3d /= 0) xt3d%ixt3d = this%ixt3d
    call this%xt3d%xt3d_df(dis)
    !
    ! -- Ensure GNC and XT3D are not both on at the same time
    if (this%ixt3d /= 0 .and. ingnc > 0) then
      call store_error('Error in model '//trim(this%name_model)// &
                       '.  The XT3D option cannot be used with the GNC &
                       &Package.', terminate=.true.)
    end if

Here is the call graph for this function:

npf_fc()

subroutine gwfnpfmodule::npf_fc ( class(gwfnpftype)  this, integer(i4b)  kiter, class(matrixbasetype), pointer  matrix_sln, integer(i4b), dimension(:), intent(in)  idxglo, real(dp), dimension(:), intent(inout)  rhs, real(dp), dimension(:), intent(inout)  hnew  )

private

Parameters

	this	this instance
	kiter	outer iteration number
	matrix_sln	the system to be formulated
[in]	idxglo	lookup table from local to global connection number
[in,out]	rhs	the righthandside vector
[in,out]	hnew	the new head values

Definition at line 561 of file gwf-npf.f90.

    class(GwfNpfType) :: this !< this instance
    integer(I4B) :: kiter !< outer iteration number
    class(MatrixBaseType), pointer :: matrix_sln !< the system to be formulated
    integer(I4B), intent(in), dimension(:) :: idxglo !< lookup table from local to global connection number
    real(DP), intent(inout), dimension(:) :: rhs !< the righthandside vector
    real(DP), intent(inout), dimension(:) :: hnew !< the new head values
    ! local
    integer(I4B) :: iform

    if (this%ixt3d /= 0) then
      call this%xt3d%xt3d_fc(kiter, matrix_sln, idxglo, rhs, hnew)
    else
      ! Each active formulation runs over all connections and adds its
      ! terms; the default conductance formulation is always active.
      call this%default_form%fc(kiter, matrix_sln, idxglo, rhs, hnew)
      do iform = 1, max_ext_flow_forms
        if (associated(this%flow_formulations(iform)%form)) then
          call this%flow_formulations(iform)%form%fc(kiter, matrix_sln, &
                                                     idxglo, rhs, hnew)
        end if
      end do
    end if


npf_fn()

subroutine gwfnpfmodule::npf_fn ( class(gwfnpftype)  this, integer(i4b)  kiter, class(matrixbasetype), pointer  matrix_sln, integer(i4b), dimension(:), intent(in)  idxglo, real(dp), dimension(:), intent(inout)  rhs, real(dp), dimension(:), intent(inout)  hnew  )

private

Definition at line 747 of file gwf-npf.f90.

    ! -- dummy
    class(GwfNpfType) :: this
    integer(I4B) :: kiter
    class(MatrixBaseType), pointer :: matrix_sln
    integer(I4B), intent(in), dimension(:) :: idxglo
    real(DP), intent(inout), dimension(:) :: rhs
    real(DP), intent(inout), dimension(:) :: hnew
    ! -- local
    integer(I4B) :: nodes, nja
    integer(I4B) :: iform
    !
    ! -- add newton terms to solution matrix
    nodes = this%dis%nodes
    nja = this%dis%con%nja
    if (this%ixt3d /= 0) then
      call this%xt3d%xt3d_fn(kiter, nodes, nja, matrix_sln, idxglo, rhs, hnew)
    else
      ! Each active formulation runs over all connections and adds its
      ! newton terms; the default conductance formulation is always active.
      call this%default_form%fn(kiter, matrix_sln, idxglo, rhs, hnew)
      do iform = 1, max_ext_flow_forms
        if (associated(this%flow_formulations(iform)%form)) then
          call this%flow_formulations(iform)%form%fn(kiter, matrix_sln, &
                                                     idxglo, rhs, hnew)
        end if
      end do
    end if

npf_mc()

subroutine gwfnpfmodule::npf_mc	(	class(gwfnpftype)	this,
		integer(i4b), intent(in)	moffset,
		class(matrixbasetype), pointer	matrix_sln
	)

Definition at line 302 of file gwf-npf.f90.

    ! -- dummy
    class(GwfNpftype) :: this
    integer(I4B), intent(in) :: moffset
    class(MatrixBaseType), pointer :: matrix_sln
    !
    if (this%ixt3d /= 0) call this%xt3d%xt3d_mc(moffset, matrix_sln)

npf_nur()

subroutine gwfnpfmodule::npf_nur ( class(gwfnpftype)  this, integer(i4b), intent(in)  neqmod, real(dp), dimension(neqmod), intent(inout)  x, real(dp), dimension(neqmod), intent(in)  xtemp, real(dp), dimension(neqmod), intent(inout)  dx, integer(i4b), intent(inout)  inewtonur, real(dp), intent(inout)  dxmax, integer(i4b), intent(inout)  locmax  )

private

Under-relaxation of Groundwater Flow Model Heads for current outer iteration using the cell bottoms at the bottom of the model

Definition at line 920 of file gwf-npf.f90.

    ! -- dummy
    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: neqmod
    real(DP), dimension(neqmod), intent(inout) :: x
    real(DP), dimension(neqmod), intent(in) :: xtemp
    real(DP), dimension(neqmod), intent(inout) :: dx
    integer(I4B), intent(inout) :: inewtonur
    real(DP), intent(inout) :: dxmax
    integer(I4B), intent(inout) :: locmax
    ! -- local
    integer(I4B) :: n
    integer(I4B) :: ibot
    real(DP) :: botm
    real(DP) :: xx
    real(DP) :: dxx
    !
    ! -- Newton-Raphson under-relaxation
    do n = 1, this%dis%nodes
      if (this%ibound(n) < 1) cycle
      ibot = this%ibotnode(n)
      ! Newton-Raphson under-relaxation is only applied to convertible cells where
      ! the bottom cell in a stack is convertible
      if (this%icelltype(n) > 0 .and. this%icelltype(ibot) > 0) then
        botm = this%dis%bot(ibot)
        ! Newton-Raphson under-relaxation applied when solution head is
        ! below the bottom of the model
        if (x(n) < botm) then
          inewtonur = 1
          xx = xtemp(n) * (done - dp9) + botm * dp9
          dxx = xx - xtemp(n)
          if (abs(dxx) > abs(dxmax)) then
            locmax = n
            dxmax = dxx
          end if
          x(n) = xx
          dx(n) = xtemp(n) - x(n)
        end if
      end if
    end do

npf_print_model_flows()

subroutine gwfnpfmodule::npf_print_model_flows ( class(gwfnpftype)  this, integer(i4b), intent(in)  ibudfl, real(dp), dimension(:), intent(inout)  flowja  )

private

Definition at line 1171 of file gwf-npf.f90.

    ! -- modules
    use tdismodule, only: kper, kstp
    use constantsmodule, only: lenbigline
    ! -- dummy
    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: ibudfl
    real(DP), intent(inout), dimension(:) :: flowja
    ! -- local
    character(len=LENBIGLINE) :: line
    character(len=30) :: tempstr
    integer(I4B) :: n, ipos, m
    real(DP) :: qnm
    ! -- formats
    character(len=*), parameter :: fmtiprflow = &
      &"(/,4x,'CALCULATED INTERCELL FLOW FOR PERIOD ', i0, ' STEP ', i0)"
    !
    ! -- Write flowja to list file if requested
    if (ibudfl /= 0 .and. this%iprflow > 0) then
      write (this%iout, fmtiprflow) kper, kstp
      do n = 1, this%dis%nodes
        line = ''
        call this%dis%noder_to_string(n, tempstr)
        line = trim(tempstr)//':'
        do ipos = this%dis%con%ia(n) + 1, this%dis%con%ia(n + 1) - 1
          m = this%dis%con%ja(ipos)
          call this%dis%noder_to_string(m, tempstr)
          line = trim(line)//' '//trim(tempstr)
          qnm = flowja(ipos)
          write (tempstr, '(1pg15.6)') qnm
          line = trim(line)//' '//trim(adjustl(tempstr))
        end do
        write (this%iout, '(a)') trim(line)
      end do
    end if

npf_rp()

subroutine gwfnpfmodule::npf_rp

(

class(gwfnpftype)

this

)

Read and prepare NPF stress period data.

Definition at line 415 of file gwf-npf.f90.

    implicit none
    ! -- dummy
    class(GwfNpfType) :: this
    !
    ! -- TVK
    if (this%intvk /= 0) then
      call this%tvk%rp()
    end if

npf_save_model_flows()

subroutine gwfnpfmodule::npf_save_model_flows ( class(gwfnpftype)  this, real(dp), dimension(:), intent(in)  flowja, integer(i4b), intent(in)  icbcfl, integer(i4b), intent(in)  icbcun  )

private

Definition at line 1134 of file gwf-npf.f90.

    ! -- dummy
    class(GwfNpfType) :: this
    real(DP), dimension(:), intent(in) :: flowja
    integer(I4B), intent(in) :: icbcfl
    integer(I4B), intent(in) :: icbcun
    ! -- local
    integer(I4B) :: ibinun
    !
    ! -- Set unit number for binary output
    if (this%ipakcb < 0) then
      ibinun = icbcun
    elseif (this%ipakcb == 0) then
      ibinun = 0
    else
      ibinun = this%ipakcb
    end if
    if (icbcfl == 0) ibinun = 0
    !
    ! -- Write the face flows if requested
    if (ibinun /= 0) then
      call this%dis%record_connection_array(flowja, ibinun, this%iout)
    end if
    !
    ! -- Calculate specific discharge at cell centers and write, if requested
    if (this%isavspdis /= 0) then
      if (ibinun /= 0) call this%sav_spdis(ibinun)
    end if
    !
    ! -- Save saturation, if requested
    if (this%isavsat /= 0) then
      if (ibinun /= 0) call this%sav_sat(ibinun)
    end if

prepare_edge_lookup()

subroutine gwfnpfmodule::prepare_edge_lookup ( class(gwfnpftype)  this )

private

Definition at line 3063 of file gwf-npf.f90.

    class(GwfNpfType) :: this
    ! local
    integer(I4B) :: i, inode, iedge
    integer(I4B) :: n, start, end
    integer(I4B) :: prev_cnt, strt_idx, ipos

    do i = 1, size(this%iedge_ptr)
      this%iedge_ptr(i) = 0
    end do
    do i = 1, size(this%edge_idxs)
      this%edge_idxs(i) = 0
    end do

    ! count
    do iedge = 1, this%nedges
      n = this%nodedge(iedge)
      this%iedge_ptr(n) = this%iedge_ptr(n) + 1
    end do

    ! determine start indexes
    prev_cnt = this%iedge_ptr(1)
    this%iedge_ptr(1) = 1
    do inode = 2, this%dis%nodes + 1
      strt_idx = this%iedge_ptr(inode - 1) + prev_cnt
      prev_cnt = this%iedge_ptr(inode)
      this%iedge_ptr(inode) = strt_idx
    end do

    ! loop over edges to fill lookup table
    do iedge = 1, this%nedges
      n = this%nodedge(iedge)
      start = this%iedge_ptr(n)
      end = this%iedge_ptr(n + 1) - 1
      do ipos = start, end
        if (this%edge_idxs(ipos) > 0) cycle ! go to next
        this%edge_idxs(ipos) = iedge
        exit
      end do
    end do


prepcheck()

subroutine gwfnpfmodule::prepcheck

(

class(gwfnpftype)

this

)

Definition at line 1914 of file gwf-npf.f90.

    ! -- modules
    use constantsmodule, only: linelength, dpio180
    use simmodule, only: store_error, count_errors, store_error_filename
    ! -- dummy
    class(GwfNpfType) :: this
    ! -- local
    character(len=24), dimension(:), pointer :: aname
    character(len=LINELENGTH) :: cellstr, errmsg
    integer(I4B) :: nerr, n
    ! -- format
    character(len=*), parameter :: fmtkerr = &
      &"(1x, 'Hydraulic property ',a,' is <= 0 for cell ',a, ' ', 1pg15.6)"
    character(len=*), parameter :: fmtkerr2 = &
      &"(1x, '... ', i0,' additional errors not shown for ',a)"
    !
    ! -- initialize
    aname => this%aname
    !
    ! -- check k11
    nerr = 0
    do n = 1, size(this%k11)
      if (this%k11(n) <= dzero) then
        nerr = nerr + 1
        if (nerr <= 20) then
          call this%dis%noder_to_string(n, cellstr)
          write (errmsg, fmtkerr) trim(adjustl(aname(2))), trim(cellstr), &
            this%k11(n)
          call store_error(errmsg)
        end if
      end if
    end do
    if (nerr > 20) then
      write (errmsg, fmtkerr2) nerr, trim(adjustl(aname(2)))
      call store_error(errmsg)
    end if
    !
    ! -- check k33 because it was read
    if (this%ik33 /= 0) then
      !
      ! -- Check to make sure values are greater than or equal to zero
      nerr = 0
      do n = 1, size(this%k33)
        if (this%ik33overk /= 0) this%k33(n) = this%k33(n) * this%k11(n)
        if (this%k33(n) <= dzero) then
          nerr = nerr + 1
          if (nerr <= 20) then
            call this%dis%noder_to_string(n, cellstr)
            write (errmsg, fmtkerr) trim(adjustl(aname(3))), trim(cellstr), &
              this%k33(n)
            call store_error(errmsg)
          end if
        end if
      end do
      if (nerr > 20) then
        write (errmsg, fmtkerr2) nerr, trim(adjustl(aname(3)))
        call store_error(errmsg)
      end if
    end if
    !
    ! -- check k22 because it was read
    if (this%ik22 /= 0) then
      !
      ! -- Check to make sure that angles are available
      if (this%dis%con%ianglex == 0) then
        write (errmsg, '(a)') 'Error.  ANGLDEGX not provided in '// &
          'discretization file, but K22 was specified. '
        call store_error(errmsg)
      end if
      !
      ! -- Check to make sure values are greater than or equal to zero
      nerr = 0
      do n = 1, size(this%k22)
        if (this%ik22overk /= 0) this%k22(n) = this%k22(n) * this%k11(n)
        if (this%k22(n) <= dzero) then
          nerr = nerr + 1
          if (nerr <= 20) then
            call this%dis%noder_to_string(n, cellstr)
            write (errmsg, fmtkerr) trim(adjustl(aname(4))), trim(cellstr), &
              this%k22(n)
            call store_error(errmsg)
          end if
        end if
      end do
      if (nerr > 20) then
        write (errmsg, fmtkerr2) nerr, trim(adjustl(aname(4)))
        call store_error(errmsg)
      end if
    end if
    !
    ! -- check for wetdry conflicts
    if (this%irewet == 1) then
      if (this%iwetdry == 0) then
        write (errmsg, '(a, a, a)') 'Error in GRIDDATA block: ', &
          trim(adjustl(aname(5))), ' not found.'
        call store_error(errmsg)
      end if
    end if
    !
    ! -- Check for angle conflicts
    if (this%iangle1 /= 0) then
      do n = 1, size(this%angle1)
        this%angle1(n) = this%angle1(n) * dpio180
      end do
    else
      if (this%ixt3d /= 0) then
        this%iangle1 = 1
        write (this%iout, '(a)') 'XT3D IN USE, BUT ANGLE1 NOT SPECIFIED. '// &
          'SETTING ANGLE1 TO ZERO.'
        do n = 1, size(this%angle1)
          this%angle1(n) = dzero
        end do
      end if
    end if
    if (this%iangle2 /= 0) then
      if (this%iangle1 == 0) then
        write (errmsg, '(a)') 'ANGLE2 SPECIFIED BUT NOT ANGLE1. '// &
          'ANGLE2 REQUIRES ANGLE1. '
        call store_error(errmsg)
      end if
      if (this%iangle3 == 0) then
        write (errmsg, '(a)') 'ANGLE2 SPECIFIED BUT NOT ANGLE3. '// &
          'SPECIFY BOTH OR NEITHER ONE. '
        call store_error(errmsg)
      end if
      do n = 1, size(this%angle2)
        this%angle2(n) = this%angle2(n) * dpio180
      end do
    end if
    if (this%iangle3 /= 0) then
      if (this%iangle1 == 0) then
        write (errmsg, '(a)') 'ANGLE3 SPECIFIED BUT NOT ANGLE1. '// &
          'ANGLE3 REQUIRES ANGLE1. '
        call store_error(errmsg)
      end if
      if (this%iangle2 == 0) then
        write (errmsg, '(a)') 'ANGLE3 SPECIFIED BUT NOT ANGLE2. '// &
          'SPECIFY BOTH OR NEITHER ONE. '
        call store_error(errmsg)
      end if
      do n = 1, size(this%angle3)
        this%angle3(n) = this%angle3(n) * dpio180
      end do
    end if
    !
    ! -- terminate if data errors
    if (count_errors() > 0) then
      call store_error_filename(this%input_fname)
    end if

Here is the call graph for this function:

preprocess_input()

subroutine gwfnpfmodule::preprocess_input

(

class(gwfnpftype)

this

)

This routine consists of the following steps:

1. convert cells to noflow when all transmissive parameters equal zero
2. perform initial wetting and drying
3. initialize cell saturation
4. calculate saturated conductance (when not xt3d)
5. If NEWTON under-relaxation, determine lower most node

   Parameters

   this	the instance of the NPF package

Definition at line 2075 of file gwf-npf.f90.

    ! -- modules
    use constantsmodule, only: linelength
    use simmodule, only: store_error, count_errors, store_error_filename
    ! -- dummy
    class(GwfNpfType) :: this !< the instance of the NPF package
    ! -- local
    integer(I4B) :: n, m, ii, nn
    real(DP) :: hyn, hym
    real(DP) :: satn, topn, botn
    integer(I4B) :: nextn
    real(DP) :: minbot, botm
    logical :: finished
    character(len=LINELENGTH) :: cellstr, errmsg
    ! -- format
    character(len=*), parameter :: fmtcnv = &
      "(1X,'CELL ', A, &
      &' ELIMINATED BECAUSE ALL HYDRAULIC CONDUCTIVITIES TO NODE ARE 0.')"
    character(len=*), parameter :: fmtnct = &
      &"(1X,'Negative cell thickness at cell ', A)"
    character(len=*), parameter :: fmtihbe = &
      &"(1X,'Initial head, bottom elevation:',1P,2G13.5)"
    character(len=*), parameter :: fmttebe = &
      &"(1X,'Top elevation, bottom elevation:',1P,2G13.5)"
    !
    do n = 1, this%dis%nodes
      this%ithickstartflag(n) = 0
    end do
    !
    ! -- Insure that each cell has at least one non-zero transmissive parameter
    !    Note that a cell can be deactivated even if it has a valid connection
    !    to another model.
    nodeloop: do n = 1, this%dis%nodes
      !
      ! -- Skip if already inactive
      if (this%ibound(n) == 0) then
        if (this%irewet /= 0) then
          if (this%wetdry(n) == dzero) cycle nodeloop
        else
          cycle nodeloop
        end if
      end if
      !
      ! -- Cycle if k11 is not zero
      if (this%k11(n) /= dzero) cycle nodeloop
      !
      ! -- Cycle if at least one vertical connection has non-zero k33
      !    for n and m
      do ii = this%dis%con%ia(n) + 1, this%dis%con%ia(n + 1) - 1
        m = this%dis%con%ja(ii)
        if (this%dis%con%ihc(this%dis%con%jas(ii)) == 0) then
          hyn = this%k11(n)
          if (this%ik33 /= 0) hyn = this%k33(n)
          if (hyn /= dzero) then
            hym = this%k11(m)
            if (this%ik33 /= 0) hym = this%k33(m)
            if (hym /= dzero) cycle
          end if
        end if
      end do
      !
      ! -- If this part of the loop is reached, then all connections have
      !    zero transmissivity, so convert to noflow.
      this%ibound(n) = 0
      this%hnew(n) = this%hnoflo
      if (this%irewet /= 0) this%wetdry(n) = dzero
      call this%dis%noder_to_string(n, cellstr)
      write (this%iout, fmtcnv) trim(adjustl(cellstr))
      !
    end do nodeloop
    !
    ! -- Preprocess cell status and heads based on initial conditions
    if (this%inewton == 0) then
      !
      ! -- For standard formulation (non-Newton) call wetdry routine
      call this%wd(0, this%hnew)
    else
      !
      ! -- Newton formulation, so adjust heads to be above bottom
      !    (Not used in present formulation because variable cv
      !    cannot be used with Newton)
      if (this%ivarcv == 1) then
        do n = 1, this%dis%nodes
          if (this%hnew(n) < this%dis%bot(n)) then
            this%hnew(n) = this%dis%bot(n) + dem6
          end if
        end do
      end if
    end if
    !
    ! -- If THCKSTRT is not active, then loop through icelltype and replace
    !    any negative values with 1.
    if (this%ithickstrt == 0) then
      do n = 1, this%dis%nodes
        if (this%icelltype(n) < 0) then
          this%icelltype(n) = 1
        end if
      end do
    end if
    !
    ! -- Initialize sat to zero for ibound=0 cells, unless the cell can
    !    rewet.  Initialize sat to the saturated fraction based on strt
    !    if icelltype is negative and the THCKSTRT option is in effect.
    !    Initialize sat to 1.0 for all other cells in order to calculate
    !    condsat in next section.
    do n = 1, this%dis%nodes
      if (this%ibound(n) == 0) then
        this%sat(n) = done
        if (this%icelltype(n) < 0 .and. this%ithickstrt /= 0) then
          this%ithickstartflag(n) = 1
          this%icelltype(n) = 0
        end if
      else
        topn = this%dis%top(n)
        botn = this%dis%bot(n)
        if (this%icelltype(n) < 0 .and. this%ithickstrt /= 0) then
          call this%thksat(n, this%ic%strt(n), satn)
          if (botn > this%ic%strt(n)) then
            call this%dis%noder_to_string(n, cellstr)
            write (errmsg, fmtnct) trim(adjustl(cellstr))
            call store_error(errmsg)
            write (errmsg, fmtihbe) this%ic%strt(n), botn
            call store_error(errmsg)
          end if
          this%ithickstartflag(n) = 1
          this%icelltype(n) = 0
        else
          satn = done
          if (botn > topn) then
            call this%dis%noder_to_string(n, cellstr)
            write (errmsg, fmtnct) trim(adjustl(cellstr))
            call store_error(errmsg)
            write (errmsg, fmttebe) topn, botn
            call store_error(errmsg)
          end if
        end if
        this%sat(n) = satn
      end if
    end do
    if (count_errors() > 0) then
      call store_error_filename(this%input_fname)
    end if
    !
    ! -- Calculate condsat, but only if xt3d is not active.  If xt3d is
    !    active, then condsat is allocated to size of zero.
    if (this%ixt3d == 0) then
      !
      ! -- Calculate the saturated conductance for all connections assuming
      !    that saturation is 1 (except for case where icelltype was entered
      !    as a negative value and THCKSTRT option in effect)
      do n = 1, this%dis%nodes
        call this%calc_condsat(n, .true.)
      end do
      !
    end if
    !
    ! -- Determine the lower most node
    if (this%igwfnewtonur /= 0) then
      call mem_reallocate(this%ibotnode, this%dis%nodes, 'IBOTNODE', &
                          trim(this%memoryPath))
      do n = 1, this%dis%nodes
        !
        minbot = this%dis%bot(n)
        nn = n
        finished = .false.
        do while (.not. finished)
          nextn = 0
          !
          ! -- Go through the connecting cells
          do ii = this%dis%con%ia(nn) + 1, this%dis%con%ia(nn + 1) - 1
            !
            ! -- Set the m cell number
            m = this%dis%con%ja(ii)
            botm = this%dis%bot(m)
            !
            ! -- select vertical connections: ihc == 0
            if (this%dis%con%ihc(this%dis%con%jas(ii)) == 0) then
              if (m > nn .and. botm < minbot) then
                nextn = m
                minbot = botm
              end if
            end if
          end do
          if (nextn > 0) then
            nn = nextn
          else
            finished = .true.
          end if
        end do
        this%ibotnode(n) = nn
      end do
    end if
    !
    ! -- nullify unneeded gwf pointers
    this%igwfnewtonur => null()

Here is the call graph for this function:

rewet_check()

subroutine gwfnpfmodule::rewet_check	(	class(gwfnpftype)	this,
		integer(i4b), intent(in)	kiter,
		integer(i4b), intent(in)	node,
		real(dp), intent(in)	hm,
		integer(i4b), intent(in)	ibdm,
		integer(i4b), intent(in)	ihc,
		real(dp), dimension(:), intent(inout)	hnew,
		integer(i4b), intent(out)	irewet
	)

This method can be called from any external object that has a head that can be used to rewet the GWF cell node. The ihc value is used to determine if it is a vertical or horizontal connection, which can operate differently depending on user settings.

Definition at line 2494 of file gwf-npf.f90.

    ! -- dummy
    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: kiter
    integer(I4B), intent(in) :: node
    real(DP), intent(in) :: hm
    integer(I4B), intent(in) :: ibdm
    integer(I4B), intent(in) :: ihc
    real(DP), intent(inout), dimension(:) :: hnew
    integer(I4B), intent(out) :: irewet
    ! -- local
    integer(I4B) :: itflg
    real(DP) :: wd, awd, turnon, bbot
    !
    irewet = 0
    !
    ! -- Convert a dry cell to wet if it meets the criteria
    if (this%irewet > 0) then
      itflg = mod(kiter, this%iwetit)
      if (itflg == 0) then
        if (this%ibound(node) == 0 .and. this%wetdry(node) /= dzero) then
          !
          ! -- Calculate wetting elevation
          bbot = this%dis%bot(node)
          wd = this%wetdry(node)
          awd = wd
          if (wd < 0) awd = -wd
          turnon = bbot + awd
          !
          ! -- Check head in adjacent cells to see if wetting elevation has
          !    been reached
          if (ihc == c3d_vertical) then
            !
            ! -- check cell below
            if (ibdm > 0 .and. hm >= turnon) irewet = 1
          else
            if (wd > dzero) then
              !
              ! -- check horizontally adjacent cells
              if (ibdm > 0 .and. hm >= turnon) irewet = 1
            end if
          end if
          !
          if (irewet == 1) then
            ! -- rewet cell; use equation 3a if ihdwet=0; use equation 3b if
            !    ihdwet is not 0.
            if (this%ihdwet == 0) then
              hnew(node) = bbot + this%wetfct * (hm - bbot)
            else
              hnew(node) = bbot + this%wetfct * awd !(hm - bbot)
            end if
            this%ibound(node) = 30000
          end if
        end if
      end if
    end if

sav_sat()

subroutine gwfnpfmodule::sav_sat ( class(gwfnpftype)  this, integer(i4b), intent(in)  ibinun  )

private

Definition at line 2965 of file gwf-npf.f90.

    ! -- dummy
    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: ibinun
    ! -- local
    character(len=16) :: text
    character(len=16), dimension(1) :: auxtxt
    real(DP), dimension(1) :: a
    integer(I4B) :: n
    integer(I4B) :: naux
    !
    ! -- Write the header
    text = '        DATA-SAT'
    naux = 1
    auxtxt(:) = ['             sat']
    call this%dis%record_srcdst_list_header(text, this%name_model, &
                                            this%packName, this%name_model, &
                                            this%packName, naux, auxtxt, ibinun, &
                                            this%dis%nodes, this%iout)
    !
    ! -- Write a zero for Q, and then write saturation as an aux variables
    do n = 1, this%dis%nodes
      a(1) = this%sat(n)
      call this%dis%record_mf6_list_entry(ibinun, n, n, dzero, naux, a)
    end do

sav_spdis()

subroutine gwfnpfmodule::sav_spdis	(	class(gwfnpftype)	this,
		integer(i4b), intent(in)	ibinun
	)

Definition at line 2937 of file gwf-npf.f90.

    ! -- dummy
    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: ibinun
    ! -- local
    character(len=16) :: text
    character(len=16), dimension(3) :: auxtxt
    integer(I4B) :: n
    integer(I4B) :: naux
    !
    ! -- Write the header
    text = '      DATA-SPDIS'
    naux = 3
    auxtxt(:) = ['              qx', '              qy', '              qz']
    call this%dis%record_srcdst_list_header(text, this%name_model, &
                                            this%packName, this%name_model, &
                                            this%packName, naux, auxtxt, ibinun, &
                                            this%dis%nodes, this%iout)
    !
    ! -- Write a zero for Q, and then write qx, qy, qz as aux variables
    do n = 1, this%dis%nodes
      call this%dis%record_mf6_list_entry(ibinun, n, n, dzero, naux, &
                                          this%spdis(:, n))
    end do

set_edge_properties()

subroutine gwfnpfmodule::set_edge_properties ( class(gwfnpftype)  this, integer(i4b), intent(in)  nodedge, integer(i4b), intent(in)  ihcedge, real(dp), intent(in)  q, real(dp), intent(in)  area, real(dp), intent(in)  nx, real(dp), intent(in)  ny, real(dp), intent(in)  distance  )

private

Definition at line 3034 of file gwf-npf.f90.

    ! -- dummy
    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: nodedge
    integer(I4B), intent(in) :: ihcedge
    real(DP), intent(in) :: q
    real(DP), intent(in) :: area
    real(DP), intent(in) :: nx
    real(DP), intent(in) :: ny
    real(DP), intent(in) :: distance
    ! -- local
    integer(I4B) :: lastedge
    !
    this%lastedge = this%lastedge + 1
    lastedge = this%lastedge
    this%nodedge(lastedge) = nodedge
    this%ihcedge(lastedge) = ihcedge
    this%propsedge(1, lastedge) = q
    this%propsedge(2, lastedge) = area
    this%propsedge(3, lastedge) = nx
    this%propsedge(4, lastedge) = ny
    this%propsedge(5, lastedge) = distance
    !
    ! -- If this is the last edge, then the next call must be starting a new
    !    edge properties assignment loop, so need to reset lastedge to 0
    if (this%lastedge == this%nedges) this%lastedge = 0

set_options()

subroutine gwfnpfmodule::set_options	(	class(gwfnpftype)	this,
		type(gwfnpfoptionstype), intent(in)	options
	)

Definition at line 1680 of file gwf-npf.f90.

    ! -- dummy
    class(GwfNpftype) :: this
    type(GwfNpfOptionsType), intent(in) :: options
    !
    this%ithickstrt = options%ithickstrt
    this%ihighcellsat = options%ihighcellsat
    this%iperched = options%iperched
    this%ivarcv = options%ivarcv
    this%idewatcv = options%idewatcv
    this%irewet = options%irewet
    this%wetfct = options%wetfct
    this%iwetit = options%iwetit
    this%ihdwet = options%ihdwet

sgwf_npf_qcalc()

subroutine gwfnpfmodule::sgwf_npf_qcalc ( class(gwfnpftype)  this, integer(i4b), intent(in)  n, integer(i4b), intent(in)  m, real(dp), intent(in)  hn, real(dp), intent(in)  hm, integer(i4b), intent(in)  icon, real(dp), intent(inout)  qnm  )

private

Definition at line 1056 of file gwf-npf.f90.

    ! -- dummy
    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: n
    integer(I4B), intent(in) :: m
    real(DP), intent(in) :: hn
    real(DP), intent(in) :: hm
    integer(I4B), intent(in) :: icon
    real(DP), intent(inout) :: qnm
    ! -- local
    real(DP) :: hyn, hym
    real(DP) :: condnm
    real(DP) :: hntemp, hmtemp
    real(DP) :: satn, satm
    integer(I4B) :: ihc
    !
    ! -- Initialize
    ihc = this%dis%con%ihc(this%dis%con%jas(icon))
    hyn = this%hy_eff(n, m, ihc, ipos=icon)
    hym = this%hy_eff(m, n, ihc, ipos=icon)
    !
    ! -- Calculate conductance
    if (ihc == c3d_vertical) then
      condnm = vcond(this%ibound(n), this%ibound(m), &
                     this%icelltype(n), this%icelltype(m), this%inewton, &
                     this%ivarcv, this%idewatcv, &
                     this%condsat(this%dis%con%jas(icon)), hn, hm, &
                     hyn, hym, &
                     this%sat(n), this%sat(m), &
                     this%dis%top(n), this%dis%top(m), &
                     this%dis%bot(n), this%dis%bot(m), &
                     this%dis%con%hwva(this%dis%con%jas(icon)))
    else
      satn = this%sat(n)
      satm = this%sat(m)
      if (this%ihighcellsat /= 0) then
        call this%highest_cell_saturation(n, m, hn, hm, satn, satm)
      end if

      condnm = hcond(this%ibound(n), this%ibound(m), &
                     this%icelltype(n), this%icelltype(m), &
                     this%inewton, &
                     this%dis%con%ihc(this%dis%con%jas(icon)), &
                     this%icellavg, &
                     this%condsat(this%dis%con%jas(icon)), &
                     hn, hm, satn, satm, hyn, hym, &
                     this%dis%top(n), this%dis%top(m), &
                     this%dis%bot(n), this%dis%bot(m), &
                     this%dis%con%cl1(this%dis%con%jas(icon)), &
                     this%dis%con%cl2(this%dis%con%jas(icon)), &
                     this%dis%con%hwva(this%dis%con%jas(icon)))
    end if
    !
    ! -- Initialize hntemp and hmtemp
    hntemp = hn
    hmtemp = hm
    !
    ! -- Check and adjust for dewatered conditions
    if (this%iperched /= 0) then
      if (this%dis%con%ihc(this%dis%con%jas(icon)) == 0) then
        if (n > m) then
          if (this%icelltype(n) /= 0) then
            if (hn < this%dis%top(n)) hntemp = this%dis%bot(m)
          end if
        else
          if (this%icelltype(m) /= 0) then
            if (hm < this%dis%top(m)) hmtemp = this%dis%bot(n)
          end if
        end if
      end if
    end if
    !
    ! -- Calculate flow positive into cell n
    qnm = condnm * (hmtemp - hntemp)

Here is the call graph for this function:

sgwf_npf_thksat()

subroutine gwfnpfmodule::sgwf_npf_thksat ( class(gwfnpftype)  this, integer(i4b), intent(in)  n, real(dp), intent(in)  hn, real(dp), intent(inout)  thksat  )

private

Definition at line 1033 of file gwf-npf.f90.

    ! -- dummy
    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: n
    real(DP), intent(in) :: hn
    real(DP), intent(inout) :: thksat
    !
    ! -- Standard Formulation
    if (hn >= this%dis%top(n)) then
      thksat = done
    else
      thksat = (hn - this%dis%bot(n)) / (this%dis%top(n) - this%dis%bot(n))
    end if
    !
    ! -- Newton-Raphson Formulation
    if (this%inewton /= 0) then
      thksat = squadraticsaturation(this%dis%top(n), this%dis%bot(n), hn, &
                                    this%satomega)
    end if

Here is the call graph for this function:

sgwf_npf_wdmsg()

subroutine gwfnpfmodule::sgwf_npf_wdmsg ( class(gwfnpftype)  this, integer(i4b), intent(in)  icode, integer(i4b), intent(inout)  ncnvrt, character(len=30), dimension(5), intent(inout)  nodcnvrt, character(len=3), dimension(5), intent(inout)  acnvrt, integer(i4b), intent(inout)  ihdcnv, integer(i4b), intent(in)  kiter, integer(i4b), intent(in)  n  )

private

Definition at line 2554 of file gwf-npf.f90.

    ! -- modules
    use tdismodule, only: kstp, kper
    ! -- dummy
    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: icode
    integer(I4B), intent(inout) :: ncnvrt
    character(len=30), dimension(5), intent(inout) :: nodcnvrt
    character(len=3), dimension(5), intent(inout) :: acnvrt
    integer(I4B), intent(inout) :: ihdcnv
    integer(I4B), intent(in) :: kiter
    integer(I4B), intent(in) :: n
    ! -- local
    integer(I4B) :: l
    ! -- formats
    character(len=*), parameter :: fmtcnvtn = &
      "(1X,/1X,'CELL CONVERSIONS FOR ITER.=',I0, &
       &'  STEP=',I0,'  PERIOD=',I0,'   (NODE or LRC)')"
    character(len=*), parameter :: fmtnode = "(1X,3X,5(A4, A20))"
    !
    ! -- Keep track of cell conversions
    if (icode > 0) then
      ncnvrt = ncnvrt + 1
      call this%dis%noder_to_string(n, nodcnvrt(ncnvrt))
      if (icode == 1) then
        acnvrt(ncnvrt) = 'DRY'
      else
        acnvrt(ncnvrt) = 'WET'
      end if
    end if
    !
    ! -- Print a line if 5 conversions have occurred or if icode indicates that a
    !    partial line should be printed
    if (ncnvrt == 5 .or. (icode == 0 .and. ncnvrt > 0)) then
      if (ihdcnv == 0) write (this%iout, fmtcnvtn) kiter, kstp, kper
      ihdcnv = 1
      write (this%iout, fmtnode) &
        (acnvrt(l), trim(adjustl(nodcnvrt(l))), l=1, ncnvrt)
      ncnvrt = 0
    end if

sgwf_npf_wetdry()

subroutine gwfnpfmodule::sgwf_npf_wetdry ( class(gwfnpftype)  this, integer(i4b), intent(in)  kiter, real(dp), dimension(:), intent(inout)  hnew  )

private

Definition at line 2388 of file gwf-npf.f90.

    ! -- modules
    use tdismodule, only: kstp, kper
    use simmodule, only: store_error, store_error_filename
    use constantsmodule, only: linelength
    ! -- dummy
    class(GwfNpfType) :: this
    integer(I4B), intent(in) :: kiter
    real(DP), intent(inout), dimension(:) :: hnew
    ! -- local
    integer(I4B) :: n, m, ii, ihc
    real(DP) :: ttop, bbot, thick
    integer(I4B) :: ncnvrt, ihdcnv
    character(len=30), dimension(5) :: nodcnvrt
    character(len=30) :: nodestr
    character(len=3), dimension(5) :: acnvrt
    character(len=LINELENGTH) :: errmsg
    integer(I4B) :: irewet
    ! -- formats
    character(len=*), parameter :: fmtnct = &
      "(1X,/1X,'Negative cell thickness at (layer,row,col)', &
      &I4,',',I5,',',I5)"
    character(len=*), parameter :: fmttopbot = &
      &"(1X,'Top elevation, bottom elevation:',1P,2G13.5)"
    character(len=*), parameter :: fmttopbotthk = &
      &"(1X,'Top elevation, bottom elevation, thickness:',1P,3G13.5)"
    character(len=*), parameter :: fmtdrychd = &
      &"(1X,/1X,'CONSTANT-HEAD CELL WENT DRY -- SIMULATION ABORTED')"
    character(len=*), parameter :: fmtni = &
      &"(1X,'CELLID=',a,' ITERATION=',I0,' TIME STEP=',I0,' STRESS PERIOD=',I0)"
    !
    ! -- Initialize
    ncnvrt = 0
    ihdcnv = 0
    !
    ! -- Convert dry cells to wet
    do n = 1, this%dis%nodes
      do ii = this%dis%con%ia(n) + 1, this%dis%con%ia(n + 1) - 1
        m = this%dis%con%ja(ii)
        ihc = this%dis%con%ihc(this%dis%con%jas(ii))
        call this%rewet_check(kiter, n, hnew(m), this%ibound(m), ihc, hnew, &
                              irewet)
        if (irewet == 1) then
          call this%wdmsg(2, ncnvrt, nodcnvrt, acnvrt, ihdcnv, kiter, n)
        end if
      end do
    end do
    !
    ! -- Perform drying
    do n = 1, this%dis%nodes
      !
      ! -- cycle if inactive or confined
      if (this%ibound(n) == 0) cycle
      if (this%icelltype(n) == 0) cycle
      !
      ! -- check for negative cell thickness
      bbot = this%dis%bot(n)
      ttop = this%dis%top(n)
      if (bbot > ttop) then
        write (errmsg, fmtnct) n
        call store_error(errmsg)
        write (errmsg, fmttopbot) ttop, bbot
        call store_error(errmsg)
        call store_error_filename(this%input_fname)
      end if
      !
      ! -- Calculate saturated thickness
      if (this%icelltype(n) /= 0) then
        if (hnew(n) < ttop) ttop = hnew(n)
      end if
      thick = ttop - bbot
      !
      ! -- If thick<0 print message, set hnew, and ibound
      if (thick <= dzero) then
        call this%wdmsg(1, ncnvrt, nodcnvrt, acnvrt, ihdcnv, kiter, n)
        hnew(n) = this%hdry
        if (this%ibound(n) < 0) then
          errmsg = 'CONSTANT-HEAD CELL WENT DRY -- SIMULATION ABORTED'
          call store_error(errmsg)
          write (errmsg, fmttopbotthk) ttop, bbot, thick
          call store_error(errmsg)
          call this%dis%noder_to_string(n, nodestr)
          write (errmsg, fmtni) trim(adjustl(nodestr)), kiter, kstp, kper
          call store_error(errmsg)
          call store_error_filename(this%input_fname)
        end if
        this%ibound(n) = 0
      end if
    end do
    !
    ! -- Print remaining cell conversions
    call this%wdmsg(0, ncnvrt, nodcnvrt, acnvrt, ihdcnv, kiter, n)
    !
    ! -- Change ibound from 30000 to 1
    do n = 1, this%dis%nodes
      if (this%ibound(n) == 30000) this%ibound(n) = 1
    end do

Here is the call graph for this function:

source_griddata()

subroutine gwfnpfmodule::source_griddata

(

class(gwfnpftype)

this

)

Definition at line 1819 of file gwf-npf.f90.

    ! -- modules
    use simmodule, only: count_errors, store_error
    use memorymanagermodule, only: mem_reallocate
    use memorymanagerextmodule, only: mem_set_value, memorystore_release
    use gwfnpfinputmodule, only: gwfnpfparamfoundtype
    ! -- dummy
    class(GwfNpftype) :: this
    ! -- locals
    character(len=LINELENGTH) :: errmsg
    type(GwfNpfParamFoundType) :: found
    logical, dimension(2) :: afound
    integer(I4B), dimension(:), pointer, contiguous :: map
    !
    ! -- set map to convert user input data into reduced data
    map => null()
    if (this%dis%nodes < this%dis%nodesuser) map => this%dis%nodeuser
    !
    ! -- update defaults with idm sourced values
    call mem_set_value(this%icelltype, 'ICELLTYPE', this%input_mempath, map, &
                       found%icelltype)
    call mem_set_value(this%k11, 'K', this%input_mempath, map, found%k, &
                       release=.false.)
    call mem_set_value(this%k33, 'K33', this%input_mempath, map, found%k33)
    call mem_set_value(this%k22, 'K22', this%input_mempath, map, found%k22)
    call mem_set_value(this%wetdry, 'WETDRY', this%input_mempath, map, &
                       found%wetdry)
    call mem_set_value(this%angle1, 'ANGLE1', this%input_mempath, map, &
                       found%angle1)
    call mem_set_value(this%angle2, 'ANGLE2', this%input_mempath, map, &
                       found%angle2)
    call mem_set_value(this%angle3, 'ANGLE3', this%input_mempath, map, &
                       found%angle3)
    !
    ! -- ensure ICELLTYPE was found
    if (.not. found%icelltype) then
      write (errmsg, '(a)') 'Error in GRIDDATA block: ICELLTYPE not found.'
      call store_error(errmsg)
    end if
    !
    ! -- ensure K was found
    if (.not. found%k) then
      write (errmsg, '(a)') 'Error in GRIDDATA block: K not found.'
      call store_error(errmsg)
    end if
    !
    ! -- set error if ik33overk set with no k33
    if (.not. found%k33 .and. this%ik33overk /= 0) then
      write (errmsg, '(a)') 'K33OVERK option specified but K33 not specified.'
      call store_error(errmsg)
    end if
    !
    ! -- set error if ik22overk set with no k22
    if (.not. found%k22 .and. this%ik22overk /= 0) then
      write (errmsg, '(a)') 'K22OVERK option specified but K22 not specified.'
      call store_error(errmsg)
    end if
    !
    ! -- handle found side effects
    if (found%k33) this%ik33 = 1
    if (found%k22) this%ik22 = 1
    if (found%wetdry) this%iwetdry = 1
    if (found%angle1) this%iangle1 = 1
    if (found%angle2) this%iangle2 = 1
    if (found%angle3) this%iangle3 = 1
    !
    ! -- handle not found side effects
    if (.not. found%k33) then
      call mem_set_value(this%k33, 'K', this%input_mempath, map, afound(1), &
                         release=.false.)
    end if
    if (.not. found%k22) then
      call mem_set_value(this%k22, 'K', this%input_mempath, map, afound(2), &
                         release=.false.)
    end if
    if (.not. found%wetdry) call mem_reallocate(this%wetdry, 1, 'WETDRY', &
                                                trim(this%memoryPath))
    if (.not. found%angle1 .and. this%ixt3d == 0) &
      call mem_reallocate(this%angle1, 0, 'ANGLE1', trim(this%memoryPath))
    if (.not. found%angle2 .and. this%ixt3d == 0) &
      call mem_reallocate(this%angle2, 0, 'ANGLE2', trim(this%memoryPath))
    if (.not. found%angle3 .and. this%ixt3d == 0) &
      call mem_reallocate(this%angle3, 0, 'ANGLE3', trim(this%memoryPath))
    !
    ! -- cleanup
    call memorystore_release('K', this%input_mempath)
    !
    ! -- log griddata
    if (this%iout > 0) then
      call this%log_griddata(found)
    end if

Here is the call graph for this function:

source_options()

subroutine gwfnpfmodule::source_options

(

class(gwfnpftype)

this

)

Definition at line 1589 of file gwf-npf.f90.

    ! -- modules
    use simmodule, only: store_error, store_error_filename
    use memorymanagermodule, only: mem_setptr, get_isize
    use memorymanagerextmodule, only: mem_set_value
    use characterstringmodule, only: characterstringtype
    use sourcecommonmodule, only: filein_fname
    use gwfnpfinputmodule, only: gwfnpfparamfoundtype
    ! -- dummy
    class(GwfNpftype) :: this
    ! -- locals
    character(len=LENVARNAME), dimension(3) :: cellavg_method = &
      &[character(len=LENVARNAME) :: 'LOGARITHMIC', 'AMT-LMK', 'AMT-HMK']
    type(gwfnpfparamfoundtype) :: found
    type(CharacterStringType), dimension(:), pointer, contiguous :: tvk6_mempaths
    character(len=LINELENGTH) :: tvk6_filename
    character(len=LENMEMPATH) :: tvk6_mempath
    !
    ! -- update defaults with idm sourced values
    call mem_set_value(this%iprflow, 'IPRFLOW', this%input_mempath, found%iprflow)
    call mem_set_value(this%ipakcb, 'IPAKCB', this%input_mempath, found%ipakcb)
    call mem_set_value(this%icellavg, 'CELLAVG', this%input_mempath, &
                       cellavg_method, found%cellavg)
    call mem_set_value(this%ithickstrt, 'ITHICKSTRT', this%input_mempath, &
                       found%ithickstrt)
    call mem_set_value(this%ihighcellsat, 'IHIGHCELLSAT', this%input_mempath, &
                       found%ihighcellsat)
    call mem_set_value(this%iperched, 'IPERCHED', this%input_mempath, &
                       found%iperched)
    call mem_set_value(this%ivarcv, 'IVARCV', this%input_mempath, found%ivarcv)
    call mem_set_value(this%idewatcv, 'IDEWATCV', this%input_mempath, &
                       found%idewatcv)
    call mem_set_value(this%ixt3d, 'IXT3D', this%input_mempath, found%ixt3d)
    call mem_set_value(this%ixt3drhs, 'IXT3DRHS', this%input_mempath, &
                       found%ixt3drhs)
    call mem_set_value(this%isavspdis, 'ISAVSPDIS', this%input_mempath, &
                       found%isavspdis)
    call mem_set_value(this%isavsat, 'ISAVSAT', this%input_mempath, found%isavsat)
    call mem_set_value(this%ik22overk, 'IK22OVERK', this%input_mempath, &
                       found%ik22overk)
    call mem_set_value(this%ik33overk, 'IK33OVERK', this%input_mempath, &
                       found%ik33overk)
    call mem_set_value(this%inewton, 'INEWTON', this%input_mempath, found%inewton)
    call mem_set_value(this%satomega, 'SATOMEGA', this%input_mempath, &
                       found%satomega)
    call mem_set_value(this%irewet, 'IREWET', this%input_mempath, found%irewet)
    call mem_set_value(this%wetfct, 'WETFCT', this%input_mempath, found%wetfct)
    call mem_set_value(this%iwetit, 'IWETIT', this%input_mempath, found%iwetit)
    call mem_set_value(this%ihdwet, 'IHDWET', this%input_mempath, found%ihdwet)
    !
    ! -- save flows option active
    if (found%ipakcb) this%ipakcb = -1
    !
    ! -- xt3d active with rhs
    if (found%ixt3d .and. found%ixt3drhs) this%ixt3d = 2
    !
    ! -- save specific discharge active
    if (found%isavspdis) this%icalcspdis = this%isavspdis
    !
    ! -- no newton specified
    if (found%inewton) then
      this%inewton = 0
      this%iasym = 0
    end if
    !
    ! -- TVK6 subpackage
    if (filein_fname(tvk6_filename, 'TVK6_FILENAME', &
                     this%input_mempath, this%input_fname)) then
      call mem_setptr(tvk6_mempaths, 'TVK6_MEMPATH', this%input_mempath)
      tvk6_mempath = tvk6_mempaths(1)
      this%intvk = 1 ! tvk active
      call tvk_cr(this%tvk, this%name_model, tvk6_mempath, this%intvk, this%iout)
    end if
    !
    ! -- verify ALTERNATIVE_CELL_AVERAGING input value is supported
    if (found%cellavg) then
      if (this%icellavg == 0) then
        errmsg = 'Unrecognized input value for ALTERNATIVE_CELL_AVERAGING option.'
        call store_error(errmsg)
        call store_error_filename(this%input_fname)
      end if
    end if
    !
    ! -- log options
    if (this%iout > 0) then
      call this%log_options(found)
    end if

Here is the call graph for this function:

store_original_k_arrays()

subroutine gwfnpfmodule::store_original_k_arrays	(	class(gwfnpftype)	this,
		integer(i4b), intent(in)	ncells,
		integer(i4b), intent(in)	njas
	)

The K arrays (K11, etc.) get multiplied by the viscosity ratio so that subsequent uses of K already take into account the effect of viscosity. Thus the original user-specified K array values are lost unless they are backed up in k11input, for example. In a new stress period/time step, the values in k11input are multiplied by the viscosity ratio, not k11 since it contains viscosity-adjusted hydraulic conductivity values.

Definition at line 1417 of file gwf-npf.f90.

    ! -- modules
    use memorymanagermodule, only: mem_allocate
    ! -- dummy
    class(GwfNpftype) :: this
    integer(I4B), intent(in) :: ncells
    integer(I4B), intent(in) :: njas
    ! -- local
    integer(I4B) :: n
    !
    ! -- Retain copy of user-specified K arrays
    do n = 1, ncells
      this%k11input(n) = this%k11(n)
      this%k22input(n) = this%k22(n)
      this%k33input(n) = this%k33(n)
    end do
