lakmodule::lakinputtype Type Reference

input context runtime pointers for LAK More...

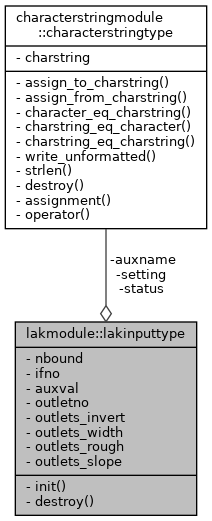

Collaboration diagram for lakmodule::lakinputtype:

Private Member Functions
procedure	init => lak_input_init
procedure	destroy => lak_input_destroy

Private Attributes
integer(i4b), pointer	nbound => null()
integer(i4b), dimension(:), pointer, contiguous	ifno => null()
type(characterstringtype), dimension(:), pointer, contiguous	setting => null()
type(characterstringtype), dimension(:), pointer, contiguous	status => null()
type(characterstringtype), dimension(:), pointer, contiguous	auxname => null()
real(dp), dimension(:), pointer, contiguous	auxval => null()
integer(i4b), dimension(:), pointer, contiguous	outletno => null()
real(dp), dimension(:), pointer, contiguous	outlets_invert => null()
real(dp), dimension(:), pointer, contiguous	outlets_width => null()
real(dp), dimension(:), pointer, contiguous	outlets_rough => null()
real(dp), dimension(:), pointer, contiguous	outlets_slope => null()
integer(i4b), dimension(:), pointer	invert_tslink => null()
	nonzero for OUTLETS_INVERT rows linked to a time series More...
integer(i4b), dimension(:), pointer	width_tslink => null()
	nonzero for OUTLETS_WIDTH rows linked to a time series More...
integer(i4b), dimension(:), pointer	rough_tslink => null()
	nonzero for OUTLETS_ROUGH rows linked to a time series More...
integer(i4b), dimension(:), pointer	slope_tslink => null()
	nonzero for OUTLETS_SLOPE rows linked to a time series More...

Detailed Description

Groups all input context PERIOD and OUTLETS array pointers used at runtime. All pointers are set once in lak_ar and remain valid for the simulation lifetime.

Definition at line 62 of file gwf-lak.f90.

Member Function/Subroutine Documentation

destroy()

procedure lakmodule::lakinputtype::destroy

private

Definition at line 86 of file gwf-lak.f90.

init()

procedure lakmodule::lakinputtype::init

private

Definition at line 85 of file gwf-lak.f90.

Member Data Documentation

auxname

type(characterstringtype), dimension(:), pointer, contiguous lakmodule::lakinputtype::auxname => null()

private

Definition at line 70 of file gwf-lak.f90.

    type(CharacterStringType), dimension(:), pointer, contiguous :: &
      auxname => null()

auxval

real(dp), dimension(:), pointer, contiguous lakmodule::lakinputtype::auxval => null()

private

Definition at line 72 of file gwf-lak.f90.

    real(DP), dimension(:), pointer, contiguous :: &
      auxval => null()

ifno

integer(i4b), dimension(:), pointer, contiguous lakmodule::lakinputtype::ifno => null()

private

Definition at line 65 of file gwf-lak.f90.

    integer(I4B), dimension(:), pointer, contiguous :: ifno => null()

invert_tslink

integer(i4b), dimension(:), pointer lakmodule::lakinputtype::invert_tslink => null()

private

Definition at line 80 of file gwf-lak.f90.

    integer(I4B), dimension(:), pointer :: invert_tslink => null() !< nonzero for OUTLETS_INVERT rows linked to a time series

nbound

integer(i4b), pointer lakmodule::lakinputtype::nbound => null()

private

Definition at line 64 of file gwf-lak.f90.

    integer(I4B), pointer :: nbound => null()

outletno

integer(i4b), dimension(:), pointer, contiguous lakmodule::lakinputtype::outletno => null()

private

Definition at line 75 of file gwf-lak.f90.

    integer(I4B), dimension(:), pointer, contiguous :: outletno => null()

outlets_invert

real(dp), dimension(:), pointer, contiguous lakmodule::lakinputtype::outlets_invert => null()

private

Definition at line 76 of file gwf-lak.f90.

    real(DP), dimension(:), pointer, contiguous :: outlets_invert => null()

outlets_rough

real(dp), dimension(:), pointer, contiguous lakmodule::lakinputtype::outlets_rough => null()

private

Definition at line 78 of file gwf-lak.f90.

    real(DP), dimension(:), pointer, contiguous :: outlets_rough => null()

outlets_slope

real(dp), dimension(:), pointer, contiguous lakmodule::lakinputtype::outlets_slope => null()

private

Definition at line 79 of file gwf-lak.f90.

    real(DP), dimension(:), pointer, contiguous :: outlets_slope => null()

outlets_width

real(dp), dimension(:), pointer, contiguous lakmodule::lakinputtype::outlets_width => null()

private

Definition at line 77 of file gwf-lak.f90.

    real(DP), dimension(:), pointer, contiguous :: outlets_width => null()

rough_tslink

integer(i4b), dimension(:), pointer lakmodule::lakinputtype::rough_tslink => null()

private

Definition at line 82 of file gwf-lak.f90.

    integer(I4B), dimension(:), pointer :: rough_tslink => null() !< nonzero for OUTLETS_ROUGH rows linked to a time series

setting

type(characterstringtype), dimension(:), pointer, contiguous lakmodule::lakinputtype::setting => null()

private

Definition at line 66 of file gwf-lak.f90.

    type(CharacterStringType), dimension(:), pointer, contiguous :: &
      setting => null()

slope_tslink

integer(i4b), dimension(:), pointer lakmodule::lakinputtype::slope_tslink => null()

private

Definition at line 83 of file gwf-lak.f90.

    integer(I4B), dimension(:), pointer :: slope_tslink => null() !< nonzero for OUTLETS_SLOPE rows linked to a time series

status

type(characterstringtype), dimension(:), pointer, contiguous lakmodule::lakinputtype::status => null()

private

Definition at line 68 of file gwf-lak.f90.

    type(CharacterStringType), dimension(:), pointer, contiguous :: &
      status => null()

width_tslink

integer(i4b), dimension(:), pointer lakmodule::lakinputtype::width_tslink => null()

private

Definition at line 81 of file gwf-lak.f90.

    integer(I4B), dimension(:), pointer :: width_tslink => null() !< nonzero for OUTLETS_WIDTH rows linked to a time series

---

The documentation for this type was generated from the following file:

• /home/runner/work/modflow6/modflow6/src/Model/GroundWaterFlow/gwf-lak.f90
