listloadmodule::listloadtype Type Referenceabstract

list input loader for dynamic packages. More...

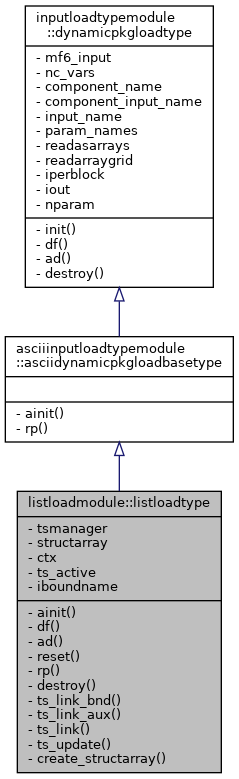

Inheritance diagram for listloadmodule::listloadtype:
Inheritance graph

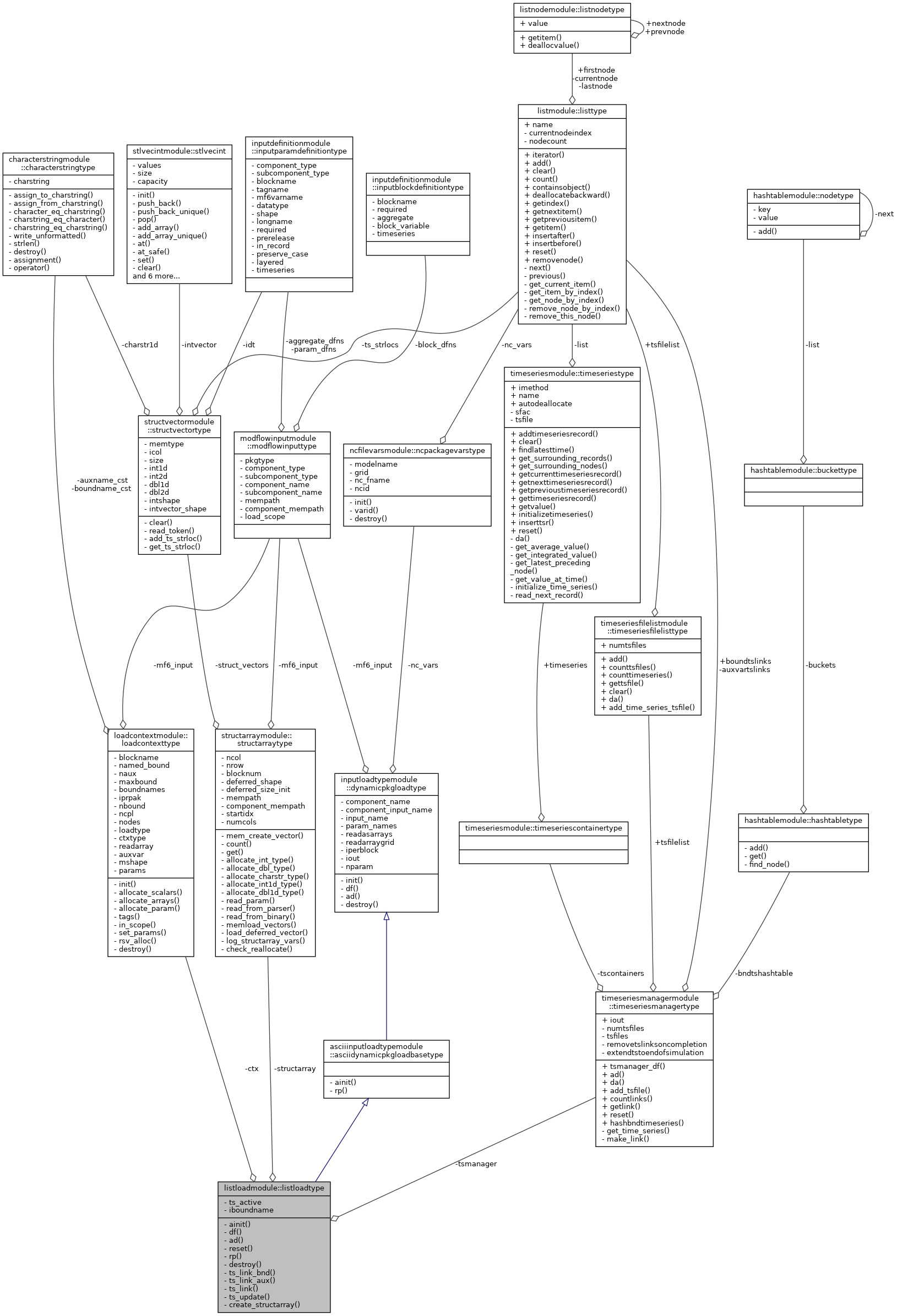

Collaboration diagram for listloadmodule::listloadtype:
Collaboration graph

Public Member Functions

procedure ainit (this, mf6_input, component_name, component_input_name, input_name, iperblock, parser, iout)
procedure df (this)
procedure ts_advance (this)
procedure reset (this)
procedure rp (this, parser)
procedure destroy (this)
procedure create_structarray (this)
procedure apply_persistent_settings (this)
 Resolve this period's rows for an advanced package's TS-capable fields into their permanent, feature-indexed backing arrays.
procedure(load_init_if), deferred ainit (this, mf6_input, component_name, component_input_name, input_name, iperblock, parser, iout)
procedure(period_load_if), deferred rp (this, parser)
procedure init (this, mf6_input, component_name, component_input_name, input_name, iperblock, iout)
 initialize dynamic package loader
procedure df (this)
 dynamic package loader define
procedure ts_advance (this)
 dynamic package loader advance
procedure destroy (this)
 dynamic package loader destroy

Public Attributes

type(timeseriesmanagertype), pointer tsmanager => null()
type(structarraytype), pointer structarray => null()
type(loadcontexttype) ctx
type(loadmf6filetype) static_loader
logical(lgp) ts_active
 .true. if TS files are loaded
type(modflowinputtype) mf6_input
 description of modflow6 input
type(ncpackagevarstype), pointer nc_vars => null()
character(len=lencomponentname) component_name
 name of component
character(len=linelength) component_input_name
 component input name, e.g. model name file
character(len=linelength) input_name
 input name, e.g. package *.chd file
character(len=linelength), dimension(:), allocatable param_names
 dynamic param tagnames
logical(lgp) readasarrays
 readasarrays style input package
logical(lgp) readarraygrid
 readarraygrid style input package
logical(lgp) has_keystring
 period block uses keystring-based dispatch
integer(i4b) iperblock
 index of period block on block definition list
integer(i4b) iout
 inunit number for logging
integer(i4b) nparam
 number of in scope params

Detailed Description

Create and update input context for list based period blocks.

Definition at line 32 of file Mf6FileList.f90.

Member Function/Subroutine Documentation

◆ ainit() [1/2]

procedure(load_init_if), deferred asciiinputloadtypemodule::asciidynamicpkgloadbasetype::ainit ( class(asciidynamicpkgloadbasetype), intent(inout) this,
type(modflowinputtype), intent(in) mf6_input,
character(len=*), intent(in) component_name,
character(len=*), intent(in) component_input_name,
character(len=*), intent(in) input_name,
integer(i4b), intent(in) iperblock,
type(blockparsertype), intent(inout), pointer parser,
integer(i4b), intent(in) iout )
pure virtualinherited
Parameters
[in]mf6_inputdescription of input
[in]component_namecomponent name
[in]component_input_namecomponent input name, e.g. model name file
[in]input_nameinput name, e.g. package *.chd file
[in]iperblockindex of period block on block definition list
[in,out]parserblock parser

Definition at line 24 of file AsciiInputLoadType.f90.

◆ ainit() [2/2]

procedure listloadmodule::listloadtype::ainit ( class(listloadtype), intent(inout) this,
type(modflowinputtype), intent(in) mf6_input,
character(len=*), intent(in) component_name,
character(len=*), intent(in) component_input_name,
character(len=*), intent(in) input_name,
integer(i4b), intent(in) iperblock,
type(blockparsertype), intent(inout), pointer parser,
integer(i4b), intent(in) iout )

Definition at line 39 of file Mf6FileList.f90.

◆ apply_persistent_settings()

procedure listloadmodule::listloadtype::apply_persistent_settings ( class(listloadtype), intent(inout) this)

Every row's IFNO is validated against maxbound before use.

Definition at line 46 of file Mf6FileList.f90.

◆ create_structarray()

procedure listloadmodule::listloadtype::create_structarray ( class(listloadtype), intent(inout) this)

Definition at line 45 of file Mf6FileList.f90.

◆ destroy() [1/2]

procedure inputloadtypemodule::dynamicpkgloadtype::destroy ( class(dynamicpkgloadtype), intent(inout) this)
inherited

Definition at line 99 of file InputLoadType.f90.

◆ destroy() [2/2]

procedure listloadmodule::listloadtype::destroy ( class(listloadtype), intent(inout) this)

Definition at line 44 of file Mf6FileList.f90.

◆ df() [1/2]

procedure inputloadtypemodule::dynamicpkgloadtype::df ( class(dynamicpkgloadtype), intent(inout) this)
inherited

Definition at line 97 of file InputLoadType.f90.

◆ df() [2/2]

procedure listloadmodule::listloadtype::df ( class(listloadtype), intent(inout) this)

Definition at line 40 of file Mf6FileList.f90.

◆ init()

procedure inputloadtypemodule::dynamicpkgloadtype::init ( class(dynamicpkgloadtype), intent(inout) this,
type(modflowinputtype), intent(in) mf6_input,
character(len=*), intent(in) component_name,
character(len=*), intent(in) component_input_name,
character(len=*), intent(in) input_name,
integer(i4b), intent(in) iperblock,
integer(i4b), intent(in) iout )
inherited

Any managed memory pointed to from model/package context must be allocated when dynamic loader is initialized.

Definition at line 96 of file InputLoadType.f90.

◆ reset()

procedure listloadmodule::listloadtype::reset ( class(listloadtype), intent(inout) this)

Definition at line 42 of file Mf6FileList.f90.

◆ rp() [1/2]

procedure(period_load_if), deferred asciiinputloadtypemodule::asciidynamicpkgloadbasetype::rp ( class(asciidynamicpkgloadbasetype), intent(inout) this,
type(blockparsertype), intent(inout), pointer parser )
pure virtualinherited
Parameters
[in,out]parserblock parser

Definition at line 25 of file AsciiInputLoadType.f90.

◆ rp() [2/2]

procedure listloadmodule::listloadtype::rp ( class(listloadtype), intent(inout) this,
type(blockparsertype), intent(inout), pointer parser )

Definition at line 43 of file Mf6FileList.f90.

◆ ts_advance() [1/2]

procedure inputloadtypemodule::dynamicpkgloadtype::ts_advance ( class(dynamicpkgloadtype), intent(inout) this)
inherited

Definition at line 98 of file InputLoadType.f90.

◆ ts_advance() [2/2]

procedure listloadmodule::listloadtype::ts_advance ( class(listloadtype), intent(inout) this)

Definition at line 41 of file Mf6FileList.f90.

Member Data Documentation

◆ component_input_name

character(len=linelength) inputloadtypemodule::dynamicpkgloadtype::component_input_name
inherited

Definition at line 86 of file InputLoadType.f90.

86 character(len=LINELENGTH) :: component_input_name !< component input name, e.g. model name file

◆ component_name

character(len=lencomponentname) inputloadtypemodule::dynamicpkgloadtype::component_name
inherited

Definition at line 85 of file InputLoadType.f90.

85 character(len=LENCOMPONENTNAME) :: component_name !< name of component

◆ ctx

type(loadcontexttype) listloadmodule::listloadtype::ctx

Definition at line 35 of file Mf6FileList.f90.

35 type(LoadContextType) :: ctx

◆ has_keystring

logical(lgp) inputloadtypemodule::dynamicpkgloadtype::has_keystring
inherited

Definition at line 91 of file InputLoadType.f90.

91 logical(LGP) :: has_keystring !< period block uses keystring-based dispatch

◆ input_name

character(len=linelength) inputloadtypemodule::dynamicpkgloadtype::input_name
inherited

Definition at line 87 of file InputLoadType.f90.

87 character(len=LINELENGTH) :: input_name !< input name, e.g. package *.chd file

◆ iout

integer(i4b) inputloadtypemodule::dynamicpkgloadtype::iout
inherited

Definition at line 93 of file InputLoadType.f90.

93 integer(I4B) :: iout !< inunit number for logging

◆ iperblock

integer(i4b) inputloadtypemodule::dynamicpkgloadtype::iperblock
inherited

Definition at line 92 of file InputLoadType.f90.

92 integer(I4B) :: iperblock !< index of period block on block definition list

◆ mf6_input

type(modflowinputtype) inputloadtypemodule::dynamicpkgloadtype::mf6_input
inherited

Definition at line 83 of file InputLoadType.f90.

83 type(ModflowInputType) :: mf6_input !< description of modflow6 input

◆ nc_vars

type(ncpackagevarstype), pointer inputloadtypemodule::dynamicpkgloadtype::nc_vars => null()
inherited

Definition at line 84 of file InputLoadType.f90.

◆ nparam

integer(i4b) inputloadtypemodule::dynamicpkgloadtype::nparam
inherited

Definition at line 94 of file InputLoadType.f90.

94 integer(I4B) :: nparam !< number of in scope params

◆ param_names

character(len=linelength), dimension(:), allocatable inputloadtypemodule::dynamicpkgloadtype::param_names
inherited

Definition at line 88 of file InputLoadType.f90.

88 character(len=LINELENGTH), dimension(:), allocatable :: param_names !< dynamic param tagnames

◆ readarraygrid

logical(lgp) inputloadtypemodule::dynamicpkgloadtype::readarraygrid
inherited

Definition at line 90 of file InputLoadType.f90.

90 logical(LGP) :: readarraygrid !< readarraygrid style input package

◆ readasarrays

logical(lgp) inputloadtypemodule::dynamicpkgloadtype::readasarrays
inherited

Definition at line 89 of file InputLoadType.f90.

89 logical(LGP) :: readasarrays !< readasarrays style input package

◆ static_loader

type(loadmf6filetype) listloadmodule::listloadtype::static_loader

Definition at line 36 of file Mf6FileList.f90.

36 type(LoadMf6FileType) :: static_loader ! persistent static loader

◆ structarray

type(structarraytype), pointer listloadmodule::listloadtype::structarray => null()

Definition at line 34 of file Mf6FileList.f90.

◆ ts_active

logical(lgp) listloadmodule::listloadtype::ts_active

Definition at line 37 of file Mf6FileList.f90.

37 logical(LGP) :: ts_active !< .true. if TS files are loaded

◆ tsmanager

type(timeseriesmanagertype), pointer listloadmodule::listloadtype::tsmanager => null()

Definition at line 33 of file Mf6FileList.f90.


The documentation for this type was generated from the following file:
  • /home/runner/work/modflow6/modflow6/src/Utilities/Idm/mf6blockfile/Mf6FileList.f90
