loadcontextmodule::loadcontexttype Type Reference

Input load context for generic dynamic loaders and StructArray based static loads. Classifies the input, determines in-scope parameters, and manages memory-manager scalars and array pointers. More...

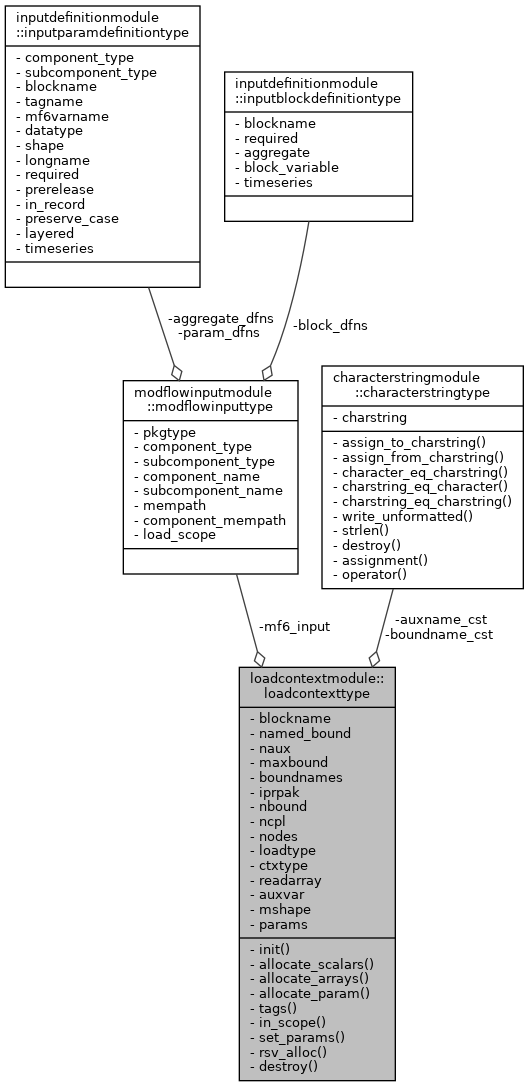

Collaboration diagram for loadcontextmodule::loadcontexttype:
Collaboration graph

Public Member Functions

procedure init (this, mf6_input, blockname, named_bound)
 Initialize the load context.
procedure allocate_arrays (this)
 allocate arrays
procedure allocate_params (this)
 Allocate each in-scope parameter in the memory manager.
procedure rsv_alloc (this, mf6varname)
 allocate a read state variable
procedure destroy (this)
 destroy input context object
procedure check_developmode (this, input_name)
 Check whether any in-scope parameter is a development-mode feature.
procedure subindex_dependency (this, tagname, dimname, subindex_tagname)
 Hardcoded per-package dependency for a subindex param with no SHAPE of its own – same category of special-casing as in_scope, for a dimension name and subindex field instead.
procedure build_keystring_items (this)
 Build the per-item descriptor table, the single source of truth for how each keystring item is allocated and applied.
procedure resolve_item_nfeatures (this, item_tagname, dimname, default_nfeatures)
 Per-item feature count from a named dimension, falling back to default_nfeatures if unset. Populated-then-released is an error.

Public Attributes

integer(i4b), pointer naux => null()
 number of auxiliary variables
integer(i4b), pointer maxbound => null()
 value associated with named_bound
integer(i4b), pointer boundnames => null()
 are bound names optioned
integer(i4b), pointer iprpak => null()
 print input option
integer(i4b), pointer nbound => null()
 number of bounds in period
integer(i4b), pointer ncpl => null()
 ncpl associated with model shape
integer(i4b), pointer nodes => null()
 nodes associated with model shape
integer(i4b), dimension(:), pointer, contiguous mshape => null()
 model shape
type(characterstringtype), dimension(:), pointer, contiguous auxname_cst => null()
 array of auxiliary names
type(characterstringtype), dimension(:), pointer, contiguous boundname_cst => null()
 array of bound names
real(dp), dimension(:, :), pointer, contiguous auxvar => null()
 auxiliary variable array
integer(i4b) loadtype
 load type enum: LIST, LAYERARRAY, GRIDARRAY, KEYSTRING
logical(lgp) set_scalars = .false.
 .true. when dimension scalars must be set
logical(lgp) set_mshape = .false.
 .true. when model shape is load dependency
logical(lgp) is_exchange = .false.
 .true. for exchange contexts
logical(lgp) is_advanced = .false.
 .true. for an advanced package, any loadtype
character(len=lenvarname) blockname
 load block name
character(len=lenvarname) named_bound
 name of dimension variable for maxbound; defaults to MAXBOUND
integer(i4b) nleading = 0
 count of leading (pre-keystring) columns
character(len=linelength), dimension(:), allocatable params
 in-scope param tagnames
type(modflowinputtype) mf6_input
 description of input
logical(lgp) keystring_by_feature = .false.
 .true. for feature-addressed (IFNO/NUMBER/BNDNO) KEYSTRING loadtype
logical(lgp) keystring_by_node = .false.
 .true. for CELLID-addressed (e.g. TVK/TVS) KEYSTRING loadtype
logical(lgp) has_setting_dispatch = .false.
 .true. when keystring_by_feature .or. keystring_by_node
type(inputparamdefinitiontype), pointer setting_idt => null()
 internal idt for SETTING column
integer(i4b) nkeystring_items = 0
 count of expanded keystring items (0 for non-keystring)
type(keystringitemtype), dimension(:), allocatable keystring_items
character(len=lenvarname) feature_id_varname = ''
 leading id column mf6varname (feature-addressed)

Private Member Functions

procedure, private resolve_context (this)
 Set context flags from input load_scope and component metadata.
procedure, private resolve_loadtype (this)
 Determine loadtype from block and param definitions.
procedure, private set_params (this)
 set set of in scope parameters for package
procedure, private keystring_item_names (this, item_names, head_nbody, item_is_body, nkeystring_items)
 Return keystring item column names, per-head body counts, and body flags. A RECORD group's trailing columns are body members; its head and any direct-dispatch param are not.
procedure, private resolve_dimensions (this)
 Resolve dimension scalars and scale keystring maxbound.
procedure, private scale_keystring_maxbound (this)
 Scale maxbound (a feature or node count) by the number of KEYSTRING items, so every feature can use every setting in one period.
procedure, private allocate_param (this, idt)
 allocate a package dynamic input parameter
procedure, private in_scope (this, tagname)
 Return .true. if an optional parameter is active for this load. Required/structural params are handled by the caller; generic conditions are checked first, then package-specific ones by subcomponent_type.
procedure, private option_check (this, varname, threshold)
 Return .true. if a memory-manager integer option variable exceeds a threshold.
procedure, private resolve_nfeatures (this)
 Resolve the permanent array's feature count. The explicit DIMENSIONS dimension (named_bound) is authoritative when present; PACKAGEDATA row count is the fallback. Both present and disagreeing is an error.
procedure, private shape_param_is_array (this, shape_varname)
 Is shape_varname a per-feature array (PACKAGEDATA) rather than a package-wide scalar (DIMENSIONS)?

Detailed Description

Definition at line 89 of file LoadContext.f90.

Member Function/Subroutine Documentation

◆ allocate_arrays()

procedure loadcontextmodule::loadcontexttype::allocate_arrays ( class(loadcontexttype) this)

Call after input parameters are allocated: after load_params() with create for array-based loaders, or after all mem_create_vector() calls for list-based load.

Definition at line 128 of file LoadContext.f90.

◆ allocate_param()

procedure, private loadcontextmodule::loadcontexttype::allocate_param ( class(loadcontexttype) this,
type(inputparamdefinitiontype), pointer idt )
private

Called only from allocate_params(), itself called only by the LAYERARRAY/GRIDARRAY loaders – thisloadtype is never LIST here.

Definition at line 139 of file LoadContext.f90.

◆ allocate_params()

procedure loadcontextmodule::loadcontexttype::allocate_params ( class(loadcontexttype) this)

Call after init() for array-based loaders (LAYERARRAY, GRIDARRAY) that need memory-manager storage allocated for every in-scope parameter. Loaders access thisparams and size(thisparams) directly.

Definition at line 129 of file LoadContext.f90.

◆ build_keystring_items()

procedure loadcontextmodule::loadcontexttype::build_keystring_items ( class(loadcontexttype) this)

Definition at line 144 of file LoadContext.f90.

◆ check_developmode()

procedure loadcontextmodule::loadcontexttype::check_developmode ( class(loadcontexttype) this,
character(len=*), intent(in) input_name )

Definition at line 140 of file LoadContext.f90.

◆ destroy()

procedure loadcontextmodule::loadcontexttype::destroy ( class(loadcontexttype) this)

Definition at line 131 of file LoadContext.f90.

◆ in_scope()

procedure, private loadcontextmodule::loadcontexttype::in_scope ( class(loadcontexttype) this,
character(len=*), intent(in) tagname )
private

Definition at line 141 of file LoadContext.f90.

◆ init()

procedure loadcontextmodule::loadcontexttype::init ( class(loadcontexttype) this,
type(modflowinputtype), intent(in) mf6_input,
character(len=*), intent(in), optional blockname,
character(len=*), intent(in), optional named_bound )

Classifies the input, builds the in-scope parameter list, and resolves memory-manager dimension scalars.

Definition at line 127 of file LoadContext.f90.

◆ keystring_item_names()

procedure, private loadcontextmodule::loadcontexttype::keystring_item_names ( class(loadcontexttype) this,
character(len=linelength), dimension(:), intent(out), allocatable item_names,
integer(i4b), dimension(:), intent(out), allocatable head_nbody,
logical(lgp), dimension(:), intent(out), allocatable item_is_body,
integer(i4b), intent(out) nkeystring_items )
private

Definition at line 136 of file LoadContext.f90.

◆ option_check()

procedure, private loadcontextmodule::loadcontexttype::option_check ( class(loadcontexttype) this,
character(len=*), intent(in) varname,
integer(i4b), intent(in) threshold )
private

Definition at line 143 of file LoadContext.f90.

◆ resolve_context()

procedure, private loadcontextmodule::loadcontexttype::resolve_context ( class(loadcontexttype) this)
private

Definition at line 133 of file LoadContext.f90.

◆ resolve_dimensions()

procedure, private loadcontextmodule::loadcontexttype::resolve_dimensions ( class(loadcontexttype) this)
private

Definition at line 137 of file LoadContext.f90.

◆ resolve_item_nfeatures()

procedure loadcontextmodule::loadcontexttype::resolve_item_nfeatures ( class(loadcontexttype) this,
character(len=*), intent(in) item_tagname,
character(len=*), intent(in) dimname,
integer(i4b), intent(in) default_nfeatures )

Definition at line 146 of file LoadContext.f90.

◆ resolve_loadtype()

procedure, private loadcontextmodule::loadcontexttype::resolve_loadtype ( class(loadcontexttype) this)
private

Definition at line 134 of file LoadContext.f90.

◆ resolve_nfeatures()

procedure, private loadcontextmodule::loadcontexttype::resolve_nfeatures ( class(loadcontexttype) this)
private

Definition at line 145 of file LoadContext.f90.

◆ rsv_alloc()

procedure loadcontextmodule::loadcontexttype::rsv_alloc ( class(loadcontexttype) this,
character(len=*), intent(in) mf6varname )

Create a read state variable, e.g. 'INRECHARGE', set to RS_UNSET. Loaders update it for each period block (see RS_*).

Definition at line 130 of file LoadContext.f90.

◆ scale_keystring_maxbound()

procedure, private loadcontextmodule::loadcontexttype::scale_keystring_maxbound ( class(loadcontexttype) this)
private

Definition at line 138 of file LoadContext.f90.

◆ set_params()

procedure, private loadcontextmodule::loadcontexttype::set_params ( class(loadcontexttype) this)
private

Definition at line 135 of file LoadContext.f90.

◆ shape_param_is_array()

procedure, private loadcontextmodule::loadcontexttype::shape_param_is_array ( class(loadcontexttype) this,
character(len=*), intent(in) shape_varname )
private

Definition at line 147 of file LoadContext.f90.

◆ subindex_dependency()

procedure loadcontextmodule::loadcontexttype::subindex_dependency ( class(loadcontexttype) this,
character(len=*), intent(in) tagname,
character(len=lenvarname), intent(out) dimname,
character(len=lenvarname), intent(out) subindex_tagname )

Definition at line 142 of file LoadContext.f90.

Member Data Documentation

◆ auxname_cst

type(characterstringtype), dimension(:), pointer, contiguous loadcontextmodule::loadcontexttype::auxname_cst => null()

Definition at line 99 of file LoadContext.f90.

◆ auxvar

real(dp), dimension(:, :), pointer, contiguous loadcontextmodule::loadcontexttype::auxvar => null()

Definition at line 103 of file LoadContext.f90.

◆ blockname

character(len=lenvarname) loadcontextmodule::loadcontexttype::blockname

Definition at line 112 of file LoadContext.f90.

112 character(len=LENVARNAME) :: blockname !< load block name

◆ boundname_cst

type(characterstringtype), dimension(:), pointer, contiguous loadcontextmodule::loadcontexttype::boundname_cst => null()

Definition at line 101 of file LoadContext.f90.

◆ boundnames

integer(i4b), pointer loadcontextmodule::loadcontexttype::boundnames => null()

Definition at line 93 of file LoadContext.f90.

◆ feature_id_varname

character(len=lenvarname) loadcontextmodule::loadcontexttype::feature_id_varname = ''

Definition at line 124 of file LoadContext.f90.

◆ has_setting_dispatch

logical(lgp) loadcontextmodule::loadcontexttype::has_setting_dispatch = .false.

Definition at line 120 of file LoadContext.f90.

◆ iprpak

integer(i4b), pointer loadcontextmodule::loadcontexttype::iprpak => null()

Definition at line 94 of file LoadContext.f90.

◆ is_advanced

logical(lgp) loadcontextmodule::loadcontexttype::is_advanced = .false.

Definition at line 110 of file LoadContext.f90.

◆ is_exchange

logical(lgp) loadcontextmodule::loadcontexttype::is_exchange = .false.

Definition at line 109 of file LoadContext.f90.

◆ keystring_by_feature

logical(lgp) loadcontextmodule::loadcontexttype::keystring_by_feature = .false.

Definition at line 118 of file LoadContext.f90.

◆ keystring_by_node

logical(lgp) loadcontextmodule::loadcontexttype::keystring_by_node = .false.

Definition at line 119 of file LoadContext.f90.

◆ keystring_items

type(keystringitemtype), dimension(:), allocatable loadcontextmodule::loadcontexttype::keystring_items

Definition at line 123 of file LoadContext.f90.

123 type(KeystringItemType), allocatable :: keystring_items(:)

◆ loadtype

integer(i4b) loadcontextmodule::loadcontexttype::loadtype

Definition at line 106 of file LoadContext.f90.

106 integer(I4B) :: loadtype !< load type enum: LIST, LAYERARRAY, GRIDARRAY, KEYSTRING

◆ maxbound

integer(i4b), pointer loadcontextmodule::loadcontexttype::maxbound => null()

Definition at line 92 of file LoadContext.f90.

◆ mf6_input

type(modflowinputtype) loadcontextmodule::loadcontexttype::mf6_input

Definition at line 116 of file LoadContext.f90.

116 type(ModflowInputType) :: mf6_input !< description of input

◆ mshape

integer(i4b), dimension(:), pointer, contiguous loadcontextmodule::loadcontexttype::mshape => null()

Definition at line 98 of file LoadContext.f90.

◆ named_bound

character(len=lenvarname) loadcontextmodule::loadcontexttype::named_bound

Definition at line 113 of file LoadContext.f90.

113 character(len=LENVARNAME) :: named_bound !< name of dimension variable for maxbound; defaults to MAXBOUND

◆ naux

integer(i4b), pointer loadcontextmodule::loadcontexttype::naux => null()

Definition at line 91 of file LoadContext.f90.

◆ nbound

integer(i4b), pointer loadcontextmodule::loadcontexttype::nbound => null()

Definition at line 95 of file LoadContext.f90.

◆ ncpl

integer(i4b), pointer loadcontextmodule::loadcontexttype::ncpl => null()

Definition at line 96 of file LoadContext.f90.

◆ nkeystring_items

integer(i4b) loadcontextmodule::loadcontexttype::nkeystring_items = 0

Definition at line 122 of file LoadContext.f90.

◆ nleading

integer(i4b) loadcontextmodule::loadcontexttype::nleading = 0

Definition at line 114 of file LoadContext.f90.

◆ nodes

integer(i4b), pointer loadcontextmodule::loadcontexttype::nodes => null()

Definition at line 97 of file LoadContext.f90.

◆ params

character(len=linelength), dimension(:), allocatable loadcontextmodule::loadcontexttype::params

Definition at line 115 of file LoadContext.f90.

115 character(len=LINELENGTH), dimension(:), allocatable :: params !< in-scope param tagnames

◆ set_mshape

logical(lgp) loadcontextmodule::loadcontexttype::set_mshape = .false.

Definition at line 108 of file LoadContext.f90.

◆ set_scalars

logical(lgp) loadcontextmodule::loadcontexttype::set_scalars = .false.

Definition at line 107 of file LoadContext.f90.

◆ setting_idt

type(inputparamdefinitiontype), pointer loadcontextmodule::loadcontexttype::setting_idt => null()

Definition at line 121 of file LoadContext.f90.


The documentation for this type was generated from the following file:
