mawmodule::mawinputtype Type Reference

input context data pointers for MAW. More...

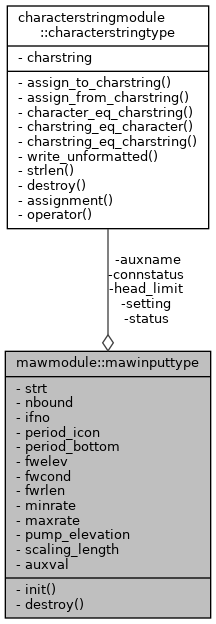

Collaboration diagram for mawmodule::mawinputtype:
Collaboration graph

Public Member Functions

procedure init (this, mempath, naux)
 Bind MawInputType pointers to input context arrays.
procedure destroy (this)
 Nullify all MawInputType pointers.

Public Attributes

real(dp), dimension(:), pointer, contiguous strt => null()
integer(i4b), dimension(:), pointer strt_tslink => null()
 nonzero for STRT rows linked to a time series
integer(i4b), pointer nbound => null()
integer(i4b), dimension(:), pointer, contiguous ifno => null()
type(characterstringtype), dimension(:), pointer, contiguous setting => null()
type(characterstringtype), dimension(:), pointer, contiguous status => null()
integer(i4b), dimension(:), pointer, contiguous period_icon => null()
type(characterstringtype), dimension(:), pointer, contiguous connstatus => null()
real(dp), dimension(:), pointer, contiguous period_bottom => null()
type(characterstringtype), dimension(:), pointer, contiguous head_limit => null()
real(dp), dimension(:), pointer, contiguous fwelev => null()
real(dp), dimension(:), pointer, contiguous fwcond => null()
real(dp), dimension(:), pointer, contiguous fwrlen => null()
real(dp), dimension(:), pointer, contiguous minrate => null()
real(dp), dimension(:), pointer, contiguous maxrate => null()
real(dp), dimension(:), pointer, contiguous pump_elevation => null()
real(dp), dimension(:), pointer, contiguous scaling_length => null()
type(characterstringtype), dimension(:), pointer, contiguous auxname => null()
real(dp), dimension(:), pointer, contiguous auxval => null()

Detailed Description

Holds persistent pointers to input context arrays used at runtime.

Definition at line 58 of file gwf-maw.f90.

Member Function/Subroutine Documentation

◆ destroy()

procedure mawmodule::mawinputtype::destroy ( class(mawinputtype), intent(inout) this)

Definition at line 88 of file gwf-maw.f90.

◆ init()

procedure mawmodule::mawinputtype::init ( class(mawinputtype), intent(inout) this,
character(len=*), intent(in) mempath,
integer(i4b), intent(in) naux )

Values are updated from the input context each stress period including integrated timeseries for supported arrays.

Definition at line 87 of file gwf-maw.f90.

Member Data Documentation

◆ auxname

type(characterstringtype), dimension(:), pointer, contiguous mawmodule::mawinputtype::auxname => null()

Definition at line 82 of file gwf-maw.f90.

◆ auxval

real(dp), dimension(:), pointer, contiguous mawmodule::mawinputtype::auxval => null()

Definition at line 84 of file gwf-maw.f90.

◆ connstatus

type(characterstringtype), dimension(:), pointer, contiguous mawmodule::mawinputtype::connstatus => null()

Definition at line 70 of file gwf-maw.f90.

◆ fwcond

real(dp), dimension(:), pointer, contiguous mawmodule::mawinputtype::fwcond => null()

Definition at line 76 of file gwf-maw.f90.

◆ fwelev

real(dp), dimension(:), pointer, contiguous mawmodule::mawinputtype::fwelev => null()

Definition at line 75 of file gwf-maw.f90.

◆ fwrlen

real(dp), dimension(:), pointer, contiguous mawmodule::mawinputtype::fwrlen => null()

Definition at line 77 of file gwf-maw.f90.

◆ head_limit

type(characterstringtype), dimension(:), pointer, contiguous mawmodule::mawinputtype::head_limit => null()

Definition at line 73 of file gwf-maw.f90.

◆ ifno

integer(i4b), dimension(:), pointer, contiguous mawmodule::mawinputtype::ifno => null()

Definition at line 64 of file gwf-maw.f90.

◆ maxrate

real(dp), dimension(:), pointer, contiguous mawmodule::mawinputtype::maxrate => null()

Definition at line 79 of file gwf-maw.f90.

◆ minrate

real(dp), dimension(:), pointer, contiguous mawmodule::mawinputtype::minrate => null()

Definition at line 78 of file gwf-maw.f90.

◆ nbound

integer(i4b), pointer mawmodule::mawinputtype::nbound => null()

Definition at line 63 of file gwf-maw.f90.

◆ period_bottom

real(dp), dimension(:), pointer, contiguous mawmodule::mawinputtype::period_bottom => null()

Definition at line 72 of file gwf-maw.f90.

◆ period_icon

integer(i4b), dimension(:), pointer, contiguous mawmodule::mawinputtype::period_icon => null()

Definition at line 69 of file gwf-maw.f90.

◆ pump_elevation

real(dp), dimension(:), pointer, contiguous mawmodule::mawinputtype::pump_elevation => null()

Definition at line 80 of file gwf-maw.f90.

◆ scaling_length

real(dp), dimension(:), pointer, contiguous mawmodule::mawinputtype::scaling_length => null()

Definition at line 81 of file gwf-maw.f90.

◆ setting

type(characterstringtype), dimension(:), pointer, contiguous mawmodule::mawinputtype::setting => null()

Definition at line 65 of file gwf-maw.f90.

◆ status

type(characterstringtype), dimension(:), pointer, contiguous mawmodule::mawinputtype::status => null()

Definition at line 67 of file gwf-maw.f90.

◆ strt

real(dp), dimension(:), pointer, contiguous mawmodule::mawinputtype::strt => null()

Definition at line 60 of file gwf-maw.f90.

◆ strt_tslink

integer(i4b), dimension(:), pointer mawmodule::mawinputtype::strt_tslink => null()

Definition at line 61 of file gwf-maw.f90.


The documentation for this type was generated from the following file:
  • /home/runner/work/modflow6/modflow6/src/Model/GroundWaterFlow/gwf-maw.f90
