MODFLOW 6 version 6.9.0.dev0
USGS Modular Hydrologic Model
Loading...
Searching...
No Matches
methodmodelmodule::methodmodeltype Type Referenceabstract

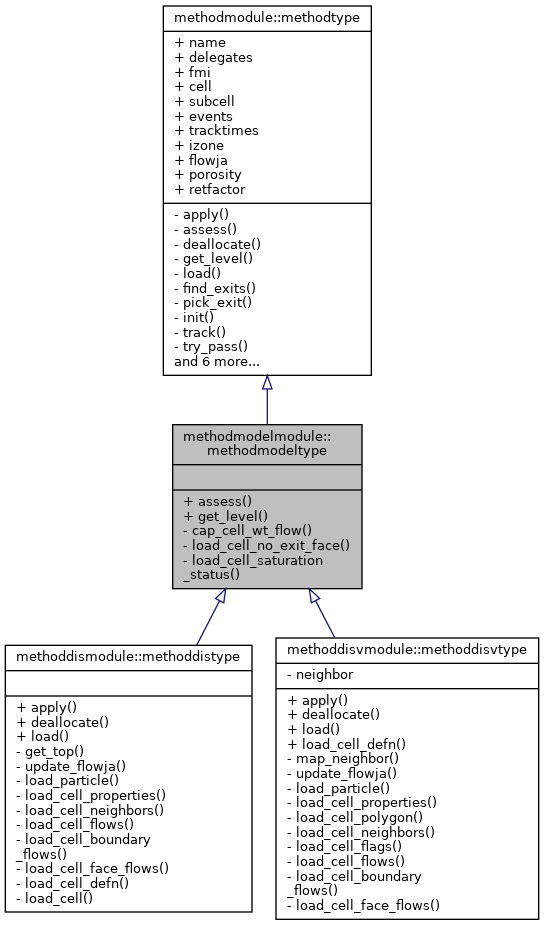

Inheritance diagram for methodmodelmodule::methodmodeltype:
Inheritance graph

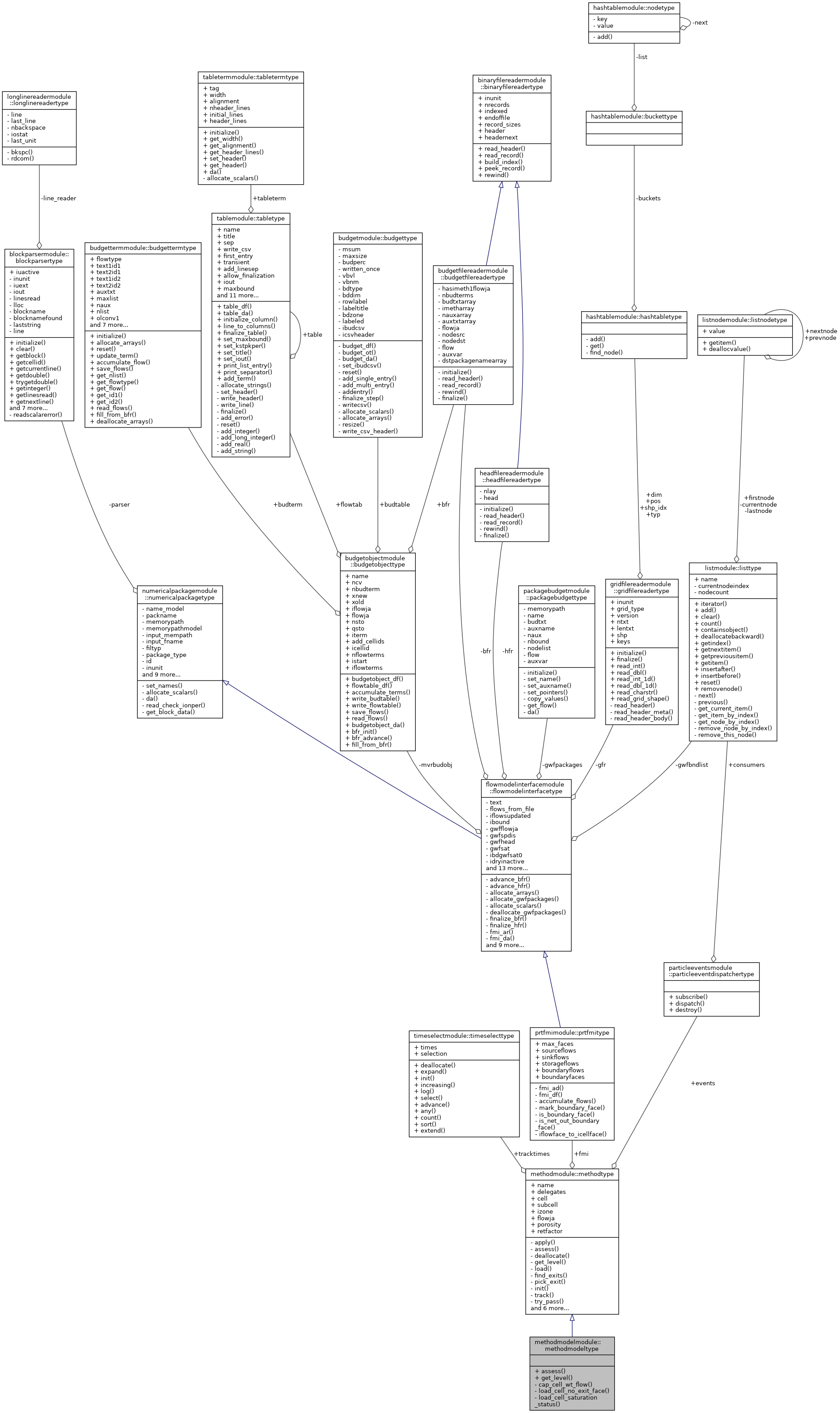

Collaboration diagram for methodmodelmodule::methodmodeltype:
Collaboration graph

Public Member Functions

procedure, public assess (this, particle, cell_defn, tmax)
 Check particle reporting/termination status.
procedure, public get_level (this)
 Get the model method's level.
procedure cap_cell_wt_flow (this, defn)
 Prevent non-boundary upwards flow at the water table.
procedure load_cell_no_exit_face (this, defn)
 Set flag indicating if the cell has any faces with outflow. Assumes cell properties and flows are already loaded.
procedure load_cell_saturation_status (this, defn)
 Set the saturation status of a cell. See the status enumeration in CellDefnModule.
procedure(apply), deferred apply (this, particle, tmax)
 apply the method to the particle
procedure(assess), deferred assess (this, particle, cell_defn, tmax)
 assess conditions before tracking
procedure(deallocate), deferred deallocate (this)
 deallocate the method object
procedure get_level (this)
 get the tracking method level
procedure load (this, particle, next_level, submethod)
 load the subdomain tracking method
procedure init (this, fmi, cell, subcell, events, tracktimes, izone, flowja, porosity, retfactor)
 Initialize the method with pointers to model data.
procedure track (this, particle, level, tmax)
 Track the particle over subdomains of the given.
procedure try_pass (this, particle, nextlevel, advancing)
 Try passing the particle to the next subdomain.
procedure release (this, particle)
 A particle is released.
procedure terminate (this, particle, status)
 A particle terminates.
procedure timestep (this, particle)
 A time step ends.
procedure weaksink (this, particle)
 A particle leaves a weak sink.
procedure usertime (this, particle)
 A user-defined tracking time occurs.
procedure dropped (this, particle)
 A particle drops to the water table.

Public Attributes

character(len=40), pointer, public name
 method name
logical(lgp), public delegates
 whether the method delegates
type(prtfmitype), pointer, public fmi => null()
 ptr to fmi
class(celltype), pointer, public cell => null()
 ptr to the current cell
class(subcelltype), pointer, public subcell => null()
 ptr to the current subcell
type(particleeventdispatchertype), pointer, public events => null()
 ptr to event dispatcher
type(timeselecttype), pointer, public tracktimes => null()
 ptr to user-defined tracking times
integer(i4b), dimension(:), pointer, public, contiguous izone => null()
 pointer to zone numbers
real(dp), dimension(:), pointer, public, contiguous flowja => null()
 pointer to intercell flows
real(dp), dimension(:), pointer, public, contiguous porosity => null()
 pointer to aquifer porosity
real(dp), dimension(:), pointer, public, contiguous retfactor => null()
 pointer to retardation factor

Detailed Description

Definition at line 16 of file MethodModel.f90.

Member Function/Subroutine Documentation

◆ apply()

procedure(apply), deferred methodmodule::methodtype::apply ( class(methodtype), intent(inout) this,
type(particletype), intent(inout), pointer particle,
real(dp), intent(in) tmax )
pure virtualinherited

Definition at line 71 of file Method.f90.

◆ assess() [1/2]

procedure, public methodmodelmodule::methodmodeltype::assess ( class(methodmodeltype), intent(inout) this,
type(particletype), intent(inout), pointer particle,
type(celldefntype), intent(inout), pointer cell_defn,
real(dp), intent(in) tmax )

Definition at line 18 of file MethodModel.f90.

◆ assess() [2/2]

procedure(assess), deferred methodmodule::methodtype::assess ( class(methodtype), intent(inout) this,
type(particletype), intent(inout), pointer particle,
type(celldefntype), intent(inout), pointer cell_defn,
real(dp), intent(in) tmax )
pure virtualinherited

Definition at line 72 of file Method.f90.

◆ cap_cell_wt_flow()

procedure methodmodelmodule::methodmodeltype::cap_cell_wt_flow ( class(methodmodeltype), intent(inout) this,
type(celldefntype), intent(inout), pointer defn )

Unless the top face is an assigned boundary with outflow, cells which contain a water table should not have upward flow through the top (i.e., the water table). Prevent it by capping the top face flow at zero in these conditions.

Assumes cell properties and flows are already loaded.

Definition at line 21 of file MethodModel.f90.

◆ deallocate()

procedure(deallocate), deferred methodmodule::methodtype::deallocate ( class(methodtype), intent(inout) this)
pure virtualinherited

Definition at line 73 of file Method.f90.

◆ dropped()

procedure methodmodule::methodtype::dropped ( class(methodtype), intent(inout) this,
type(particletype), intent(inout), pointer particle )
inherited

Definition at line 88 of file Method.f90.

◆ get_level() [1/2]

procedure, public methodmodelmodule::methodmodeltype::get_level ( class(methodmodeltype), intent(in) this)

Definition at line 19 of file MethodModel.f90.

◆ get_level() [2/2]

procedure methodmodule::methodtype::get_level ( class(methodtype), intent(in) this)
inherited

pass the particle to the next subdomain

Definition at line 74 of file Method.f90.

◆ init()

procedure methodmodule::methodtype::init ( class(methodtype), intent(inout) this,
type(prtfmitype), intent(in), optional, pointer fmi,
class(celltype), intent(in), optional, pointer cell,
class(subcelltype), intent(in), optional, pointer subcell,
type(particleeventdispatchertype), intent(in), optional, pointer events,
type(timeselecttype), intent(in), optional, pointer tracktimes,
integer(i4b), dimension(:), intent(in), optional, pointer izone,
real(dp), dimension(:), intent(in), optional, pointer flowja,
real(dp), dimension(:), intent(in), optional, pointer porosity,
real(dp), dimension(:), intent(in), optional, pointer retfactor )
inherited

Definition at line 79 of file Method.f90.

◆ load()

procedure methodmodule::methodtype::load ( class(methodtype), intent(inout) this,
type(particletype), intent(inout), pointer particle,
integer, intent(in) next_level,
class(methodtype), intent(inout), pointer submethod )
inherited

Definition at line 77 of file Method.f90.

◆ load_cell_no_exit_face()

procedure methodmodelmodule::methodmodeltype::load_cell_no_exit_face ( class(methodmodeltype), intent(inout) this,
type(celldefntype), intent(inout), pointer defn )

Definition at line 22 of file MethodModel.f90.

◆ load_cell_saturation_status()

procedure methodmodelmodule::methodmodeltype::load_cell_saturation_status ( class(methodmodeltype), intent(inout) this,
type(celldefntype), intent(inout), pointer defn )

Definition at line 23 of file MethodModel.f90.

◆ release()

procedure methodmodule::methodtype::release ( class(methodtype), intent(inout) this,
type(particletype), intent(inout), pointer particle )
inherited

Definition at line 83 of file Method.f90.

◆ terminate()

procedure methodmodule::methodtype::terminate ( class(methodtype), intent(inout) this,
type(particletype), intent(inout), pointer particle,
integer(i4b), intent(in), optional status )
inherited

Definition at line 84 of file Method.f90.

◆ timestep()

procedure methodmodule::methodtype::timestep ( class(methodtype), intent(inout) this,
type(particletype), intent(inout), pointer particle )
inherited

Definition at line 85 of file Method.f90.

◆ track()

procedure methodmodule::methodtype::track ( class(methodtype), intent(inout) this,
type(particletype), intent(inout), pointer particle,
integer(i4b) level,
real(dp), intent(in) tmax )
inherited

Definition at line 80 of file Method.f90.

◆ try_pass()

procedure methodmodule::methodtype::try_pass ( class(methodtype), intent(inout) this,
type(particletype), intent(inout), pointer particle,
integer(i4b) nextlevel,
logical(lgp) advancing )
inherited

Definition at line 81 of file Method.f90.

◆ usertime()

procedure methodmodule::methodtype::usertime ( class(methodtype), intent(inout) this,
type(particletype), intent(inout), pointer particle )
inherited

Definition at line 87 of file Method.f90.

◆ weaksink()

procedure methodmodule::methodtype::weaksink ( class(methodtype), intent(inout) this,
type(particletype), intent(inout), pointer particle )
inherited

Definition at line 86 of file Method.f90.

Member Data Documentation

◆ cell

class(celltype), pointer, public methodmodule::methodtype::cell => null()
inherited

Definition at line 61 of file Method.f90.

◆ delegates

logical(lgp), public methodmodule::methodtype::delegates
inherited

Definition at line 59 of file Method.f90.

59 logical(LGP), public :: delegates !< whether the method delegates

◆ events

type(particleeventdispatchertype), pointer, public methodmodule::methodtype::events => null()
inherited

Definition at line 63 of file Method.f90.

◆ flowja

real(dp), dimension(:), pointer, public, contiguous methodmodule::methodtype::flowja => null()
inherited

Definition at line 66 of file Method.f90.

◆ fmi

type(prtfmitype), pointer, public methodmodule::methodtype::fmi => null()
inherited

Definition at line 60 of file Method.f90.

◆ izone

integer(i4b), dimension(:), pointer, public, contiguous methodmodule::methodtype::izone => null()
inherited

Definition at line 65 of file Method.f90.

◆ name

character(len=40), pointer, public methodmodule::methodtype::name
inherited

Definition at line 58 of file Method.f90.

58 character(len=40), pointer, public :: name !< method name

◆ porosity

real(dp), dimension(:), pointer, public, contiguous methodmodule::methodtype::porosity => null()
inherited

Definition at line 67 of file Method.f90.

◆ retfactor

real(dp), dimension(:), pointer, public, contiguous methodmodule::methodtype::retfactor => null()
inherited

Definition at line 68 of file Method.f90.

◆ subcell

class(subcelltype), pointer, public methodmodule::methodtype::subcell => null()
inherited

Definition at line 62 of file Method.f90.

◆ tracktimes

type(timeselecttype), pointer, public methodmodule::methodtype::tracktimes => null()
inherited

Definition at line 64 of file Method.f90.


The documentation for this type was generated from the following file:
  • /home/runner/work/modflow6/modflow6/src/Solution/ParticleTracker/Method/MethodModel.f90
