mf6filekeystringmodule::keystringloadtype Type Referenceabstract

Keystring period block loader. More...

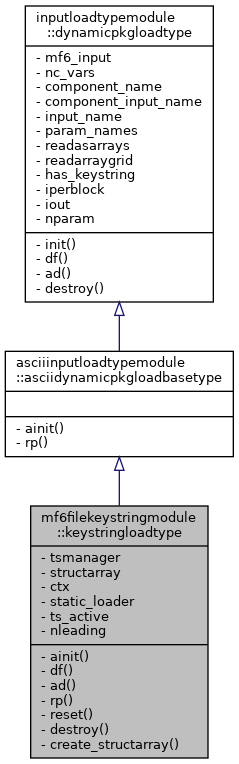

Inheritance diagram for mf6filekeystringmodule::keystringloadtype:
Inheritance graph
Collaboration diagram for mf6filekeystringmodule::keystringloadtype:
Collaboration graph

Public Member Functions

procedure ainit (this, mf6_input, component_name, component_input_name, input_name, iperblock, parser, iout)
procedure df (this)
procedure ts_advance (this)
procedure rp (this, parser)
procedure allocate_subindex (this)
 Allocate ctxsubindex_dependency targets (subindex params excluded from allocate_items), and cache everything apply_subindex needs every period.
procedure allocate_permanent_array (this, name, nfeatures, init_value)
 Allocate a permanent per-feature array named name with init_value, unless already allocated.
procedure allocate_items (this)
 Allocate a permanent array for every IDM-managed item, using the descriptor's per-item feature count and init value.
procedure apply_auxiliary (this)
 Apply PERIOD AUXILIARY settings to the permanent AUX array. TS-linked rows resolve via the struct array's own ts_strlocs; literal rows resolve AUXNAME here and clear any stale TS link.
procedure apply_subindex (this)
 Apply PERIOD settings for ctxsubindex_dependency's targets, via ts_update_indexed – same mechanism as BEDK/MANNING, but each row's target index comes from a named subindex field through the cached offset table rather than the leading id column alone.
procedure apply_items (this)
 Apply IDM-managed feature- and node-addressed settings to their permanent arrays; each row's address comes from resolve_row_addr. Indexed-body and AUX are handled in their own routines.
procedure resolve_row_addr (this, item, irow, period_ifno, cellid, ndim, leading_tag)
 Resolve one row's target index for an item, dispatching on addr_mode. Returns 0 (skip) if out of range.
procedure resolve_subindex_offsets (this, dimname)
 Per-feature cumulative offset table from an array-valued dimension, permuted into feature-index order first. Indexed by feature (not the dimension's own summed total).
procedure resolve_subindex_address (this, id_mf6varname, head_mf6varname, subindex_icol, offsets, nfeatures, nbound)
 Row -> resolved feature index for an item whose local position comes from a subindex field, via the offset table.
procedure reset (this)
procedure destroy (this)
procedure create_structarray (this)
procedure(load_init_if), deferred ainit (this, mf6_input, component_name, component_input_name, input_name, iperblock, parser, iout)
procedure(period_load_if), deferred rp (this, parser)
procedure init (this, mf6_input, component_name, component_input_name, input_name, iperblock, iout)
 initialize dynamic package loader
procedure df (this)
 dynamic package loader define
procedure ts_advance (this)
 dynamic package loader advance
procedure destroy (this)
 dynamic package loader destroy

Public Attributes

type(timeseriesmanagertype), pointer tsmanager => null()
type(structarraytype), pointer structarray => null()
type(loadcontexttype) ctx
 input load context
type(loadmf6filetype) static_loader
 persistent static loader
logical(lgp) ts_active
 .true. if TS files are loaded
integer(i4b) nleading
 number of leading (pre-keystring) columns
integer(i4b), dimension(:), allocatable subindex_nfeatures
 per-column feature count (0 = n/a)
type(intarraytype), dimension(:), allocatable subindex_offsets
 per-column offset table
integer(i4b), dimension(:), allocatable subindex_icol
 per-column subindex SA column
integer(i4b), dimension(:), allocatable subindex_head_icol
 per-column subindex head SA column
character(len=lenvarname) subindex_id_varname = ''
 leading column's mf6varname
type(modflowinputtype) mf6_input
 description of modflow6 input
type(ncpackagevarstype), pointer nc_vars => null()
character(len=lencomponentname) component_name
 name of component
character(len=linelength) component_input_name
 component input name, e.g. model name file
character(len=linelength) input_name
 input name, e.g. package *.chd file
character(len=linelength), dimension(:), allocatable param_names
 dynamic param tagnames
logical(lgp) readasarrays
 readasarrays style input package
logical(lgp) readarraygrid
 readarraygrid style input package
logical(lgp) has_keystring
 period block uses keystring-based dispatch
integer(i4b) iperblock
 index of period block on block definition list
integer(i4b) iout
 inunit number for logging
integer(i4b) nparam
 number of in scope params

Private Member Functions

procedure, private valid_address (this, ifno, nfeatures, ifno_tagname, row)
 Validate ifno against nfeatures, storing an error keyed by ifno_tagname (the leading column's public tag) if out of range.

Detailed Description

Leading fixed columns (e.g. CELLID) followed by a dispatch keyword that routes each input row to a typed item column.

Definition at line 51 of file Mf6FileKeystring.f90.

Member Function/Subroutine Documentation

◆ ainit() [1/2]

procedure(load_init_if), deferred asciiinputloadtypemodule::asciidynamicpkgloadbasetype::ainit ( class(asciidynamicpkgloadbasetype), intent(inout) this,
type(modflowinputtype), intent(in) mf6_input,
character(len=*), intent(in) component_name,
character(len=*), intent(in) component_input_name,
character(len=*), intent(in) input_name,
integer(i4b), intent(in) iperblock,
type(blockparsertype), intent(inout), pointer parser,
integer(i4b), intent(in) iout )
pure virtualinherited
Parameters
[in]mf6_inputdescription of input
[in]component_namecomponent name
[in]component_input_namecomponent input name, e.g. model name file
[in]input_nameinput name, e.g. package *.chd file
[in]iperblockindex of period block on block definition list
[in,out]parserblock parser

Definition at line 24 of file AsciiInputLoadType.f90.

◆ ainit() [2/2]

procedure mf6filekeystringmodule::keystringloadtype::ainit ( class(keystringloadtype), intent(inout) this,
type(modflowinputtype), intent(in) mf6_input,
character(len=*), intent(in) component_name,
character(len=*), intent(in) component_input_name,
character(len=*), intent(in) input_name,
integer(i4b), intent(in) iperblock,
type(blockparsertype), intent(inout), pointer parser,
integer(i4b), intent(in) iout )

Definition at line 66 of file Mf6FileKeystring.f90.

◆ allocate_items()

procedure mf6filekeystringmodule::keystringloadtype::allocate_items ( class(keystringloadtype), intent(inout) this)

Definition at line 72 of file Mf6FileKeystring.f90.

◆ allocate_permanent_array()

procedure mf6filekeystringmodule::keystringloadtype::allocate_permanent_array ( class(keystringloadtype), intent(inout) this,
character(len=*), intent(in) name,
integer(i4b), intent(in) nfeatures,
real(dp), intent(in) init_value )

Definition at line 71 of file Mf6FileKeystring.f90.

◆ allocate_subindex()

procedure mf6filekeystringmodule::keystringloadtype::allocate_subindex ( class(keystringloadtype), intent(inout) this)

Definition at line 70 of file Mf6FileKeystring.f90.

◆ apply_auxiliary()

procedure mf6filekeystringmodule::keystringloadtype::apply_auxiliary ( class(keystringloadtype), intent(inout) this)

Definition at line 74 of file Mf6FileKeystring.f90.

◆ apply_items()

procedure mf6filekeystringmodule::keystringloadtype::apply_items ( class(keystringloadtype), intent(inout) this)

Definition at line 76 of file Mf6FileKeystring.f90.

◆ apply_subindex()

procedure mf6filekeystringmodule::keystringloadtype::apply_subindex ( class(keystringloadtype), intent(inout) this)

Definition at line 75 of file Mf6FileKeystring.f90.

◆ create_structarray()

procedure mf6filekeystringmodule::keystringloadtype::create_structarray ( class(keystringloadtype), intent(inout) this)

Definition at line 82 of file Mf6FileKeystring.f90.

◆ destroy() [1/2]

procedure inputloadtypemodule::dynamicpkgloadtype::destroy ( class(dynamicpkgloadtype), intent(inout) this)
inherited

Definition at line 99 of file InputLoadType.f90.

◆ destroy() [2/2]

procedure mf6filekeystringmodule::keystringloadtype::destroy ( class(keystringloadtype), intent(inout) this)

Definition at line 81 of file Mf6FileKeystring.f90.

◆ df() [1/2]

procedure inputloadtypemodule::dynamicpkgloadtype::df ( class(dynamicpkgloadtype), intent(inout) this)
inherited

Definition at line 97 of file InputLoadType.f90.

◆ df() [2/2]

procedure mf6filekeystringmodule::keystringloadtype::df ( class(keystringloadtype), intent(inout) this)

Definition at line 67 of file Mf6FileKeystring.f90.

◆ init()

procedure inputloadtypemodule::dynamicpkgloadtype::init ( class(dynamicpkgloadtype), intent(inout) this,
type(modflowinputtype), intent(in) mf6_input,
character(len=*), intent(in) component_name,
character(len=*), intent(in) component_input_name,
character(len=*), intent(in) input_name,
integer(i4b), intent(in) iperblock,
integer(i4b), intent(in) iout )
inherited

Any managed memory pointed to from model/package context must be allocated when dynamic loader is initialized.

Definition at line 96 of file InputLoadType.f90.

◆ reset()

procedure mf6filekeystringmodule::keystringloadtype::reset ( class(keystringloadtype), intent(inout) this)

Definition at line 80 of file Mf6FileKeystring.f90.

◆ resolve_row_addr()

procedure mf6filekeystringmodule::keystringloadtype::resolve_row_addr ( class(keystringloadtype), intent(inout) this,
type(keystringitemtype), intent(in) item,
integer(i4b), intent(in) irow,
integer(i4b), dimension(:), intent(in), pointer, contiguous period_ifno,
integer(i4b), dimension(:, :), intent(in), pointer, contiguous cellid,
integer(i4b), intent(in) ndim,
character(len=*), intent(in) leading_tag )
Parameters
[in]leading_tagleading id column's public tag (for the out-of-range message)

Definition at line 77 of file Mf6FileKeystring.f90.

◆ resolve_subindex_address()

procedure mf6filekeystringmodule::keystringloadtype::resolve_subindex_address ( class(keystringloadtype), intent(inout) this,
character(len=*), intent(in) id_mf6varname,
character(len=*), intent(in) head_mf6varname,
integer(i4b), intent(in) subindex_icol,
integer(i4b), dimension(:), intent(in) offsets,
integer(i4b), intent(in) nfeatures,
integer(i4b), intent(in) nbound )
Parameters
[in]subindex_icolSA column holding the subindex (e.g. IDV)

Definition at line 79 of file Mf6FileKeystring.f90.

◆ resolve_subindex_offsets()

procedure mf6filekeystringmodule::keystringloadtype::resolve_subindex_offsets ( class(keystringloadtype), intent(inout) this,
character(len=*), intent(in) dimname )

Definition at line 78 of file Mf6FileKeystring.f90.

◆ rp() [1/2]

procedure(period_load_if), deferred asciiinputloadtypemodule::asciidynamicpkgloadbasetype::rp ( class(asciidynamicpkgloadbasetype), intent(inout) this,
type(blockparsertype), intent(inout), pointer parser )
pure virtualinherited
Parameters
[in,out]parserblock parser

Definition at line 25 of file AsciiInputLoadType.f90.

◆ rp() [2/2]

procedure mf6filekeystringmodule::keystringloadtype::rp ( class(keystringloadtype), intent(inout) this,
type(blockparsertype), intent(inout), pointer parser )

Definition at line 69 of file Mf6FileKeystring.f90.

◆ ts_advance() [1/2]

procedure inputloadtypemodule::dynamicpkgloadtype::ts_advance ( class(dynamicpkgloadtype), intent(inout) this)
inherited

Definition at line 98 of file InputLoadType.f90.

◆ ts_advance() [2/2]

procedure mf6filekeystringmodule::keystringloadtype::ts_advance ( class(keystringloadtype), intent(inout) this)

Definition at line 68 of file Mf6FileKeystring.f90.

◆ valid_address()

procedure, private mf6filekeystringmodule::keystringloadtype::valid_address ( class(keystringloadtype), intent(inout) this,
integer(i4b), intent(in) ifno,
integer(i4b), intent(in) nfeatures,
character(len=*), intent(in) ifno_tagname,
integer(i4b), intent(in) row )
private

Definition at line 73 of file Mf6FileKeystring.f90.

Member Data Documentation

◆ component_input_name

character(len=linelength) inputloadtypemodule::dynamicpkgloadtype::component_input_name
inherited

Definition at line 86 of file InputLoadType.f90.

86 character(len=LINELENGTH) :: component_input_name !< component input name, e.g. model name file

◆ component_name

character(len=lencomponentname) inputloadtypemodule::dynamicpkgloadtype::component_name
inherited

Definition at line 85 of file InputLoadType.f90.

85 character(len=LENCOMPONENTNAME) :: component_name !< name of component

◆ ctx

type(loadcontexttype) mf6filekeystringmodule::keystringloadtype::ctx

Definition at line 54 of file Mf6FileKeystring.f90.

54 type(LoadContextType) :: ctx !< input load context

◆ has_keystring

logical(lgp) inputloadtypemodule::dynamicpkgloadtype::has_keystring
inherited

Definition at line 91 of file InputLoadType.f90.

91 logical(LGP) :: has_keystring !< period block uses keystring-based dispatch

◆ input_name

character(len=linelength) inputloadtypemodule::dynamicpkgloadtype::input_name
inherited

Definition at line 87 of file InputLoadType.f90.

87 character(len=LINELENGTH) :: input_name !< input name, e.g. package *.chd file

◆ iout

integer(i4b) inputloadtypemodule::dynamicpkgloadtype::iout
inherited

Definition at line 93 of file InputLoadType.f90.

93 integer(I4B) :: iout !< inunit number for logging

◆ iperblock

integer(i4b) inputloadtypemodule::dynamicpkgloadtype::iperblock
inherited

Definition at line 92 of file InputLoadType.f90.

92 integer(I4B) :: iperblock !< index of period block on block definition list

◆ mf6_input

type(modflowinputtype) inputloadtypemodule::dynamicpkgloadtype::mf6_input
inherited

Definition at line 83 of file InputLoadType.f90.

83 type(ModflowInputType) :: mf6_input !< description of modflow6 input

◆ nc_vars

type(ncpackagevarstype), pointer inputloadtypemodule::dynamicpkgloadtype::nc_vars => null()
inherited

Definition at line 84 of file InputLoadType.f90.

◆ nleading

integer(i4b) mf6filekeystringmodule::keystringloadtype::nleading

Definition at line 57 of file Mf6FileKeystring.f90.

57 integer(I4B) :: nleading !< number of leading (pre-keystring) columns

◆ nparam

integer(i4b) inputloadtypemodule::dynamicpkgloadtype::nparam
inherited

Definition at line 94 of file InputLoadType.f90.

94 integer(I4B) :: nparam !< number of in scope params

◆ param_names

character(len=linelength), dimension(:), allocatable inputloadtypemodule::dynamicpkgloadtype::param_names
inherited

Definition at line 88 of file InputLoadType.f90.

88 character(len=LINELENGTH), dimension(:), allocatable :: param_names !< dynamic param tagnames

◆ readarraygrid

logical(lgp) inputloadtypemodule::dynamicpkgloadtype::readarraygrid
inherited

Definition at line 90 of file InputLoadType.f90.

90 logical(LGP) :: readarraygrid !< readarraygrid style input package

◆ readasarrays

logical(lgp) inputloadtypemodule::dynamicpkgloadtype::readasarrays
inherited

Definition at line 89 of file InputLoadType.f90.

89 logical(LGP) :: readasarrays !< readasarrays style input package

◆ static_loader

type(loadmf6filetype) mf6filekeystringmodule::keystringloadtype::static_loader

Definition at line 55 of file Mf6FileKeystring.f90.

55 type(LoadMf6FileType) :: static_loader !< persistent static loader

◆ structarray

type(structarraytype), pointer mf6filekeystringmodule::keystringloadtype::structarray => null()

Definition at line 53 of file Mf6FileKeystring.f90.

◆ subindex_head_icol

integer(i4b), dimension(:), allocatable mf6filekeystringmodule::keystringloadtype::subindex_head_icol

Definition at line 63 of file Mf6FileKeystring.f90.

63 integer(I4B), dimension(:), allocatable :: subindex_head_icol !< per-column subindex head SA column

◆ subindex_icol

integer(i4b), dimension(:), allocatable mf6filekeystringmodule::keystringloadtype::subindex_icol

Definition at line 62 of file Mf6FileKeystring.f90.

62 integer(I4B), dimension(:), allocatable :: subindex_icol !< per-column subindex SA column

◆ subindex_id_varname

character(len=lenvarname) mf6filekeystringmodule::keystringloadtype::subindex_id_varname = ''

Definition at line 64 of file Mf6FileKeystring.f90.

◆ subindex_nfeatures

integer(i4b), dimension(:), allocatable mf6filekeystringmodule::keystringloadtype::subindex_nfeatures

Definition at line 60 of file Mf6FileKeystring.f90.

60 integer(I4B), dimension(:), allocatable :: subindex_nfeatures !< per-column feature count (0 = n/a)

◆ subindex_offsets

type(intarraytype), dimension(:), allocatable mf6filekeystringmodule::keystringloadtype::subindex_offsets

Definition at line 61 of file Mf6FileKeystring.f90.

61 type(IntArrayType), dimension(:), allocatable :: subindex_offsets !< per-column offset table

◆ ts_active

logical(lgp) mf6filekeystringmodule::keystringloadtype::ts_active

Definition at line 56 of file Mf6FileKeystring.f90.

56 logical(LGP) :: ts_active !< .true. if TS files are loaded

◆ tsmanager

type(timeseriesmanagertype), pointer mf6filekeystringmodule::keystringloadtype::tsmanager => null()

Definition at line 52 of file Mf6FileKeystring.f90.


The documentation for this type was generated from the following file:
