sfrmodule::sfrinputtype Type Reference

Input context array pointers for SFR. More...

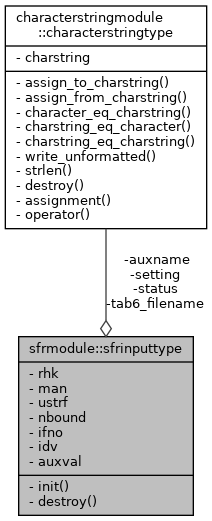

Collaboration diagram for sfrmodule::sfrinputtype:
Collaboration graph

Public Member Functions

procedure init (this, mempath, naux)
 Bind SfrInputType PERIOD pointers to input context arrays.
procedure destroy (this)
 Nullify all SfrInputType pointers.

Public Attributes

real(dp), dimension(:), pointer, contiguous rhk => null()
real(dp), dimension(:), pointer, contiguous man => null()
real(dp), dimension(:), pointer, contiguous ustrf => null()
integer(i4b), dimension(:), pointer rhk_tslink => null()
 nonzero for RHK rows linked to a time series
integer(i4b), dimension(:), pointer man_tslink => null()
 nonzero for MAN rows linked to a time series
integer(i4b), dimension(:), pointer ustrf_tslink => null()
 nonzero for USTRF rows linked to a time series
integer(i4b), pointer nbound => null()
integer(i4b), dimension(:), pointer, contiguous ifno => null()
type(characterstringtype), dimension(:), pointer, contiguous status => null()
type(characterstringtype), dimension(:), pointer, contiguous setting => null()
integer(i4b), dimension(:), pointer, contiguous idv => null()
type(characterstringtype), dimension(:), pointer, contiguous tab6_filename => null()
type(characterstringtype), dimension(:), pointer, contiguous auxname => null()
real(dp), dimension(:), pointer, contiguous auxval => null()

Detailed Description

PACKAGEDATA pointers are set in sfr_source_packagedata; PERIOD pointers are set once in sfr_ar.

Definition at line 62 of file gwf-sfr.f90.

Member Function/Subroutine Documentation

◆ destroy()

procedure sfrmodule::sfrinputtype::destroy ( class(sfrinputtype), intent(inout) this)

Definition at line 85 of file gwf-sfr.f90.

◆ init()

procedure sfrmodule::sfrinputtype::init ( class(sfrinputtype), intent(inout) this,
character(len=*), intent(in) mempath,
integer(i4b), intent(in) naux )

Called once from sfr_ar; PACKAGEDATA pointers are set separately in sfr_source_packagedata.

Definition at line 84 of file gwf-sfr.f90.

Member Data Documentation

◆ auxname

type(characterstringtype), dimension(:), pointer, contiguous sfrmodule::sfrinputtype::auxname => null()

Definition at line 80 of file gwf-sfr.f90.

◆ auxval

real(dp), dimension(:), pointer, contiguous sfrmodule::sfrinputtype::auxval => null()

Definition at line 82 of file gwf-sfr.f90.

◆ idv

integer(i4b), dimension(:), pointer, contiguous sfrmodule::sfrinputtype::idv => null()

Definition at line 77 of file gwf-sfr.f90.

◆ ifno

integer(i4b), dimension(:), pointer, contiguous sfrmodule::sfrinputtype::ifno => null()

Definition at line 72 of file gwf-sfr.f90.

◆ man

real(dp), dimension(:), pointer, contiguous sfrmodule::sfrinputtype::man => null()

Definition at line 65 of file gwf-sfr.f90.

◆ man_tslink

integer(i4b), dimension(:), pointer sfrmodule::sfrinputtype::man_tslink => null()

Definition at line 68 of file gwf-sfr.f90.

◆ nbound

integer(i4b), pointer sfrmodule::sfrinputtype::nbound => null()

Definition at line 71 of file gwf-sfr.f90.

◆ rhk

real(dp), dimension(:), pointer, contiguous sfrmodule::sfrinputtype::rhk => null()

Definition at line 64 of file gwf-sfr.f90.

◆ rhk_tslink

integer(i4b), dimension(:), pointer sfrmodule::sfrinputtype::rhk_tslink => null()

Definition at line 67 of file gwf-sfr.f90.

◆ setting

type(characterstringtype), dimension(:), pointer, contiguous sfrmodule::sfrinputtype::setting => null()

Definition at line 75 of file gwf-sfr.f90.

◆ status

type(characterstringtype), dimension(:), pointer, contiguous sfrmodule::sfrinputtype::status => null()

Definition at line 73 of file gwf-sfr.f90.

◆ tab6_filename

type(characterstringtype), dimension(:), pointer, contiguous sfrmodule::sfrinputtype::tab6_filename => null()

Definition at line 78 of file gwf-sfr.f90.

◆ ustrf

real(dp), dimension(:), pointer, contiguous sfrmodule::sfrinputtype::ustrf => null()

Definition at line 66 of file gwf-sfr.f90.

◆ ustrf_tslink

integer(i4b), dimension(:), pointer sfrmodule::sfrinputtype::ustrf_tslink => null()

Definition at line 69 of file gwf-sfr.f90.


The documentation for this type was generated from the following file:
  • /home/runner/work/modflow6/modflow6/src/Model/GroundWaterFlow/gwf-sfr.f90
