gridarrayloadmodule Module Reference

This module contains the GridArrayLoadModule. More...

Data Types

type  gridarrayloadtype
 Ascii grid based dynamic loader type. More...

Functions/Subroutines

subroutine ainit (this, mf6_input, component_name, component_input_name, input_name, iperblock, parser, iout)
subroutine df (this)
subroutine ts_advance (this)
subroutine rp (this, parser)
subroutine destroy (this)
subroutine set_active (this)
 Set active user nodes from discretization IDOMAIN input.
subroutine reset (this)
subroutine params_alloc (this)
subroutine param_load (this, parser, idt, mempath, layered, netcdf, iaux)

Detailed Description

This module contains the routines for reading period block grid array-based input for stress packages that use the READARRAYGRID option (CHD, WEL, DRN, RIV, GHB).

Function/Subroutine Documentation

◆ ainit()

subroutine gridarrayloadmodule::ainit ( class(gridarrayloadtype), intent(inout) this,
type(modflowinputtype), intent(in) mf6_input,
character(len=*), intent(in) component_name,
character(len=*), intent(in) component_input_name,
character(len=*), intent(in) input_name,
integer(i4b), intent(in) iperblock,
type(blockparsertype), intent(inout), pointer parser,
integer(i4b), intent(in) iout )

Definition at line 49 of file Mf6FileGridArray.f90.

55 class(GridArrayLoadType), intent(inout) :: this
56 type(ModflowInputType), intent(in) :: mf6_input
57 character(len=*), intent(in) :: component_name
58 character(len=*), intent(in) :: component_input_name
59 character(len=*), intent(in) :: input_name
60 integer(I4B), intent(in) :: iperblock
61 type(BlockParserType), pointer, intent(inout) :: parser
62 integer(I4B), intent(in) :: iout
63 type(LoadMf6FileType) :: loader
64 integer(I4B) :: isize
65 integer(I4B), pointer :: maxbound
66
67 ! initialize base type
68 call this%DynamicPkgLoadType%init(mf6_input, component_name, &
69 component_input_name, &
70 input_name, iperblock, iout)
71 ! initialize
72 this%iout = iout
73
74 ! load static input
75 call loader%load(parser, mf6_input, this%nc_vars, this%input_name, iout)
76
77 ! maxbound is optional
78 call get_isize('MAXBOUND', mf6_input%mempath, isize)
79 if (isize < 0) then
80 ! set maxbound to grid nodes
81 call mem_allocate(maxbound, 'MAXBOUND', mf6_input%mempath)
82 maxbound = product(loader%mshape)
83 end if
84
85 ! initialize input context memory
86 call this%ctx%init(mf6_input)
87
88 ! set active user nodes
89 call this%set_active()
90
91 ! allocate user nodelist
92 call mem_allocate(this%nodeulist, this%ctx%maxbound, &
93 'NODEULIST', mf6_input%mempath)
94
95 ! allocate dfn params
96 call this%params_alloc()
This module contains block parser methods.
This module contains the LoadMf6FileModule.
subroutine, public get_isize(name, mem_path, isize)
Get the number of elements for this variable.
Static parser based input loader.

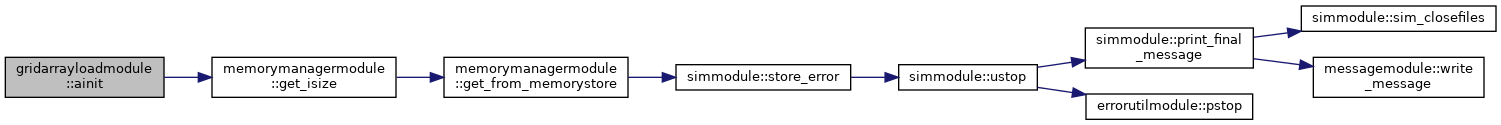

Here is the call graph for this function:

◆ destroy()

subroutine gridarrayloadmodule::destroy ( class(gridarrayloadtype), intent(inout) this)
private

Definition at line 170 of file Mf6FileGridArray.f90.

172 class(GridArrayLoadType), intent(inout) :: this
173 call mem_deallocate(this%nodeulist)
174 if (allocated(this%active)) deallocate (this%active)

◆ df()

subroutine gridarrayloadmodule::df ( class(gridarrayloadtype), intent(inout) this)
private

Definition at line 99 of file Mf6FileGridArray.f90.

100 class(GridArrayLoadType), intent(inout) :: this

◆ param_load()

subroutine gridarrayloadmodule::param_load ( class(gridarrayloadtype), intent(inout) this,
type(blockparsertype), intent(in) parser,
type(inputparamdefinitiontype), intent(in) idt,
character(len=*), intent(in) mempath,
logical(lgp), intent(in) layered,
logical(lgp), intent(in) netcdf,
integer(i4b), intent(in) iaux )
private

Definition at line 279 of file Mf6FileGridArray.f90.

280 use tdismodule, only: kper
281 use constantsmodule, only: dnodata
282 use arrayhandlersmodule, only: ifind
289 class(GridArrayLoadType), intent(inout) :: this
290 type(BlockParserType), intent(in) :: parser
291 type(InputParamDefinitionType), intent(in) :: idt
292 character(len=*), intent(in) :: mempath
293 logical(LGP), intent(in) :: layered
294 logical(LGP), intent(in) :: netcdf
295 integer(I4B), intent(in) :: iaux
296 real(DP), dimension(:), pointer, contiguous :: dbl1d, nodes
297 real(DP), dimension(:, :), pointer, contiguous :: dbl2d
298 integer(I4B), dimension(:), allocatable :: layer_shape
299 integer(I4B) :: iparam, n, nlay, nnode
300
301 nnode = 0
302
303 select case (idt%datatype)
304 case ('DOUBLE1D')
305 call mem_setptr(dbl1d, idt%mf6varname, mempath)
306 allocate (nodes(this%ctx%nodes))
307 if (netcdf) then
308 call netcdf_read_array(nodes, this%ctx%mshape, idt, &
309 this%mf6_input, this%nc_vars, this%input_name, &
310 this%iout, kper)
311 else if (layered) then
312 call get_layered_shape(this%ctx%mshape, nlay, layer_shape)
313 call read_dbl1d_layered(parser, nodes, idt%mf6varname, nlay, layer_shape)
314 else
315 call read_dbl1d(parser, nodes, idt%mf6varname)
316 end if
317
318 call idm_log_var(nodes, idt%tagname, mempath, this%iout)
319
320 if (this%nodeulist_set) then
321 ! nodeulist already established: extract values at known positions
322 do n = 1, this%ctx%nbound
323 dbl1d(n) = nodes(this%nodeulist(n))
324 end do
325 else
326 ! first array sets nodeulist and nbound (defined, active cells)
327 do n = 1, this%ctx%nodes
328 if (nodes(n) /= dnodata .and. this%active(n)) then
329 nnode = nnode + 1
330 if (nnode > this%ctx%maxbound) then
331 write (errmsg, '(a,i0,a)') &
332 'Input error: number of defined (non-DNODATA) active cells &
333 &exceeds MAXBOUND=', this%ctx%maxbound, '.'
334 call store_error(errmsg)
335 call store_error_filename(this%input_name)
336 end if
337 dbl1d(nnode) = nodes(n)
338 this%nodeulist(nnode) = n
339 end if
340 end do
341 this%ctx%nbound = nnode
342 this%nodeulist_set = .true.
343 end if
344 deallocate (nodes)
345 case ('DOUBLE2D')
346 call mem_setptr(dbl2d, idt%mf6varname, mempath)
347 allocate (nodes(this%ctx%nodes))
348
349 if (netcdf) then
350 call netcdf_read_array(nodes, this%ctx%mshape, idt, &
351 this%mf6_input, this%nc_vars, this%input_name, &
352 this%iout, kper, iaux)
353 else if (layered) then
354 call get_layered_shape(this%ctx%mshape, nlay, layer_shape)
355 call read_dbl1d_layered(parser, nodes, idt%mf6varname, nlay, layer_shape)
356 else
357 call read_dbl1d(parser, nodes, idt%mf6varname)
358 end if
359
360 call idm_log_var(nodes, idt%tagname, mempath, this%iout)
361
362 if (this%nodeulist_set) then
363 ! nodeulist already established: extract values at known positions
364 do n = 1, this%ctx%nbound
365 dbl2d(iaux, n) = nodes(this%nodeulist(n))
366 end do
367 else
368 ! first array sets nodeulist and nbound (defined, active cells)
369 do n = 1, this%ctx%nodes
370 if (nodes(n) /= dnodata .and. this%active(n)) then
371 nnode = nnode + 1
372 if (nnode > this%ctx%maxbound) then
373 write (errmsg, '(a,i0,a)') &
374 'Input error: number of defined (non-DNODATA) active cells &
375 &exceeds MAXBOUND=', this%ctx%maxbound, '.'
376 call store_error(errmsg)
377 call store_error_filename(this%input_name)
378 end if
379 dbl2d(iaux, nnode) = nodes(n)
380 this%nodeulist(nnode) = n
381 end if
382 end do
383 this%ctx%nbound = nnode
384 this%nodeulist_set = .true.
385 end if
386 deallocate (nodes)
387 this%aux_reads(iaux) = merge(rs_netcdf, rs_values, netcdf)
388 case default
389 errmsg = 'IDM unimplemented. GridArrayLoad::param_load &
390 &datatype='//trim(idt%datatype)
391 call store_error(errmsg)
392 call store_error_filename(this%input_name)
393 end select
394
395 ! if param is tracked set read state
396 iparam = ifind(this%param_names, idt%tagname)
397 if (iparam > 0) then
398 this%param_reads(iparam)%invar = merge(rs_netcdf, rs_values, netcdf)
399 end if
This module contains simulation constants.
Definition Constants.f90:9
real(dp), parameter dnodata
real no data constant
Definition Constants.f90:95
subroutine, public read_dbl1d(parser, dbl1d, aname)
This module contains the Input Data Model Logger Module.
Definition IdmLogger.f90:7
Input definition module.
subroutine, public read_dbl1d_layered(parser, dbl1d, aname, nlay, layer_shape)
This module contains the LoadNCInputModule.
This module contains the SourceCommonModule.
subroutine, public get_layered_shape(mshape, nlay, layer_shape)
integer(i4b), pointer, public kper
current stress period number
Definition tdis.f90:26
Input parameter definition. Describes an input parameter.

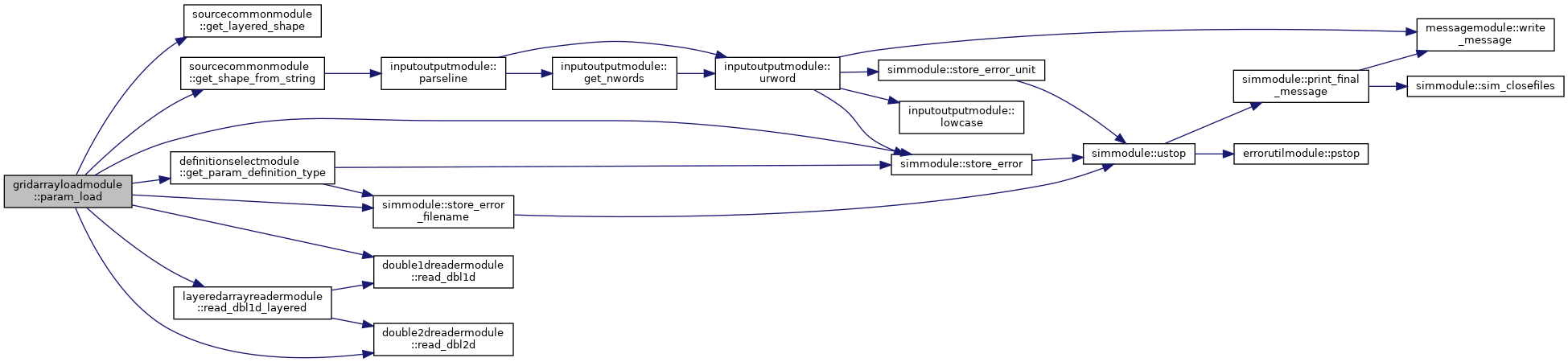

Here is the call graph for this function:

◆ params_alloc()

subroutine gridarrayloadmodule::params_alloc ( class(gridarrayloadtype), intent(inout) this)
private

Definition at line 248 of file Mf6FileGridArray.f90.

249 class(GridArrayLoadType), intent(inout) :: this
250 character(len=LENVARNAME) :: rs_varname
251 integer(I4B), pointer :: intvar
252 integer(I4B) :: iparam
253
254 ! set in-scope param names directly from context
255 this%param_names = this%ctx%params
256 this%nparam = size(this%ctx%params)
257 call this%ctx%allocate_params()
258 call this%ctx%check_developmode(this%input_name)
259 call this%ctx%allocate_arrays()
260
261 ! allocate and set param_reads pointer array
262 allocate (this%param_reads(this%nparam))
263
264 ! store read state variable pointers
265 do iparam = 1, this%nparam
266 ! allocate and store name of read state variable
267 rs_varname = this%ctx%rsv_alloc(this%param_names(iparam))
268 call mem_setptr(intvar, rs_varname, this%mf6_input%mempath)
269 this%param_reads(iparam)%invar => intvar
270 this%param_reads(iparam)%invar = rs_none
271 end do
272
273 ! read state of each auxiliary variable
274 call mem_allocate(this%aux_reads, this%ctx%naux, 'INAUXVARS', &
275 this%mf6_input%mempath)
276 this%aux_reads = rs_none

◆ reset()

subroutine gridarrayloadmodule::reset ( class(gridarrayloadtype), intent(inout) this)
private

Definition at line 234 of file Mf6FileGridArray.f90.

235 class(GridArrayLoadType), intent(inout) :: this
236 integer(I4B) :: n
237
238 this%ctx%nbound = 0
239 this%nodeulist_set = .false.
240
241 do n = 1, this%nparam
242 ! reset read state
243 this%param_reads(n)%invar = rs_none
244 end do
245 this%aux_reads = rs_none

◆ rp()

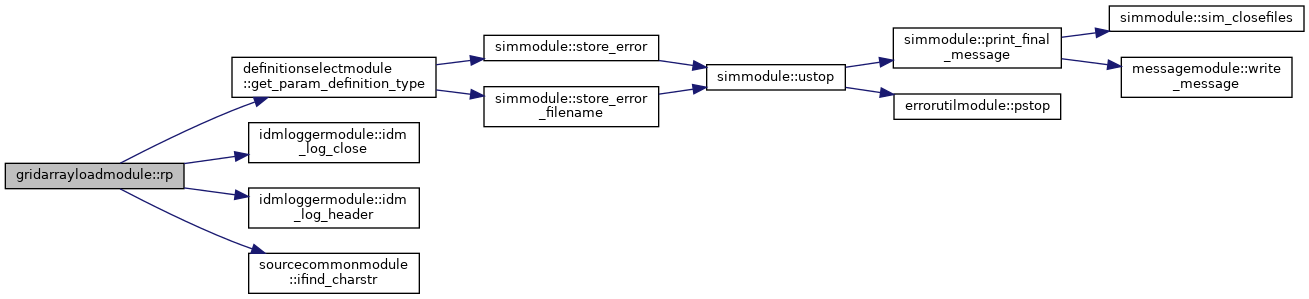

subroutine gridarrayloadmodule::rp ( class(gridarrayloadtype), intent(inout) this,
type(blockparsertype), intent(inout), pointer parser )
private

Definition at line 107 of file Mf6FileGridArray.f90.

111 use arrayhandlersmodule, only: ifind
114 class(GridArrayLoadType), intent(inout) :: this
115 type(BlockParserType), pointer, intent(inout) :: parser
116 logical(LGP) :: endOfBlock, netcdf, layered
117 character(len=LINELENGTH) :: keyword, param_tag
118 type(InputParamDefinitionType), pointer :: idt
119 integer(I4B) :: iaux
120
121 ! reset for this period
122 call this%reset()
123
124 ! log lst file header
125 call idm_log_header(this%mf6_input%component_name, &
126 this%mf6_input%subcomponent_name, this%iout)
127
128 ! read array block
129 do
130 ! initialize
131 iaux = 0
132 netcdf = .false.
133 layered = .false.
134
135 ! read next line
136 call parser%GetNextLine(endofblock)
137 if (endofblock) exit
138 ! read param_tag
139 call parser%GetStringCaps(param_tag)
140
141 ! is param tag an auxvar?
142 iaux = ifind_charstr(this%ctx%auxname_cst, param_tag)
143
144 ! any auxvar corresponds to the definition tag 'AUX'
145 if (iaux > 0) param_tag = 'AUX'
146
147 ! set input definition
148 idt => get_param_definition_type(this%mf6_input%param_dfns, &
149 this%mf6_input%component_type, &
150 this%mf6_input%subcomponent_type, &
151 'PERIOD', param_tag, this%input_name)
152 ! look for Layered and NetCDF keywords
153 call parser%GetStringCaps(keyword)
154 if (keyword == 'LAYERED' .and. idt%layered) then
155 layered = .true.
156 else if (keyword == 'NETCDF') then
157 netcdf = .true.
158 end if
159
160 ! read and load the parameter
161 call this%param_load(parser, idt, this%mf6_input%mempath, layered, &
162 netcdf, iaux)
163 end do
164
165 ! log lst file header
166 call idm_log_close(this%mf6_input%component_name, &
167 this%mf6_input%subcomponent_name, this%iout)
This module contains the DefinitionSelectModule.
type(inputparamdefinitiontype) function, pointer, public get_param_definition_type(input_definition_types, component_type, subcomponent_type, blockname, tagname, filename, found)
Return parameter definition.
subroutine, public idm_log_close(component, subcomponent, iout)
log the closing message
Definition IdmLogger.f90:56
subroutine, public idm_log_header(component, subcomponent, iout)
log a header message
Definition IdmLogger.f90:44
integer(i4b) function, public ifind_charstr(array, str)
Here is the call graph for this function:

◆ set_active()

subroutine gridarrayloadmodule::set_active ( class(gridarrayloadtype), intent(inout) this)
private

Cells with IDOMAIN less than one are not boundaries. All cells are active if IDOMAIN is not given.

Definition at line 182 of file Mf6FileGridArray.f90.

187 class(GridArrayLoadType), intent(inout) :: this
188 character(len=LENMEMPATH) :: model_mempath, dis_mempath
189 integer(I4B), pointer :: disenum
190 integer(I4B), dimension(:), pointer, contiguous :: int1d
191 integer(I4B), dimension(:, :), pointer, contiguous :: int2d
192 integer(I4B), dimension(:, :, :), pointer, contiguous :: int3d
193 integer(I4B) :: isize
194
195 allocate (this%active(this%ctx%nodes))
196 this%active = .true.
197
198 ! set discretization input mempath
199 model_mempath = create_mem_path(component=this%mf6_input%component_name, &
200 context=idm_context)
201 call mem_setptr(disenum, 'DISENUM', model_mempath)
202 select case (disenum)
203 case (dis)
204 dis_mempath = create_mem_path(this%mf6_input%component_name, 'DIS', &
206 case (disv)
207 dis_mempath = create_mem_path(this%mf6_input%component_name, 'DISV', &
209 case (disu)
210 dis_mempath = create_mem_path(this%mf6_input%component_name, 'DISU', &
212 case default
213 return
214 end select
215
216 ! IDOMAIN is optional; read before the discretization package
217 ! releases its input
218 call get_isize('IDOMAIN', dis_mempath, isize)
219 if (isize /= this%ctx%nodes) return
220
221 select case (disenum)
222 case (dis)
223 call mem_setptr(int3d, 'IDOMAIN', dis_mempath)
224 this%active = reshape(int3d, [this%ctx%nodes]) > 0
225 case (disv)
226 call mem_setptr(int2d, 'IDOMAIN', dis_mempath)
227 this%active = reshape(int2d, [this%ctx%nodes]) > 0
228 case (disu)
229 call mem_setptr(int1d, 'IDOMAIN', dis_mempath)
230 this%active = int1d > 0
231 end select
@ disu
DISV6 discretization.
@ dis
DIS6 discretization.
@ disv
DISU6 discretization.
integer(i4b), parameter lenmempath
maximum length of the memory path
Definition Constants.f90:27
character(len=lenmempath) function create_mem_path(component, subcomponent, context)
returns the path to the memory object
This module contains simulation variables.
character(len=linelength) idm_context
Here is the call graph for this function:

◆ ts_advance()

subroutine gridarrayloadmodule::ts_advance ( class(gridarrayloadtype), intent(inout) this)
private

Definition at line 103 of file Mf6FileGridArray.f90.

104 class(GridArrayLoadType), intent(inout) :: this
