gwfstomodule Module Reference

This module contains the storage package methods. More...

Data Types
type	gwfstotype

Functions/Subroutines
subroutine, public	sto_cr (stoobj, name_model, mempath, inunit, iout)
	@ brief Create a new package object More...
subroutine	sto_ar (this, dis, ibound)
	@ brief Allocate and read method for package More...
subroutine	sto_rp (this)
	@ brief Read and prepare method for package More...
subroutine	sto_ad (this)
	@ brief Advance the package More...
subroutine	sto_fc (this, kiter, hold, hnew, matrix_sln, idxglo, rhs)
	@ brief Fill A and right-hand side for the package More...
subroutine	sto_fn (this, kiter, hold, hnew, matrix_sln, idxglo, rhs)
	@ brief Fill Newton-Raphson terms in A and right-hand side for the package More...
subroutine	sto_cq (this, flowja, hnew, hold)
	@ brief Calculate flows for package More...
subroutine	sto_bd (this, isuppress_output, model_budget)
	@ brief Model budget calculation for package More...
subroutine	sto_save_model_flows (this, icbcfl, icbcun)
	@ brief Save model flows for package More...
subroutine	sto_da (this)
	@ brief Deallocate package memory More...
subroutine	allocate_scalars (this)
	@ brief Allocate scalars More...
subroutine	allocate_arrays (this, nodes)
	@ brief Allocate package arrays More...
subroutine	source_options (this)
	@ brief Source input options for package More...
subroutine	log_options (this, found)
	@ brief Log found options for package More...
subroutine	source_data (this)
	@ brief Source input data for package More...
subroutine	save_old_ss_sy (this)
	@ brief Save old storage property values More...

Variables
character(len=lenbudtxt), dimension(2)	budtxt = [' STO-SS', ' STO-SY']

Detailed Description

This module contains the methods used to add the effects of storage on the groundwater flow equation. The contribution of specific storage and specific yield can be represented.

Function/Subroutine Documentation

allocate_arrays()

subroutine gwfstomodule::allocate_arrays	(	class(gwfstotype), target	this,
		integer(i4b), intent(in)	nodes
	)

Allocate and initialize STO package arrays.

Parameters

	this	GwfStoType object
[in]	nodes	active model nodes

Definition at line 732 of file gwf-sto.f90.

    ! -- modules
    use memorymanagermodule, only: mem_allocate, mem_setptr
    ! -- dummy variables
    class(GwfStoType), target :: this !< GwfStoType object
    integer(I4B), intent(in) :: nodes !< active model nodes
    ! -- local variables
    integer(I4B) :: n
    !
    ! -- Allocate arrays
    call mem_allocate(this%iconvert, nodes, 'ICONVERT', this%memoryPath)
    call mem_allocate(this%ss, nodes, 'SS', this%memoryPath)
    call mem_allocate(this%sy, nodes, 'SY', this%memoryPath)
    call mem_allocate(this%strgss, nodes, 'STRGSS', this%memoryPath)
    call mem_allocate(this%strgsy, nodes, 'STRGSY', this%memoryPath)
    !
    ! -- set input context pointers
    if (this%inunit > 0) then
      call mem_setptr(this%iper, 'IPER', this%input_mempath)
      call mem_setptr(this%storage, 'STORAGE', this%input_mempath)
    end if
    !
    ! -- Initialize arrays
    this%iss = 0
    do n = 1, nodes
      this%iconvert(n) = 1
      this%ss(n) = dzero
      this%sy(n) = dzero
      this%strgss(n) = dzero
      this%strgsy(n) = dzero
      if (this%integratechanges /= 0) then
        this%oldss(n) = dzero
        if (this%iusesy /= 0) then
          this%oldsy(n) = dzero
        end if
      end if
    end do

allocate_scalars()

subroutine gwfstomodule::allocate_scalars

(

class(gwfstotype)

this

)

Allocate and initialize scalars for the STO package. The base numerical package allocate scalars method is also called.

Parameters

this	GwfStoType object

Definition at line 698 of file gwf-sto.f90.

    ! -- modules
    use memorymanagermodule, only: mem_allocate
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    !
    ! -- allocate scalars in NumericalPackageType
    call this%NumericalPackageType%allocate_scalars()
    !
    ! -- allocate scalars
    call mem_allocate(this%istor_coef, 'ISTOR_COEF', this%memoryPath)
    call mem_allocate(this%iconf_ss, 'ICONF_SS', this%memoryPath)
    call mem_allocate(this%iorig_ss, 'IORIG_SS', this%memoryPath)
    call mem_allocate(this%iusesy, 'IUSESY', this%memoryPath)
    call mem_allocate(this%satomega, 'SATOMEGA', this%memoryPath)
    call mem_allocate(this%integratechanges, 'INTEGRATECHANGES', &
                      this%memoryPath)
    call mem_allocate(this%intvs, 'INTVS', this%memoryPath)
    !
    ! -- initialize scalars
    this%istor_coef = 0
    this%iconf_ss = 0
    this%iorig_ss = 0
    this%iusesy = 0
    this%satomega = dzero
    this%integratechanges = 0
    this%intvs = 0

log_options()

subroutine gwfstomodule::log_options	(	class(gwfstotype)	this,
		type(gwfstoparamfoundtype), intent(in)	found
	)

Log options block for STO package.

Parameters

this	GwfStoType object

Definition at line 838 of file gwf-sto.f90.

    ! -- modules
    use memorymanagerextmodule, only: mem_set_value
    use gwfstoinputmodule, only: gwfstoparamfoundtype
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    type(GwfStoParamFoundType), intent(in) :: found
    ! -- local variables
    ! -- formats
    character(len=*), parameter :: fmtisvflow = &
      "(4x,'CELL-BY-CELL FLOW INFORMATION WILL BE SAVED TO BINARY FILE &
      &WHENEVER ICBCFL IS NOT ZERO.')"
    character(len=*), parameter :: fmtflow = &
      &"(4x, 'FLOWS WILL BE SAVED TO FILE: ', a, /4x, 'OPENED ON UNIT: ', I7)"
    character(len=*), parameter :: fmtorigss = &
      "(4X,'ORIGINAL_SPECIFIC_STORAGE OPTION:',/, &
      &1X,'The original specific storage formulation will be used')"
    character(len=*), parameter :: fmtstoc = &
      "(4X,'STORAGECOEFFICIENT OPTION:',/, &
      &1X,'Read storage coefficient rather than specific storage')"
    character(len=*), parameter :: fmtconfss = &
      "(4X,'SS_CONFINED_ONLY OPTION:',/, &
      &1X,'Specific storage changes only occur under confined conditions')"
    !
    write (this%iout, '(1x,a)') 'PROCESSING STORAGE OPTIONS'
    !
    if (found%ipakcb) then
      write (this%iout, fmtisvflow)
    end if
    !
    if (found%istor_coef) then
      write (this%iout, fmtstoc)
    end if
    !
    if (found%ss_confined_only) then
      write (this%iout, fmtconfss)
    end if
    !
    if (found%iorig_ss) then
      write (this%iout, fmtorigss)
    end if
    !
    if (found%iconf_ss) then
      write (this%iout, fmtconfss)
    end if
    !
    write (this%iout, '(1x,a)') 'END OF STORAGE OPTIONS'

save_old_ss_sy()

subroutine gwfstomodule::save_old_ss_sy

(

class(gwfstotype)

this

)

Save ss and sy values from the previous time step for use with storage integration when integratechanges is non-zero.

Parameters

this	GwfStoType object

Definition at line 988 of file gwf-sto.f90.

    ! -- modules
    use memorymanagermodule, only: mem_allocate
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    ! -- local variables
    integer(I4B) :: n
    !
    ! -- Allocate TVS arrays if needed
    if (.not. associated(this%oldss)) then
      call mem_allocate(this%oldss, this%dis%nodes, 'OLDSS', this%memoryPath)
    end if
    if (this%iusesy == 1 .and. .not. associated(this%oldsy)) then
      call mem_allocate(this%oldsy, this%dis%nodes, 'OLDSY', this%memoryPath)
    end if
    !
    ! -- Save current specific storage
    do n = 1, this%dis%nodes
      this%oldss(n) = this%ss(n)
    end do
    !
    ! -- Save current specific yield, if used
    if (this%iusesy == 1) then
      do n = 1, this%dis%nodes
        this%oldsy(n) = this%sy(n)
      end do
    end if

source_data()

subroutine gwfstomodule::source_data

(

class(gwfstotype)

this

)

Source griddata block parameters for STO package.

Parameters

this	GwfStoType object

Definition at line 892 of file gwf-sto.f90.

    ! -- modules
    use memorymanagerextmodule, only: mem_set_value
    use gwfstoinputmodule, only: gwfstoparamfoundtype
    ! -- dummy variables
    class(GwfStotype) :: this !< GwfStoType object
    ! -- local variables
    character(len=LINELENGTH) :: cellstr
    logical(LGP) :: isconv
    character(len=24), dimension(4) :: aname
    integer(I4B) :: n
    integer(I4B), dimension(:), pointer, contiguous :: map
    type(GwfStoParamFoundType) :: found
    !
    ! -- initialize data
    data aname(1)/'                ICONVERT'/
    data aname(2)/'        SPECIFIC STORAGE'/
    data aname(3)/'          SPECIFIC YIELD'/
    !
    ! -- set map to reduce data input arrays
    map => null()
    if (this%dis%nodes < this%dis%nodesuser) map => this%dis%nodeuser
    !
    ! -- copy data from input context
    call mem_set_value(this%iconvert, 'ICONVERT', this%input_mempath, map, &
                       found%iconvert)
    call mem_set_value(this%ss, 'SS', this%input_mempath, map, found%ss)
    call mem_set_value(this%sy, 'SY', this%input_mempath, map, found%sy)
    !
    ! -- Check for ICONVERT
    if (found%iconvert) then
      isconv = .false.
      do n = 1, this%dis%nodes
        if (this%iconvert(n) /= 0) then
          isconv = .true.
          this%iusesy = 1
          exit
        end if
      end do
    else
      write (errmsg, '(a, a, a)') 'Error in GRIDDATA block: ', &
        trim(adjustl(aname(1))), ' not found.'
      call store_error(errmsg)
    end if
    !
    ! -- Check for SS
    if (found%ss) then
      ! no-op
    else
      write (errmsg, '(a, a, a)') 'Error in GRIDDATA block: ', &
        trim(adjustl(aname(2))), ' not found.'
      call store_error(errmsg)
    end if
    !
    ! -- Check for SY
    if (found%sy) then
      ! no-op
    else
      if (isconv) then
        write (errmsg, '(a, a, a)') 'Error in GRIDDATA block: ', &
          trim(adjustl(aname(3))), ' not found.'
        call store_error(errmsg)
      end if
    end if
    !
    if (count_errors() > 0) then
      call store_error_filename(this%input_fname)
    end if
    !
    ! -- Check SS and SY for negative values
    do n = 1, this%dis%nodes
      if (this%ss(n) < dzero) then
        call this%dis%noder_to_string(n, cellstr)
        write (errmsg, '(a,2(1x,a),1x,g0,1x,a)') &
          'Error in SS DATA: SS value in cell', trim(adjustl(cellstr)), &
          'is less than zero (', this%ss(n), ').'
        call store_error(errmsg)
      end if
      if (found%sy) then
        if (this%sy(n) < dzero) then
          call this%dis%noder_to_string(n, cellstr)
          write (errmsg, '(a,2(1x,a),1x,g0,1x,a)') &
            'Error in SY DATA: SY value in cell', trim(adjustl(cellstr)), &
            'is less than zero (', this%sy(n), ').'
          call store_error(errmsg)
        end if
      end if
    end do

Here is the call graph for this function:

source_options()

subroutine gwfstomodule::source_options

(

class(gwfstotype)

this

)

Source options block parameters for STO package.

Parameters

this	GwfStoType object

Definition at line 776 of file gwf-sto.f90.

    ! -- modules
    use constantsmodule, only: lenmempath
    use memorymanagermodule, only: mem_setptr, get_isize
    use memorymanagerextmodule, only: mem_set_value
    use characterstringmodule, only: characterstringtype
    use sourcecommonmodule, only: filein_fname
    use gwfstoinputmodule, only: gwfstoparamfoundtype
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    ! -- local variables
    type(GwfStoParamFoundType) :: found
    type(CharacterStringType), dimension(:), pointer, contiguous :: tvs6_mempaths
    character(len=LINELENGTH) :: tvs6_filename
    character(len=LENMEMPATH) :: tvs6_mempath
    !
    ! -- source package input
    call mem_set_value(this%ipakcb, 'IPAKCB', this%input_mempath, found%ipakcb)
    call mem_set_value(this%istor_coef, 'ISTOR_COEF', this%input_mempath, &
                       found%istor_coef)
    call mem_set_value(this%iconf_ss, 'SS_CONFINED_ONLY', this%input_mempath, &
                       found%ss_confined_only)
    call mem_set_value(this%iorig_ss, 'IORIG_SS', this%input_mempath, &
                       found%iorig_ss)
    call mem_set_value(this%iconf_ss, 'ICONF_SS', this%input_mempath, &
                       found%iconf_ss)
    !
    if (found%ipakcb) then
      this%ipakcb = -1
    end if
    !
    if (found%ss_confined_only) then
      this%iorig_ss = 0
    end if
    !
    ! -- TVS6 subpackage
    if (filein_fname(tvs6_filename, 'TVS6_FILENAME', &
                     this%input_mempath, this%input_fname)) then
      call mem_setptr(tvs6_mempaths, 'TVS6_MEMPATH', this%input_mempath)
      tvs6_mempath = tvs6_mempaths(1)
      this%intvs = 1 ! tvs active
      call tvs_cr(this%tvs, this%name_model, tvs6_mempath, this%intvs, this%iout)
    end if
    !
    if (found%iconf_ss) then
      this%iorig_ss = 0
    end if
    !
    ! -- log found options
    call this%log_options(found)
    !
    ! -- set omega value used for saturation calculations
    if (this%inewton > 0) then
      this%satomega = dem6
    end if

Here is the call graph for this function:

sto_ad()

subroutine gwfstomodule::sto_ad

(

class(gwfstotype)

this

)

Advance data in the STO package.

Parameters

this	GwfStoType object

Definition at line 203 of file gwf-sto.f90.

    ! -- modules
    use tdismodule, only: kstp
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    !
    ! -- Store ss and sy values from end of last time step if needed
    if (this%integratechanges /= 0 .and. kstp > 1) then
      call this%save_old_ss_sy()
    end if
    !
    ! -- TVS
    if (this%intvs /= 0) then
      call this%tvs%ad()
    end if

sto_ar()

subroutine gwfstomodule::sto_ar	(	class(gwfstotype)	this,
		class(disbasetype), intent(in), pointer	dis,
		integer(i4b), dimension(:), pointer, contiguous	ibound
	)

Method to allocate and read static data for the STO package.

Parameters

	this	GwfStoType object
[in]	dis	model discretization object
	ibound	model ibound array

Definition at line 103 of file gwf-sto.f90.

    ! -- modules
    use memorymanagermodule, only: mem_setptr
    use memoryhelpermodule, only: create_mem_path
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    class(DisBaseType), pointer, intent(in) :: dis !< model discretization object
    integer(I4B), dimension(:), pointer, contiguous :: ibound !< model ibound array
    ! -- local variables
    ! -- formats
    character(len=*), parameter :: fmtsto = &
      "(1x,/1x,'STO -- STORAGE PACKAGE, VERSION 1, 5/19/2014', &
      &' INPUT READ FROM MEMPATH: ', A, //)"
    !
    ! --print a message identifying the storage package.
    write (this%iout, fmtsto) this%input_mempath
    !
    ! -- store pointers to arguments that were passed in
    this%dis => dis
    this%ibound => ibound
    !
    ! -- set pointer to gwf iss
    call mem_setptr(this%iss, 'ISS', create_mem_path(this%name_model))
    !
    ! -- Allocate arrays
    call this%allocate_arrays(dis%nodes)
    !!
    !! -- Register side effect handlers
    !call this%register_handlers()
    !
    ! -- Read storage options
    call this%source_options()
    !
    ! -- read the data block
    call this%source_data()
    !
    ! -- TVS
    if (this%intvs /= 0) then
      call this%tvs%ar(this%dis)
    end if

Here is the call graph for this function:

sto_bd()

subroutine gwfstomodule::sto_bd	(	class(gwfstotype)	this,
		integer(i4b), intent(in)	isuppress_output,
		type(budgettype), intent(inout)	model_budget
	)

Budget calculation for the STO package components. Components include specific storage and specific yield storage.

Parameters

	this	GwfStoType object
[in]	isuppress_output	flag to suppress model output
[in,out]	model_budget	model budget object

Definition at line 571 of file gwf-sto.f90.

    ! -- modules
    use tdismodule, only: delt
    use budgetmodule, only: budgettype, rate_accumulator
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    integer(I4B), intent(in) :: isuppress_output !< flag to suppress model output
    type(BudgetType), intent(inout) :: model_budget !< model budget object
    ! -- local variables
    real(DP) :: rin
    real(DP) :: rout
    !
    ! -- Add confined storage rates to model budget
    call rate_accumulator(this%strgss, rin, rout)
    call model_budget%addentry(rin, rout, delt, budtxt(1), &
                               isuppress_output, '         STORAGE')
    !
    ! -- Add unconfined storage rates to model budget
    if (this%iusesy == 1) then
      call rate_accumulator(this%strgsy, rin, rout)
      call model_budget%addentry(rin, rout, delt, budtxt(2), &
                                 isuppress_output, '         STORAGE')
    end if

Here is the call graph for this function:

sto_cq()

subroutine gwfstomodule::sto_cq	(	class(gwfstotype)	this,
		real(dp), dimension(:), intent(inout), contiguous	flowja,
		real(dp), dimension(:), intent(in), contiguous	hnew,
		real(dp), dimension(:), intent(in), contiguous	hold
	)

Flow calculation for the STO package components. Components include specific storage and specific yield storage.

Parameters

	this	GwfStoType object
[in,out]	flowja	connection flows
[in]	hnew	current head
[in]	hold	previous head

Definition at line 446 of file gwf-sto.f90.

    ! -- modules
    use tdismodule, only: delt
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    real(DP), dimension(:), contiguous, intent(inout) :: flowja !< connection flows
    real(DP), dimension(:), contiguous, intent(in) :: hnew !< current head
    real(DP), dimension(:), contiguous, intent(in) :: hold !< previous head
    ! -- local variables
    integer(I4B) :: n
    integer(I4B) :: idiag
    real(DP) :: rate
    real(DP) :: tled
    real(DP) :: sc1
    real(DP) :: sc2
    real(DP) :: rho1
    real(DP) :: rho2
    real(DP) :: sc1old
    real(DP) :: sc2old
    real(DP) :: rho1old
    real(DP) :: rho2old
    real(DP) :: tp
    real(DP) :: bt
    real(DP) :: snold
    real(DP) :: snnew
    real(DP) :: aterm
    real(DP) :: rhsterm
    !
    ! -- initialize strg arrays
    do n = 1, this%dis%nodes
      this%strgss(n) = dzero
      this%strgsy(n) = dzero
    end do
    !
    ! -- Set strt to zero or calculate terms if not steady-state stress period
    if (this%iss == 0) then
      !
      ! -- set variables
      tled = done / delt
      !
      ! -- Calculate storage change
      do n = 1, this%dis%nodes
        if (this%ibound(n) <= 0) cycle
        ! -- aquifer elevations and thickness
        tp = this%dis%top(n)
        bt = this%dis%bot(n)
        !
        ! -- aquifer saturation
        if (this%iconvert(n) == 0) then
          snold = done
          snnew = done
        else
          snold = squadraticsaturation(tp, bt, hold(n), this%satomega)
          snnew = squadraticsaturation(tp, bt, hnew(n), this%satomega)
        end if
        !
        ! -- primary storage coefficient
        sc1 = sscapacity(this%istor_coef, tp, bt, this%dis%area(n), this%ss(n))
        rho1 = sc1 * tled
        !
        if (this%integratechanges /= 0) then
          ! -- Integration of storage changes (e.g. when using TVS):
          !    separate the old (start of time step) and new (end of time step)
          !    primary storage capacities
          sc1old = sscapacity(this%istor_coef, tp, bt, this%dis%area(n), &
                              this%oldss(n))
          rho1old = sc1old * tled
        else
          ! -- No integration of storage changes: old and new values are
          !    identical => normal MF6 storage formulation
          rho1old = rho1
        end if
        !
        ! -- calculate specific storage terms and rate
        call ssterms(this%iconvert(n), this%iorig_ss, this%iconf_ss, tp, bt, &
                     rho1, rho1old, snnew, snold, hnew(n), hold(n), &
                     aterm, rhsterm, rate)
        !
        ! -- save rate
        this%strgss(n) = rate
        !
        ! -- add storage term to flowja
        idiag = this%dis%con%ia(n)
        flowja(idiag) = flowja(idiag) + rate
        !
        ! -- specific yield
        rate = dzero
        if (this%iconvert(n) /= 0) then
          !
          ! -- secondary storage coefficient
          sc2 = sycapacity(this%dis%area(n), this%sy(n))
          rho2 = sc2 * tled
          !
          if (this%integratechanges /= 0) then
            ! -- Integration of storage changes (e.g. when using TVS):
            !    separate the old (start of time step) and new (end of time
            !    step) secondary storage capacities
            sc2old = sycapacity(this%dis%area(n), this%oldsy(n))
            rho2old = sc2old * tled
          else
            ! -- No integration of storage changes: old and new values are
            !    identical => normal MF6 storage formulation
            rho2old = rho2
          end if
          !
          ! -- calculate specific yield storage terms and rate
          call syterms(tp, bt, rho2, rho2old, snnew, snold, &
                       aterm, rhsterm, rate)

        end if
        this%strgsy(n) = rate
        !
        ! -- add storage term to flowja
        idiag = this%dis%con%ia(n)
        flowja(idiag) = flowja(idiag) + rate
      end do
    end if

Here is the call graph for this function:

sto_cr()

subroutine, public gwfstomodule::sto_cr	(	type(gwfstotype), pointer	stoobj,
		character(len=*), intent(in)	name_model,
		character(len=*), intent(in)	mempath,
		integer(i4b), intent(in)	inunit,
		integer(i4b), intent(in)	iout
	)

Create a new storage (STO) object

Parameters

	stoobj	GwfStoType object
[in]	name_model	name of model
[in]	mempath	input context mem path
[in]	inunit	package input file unit
[in]	iout	model listing file unit

Definition at line 76 of file gwf-sto.f90.

    ! -- dummy variables
    type(GwfStoType), pointer :: stoobj !< GwfStoType object
    character(len=*), intent(in) :: name_model !< name of model
    character(len=*), intent(in) :: mempath !< input context mem path
    integer(I4B), intent(in) :: inunit !< package input file unit
    integer(I4B), intent(in) :: iout !< model listing file unit
    !
    ! -- Create the object
    allocate (stoobj)
    !
    ! -- create name and memory path
    call stoobj%set_names(1, name_model, 'STO', 'STO', mempath)
    !
    ! -- Allocate scalars
    call stoobj%allocate_scalars()
    !
    ! -- Set variables
    stoobj%inunit = inunit
    stoobj%iout = iout

Here is the caller graph for this function:

sto_da()

subroutine gwfstomodule::sto_da

(

class(gwfstotype)

this

)

Deallocate STO package scalars and arrays.

Parameters

this	GwfStoType object

Definition at line 646 of file gwf-sto.f90.

    ! -- modules
    use memorymanagermodule, only: mem_deallocate
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    !
    ! -- TVS
    if (this%intvs /= 0) then
      call this%tvs%da()
      deallocate (this%tvs)
    end if
    !
    ! -- Deallocate arrays if package is active
    if (this%inunit > 0) then
      call mem_deallocate(this%iconvert)
      call mem_deallocate(this%ss)
      call mem_deallocate(this%sy)
      call mem_deallocate(this%strgss)
      call mem_deallocate(this%strgsy)
      !
      ! -- deallocate TVS arrays
      if (associated(this%oldss)) then
        call mem_deallocate(this%oldss)
      end if
      if (associated(this%oldsy)) then
        call mem_deallocate(this%oldsy)
      end if
      !
      ! -- nullify input context pointers
      nullify (this%iper)
      nullify (this%storage)
    end if
    !
    ! -- Deallocate scalars
    call mem_deallocate(this%istor_coef)
    call mem_deallocate(this%iconf_ss)
    call mem_deallocate(this%iorig_ss)
    call mem_deallocate(this%iusesy)
    call mem_deallocate(this%satomega)
    call mem_deallocate(this%integratechanges)
    call mem_deallocate(this%intvs)
    !
    ! -- deallocate parent
    call this%NumericalPackageType%da()

sto_fc()

subroutine gwfstomodule::sto_fc	(	class(gwfstotype)	this,
		integer(i4b), intent(in)	kiter,
		real(dp), dimension(:), intent(in)	hold,
		real(dp), dimension(:), intent(in)	hnew,
		class(matrixbasetype), pointer	matrix_sln,
		integer(i4b), dimension(:), intent(in)	idxglo,
		real(dp), dimension(:), intent(inout)	rhs
	)

Fill the coefficient matrix and right-hand side with the STO package terms.

Parameters

	this	GwfStoType object
[in]	kiter	outer iteration number
[in]	hold	previous heads
[in]	hnew	current heads
	matrix_sln	A matrix
[in]	idxglo	global index model to solution
[in,out]	rhs	right-hand side

Definition at line 225 of file gwf-sto.f90.

    ! -- modules
    use tdismodule, only: delt
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    integer(I4B), intent(in) :: kiter !< outer iteration number
    real(DP), intent(in), dimension(:) :: hold !< previous heads
    real(DP), intent(in), dimension(:) :: hnew !< current heads
    class(MatrixBaseType), pointer :: matrix_sln !< A matrix
    integer(I4B), intent(in), dimension(:) :: idxglo !< global index model to solution
    real(DP), intent(inout), dimension(:) :: rhs !< right-hand side
    ! -- local variables
    integer(I4B) :: n
    integer(I4B) :: idiag
    real(DP) :: tled
    real(DP) :: sc1
    real(DP) :: sc2
    real(DP) :: rho1
    real(DP) :: rho2
    real(DP) :: sc1old
    real(DP) :: sc2old
    real(DP) :: rho1old
    real(DP) :: rho2old
    real(DP) :: tp
    real(DP) :: bt
    real(DP) :: snold
    real(DP) :: snnew
    real(DP) :: aterm
    real(DP) :: rhsterm
    ! -- formats
    character(len=*), parameter :: fmtsperror = &
      &"('DETECTED TIME STEP LENGTH OF ZERO.  GWF STORAGE PACKAGE CANNOT BE ', &
      &'USED UNLESS DELT IS NON-ZERO.')"
    !
    ! -- test if steady-state stress period
    if (this%iss /= 0) return
    !
    ! -- Ensure time step length is not zero
    if (delt == dzero) then
      write (errmsg, fmtsperror)
      call store_error(errmsg, terminate=.true.)
    end if
    !
    ! -- set variables
    tled = done / delt
    !
    ! -- loop through and calculate storage contribution to hcof and rhs
    do n = 1, this%dis%nodes
      idiag = this%dis%con%ia(n)
      if (this%ibound(n) < 1) cycle
      !
      ! -- aquifer elevations and thickness
      tp = this%dis%top(n)
      bt = this%dis%bot(n)
      !
      ! -- aquifer saturation
      if (this%iconvert(n) == 0) then
        snold = done
        snnew = done
      else
        snold = squadraticsaturation(tp, bt, hold(n), this%satomega)
        snnew = squadraticsaturation(tp, bt, hnew(n), this%satomega)
      end if
      !
      ! -- storage coefficients
      sc1 = sscapacity(this%istor_coef, tp, bt, this%dis%area(n), this%ss(n))
      rho1 = sc1 * tled
      !
      if (this%integratechanges /= 0) then
        ! -- Integration of storage changes (e.g. when using TVS):
        !    separate the old (start of time step) and new (end of time step)
        !    primary storage capacities
        sc1old = sscapacity(this%istor_coef, tp, bt, this%dis%area(n), &
                            this%oldss(n))
        rho1old = sc1old * tled
      else
        ! -- No integration of storage changes: old and new values are
        !    identical => normal MF6 storage formulation
        rho1old = rho1
      end if
      !
      ! -- calculate specific storage terms
      call ssterms(this%iconvert(n), this%iorig_ss, this%iconf_ss, tp, bt, &
                   rho1, rho1old, snnew, snold, hnew(n), hold(n), &
                   aterm, rhsterm)
      !
      ! -- add specific storage terms to amat and rhs
      call matrix_sln%add_value_pos(idxglo(idiag), aterm)
      rhs(n) = rhs(n) + rhsterm
      !
      ! -- specific yield
      if (this%iconvert(n) /= 0) then
        rhsterm = dzero
        !
        ! -- secondary storage coefficient
        sc2 = sycapacity(this%dis%area(n), this%sy(n))
        rho2 = sc2 * tled
        !
        if (this%integratechanges /= 0) then
          ! -- Integration of storage changes (e.g. when using TVS):
          !    separate the old (start of time step) and new (end of time step)
          !    secondary storage capacities
          sc2old = sycapacity(this%dis%area(n), this%oldsy(n))
          rho2old = sc2old * tled
        else
          ! -- No integration of storage changes: old and new values are
          !    identical => normal MF6 storage formulation
          rho2old = rho2
        end if
        !
        ! -- calculate specific storage terms
        call syterms(tp, bt, rho2, rho2old, snnew, snold, &
                     aterm, rhsterm)
!
        ! -- add specific yield terms to amat and rhs
        call matrix_sln%add_value_pos(idxglo(idiag), aterm)
        rhs(n) = rhs(n) + rhsterm
      end if
    end do

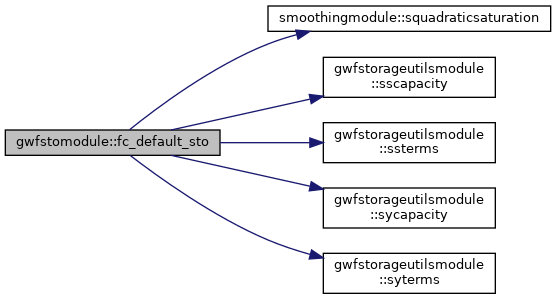

Here is the call graph for this function:

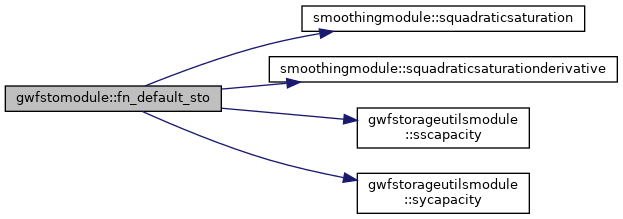

sto_fn()

subroutine gwfstomodule::sto_fn	(	class(gwfstotype)	this,
		integer(i4b), intent(in)	kiter,
		real(dp), dimension(:), intent(in)	hold,
		real(dp), dimension(:), intent(in)	hnew,
		class(matrixbasetype), pointer	matrix_sln,
		integer(i4b), dimension(:), intent(in)	idxglo,
		real(dp), dimension(:), intent(inout)	rhs
	)

Fill the coefficient matrix and right-hand side with STO package with Newton-Raphson terms.

Parameters

	this	GwfStoType object
[in]	kiter	outer iteration number
[in]	hold	previous heads
[in]	hnew	current heads
	matrix_sln	A matrix
[in]	idxglo	global index model to solution
[in,out]	rhs	right-hand side

Definition at line 352 of file gwf-sto.f90.

    ! -- modules
    use tdismodule, only: delt
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    integer(I4B), intent(in) :: kiter !< outer iteration number
    real(DP), intent(in), dimension(:) :: hold !< previous heads
    real(DP), intent(in), dimension(:) :: hnew !< current heads
    class(MatrixBaseType), pointer :: matrix_sln !< A matrix
    integer(I4B), intent(in), dimension(:) :: idxglo !< global index model to solution
    real(DP), intent(inout), dimension(:) :: rhs !< right-hand side
    ! -- local variables
    integer(I4B) :: n
    integer(I4B) :: idiag
    real(DP) :: tled
    real(DP) :: sc1
    real(DP) :: sc2
    real(DP) :: rho1
    real(DP) :: rho2
    real(DP) :: tp
    real(DP) :: bt
    real(DP) :: tthk
    real(DP) :: h
    real(DP) :: snnew
    real(DP) :: derv
    real(DP) :: rterm
    real(DP) :: drterm
    !
    ! -- test if steady-state stress period
    if (this%iss /= 0) return
    !
    ! -- set variables
    tled = done / delt
    !
    ! -- loop through and calculate storage contribution to hcof and rhs
    do n = 1, this%dis%nodes
      idiag = this%dis%con%ia(n)
      if (this%ibound(n) <= 0) cycle
      !
      ! -- aquifer elevations and thickness
      tp = this%dis%top(n)
      bt = this%dis%bot(n)
      tthk = tp - bt
      h = hnew(n)
      !
      ! -- aquifer saturation
      snnew = squadraticsaturation(tp, bt, h)
      !
      ! -- storage coefficients
      sc1 = sscapacity(this%istor_coef, tp, bt, this%dis%area(n), this%ss(n))
      sc2 = sycapacity(this%dis%area(n), this%sy(n))
      rho1 = sc1 * tled
      rho2 = sc2 * tled
      !
      ! -- calculate newton terms for specific storage
      !    and specific yield
      if (this%iconvert(n) /= 0) then
        !
        ! -- calculate saturation derivative
        derv = squadraticsaturationderivative(tp, bt, h)
        !
        ! -- newton terms for specific storage
        if (this%iconf_ss == 0) then
          if (this%iorig_ss == 0) then
            drterm = -rho1 * derv * (h - bt) + rho1 * tthk * snnew * derv
          else
            drterm = -(rho1 * derv * h)
          end if
          call matrix_sln%add_value_pos(idxglo(idiag), drterm)
          rhs(n) = rhs(n) + drterm * h
        end if
        !
        ! -- newton terms for specific yield
        !    only calculated if the current saturation
        !    is less than one
        if (snnew < done) then
          ! -- calculate newton terms for specific yield
          if (snnew > dzero) then
            rterm = -rho2 * tthk * snnew
            drterm = -rho2 * tthk * derv
            call matrix_sln%add_value_pos(idxglo(idiag), drterm + rho2)
            rhs(n) = rhs(n) - rterm + drterm * h + rho2 * bt
          end if
        end if
      end if
    end do

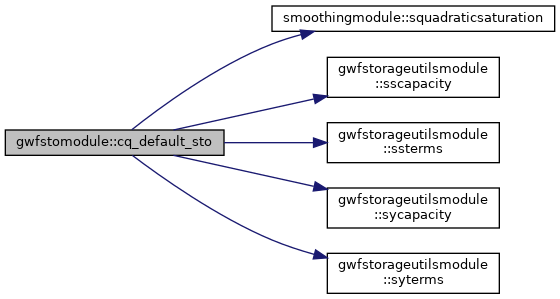

Here is the call graph for this function:

sto_rp()

subroutine gwfstomodule::sto_rp

(

class(gwfstotype)

this

)

Method to read and prepare stress period data for the STO package.

Parameters

this	GwfStoType object

Definition at line 150 of file gwf-sto.f90.

    ! -- modules
    use tdismodule, only: kper
    implicit none
    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    ! -- local variables
    character(len=16) :: css(0:1)
    ! -- data
    data css(0)/'       TRANSIENT'/
    data css(1)/'    STEADY-STATE'/
    !
    ! -- Store ss and sy values from end of last stress period if needed
    if (this%integratechanges /= 0) then
      call this%save_old_ss_sy()
    end if
    !
    ! -- confirm package is active
    if (this%inunit <= 0) return
    !
    ! -- confirm loaded iper
    if (this%iper /= kper) return
    !
    write (this%iout, '(//,1x,a)') 'PROCESSING STORAGE PERIOD DATA'
    !
    ! -- set period iss
    if (this%storage == 'STEADY-STATE') then
      this%iss = 1
    else if (this%storage == 'TRANSIENT') then
      this%iss = 0
    else
      write (errmsg, '(a,a)') 'Unknown STORAGE data tag: ', &
        trim(this%storage)
      call store_error(errmsg)
      call store_error_filename(this%input_fname)
    end if
    !
    write (this%iout, '(1x,a)') 'END PROCESSING STORAGE PERIOD DATA'
    !
    write (this%iout, '(//1X,A,I0,A,A,/)') &
      'STRESS PERIOD ', kper, ' IS ', trim(adjustl(css(this%iss)))
    !
    ! -- TVS
    if (this%intvs /= 0) then
      call this%tvs%rp()
    end if

Here is the call graph for this function:

sto_save_model_flows()

subroutine gwfstomodule::sto_save_model_flows	(	class(gwfstotype)	this,
		integer(i4b), intent(in)	icbcfl,
		integer(i4b), intent(in)	icbcun
	)

Save cell-by-cell budget terms for the STO package.

Parameters

	this	GwfStoType object
[in]	icbcfl	flag to output budget data
[in]	icbcun	cell-by-cell file unit number

Definition at line 601 of file gwf-sto.f90.

    ! -- dummy variables
    class(GwfStoType) :: this !< GwfStoType object
    integer(I4B), intent(in) :: icbcfl !< flag to output budget data
    integer(I4B), intent(in) :: icbcun !< cell-by-cell file unit number
    ! -- local variables
    integer(I4B) :: ibinun
    integer(I4B) :: iprint, nvaluesp, nwidthp
    character(len=1) :: cdatafmp = ' ', editdesc = ' '
    real(DP) :: dinact
    !
    ! -- Set unit number for binary output
    if (this%ipakcb < 0) then
      ibinun = icbcun
    elseif (this%ipakcb == 0) then
      ibinun = 0
    else
      ibinun = this%ipakcb
    end if
    if (icbcfl == 0) ibinun = 0
    !
    ! -- Record the storage rates if requested
    if (ibinun /= 0) then
      iprint = 0
      dinact = dzero
      !
      ! -- storage(ss)
      call this%dis%record_array(this%strgss, this%iout, iprint, -ibinun, &
                                 budtxt(1), cdatafmp, nvaluesp, &
                                 nwidthp, editdesc, dinact)
      !
      ! -- storage(sy)
      if (this%iusesy == 1) then
        call this%dis%record_array(this%strgsy, this%iout, iprint, -ibinun, &
                                   budtxt(2), cdatafmp, nvaluesp, &
                                   nwidthp, editdesc, dinact)
      end if
    end if

Variable Documentation

budtxt

character(len=lenbudtxt), dimension(2) gwfstomodule::budtxt = [' STO-SS', ' STO-SY']

Definition at line 27 of file gwf-sto.f90.

  character(len=LENBUDTXT), dimension(2) :: budtxt = & !< text labels for budget terms
    &['          STO-SS', '          STO-SY']
