mf6filesettingloadmodule Module Reference

This module contains the Mf6FileSettingLoadModule. More...

Data Types

type  idtptrtype
 Pointer type for read state variable. More...
type  settingloadtype
 Setting package loader. More...

Functions/Subroutines

subroutine settingload_init (this, mf6_input, component_name, component_input_name, input_name, iperblock, parser, iout)
subroutine df (this)
subroutine rp (this, parser)
subroutine reset (this)
integer(i4b) function set_leading_idts (this)
integer(i4b) function set_idts (this)
integer(i4b) function set_oc_idts (this)
subroutine destroy (this)

Detailed Description

This module contains the routines for reading a dfn setting with multiple tokens into a single CharacterStringType array using the StructArrayType.

Preceding param columns can be configured per package (e.g. OC)

Function/Subroutine Documentation

◆ destroy()

subroutine mf6filesettingloadmodule::destroy ( class(settingloadtype), intent(inout) this)
private

Definition at line 225 of file Mf6FileSetting.f90.

227 class(SettingLoadType), intent(inout) :: this
228 integer(I4B) :: icol
229
230 if (associated(this%structarray)) then
231 ! destroy the structured array reader
232 call destructstructarray(this%structarray)
233 end if
234
235 do icol = 1, size(this%idts)
236 !deallocate (this%idts(icol)%idt)
237 nullify (this%idts(icol)%idt)
238 end do
239
240 if (allocated(this%idts)) deallocate (this%idts)
241
242 call this%DynamicPkgLoadType%destroy()
Here is the call graph for this function:

◆ df()

subroutine mf6filesettingloadmodule::df ( class(settingloadtype), intent(inout) this)
private

Definition at line 91 of file Mf6FileSetting.f90.

92 class(SettingLoadType), intent(inout) :: this

◆ reset()

subroutine mf6filesettingloadmodule::reset ( class(settingloadtype), intent(inout) this)
private

Definition at line 108 of file Mf6FileSetting.f90.

109 class(SettingLoadType), intent(inout) :: this
110 integer(I4B) :: icol
111
112 if (associated(this%structarray)) then
113 ! destroy the structured array reader
114 call destructstructarray(this%structarray)
115 end if
116
117 ! construct and set up the struct array object
118 this%structarray => constructstructarray(this%mf6_input, size(this%idts), &
119 -1, 0, this%mf6_input%mempath, &
120 this%mf6_input%component_mempath)
121 ! set up struct array
122 do icol = 1, size(this%idts)
123 ! allocate variable in memory manager
124 call this%structarray%mem_create_vector(icol, this%idts(icol)%idt)
125 end do

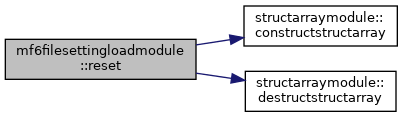

Here is the call graph for this function:

◆ rp()

subroutine mf6filesettingloadmodule::rp ( class(settingloadtype), intent(inout) this,
type(blockparsertype), intent(inout), pointer parser )
private

Definition at line 95 of file Mf6FileSetting.f90.

96 class(SettingLoadType), intent(inout) :: this
97 type(BlockParserType), pointer, intent(inout) :: parser
98
99 ! recreate structarray for period load
100 call this%reset()
101
102 ! read from ascii
103 this%ctx%nbound = &
104 this%structarray%read_from_parser(parser, .false., this%iout, &
105 this%input_name)

◆ set_idts()

integer(i4b) function mf6filesettingloadmodule::set_idts ( class(settingloadtype), intent(inout) this)
private

Definition at line 147 of file Mf6FileSetting.f90.

152 class(SettingLoadType), intent(inout) :: this
153 integer(I4B) :: nset
154 type(InputParamDefinitionType), pointer :: aidt, idt
155 character(len=LINELENGTH), dimension(:), allocatable :: cols
156 integer(I4B) :: nparam, iparam, ip, ilen
157
158 nset = 0
159
160 aidt => &
161 get_aggregate_definition_type(this%mf6_input%aggregate_dfns, &
162 this%mf6_input%component_type, &
163 this%mf6_input%subcomponent_type, &
164 'PERIOD')
165
166 call idt_parse_rectype(aidt, cols, nparam)
167
168 ! allocate idts
169 ilen = len_trim(cols(nparam))
170 if (cols(nparam) (ilen - 6:ilen) == 'SETTING') then
171 allocate (this%idts(nparam))
172 nset = nparam - 1
173 else
174 call store_error('Internal IDM error: trailing setting param not found')
175 call store_error_filename(this%input_name)
176 end if
177
178 ! set leading idts
179 do iparam = 1, nset
180 do ip = 1, size(this%mf6_input%param_dfns)
181 idt => this%mf6_input%param_dfns(ip)
182 if (idt%tagname == cols(iparam)) then
183 this%idts(iparam)%idt => idt
184 end if
185 end do
186 end do
187
188 if (allocated(cols)) deallocate (cols)
189 return
This module contains the DefinitionSelectModule.
type(inputparamdefinitiontype) function, pointer, public get_aggregate_definition_type(input_definition_types, component_type, subcomponent_type, blockname)
Return aggregate definition.
subroutine, public idt_parse_rectype(idt, cols, ncol)
allocate and set RECARRAY, KEYSTRING or RECORD param list
Input definition module.
This module contains simulation methods.
Definition Sim.f90:10
subroutine, public store_error(msg, terminate)
Store an error message.
Definition Sim.f90:94
subroutine, public store_error_filename(filename, terminate)
Store the erroring file name.
Definition Sim.f90:208
Input parameter definition. Describes an input parameter.

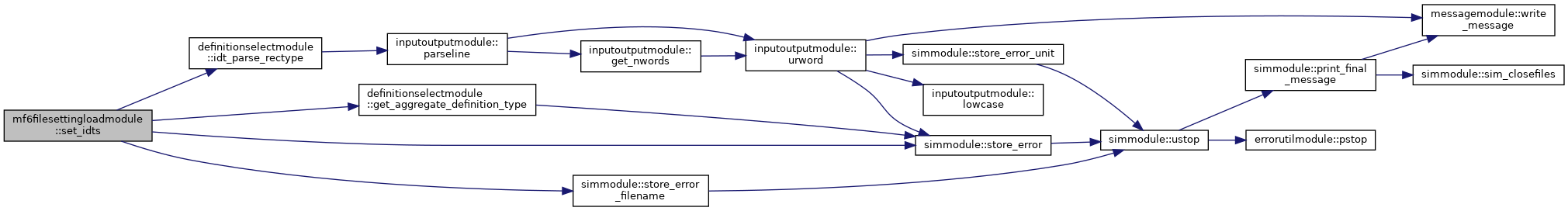

Here is the call graph for this function:

◆ set_leading_idts()

integer(i4b) function mf6filesettingloadmodule::set_leading_idts ( class(settingloadtype), intent(inout) this)
private

Definition at line 128 of file Mf6FileSetting.f90.

129 class(SettingLoadType), intent(inout) :: this
130 integer(I4B) :: nset
131
132 ! This loader is intended to be generic for LIST based dynamic input that
133 ! includes any number of columns preceding a final keystring type
134 ! setting column. This routine handles exception cases. OC, for example,
135 ! which could adhere to this format however changes to the dfn to make it
136 ! so would introduce breaking changes to existing FloPy3 user scripts.
137
138 ! set leading idts
139 select case (this%mf6_input%subcomponent_type)
140 case ('OC')
141 nset = this%set_oc_idts()
142 case default
143 nset = this%set_idts()
144 end select

◆ set_oc_idts()

integer(i4b) function mf6filesettingloadmodule::set_oc_idts ( class(settingloadtype), intent(inout) this)
private

Definition at line 192 of file Mf6FileSetting.f90.

195 class(SettingLoadType), intent(inout) :: this
196 integer(I4B) :: nset
197 type(InputParamDefinitionType), pointer :: idt, idt_ocaction
198 integer(I4B) :: nparam, ip
199
200 ! generalize first kw field to a string
201 idt_ocaction => &
202 idt_default(this%mf6_input%component_type, &
203 this%mf6_input%subcomponent_type, &
204 'PERIOD', 'OCACTION', 'OCACTION', 'STRING')
205
206 ! set 2 leading params
207 nset = 2
208
209 ! allocate for 3 including ocsetting
210 nparam = nset + 1
211 allocate (this%idts(nparam))
212
213 ! first generalized idt
214 this%idts(1)%idt => idt_ocaction
215
216 ! set rtype idt
217 do ip = 1, size(this%mf6_input%param_dfns)
218 idt => this%mf6_input%param_dfns(ip)
219 if (idt%tagname == 'RTYPE') then
220 this%idts(2)%idt => idt
221 end if
222 end do
type(inputparamdefinitiontype) function, pointer, public idt_default(component_type, subcomponent_type, blockname, tagname, mf6varname, datatype)
return allocated input definition type
Here is the call graph for this function:

◆ settingload_init()

subroutine mf6filesettingloadmodule::settingload_init ( class(settingloadtype), intent(inout) this,
type(modflowinputtype), intent(in) mf6_input,
character(len=*), intent(in) component_name,
character(len=*), intent(in) component_input_name,
character(len=*), intent(in) input_name,
integer(i4b), intent(in) iperblock,
type(blockparsertype), intent(inout), pointer parser,
integer(i4b), intent(in) iout )

Definition at line 52 of file Mf6FileSetting.f90.

57 class(SettingLoadType), intent(inout) :: this
58 type(ModflowInputType), intent(in) :: mf6_input
59 character(len=*), intent(in) :: component_name
60 character(len=*), intent(in) :: component_input_name
61 character(len=*), intent(in) :: input_name
62 integer(I4B), intent(in) :: iperblock
63 type(BlockParserType), pointer, intent(inout) :: parser
64 integer(I4B), intent(in) :: iout
65 type(LoadMf6FileType) :: loader
66 integer(I4B) :: icol, numset
67
68 ! init loader
69 call this%DynamicPkgLoadType%init(mf6_input, component_name, &
70 component_input_name, input_name, &
71 iperblock, iout)
72 ! initialize static loader
73 call loader%load(parser, mf6_input, this%nc_vars, this%input_name, iout)
74
75 ! create and allocate load context
76 call this%ctx%init(mf6_input)
77 call this%ctx%allocate_arrays()
78
79 ! allocate idt arrays and set idts for leading cols
80 numset = this%set_leading_idts()
81 icol = numset + 1
82
83 ! set setting idt
84 this%idts(icol)%idt => &
85 idt_default(mf6_input%component_type, mf6_input%subcomponent_type, &
86 'PERIOD', 'SETTING', 'SETTING', 'STRING')
87 ! force all setting tokens to be read
88 this%idts(icol)%idt%shape = 'LINELENGTH'
This module contains the LoadMf6FileModule.
Static parser based input loader.
Here is the call graph for this function:
