leastsquaresgradientmodule::leastsquaresgradienttype Interface Referenceabstract

Weighted least-squares gradient method for structured and unstructured grids. More...

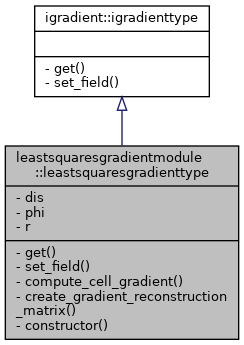

Inheritance diagram for leastsquaresgradientmodule::leastsquaresgradienttype:
Inheritance graph

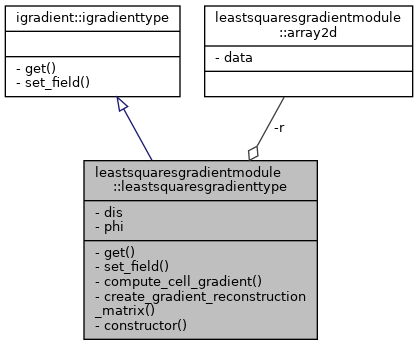

Collaboration diagram for leastsquaresgradientmodule::leastsquaresgradienttype:
Collaboration graph

Public Member Functions

procedure get (this, n)
procedure set_field (this, phi)
type(leastsquaresgradienttype) function constructor (dis)
procedure(get_if), deferred get (this, n)
procedure(set_field_if), deferred set_field (this, phi)

Public Attributes

class(disbasetype), pointer dis
real(dp), dimension(:), pointer phi
type(array2d), dimension(:), allocatable r

Private Member Functions

procedure, private compute_cell_gradient (this, n)
procedure, private create_gradient_reconstruction_matrix (this, n)

Detailed Description

This class implements a least-squares gradient reconstruction for use on both structured and unstructured grids. For each cell, it precomputes and caches a gradient reconstruction matrix using the Moore-Penrose pseudoinverse, based on the geometry and connectivity of the mesh. The operator is created once during initialization and can then be efficiently applied to any scalar field to compute the gradient in each cell. The gradient can then be computed by multiplying the reconstruction matrix with the difference vector. ∇ɸ = R * ∑(ɸ_i - ɸ_up), where i are the neighboring cells.

Usage:

  1. Create the gradient object with the discretization
  2. Set the scalar field using set_field(phi) where phi is the field for which gradients are computed
  3. Retrieve gradients for any cell using the get(n) method
  • The gradient operator is constructed using normalized direction vectors between cell centers, scaled by the inverse of the distance.
  • The least-squares approach ensures robust gradients even for irregular or rank-deficient stencils.
  • The operator is cached for each cell, so gradient computation is efficient for repeated queries.
  • The set_field method establishes a pointer to the scalar field data.
  • The get method computes the gradient for any cell using the current scalar field.
Note
Boundary cells are not handled in a special manner. This may impact the quality of the gradient near boundaries, especially if a cell does not have enough neighbors (fewer than three in 3D).

Definition at line 43 of file LeastSquaresGradient.f90.

Member Function/Subroutine Documentation

◆ compute_cell_gradient()

procedure, private leastsquaresgradientmodule::leastsquaresgradienttype::compute_cell_gradient ( class(leastsquaresgradienttype), target this,
integer(i4b), intent(in) n )
private

Definition at line 51 of file LeastSquaresGradient.f90.

◆ constructor()

type(leastsquaresgradienttype) function leastsquaresgradientmodule::leastsquaresgradienttype::constructor ( class(disbasetype), intent(in), pointer dis)

Definition at line 60 of file LeastSquaresGradient.f90.

61 ! --dummy
62 class(DisBaseType), pointer, intent(in) :: dis
63 !-- return
64 type(LeastSquaresGradientType) :: gradient
65 ! -- local
66 integer(I4B) :: n, nodes
67
68 gradient%dis => dis
69 nodes = dis%nodes
70
71 ! -- Compute the gradient rec
72 nodes = dis%nodes
73 allocate (gradient%R(dis%nodes))
74 do n = 1, nodes
75 gradient%R(n)%data = gradient%create_gradient_reconstruction_matrix(n)
76 end do

◆ create_gradient_reconstruction_matrix()

procedure, private leastsquaresgradientmodule::leastsquaresgradienttype::create_gradient_reconstruction_matrix ( class(leastsquaresgradienttype) this,
integer(i4b), intent(in) n )
private

Definition at line 52 of file LeastSquaresGradient.f90.

Here is the call graph for this function:

◆ get() [1/2]

procedure(get_if), deferred igradient::igradienttype::get ( class(igradienttype), target this,
integer(i4b), intent(in) n )
pure virtualinherited

Definition at line 17 of file IGradient.f90.

◆ get() [2/2]

procedure leastsquaresgradientmodule::leastsquaresgradienttype::get ( class(leastsquaresgradienttype), target this,
integer(i4b), intent(in) n )

Definition at line 48 of file LeastSquaresGradient.f90.

◆ set_field() [1/2]

procedure(set_field_if), deferred igradient::igradienttype::set_field ( class(igradienttype), target this,
real(dp), dimension(:), intent(in), pointer phi )
pure virtualinherited

Definition at line 18 of file IGradient.f90.

◆ set_field() [2/2]

procedure leastsquaresgradientmodule::leastsquaresgradienttype::set_field ( class(leastsquaresgradienttype), target this,
real(dp), dimension(:), intent(in), pointer phi )

Definition at line 49 of file LeastSquaresGradient.f90.

Member Data Documentation

◆ dis

class(disbasetype), pointer leastsquaresgradientmodule::leastsquaresgradienttype::dis

Definition at line 44 of file LeastSquaresGradient.f90.

44 class(DisBaseType), pointer :: dis

◆ phi

real(dp), dimension(:), pointer leastsquaresgradientmodule::leastsquaresgradienttype::phi

Definition at line 45 of file LeastSquaresGradient.f90.

45 real(DP), dimension(:), pointer :: phi

◆ r

type(array2d), dimension(:), allocatable leastsquaresgradientmodule::leastsquaresgradienttype::r

Definition at line 46 of file LeastSquaresGradient.f90.

46 type(Array2D), allocatable, dimension(:) :: R ! Gradient reconstruction matrix
